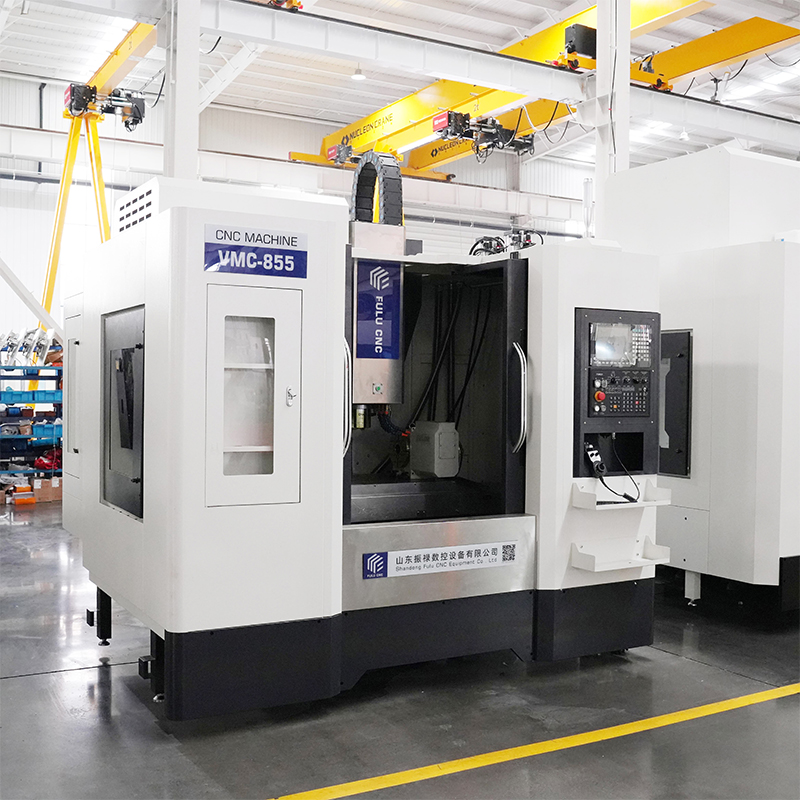

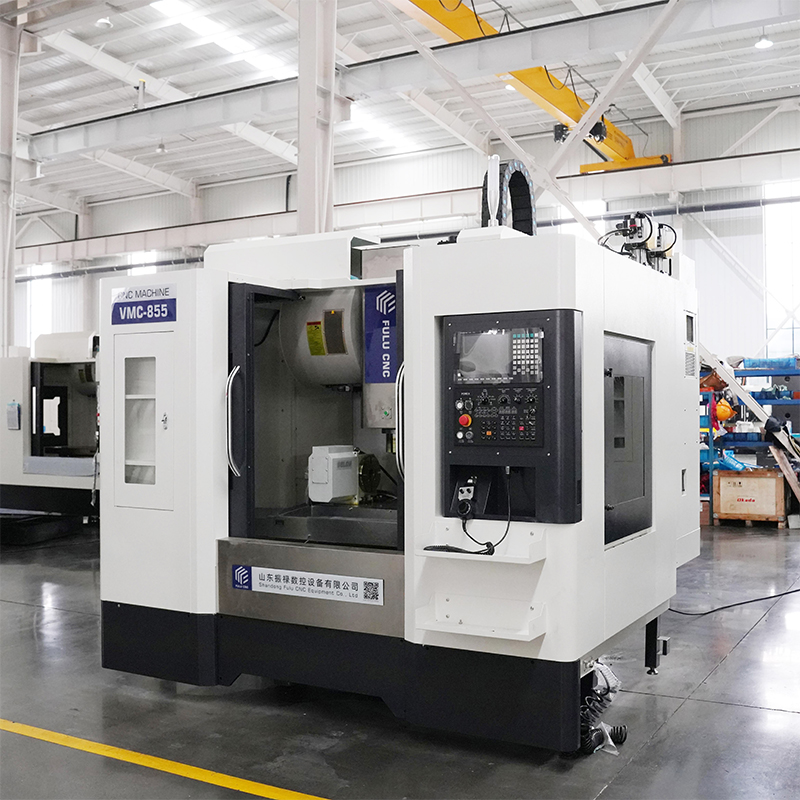

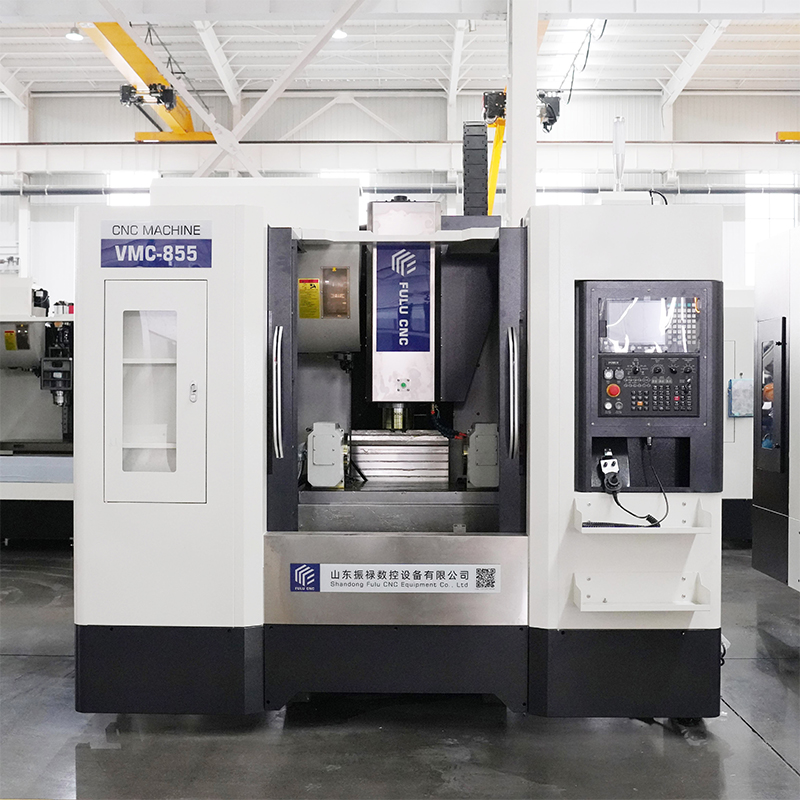

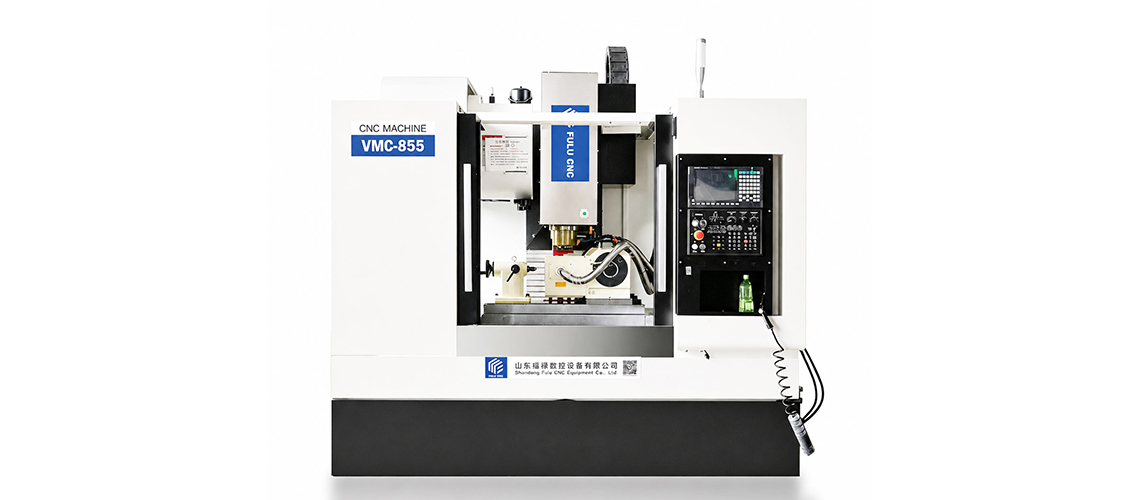

VMC855 Four-axis

CNC Lathe

Basic Parameters

Table size 1000×550mm, can clamp various specifications of workpieces.
Maximum spindle speed 8000rpm, meets high-speed and high-precision milling processing.
X/Y/Z axis travel 800/550/550mm, ample processing space.
Three-axis rapid movement speed 24m/min, effectively improves production efficiency.
High rigidity box structure design, ensures long-term stable processing accuracy.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Machine Model: VMC855	Unit	Specification
Table Size	mm	1000x550
X/Y/Z Axis Travel	mm	800/550/550
Distance from Spindle Face to Table	mm	120-670
Distance from Spindle Center to Column	mm	590
Maximum Load on Table	Kg	600
T-Slots on Table	mm	5-18x90
X/Y/Z Axis Rapid Feed	m/min	36/36/32
X/Y/Z Guide Rail Width Specification	mm	RGH35/45/45 Roller Linear Guide
X/Y/Z Screw Specification	mm	φ4016
Positioning Accuracy	mm	±0.008
Repeat Positioning Accuracy	mm	±0.006 /300
Minimum Positioning Unit	mm	±0.001
Four-Axis Accuracy	mm	≤0.01
Maximum Spindle Speed	rpm	8000 (Spindle Through Coolant)
Spindle Taper	mm	BT40-150

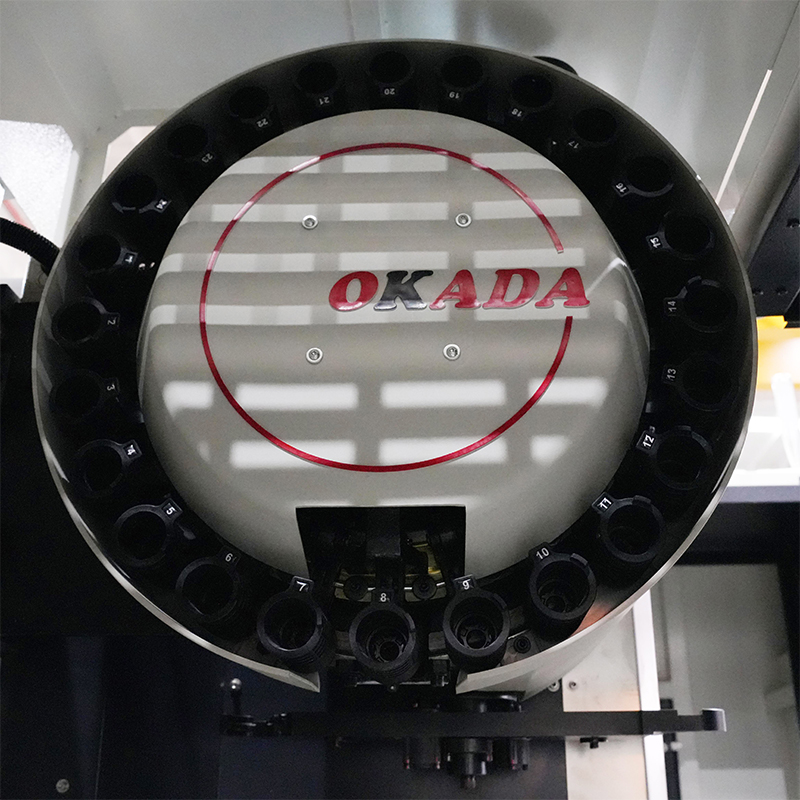

Disc Type Tool Magazine	pcs	24T
Controller System	/	GSK25i
X/Y/Z Axis Motor Power	Nm	15/15/22
Spindle Motor Power	Kw	11
Machine Weight Approximately	Kg	5000
Dimensions	mm	2600x2400x2650

◎GSK 980TB3i English System
◎Cutting Cooling System

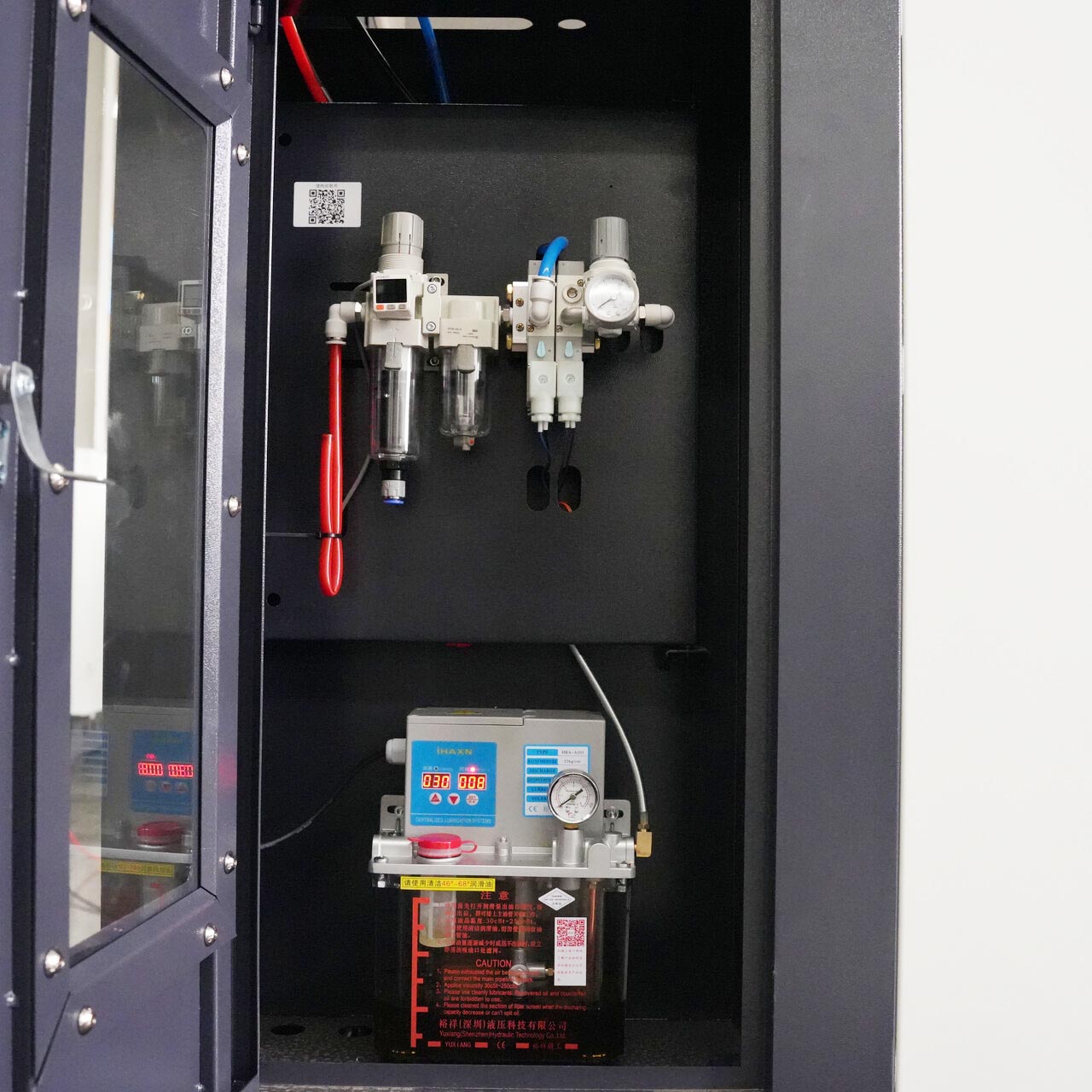

◎Automatic Lubrication System
◎Cutting Blowing Device
◎Spindle and Servo Overload System Protection
◎Three-color Alarm Light

◎Horizontal Adjustment Bolt and Pad

◎Electrical Box Heat Exchanger
◎Three-axis Screw Pre-tensioning Device
◎Program Storage
◎Spindle Ring Water Spray
◎Reserved for Adding Four-axis Interface

◎Internal Work Light

◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kaendi
◎10000, 12000rpm spindle speed
◎30kg/50kg/70kg central water outlet

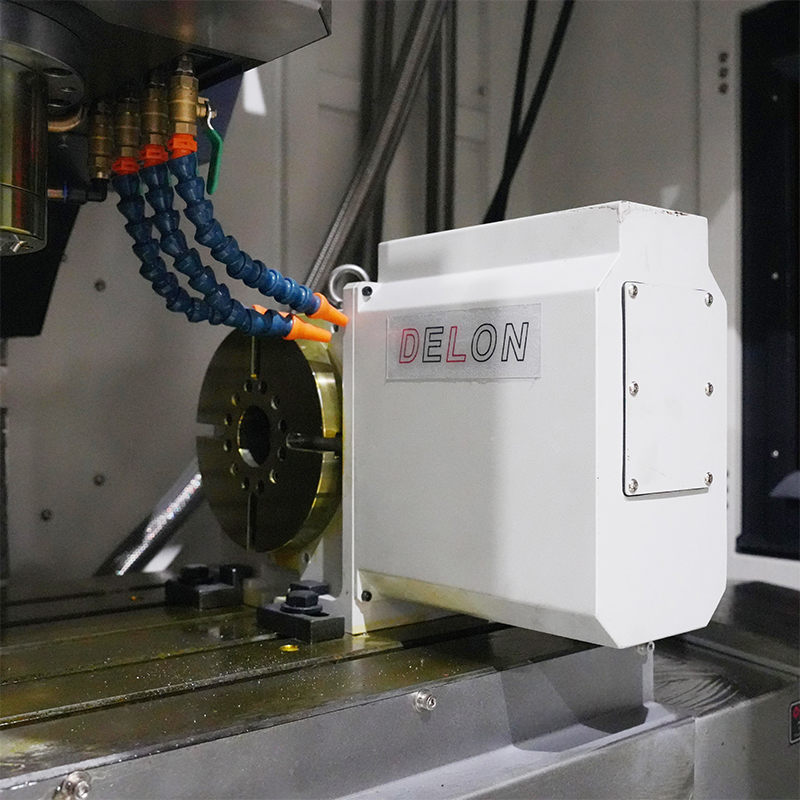

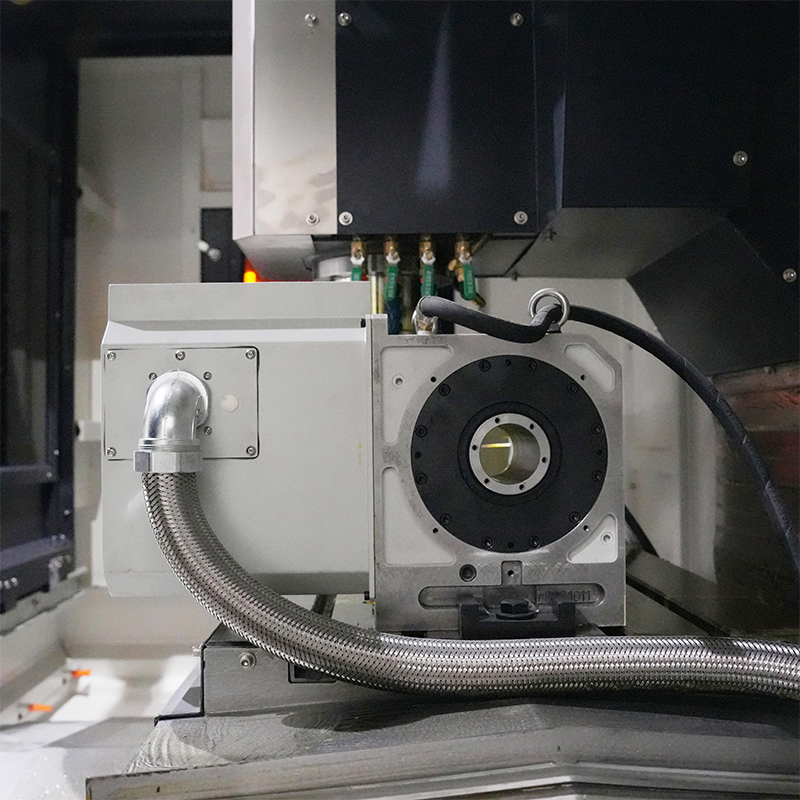

◎170/200/250/300mm fourth axis
◎125/170/210/250mm fifth axis
◎Chain-type chip conveyor
◎Renishaw tool setter

Learn More

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

24把圆盘刀库

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

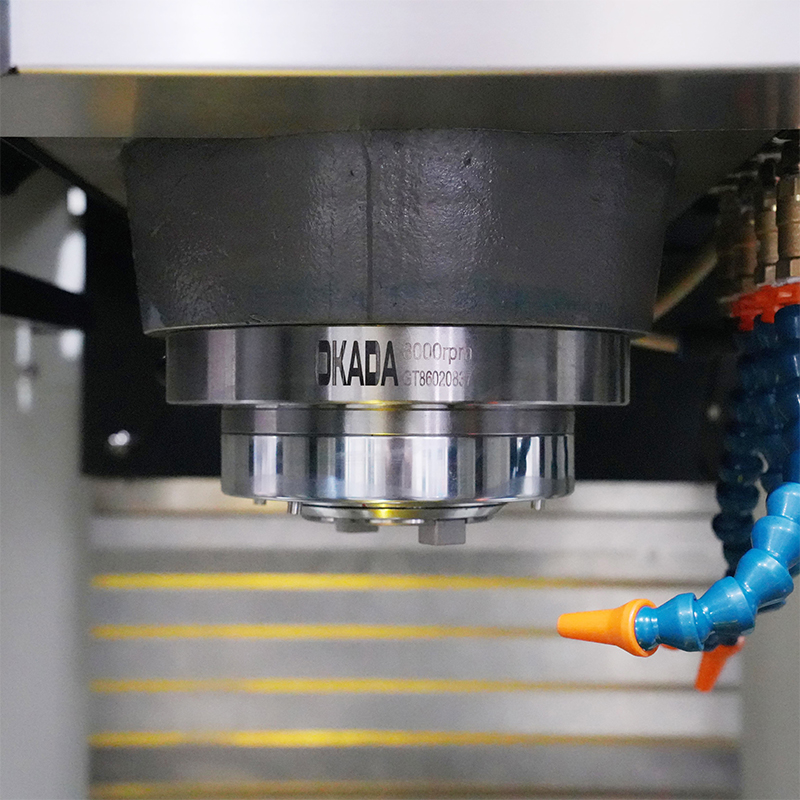

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
