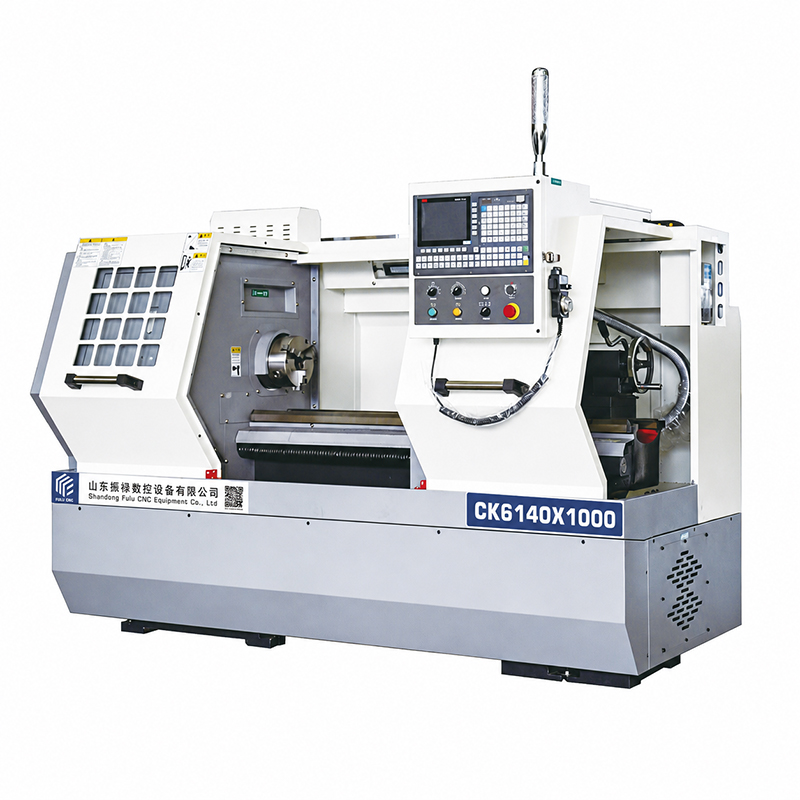

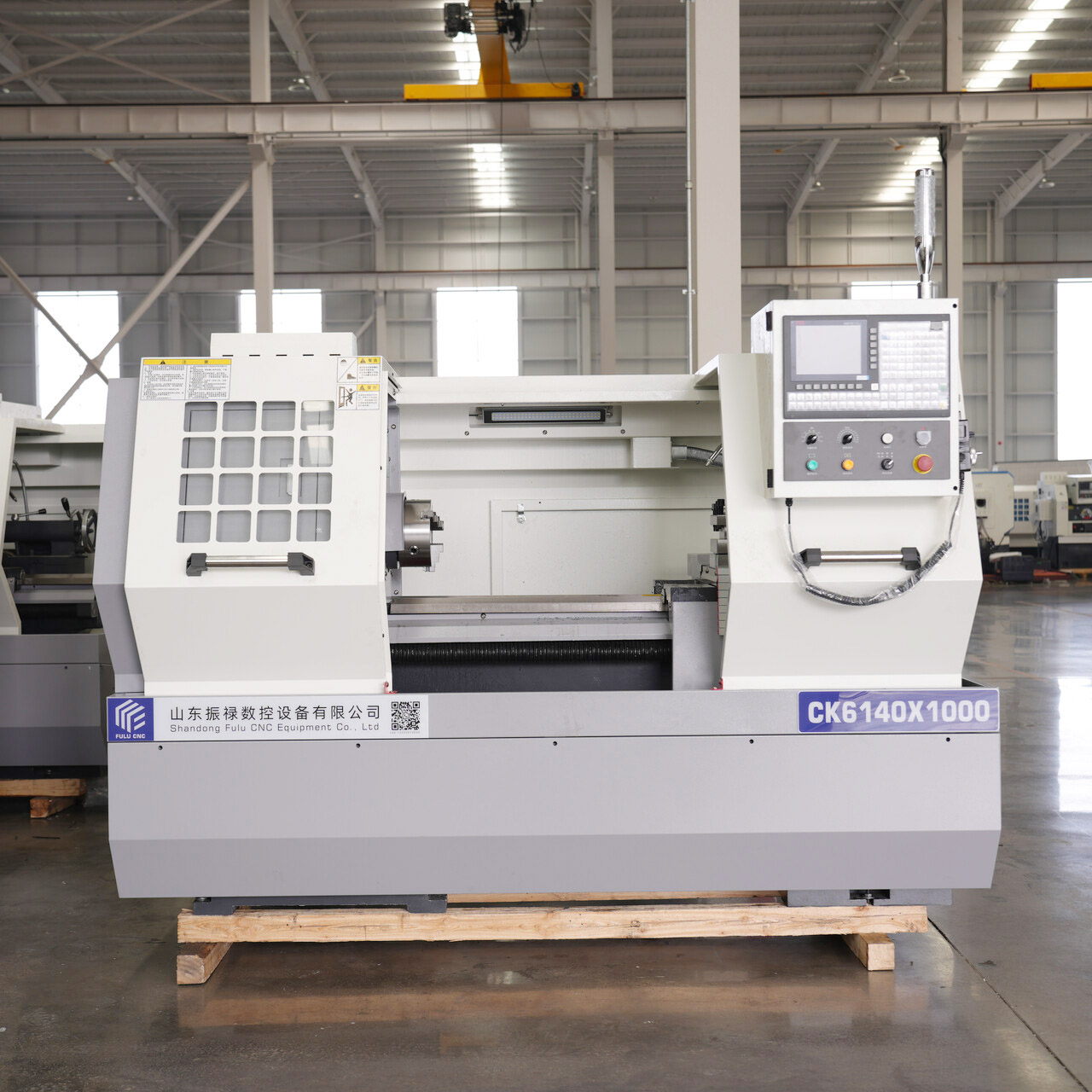

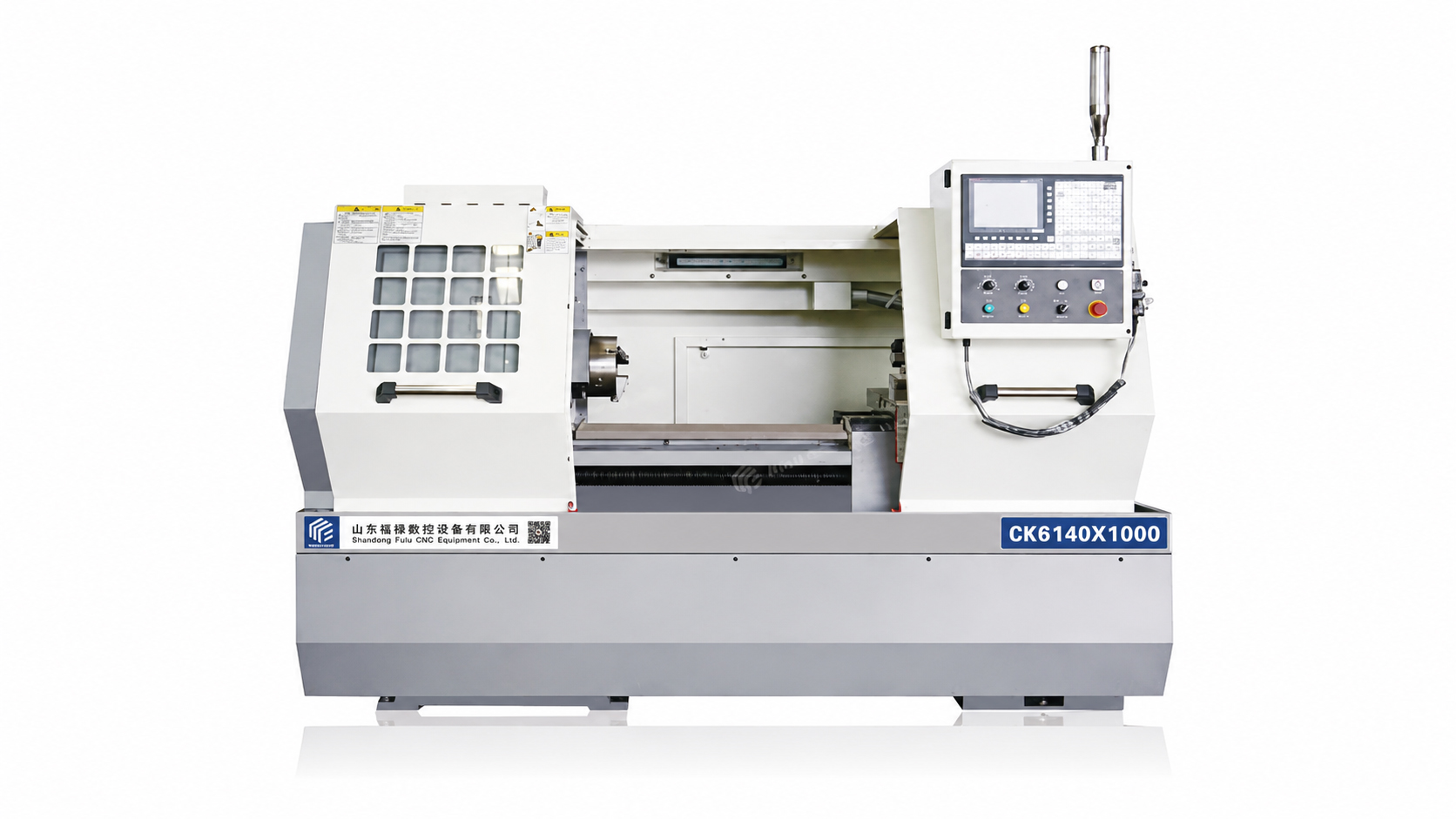

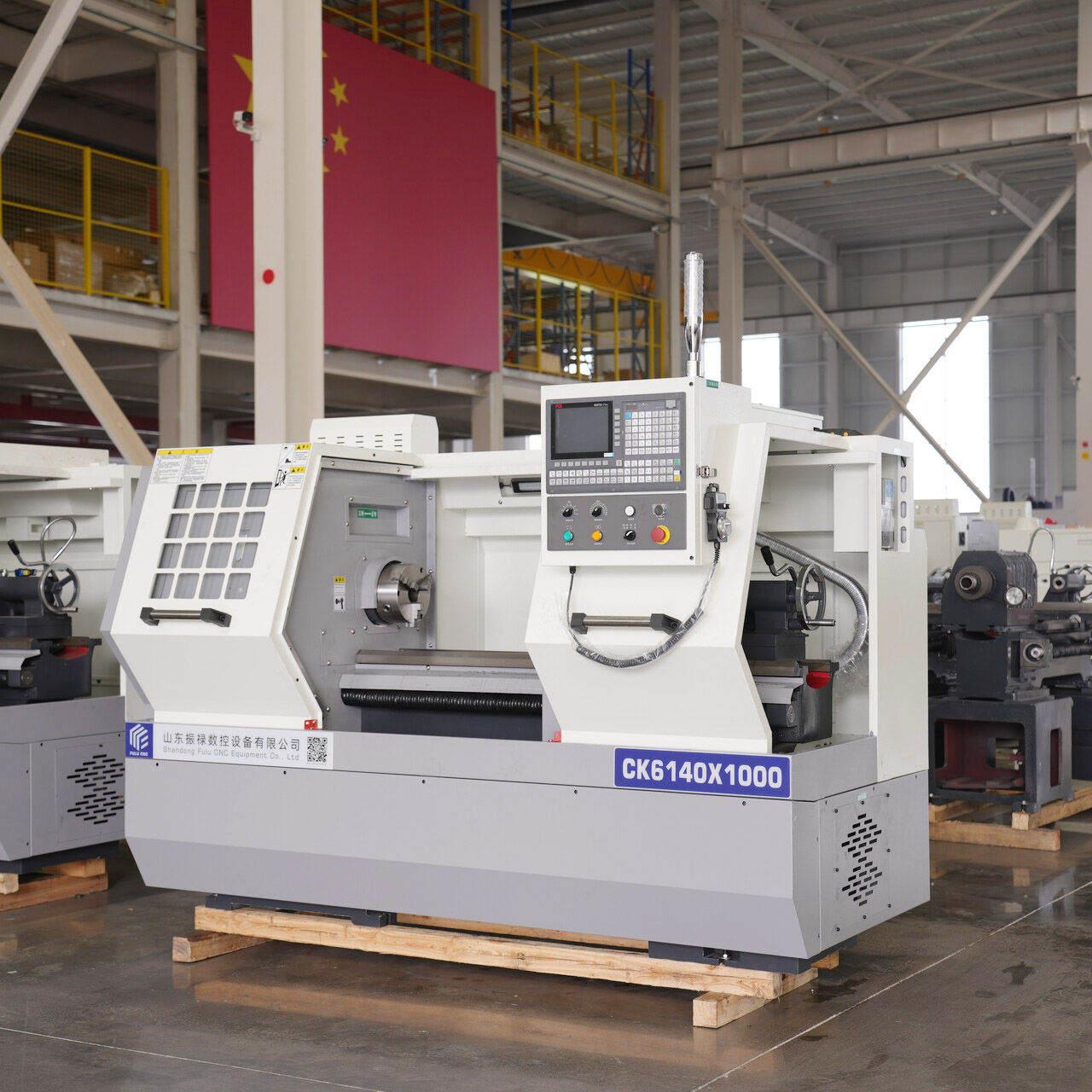

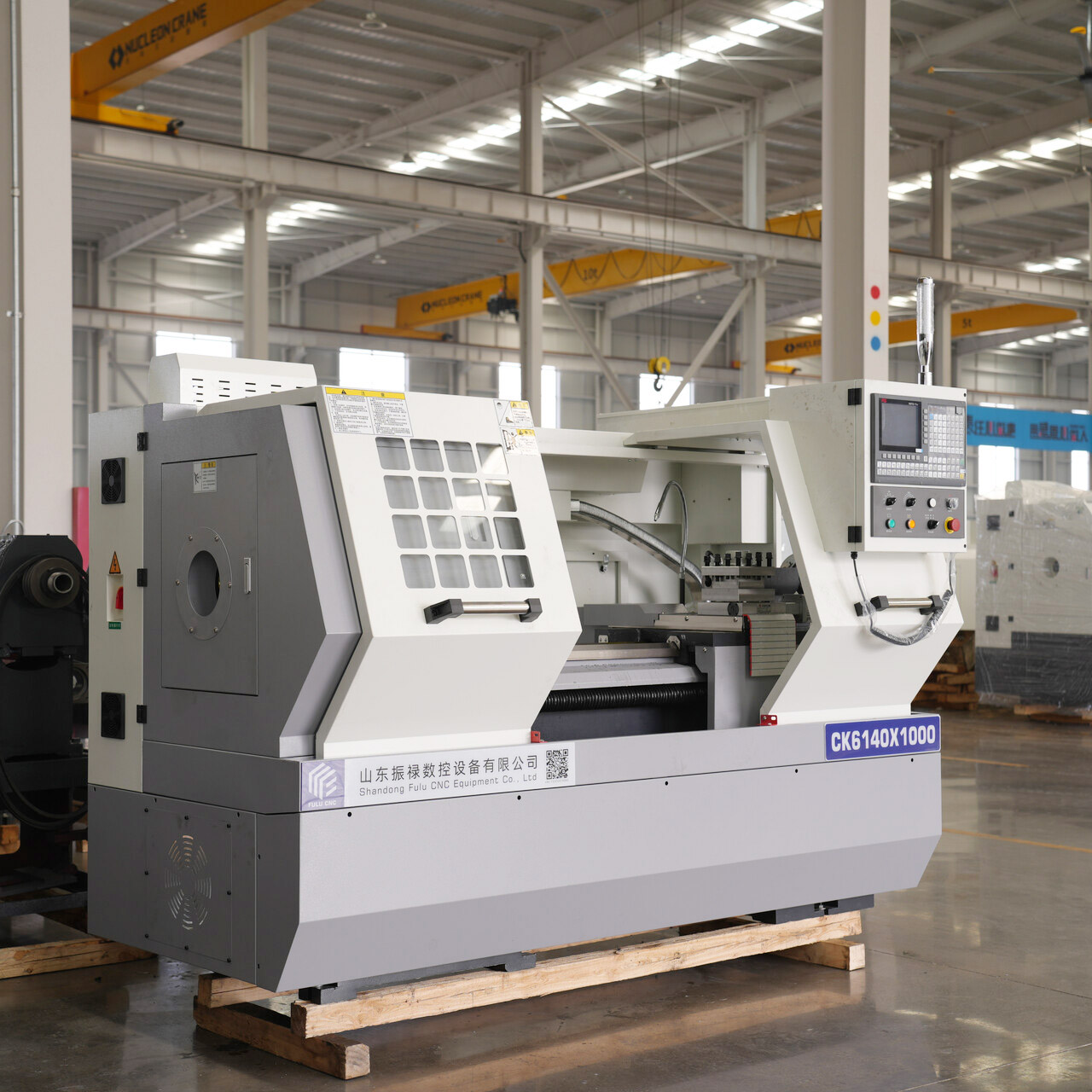

CK6140-1000

CNC Lathe

Basic Parameters

  • The maximum turning diameter on the bed is about 400mm, suitable for processing larger diameter workpieces.

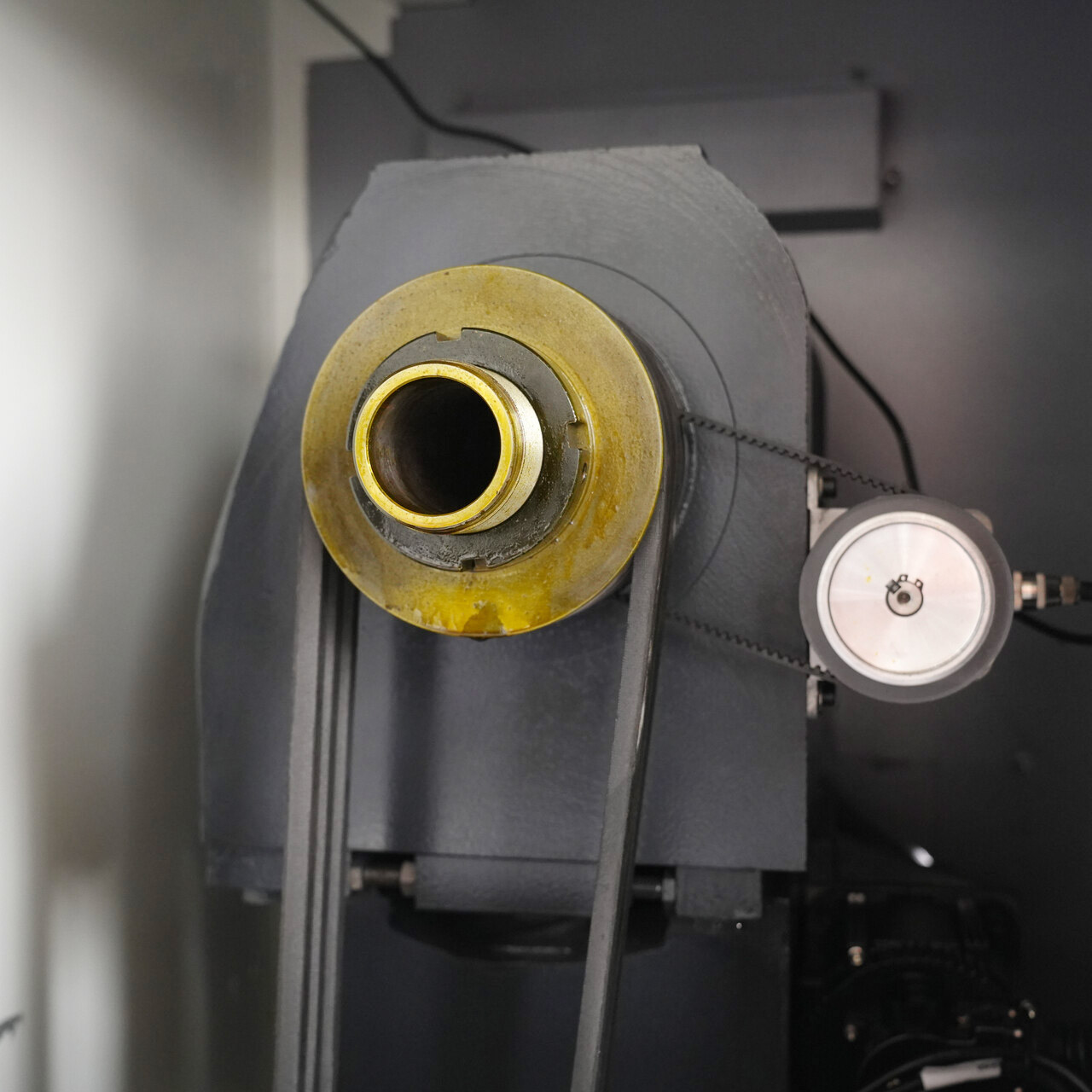

  • The spindle through hole diameter is 52mm, suitable for processing bar materials and medium to small shaft parts, with a wide range of applications.
  • The maximum processing length between the two centers is 1000mm, meeting the turning needs of long shaft workpieces.
  • The spindle speed range is 50～2200r/min, stepless speed regulation adapts to various cutting conditions.

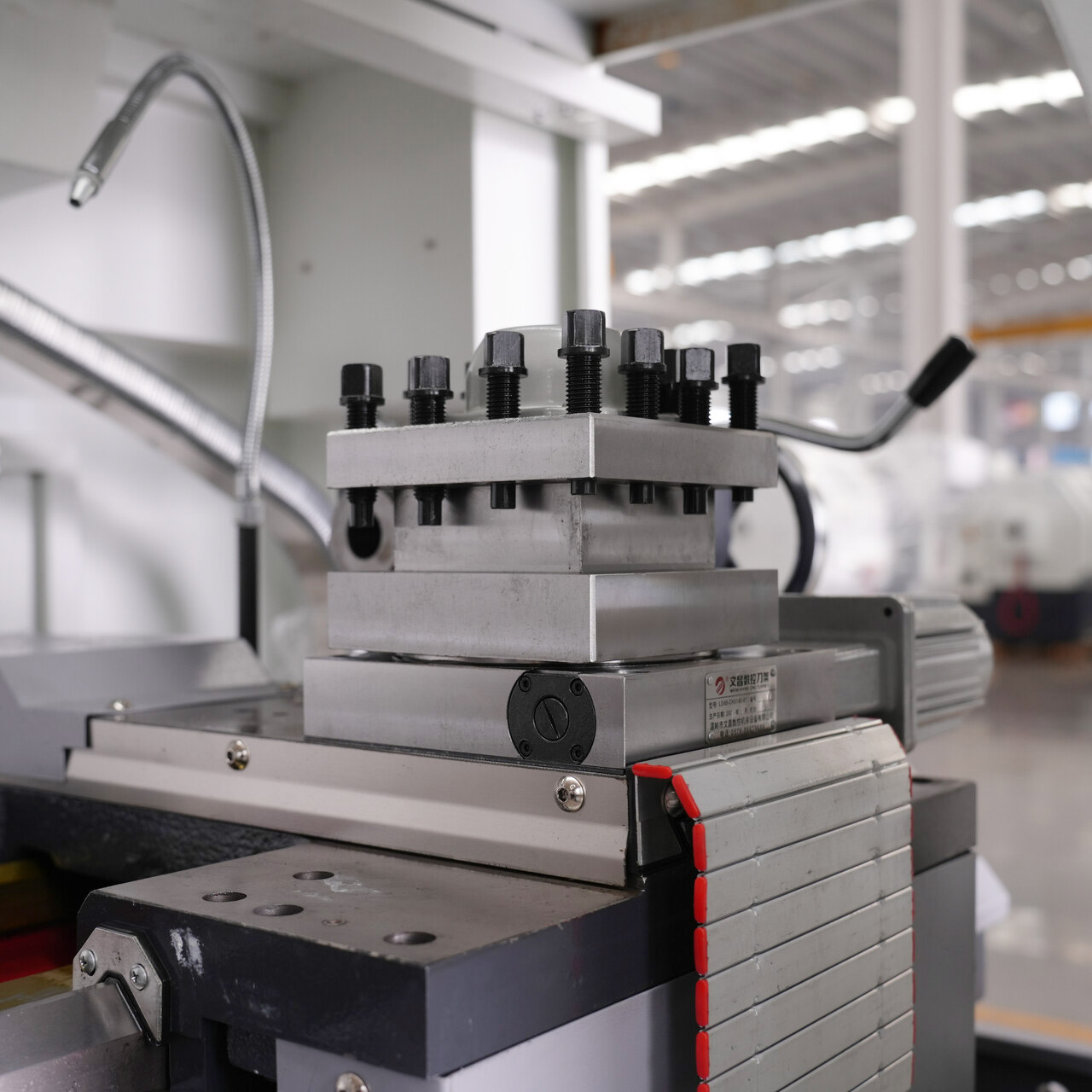

  • The machine uses a four-position electric tool holder, quick tool change, improving processing efficiency.
Contact Us

Contact the salesperson to receive the product catalog

* Company Name ：

Plsease input value

* Email ：

Error E-mail format

* Whats app ：

Error cellphone format

* Country ：

Plsease input value

* Equipment Requirements ：

Plsease input value

Video Display

Project (CK6140) Unit CK6140
Maximum turning diameter on bed slide mm Φ400
Maximum turning diameter on slide   Φ200
Maximum processing length mm 1000
Maximum processing diameter mm Φ400
Maximum bar diameter mm Φ200

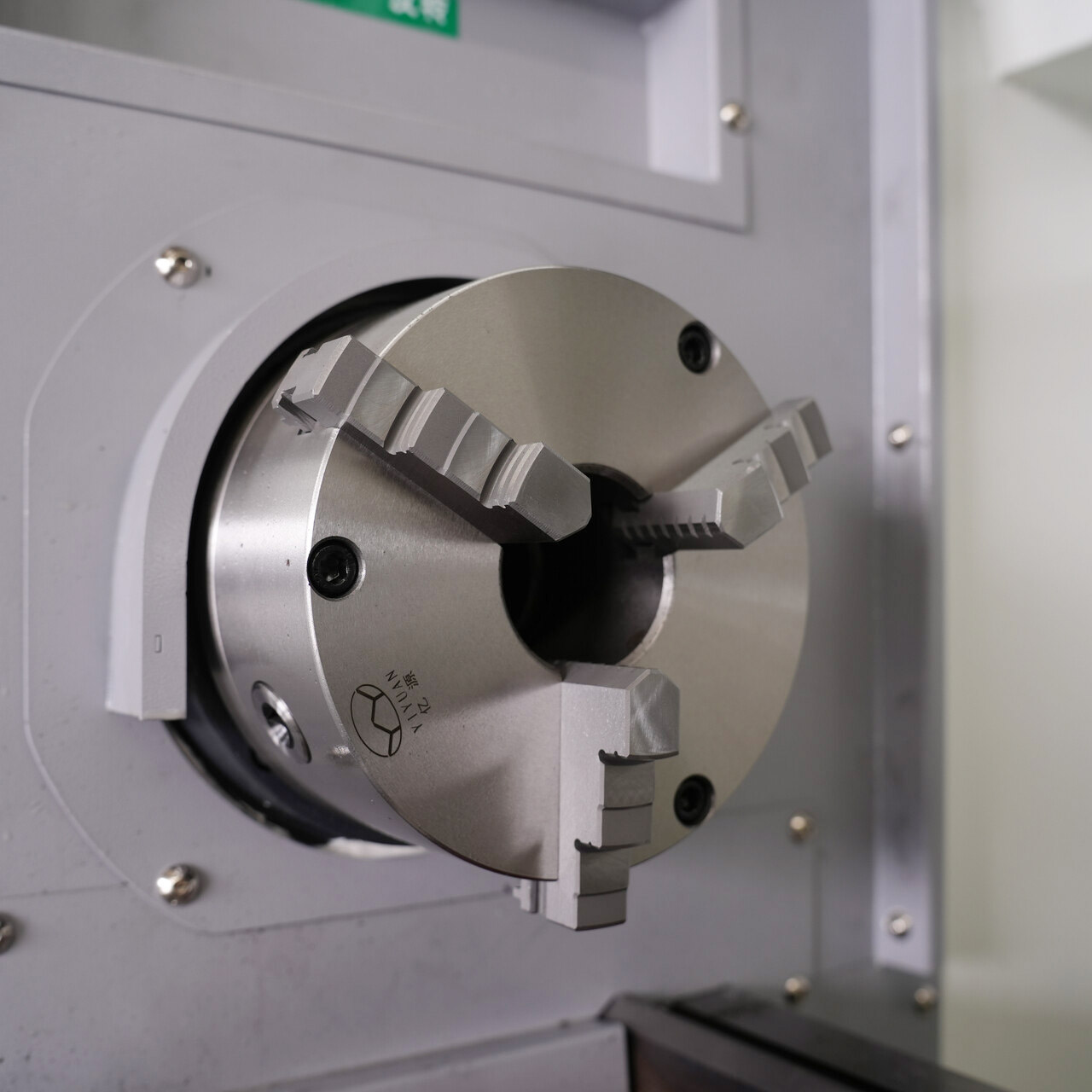

Chuck   200 three-jaw chuck
Spindle head type   ISO (GB)A2-6
Spindle through hole diameter mm Φ52
Spindle levels   Variable speed / two gears (frequency conversion within gears)
Spindle speed range r/min 10-1800/50-1600
X/Z axis travel mm 200/1000
X/Z axis screw diameter × pitch mm Φ20/φ40
X/Z rapid traverse speed m/min April 6
Tool holder type   Electric vertical
Number of stations   4
Tool holder size mm 20×20

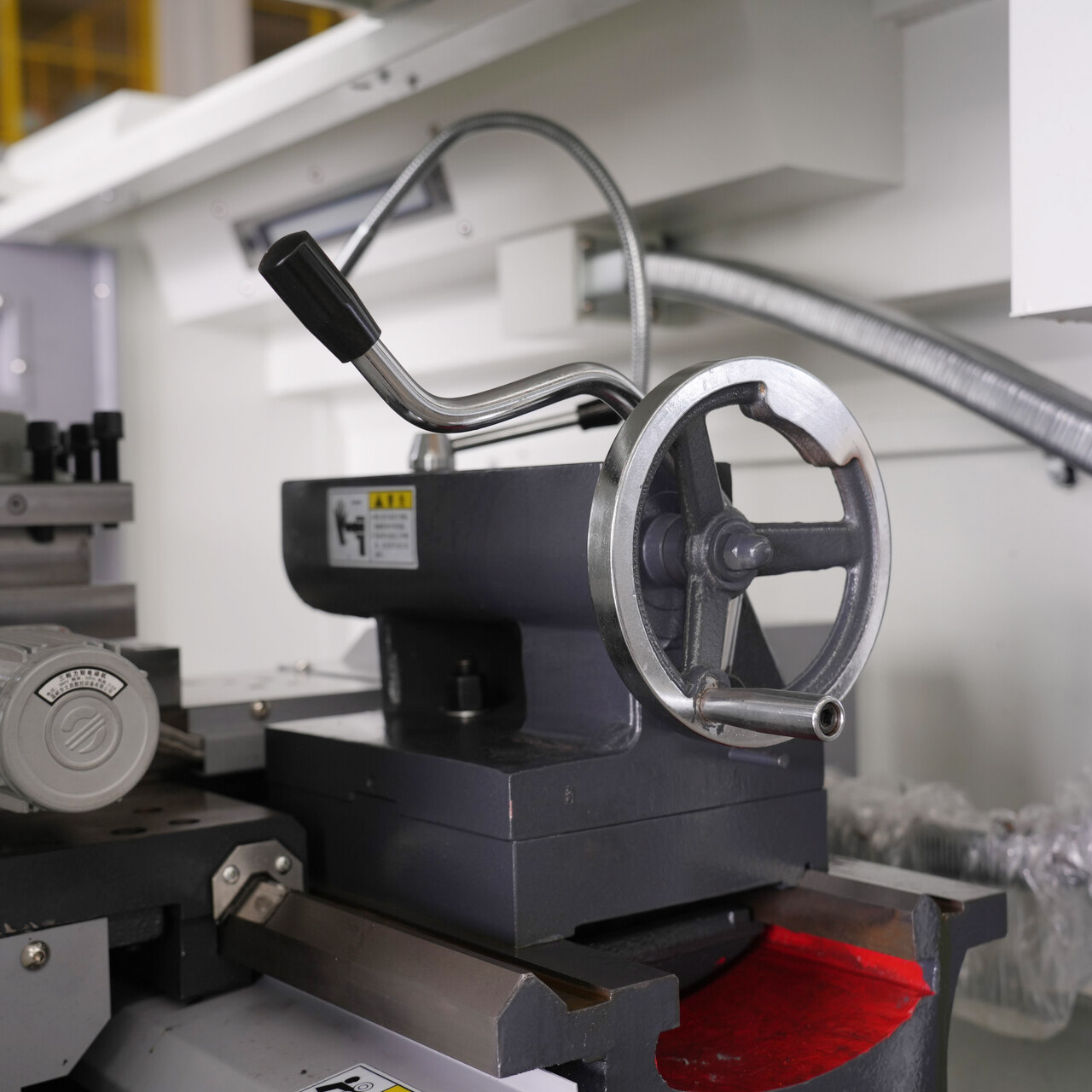

Sleeve diameter / stroke mm Φ65/100
Sleeve inner hole taper   MT4
Sleeve drive type   Manual
Tailstock body movement type   Manual
Spindle motor power Kw 5.5
Cooling pump motor power W 90
Bed saddle layout type   Flat bed
Guide rail type   Hard rail (average HRC55)
Machine dimensions: length × width × height mm 2650X1500X1700

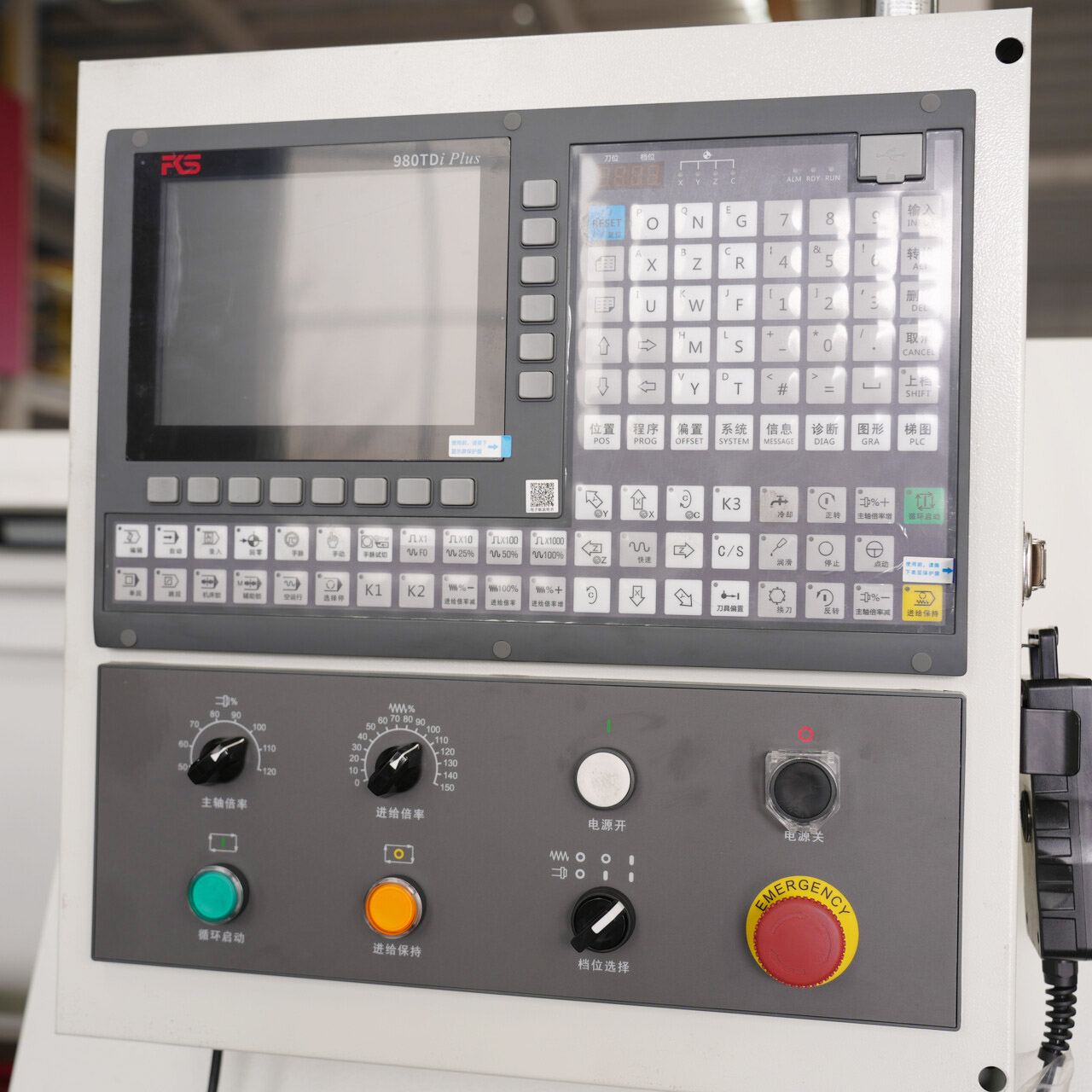

  • ◎GSK980TB3i English CNC System

  • ◎Main Motor 5.5KW

  • ◎X-axis Ball Screw: Φ20

  • ◎Z-axis Ball Screw: Φ40

  • ◎200 Three-jaw Self-centering Chuck

  • ◎Four-position Electric Tool Holder

  •



  • ◎Control System: Siemens, Mitsubishi, Fanuc, KND

  • ◎ 6/8/10 inch hydraulic chuck

  • ◎ Four-station electric tool holder, six-station electric turret, eight-station electric turret

  • ◎ Manual tailstock, hydraulic tailstock
了解详情

Standard Configuration

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_175808_3786.jpg

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_182234_3858.jpg

三爪卡盘

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_182257_6273.jpg

四工位电动刀架

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_182316_8233.jpg

手动尾座

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.



Knife holder optional

You can choose the tool holder you need according to your production requirements.

Tailstock optional

You can choose the tailstock you need according to your production requirements.

Chuck optional

You can choose the chuck you need according to your production requirements.





Machinable Parts

CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.

Disc-type Parts
Disc-type Parts
Shaft and Disc Composite Parts
Shaft and Disc Composite Parts
Disc Sleeve Parts
Disc Sleeve Parts
Threaded Shaft Parts
Threaded Shaft Parts
Shaft Parts
Shaft Parts
