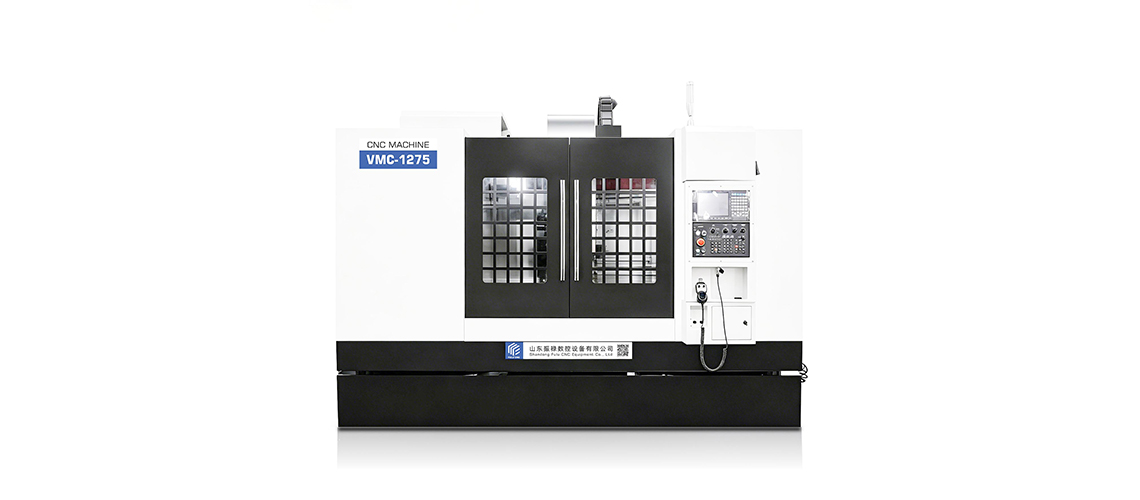

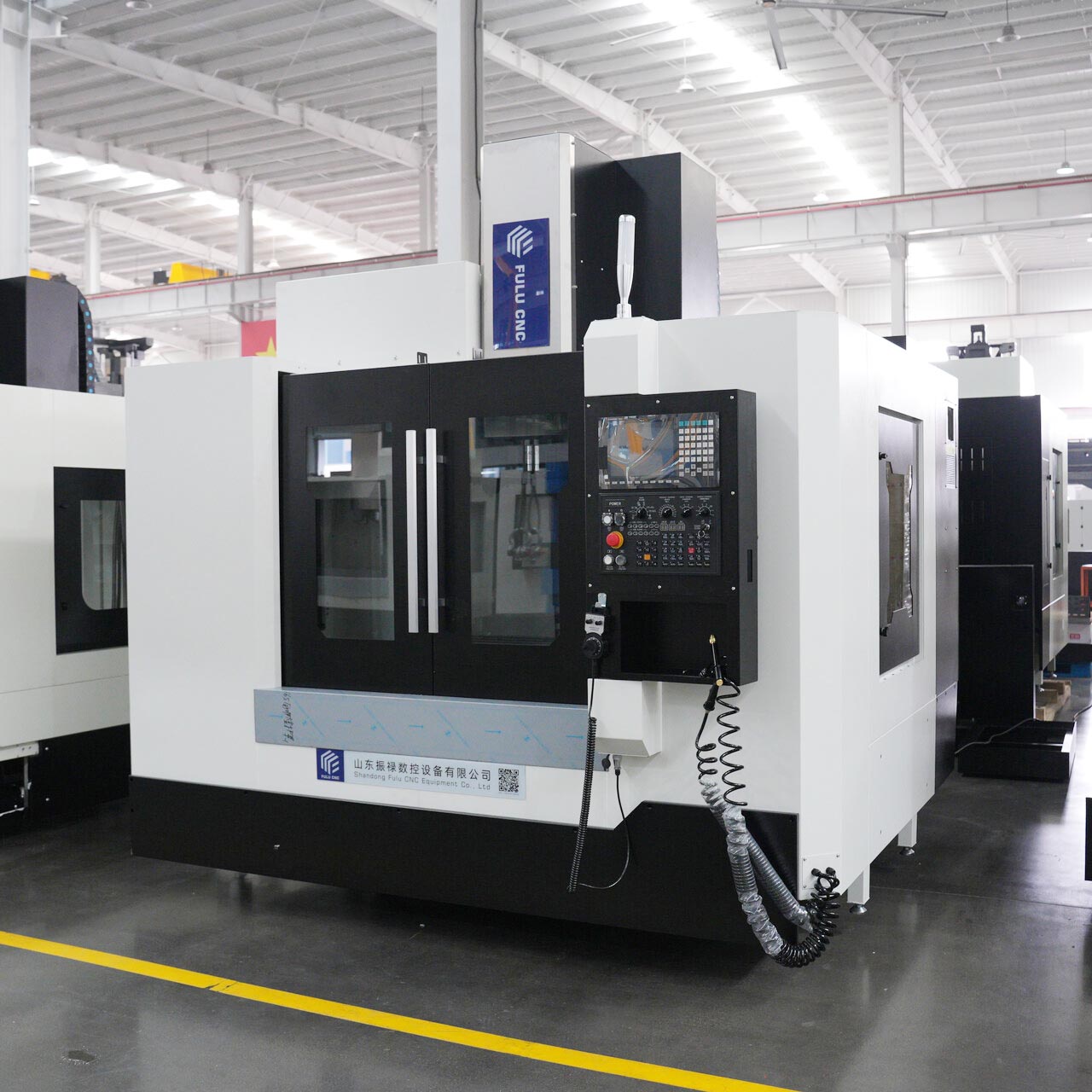

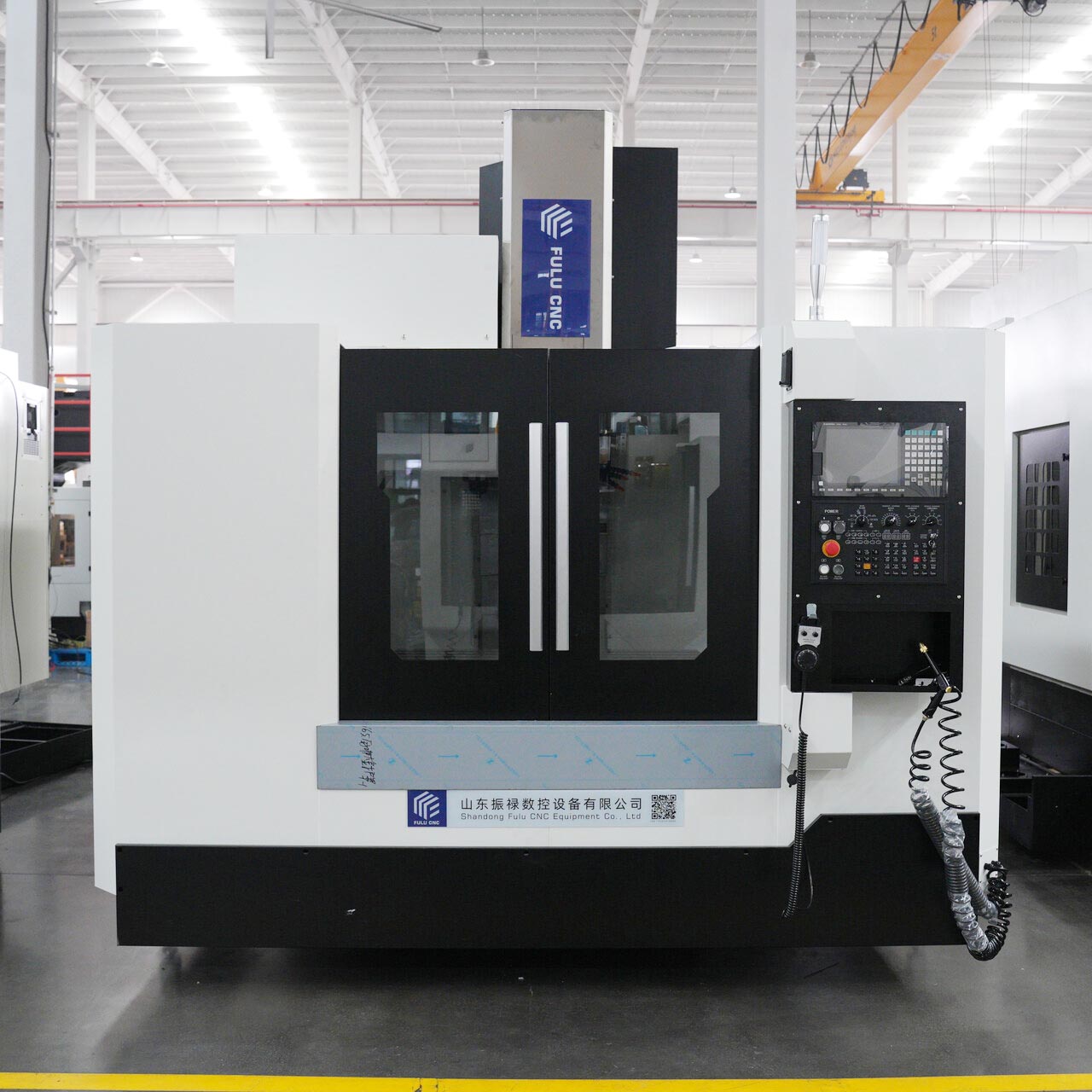

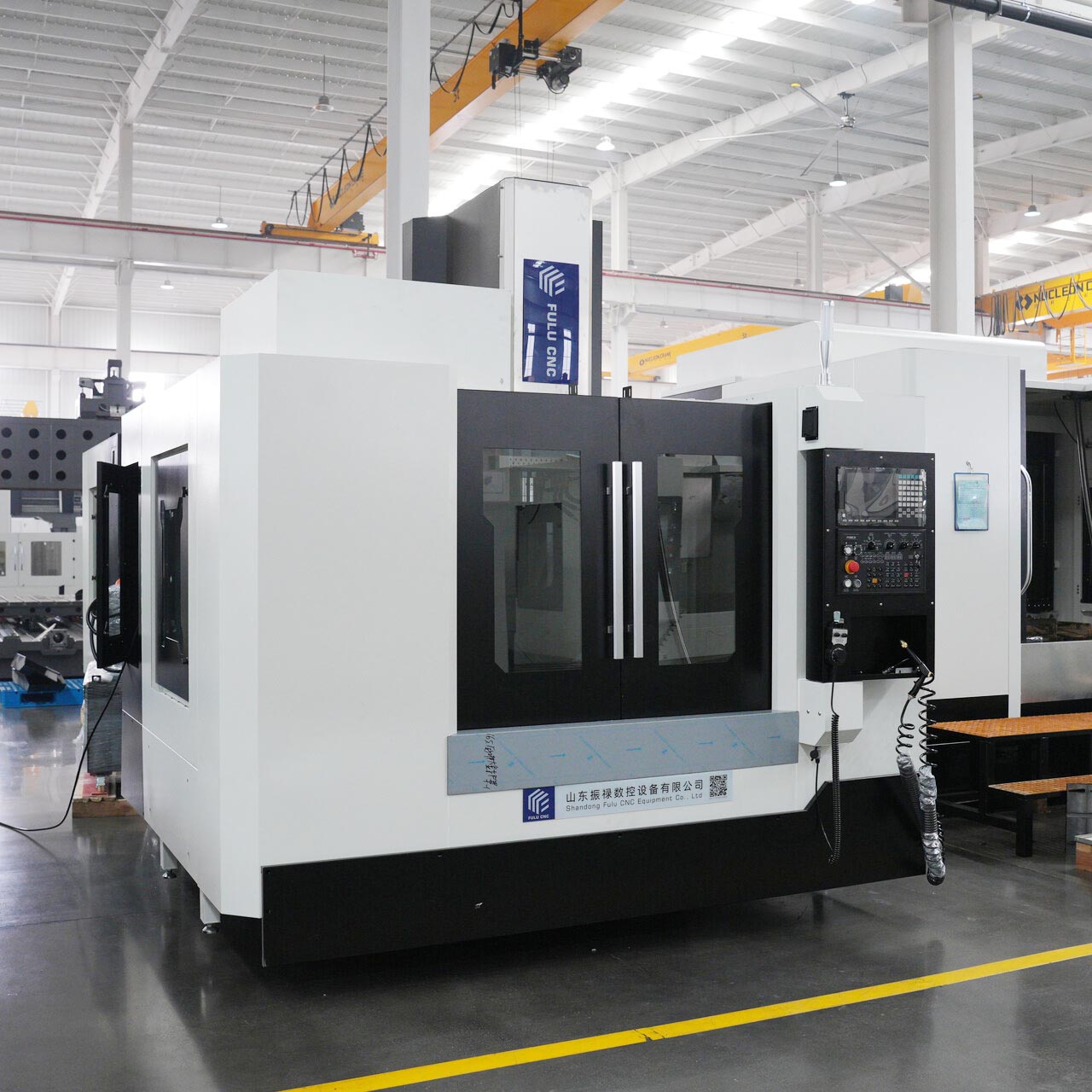

VMC1275

CNC Lathe

Basic Parameters

Table size 1200×650mm, suitable for clamping and processing medium to large workpieces.
Maximum spindle speed 8000rpm, meeting the needs for efficient precision milling.
X/Y/Z axis travel 1100/650/600mm, providing ample processing space.
Three-axis rapid movement speed 24m/min, significantly improving processing efficiency.
High-strength box structure design, ensuring long-term stable processing accuracy.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Project: VMC1275	Unit	Parameter

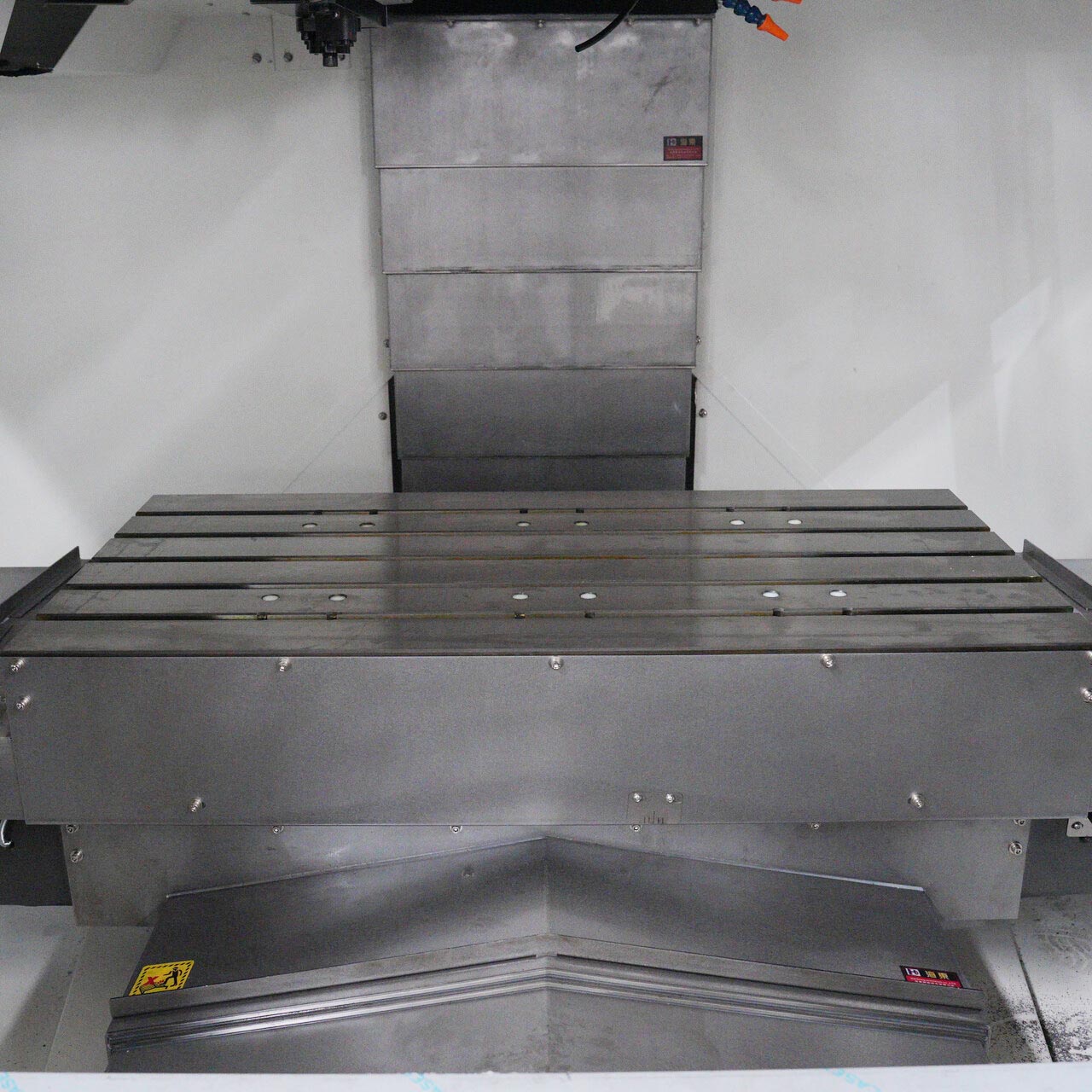

Table Size	mm	1200x700
X/Y/Z Axis Travel	mm	1200/700/700
Distance from Spindle End Face to Table	mm	120-820
Distance from Spindle Center to Column	mm	785
Maximum Load on Table	Kg	1000
T-Slot on Table	mm	5-18x125
X/Y/Z Axis Rapid Feed	m/min	36/36/24
X/Y/Z Guide Rail Width	mm	45/45/45
Diameter Pitch		40 12
Positioning Accuracy	mm	±0.005
Repeat Positioning Accuracy	mm	±0.003/300
Minimum Positioning Unit	mm	±0.001

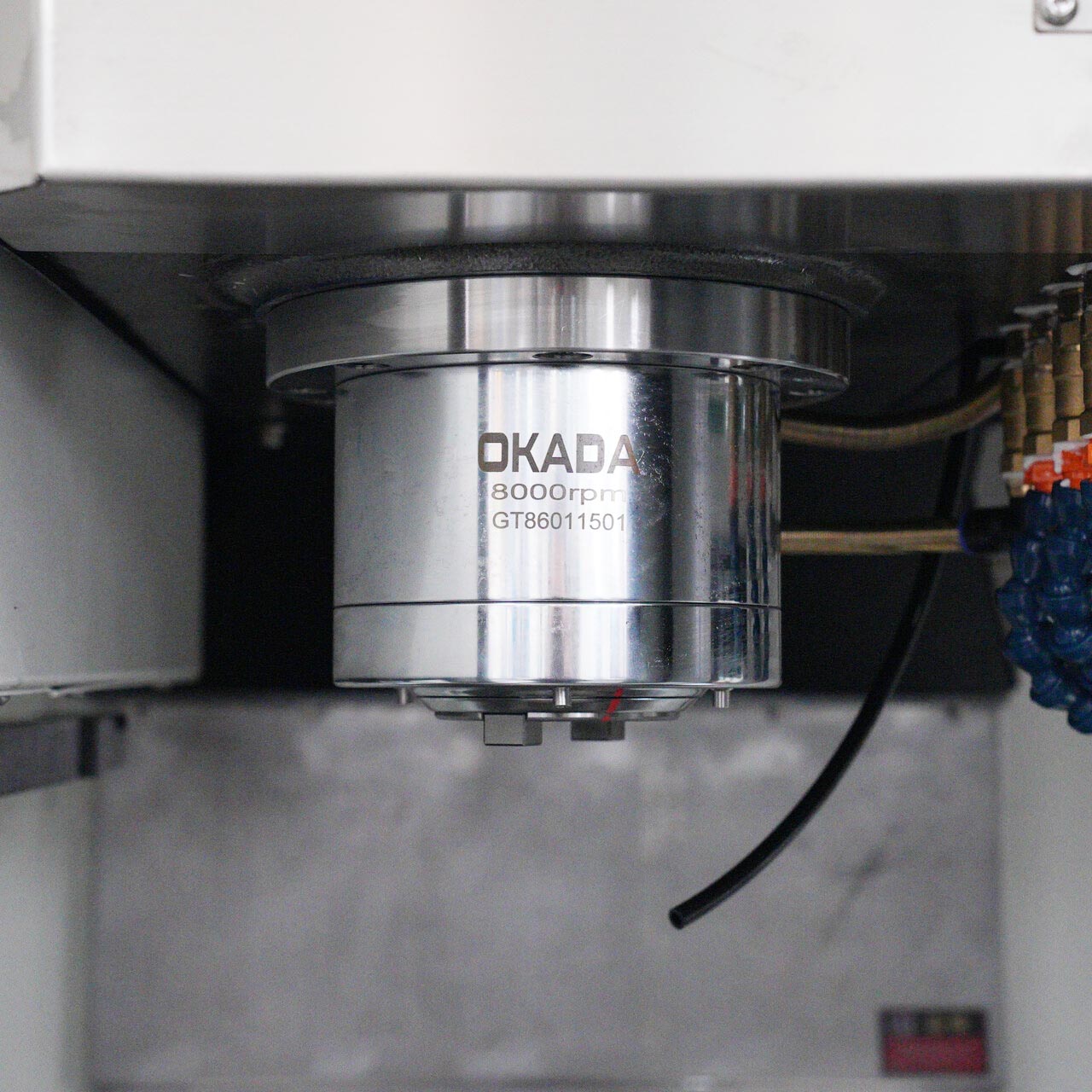

Maximum Spindle Speed	rpm	8000 (Ring Water Spray)
Spindle Taper	mm	BT40 (Short Nose Spindle)
Disc Mechanical Arm Tool Magazine	pcs	24T

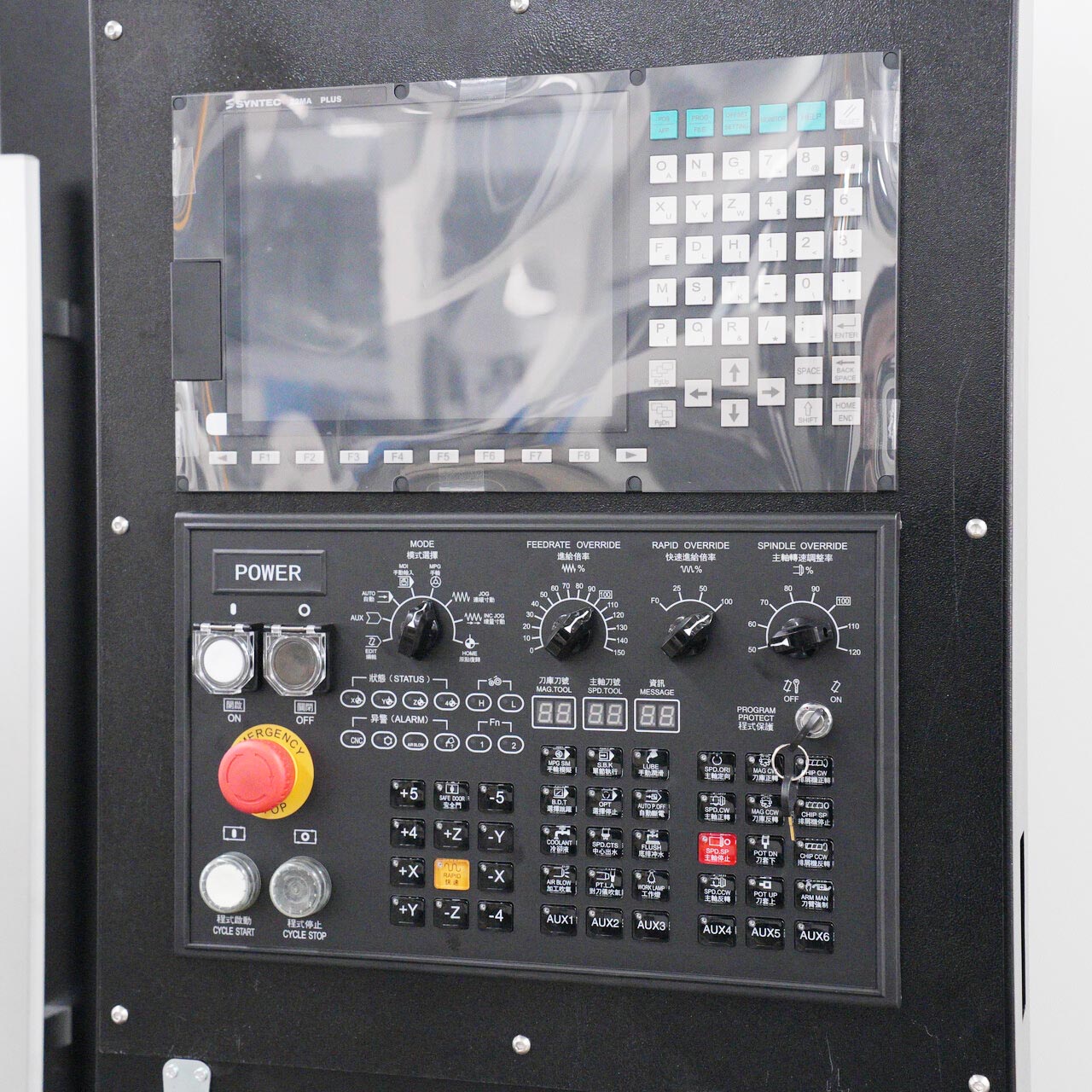

Controller System	/	GSK25i
X/Y/Z Axis Motor Power	Nm	18/18/28
Spindle Motor Power	Kw	11-16.5
Overall Dimensions Approximately	MM	3400 × 2800 × 3000
Total Weight Approximately	Kg	9000

Serial Number	Configuration Content	Serial Number	Configuration Content

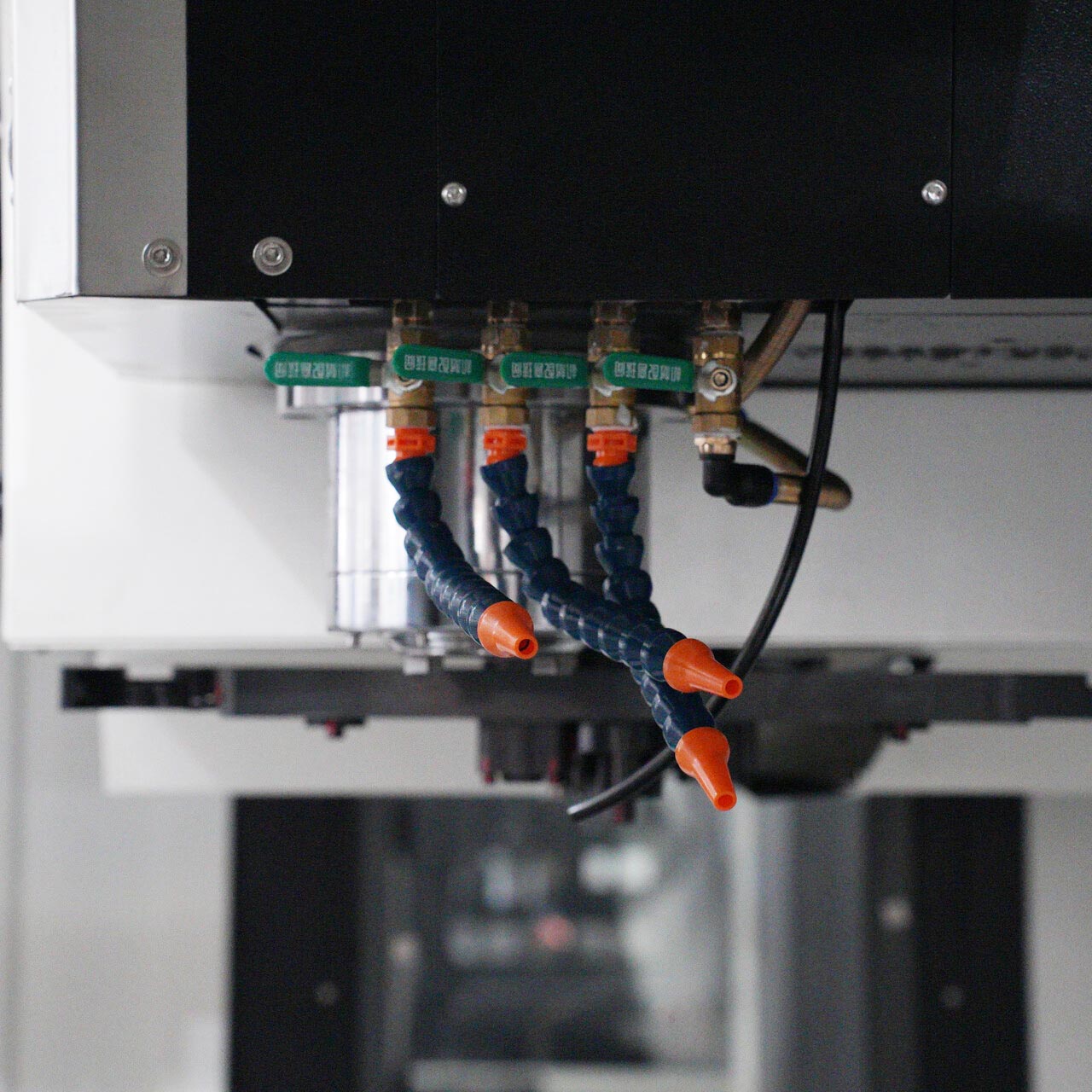

1	Cutting Cooling System	13	Machine Internal Cleaning Device: Chip Blowing Gun, Water Gun

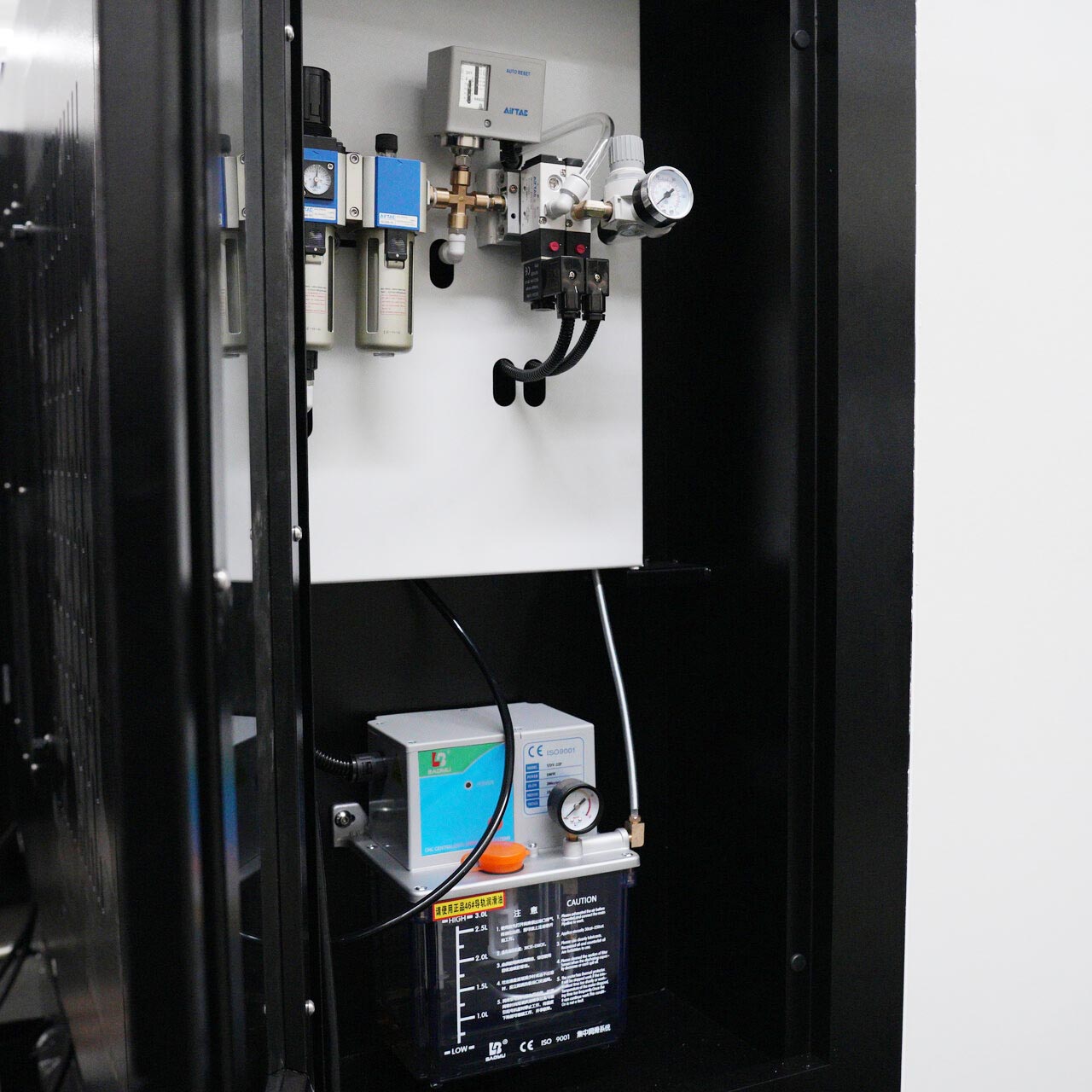

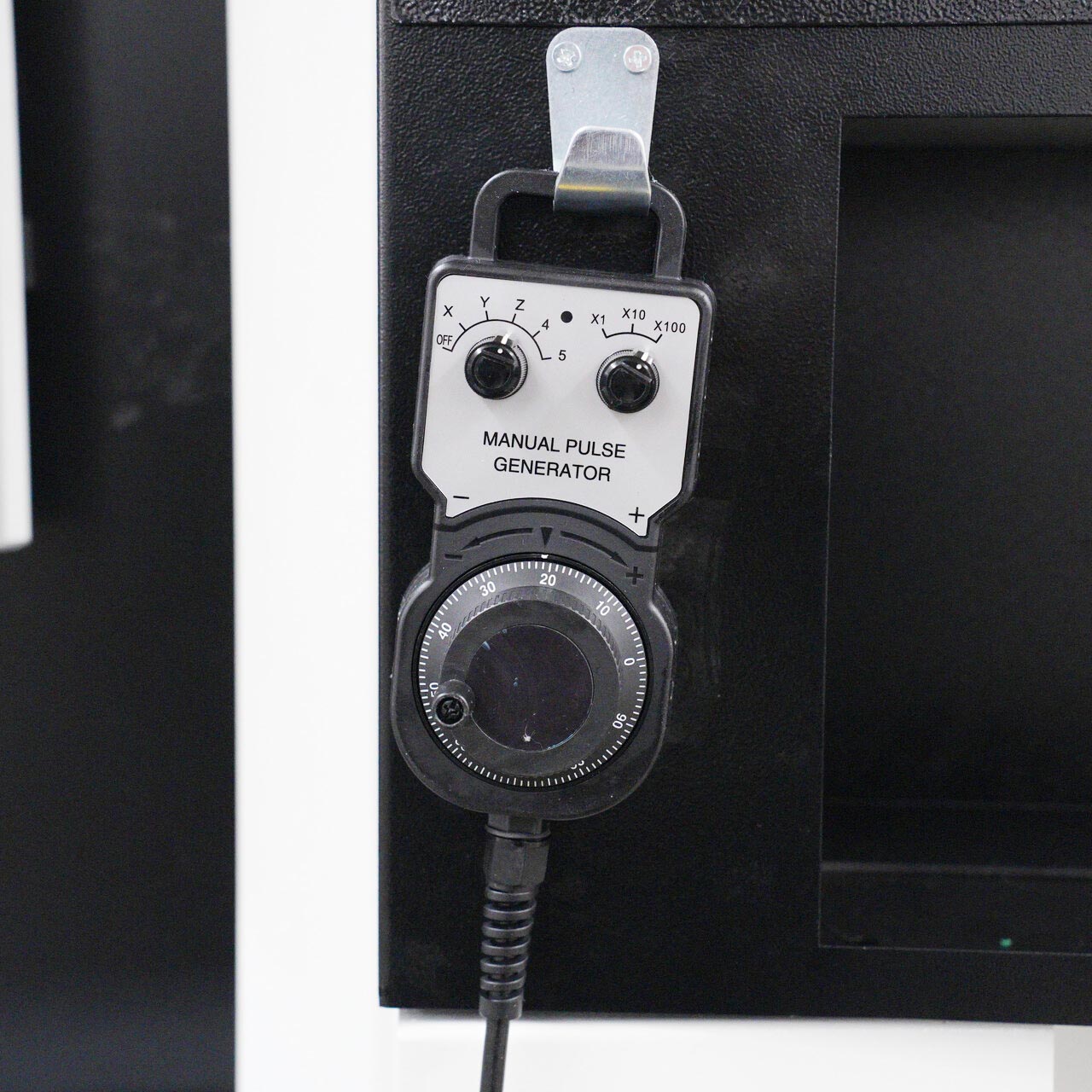

2	Automatic Lubrication System	14	Manual Pulse Generator: Handwheel
3	Cutting Blowing Device	15	External Network Transmission Interface
4	Spindle and Servo Overload System Protection	16	Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal)
5	Three-Color Alarm Light	17	External Protection High-Quality Painted Sheet Metal
6	Horizontal Adjustment Bolt and Spacer	18	Rigid Tapping

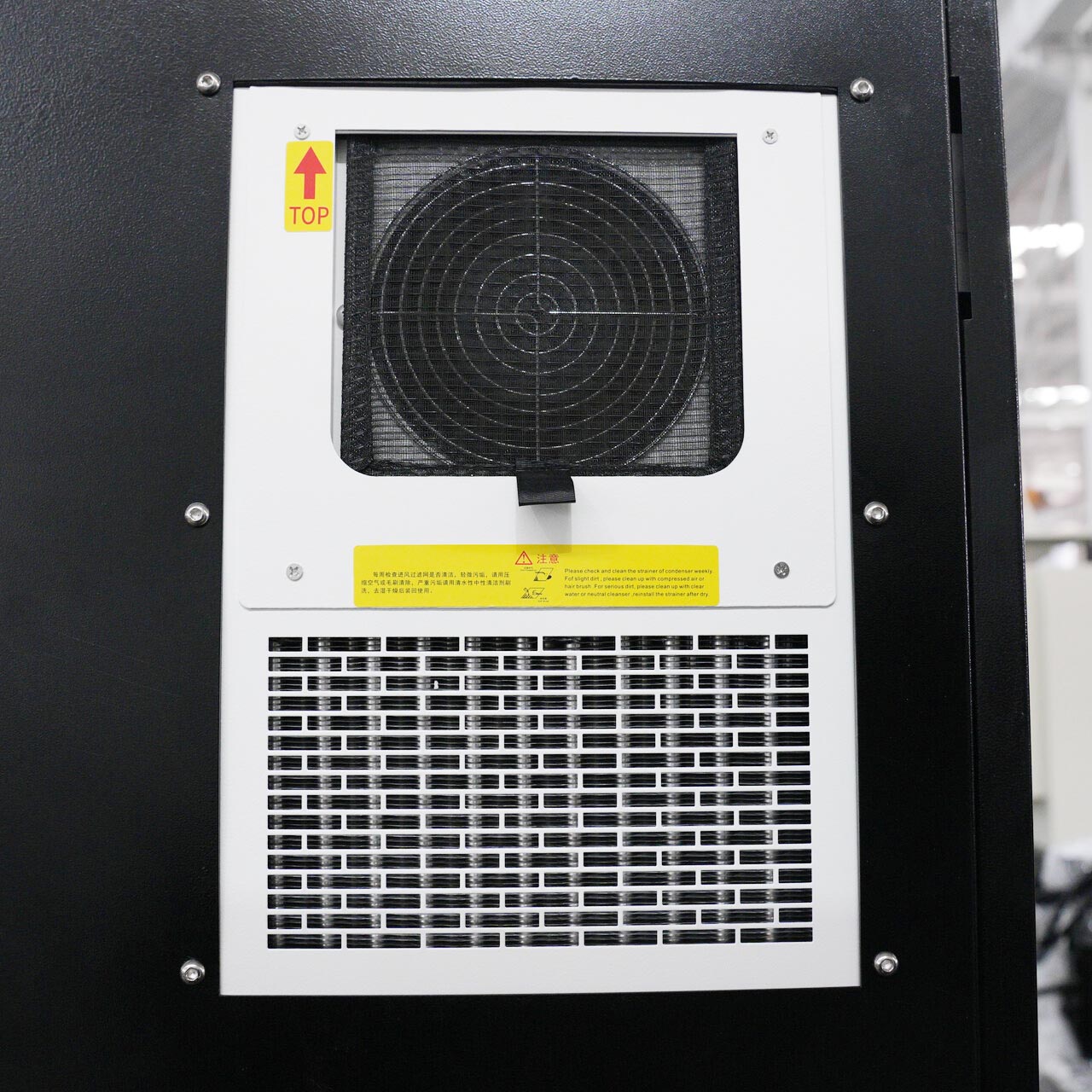

7	Electrical Box Heat Exchanger	19	Precision Inspection Certificate
8	Three-Axis Screw Pre-Tensioning Device	20	Electrical Manual
9	Program Storage	21	User Manual
10	Spindle Ring Water Spray	22	Program Operation Manual
11	Reserved for Adding Four-Axis Interface	23	Air Curtain Protection
12	Internal Work Light of the Machine Tool	24	Chassis Powerful Chip Blowing, Dual Water Pumps

◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kaidi
◎10000, 12000rpm spindle speed
◎30kg/50kg/70kg central water outlet
◎170/200/250/300mm fourth axis
◎125/170/210/250mm fifth axis
◎Chain type chip conveyor
◎Renishaw tool setter

Contact Us

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

24把圆盘刀库

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
