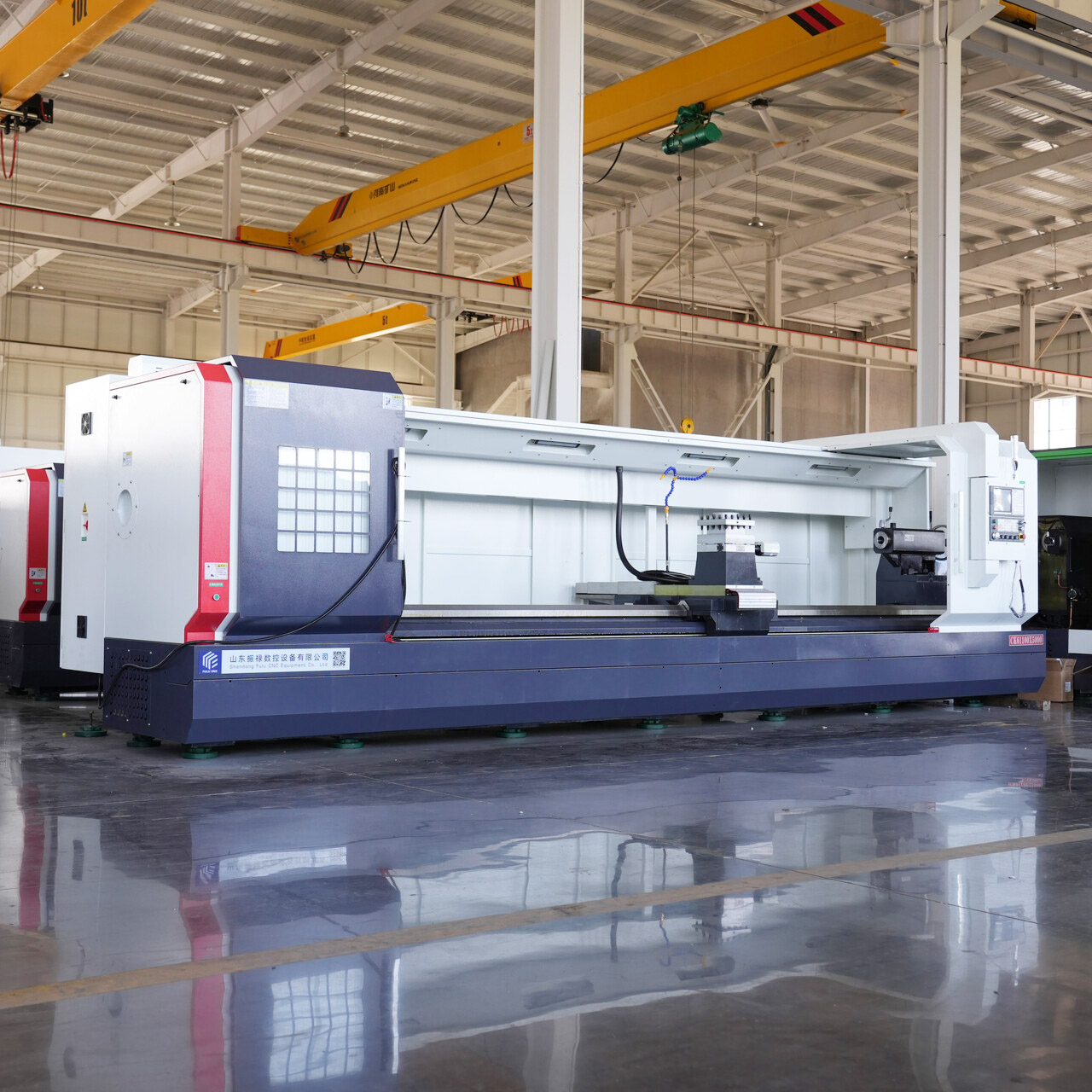

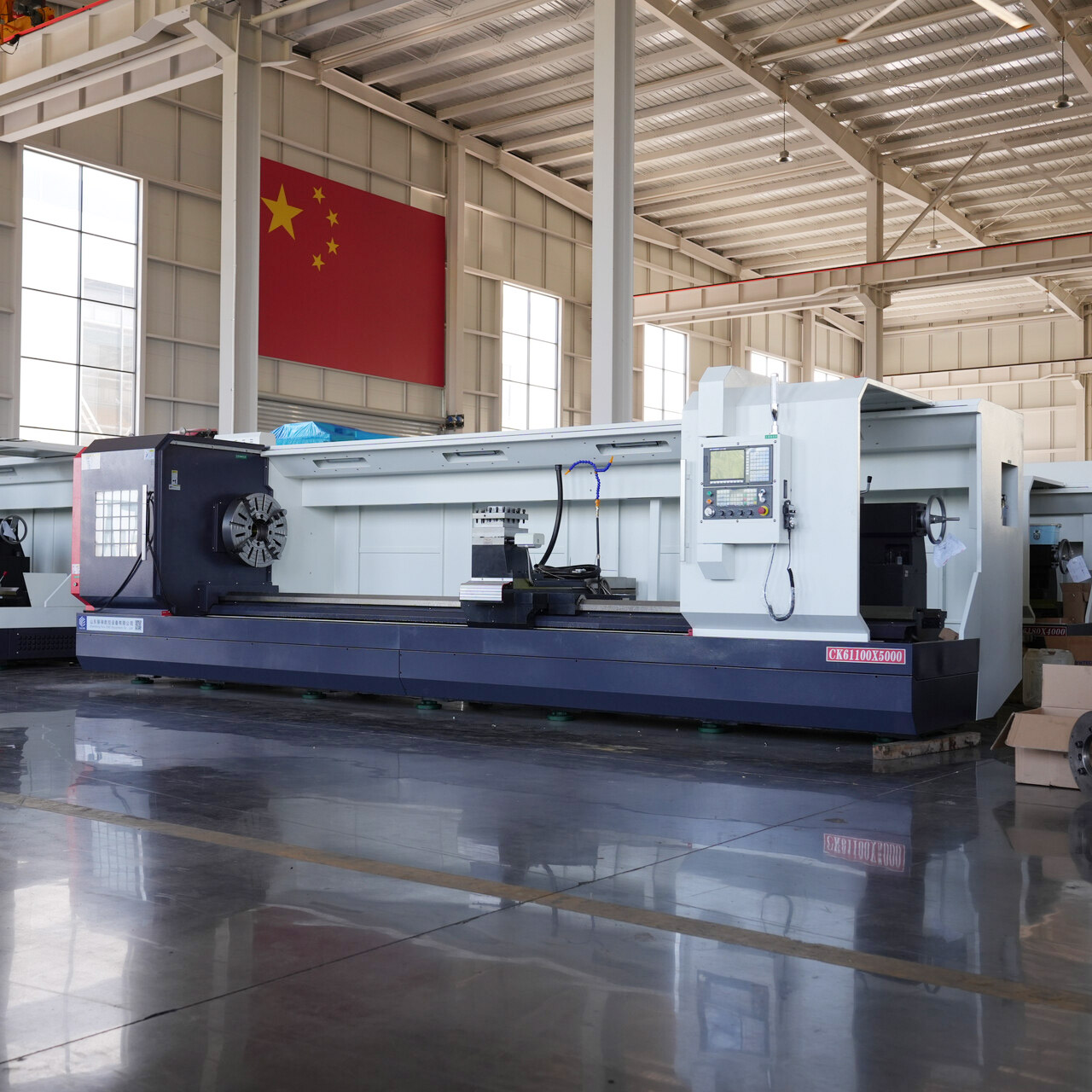

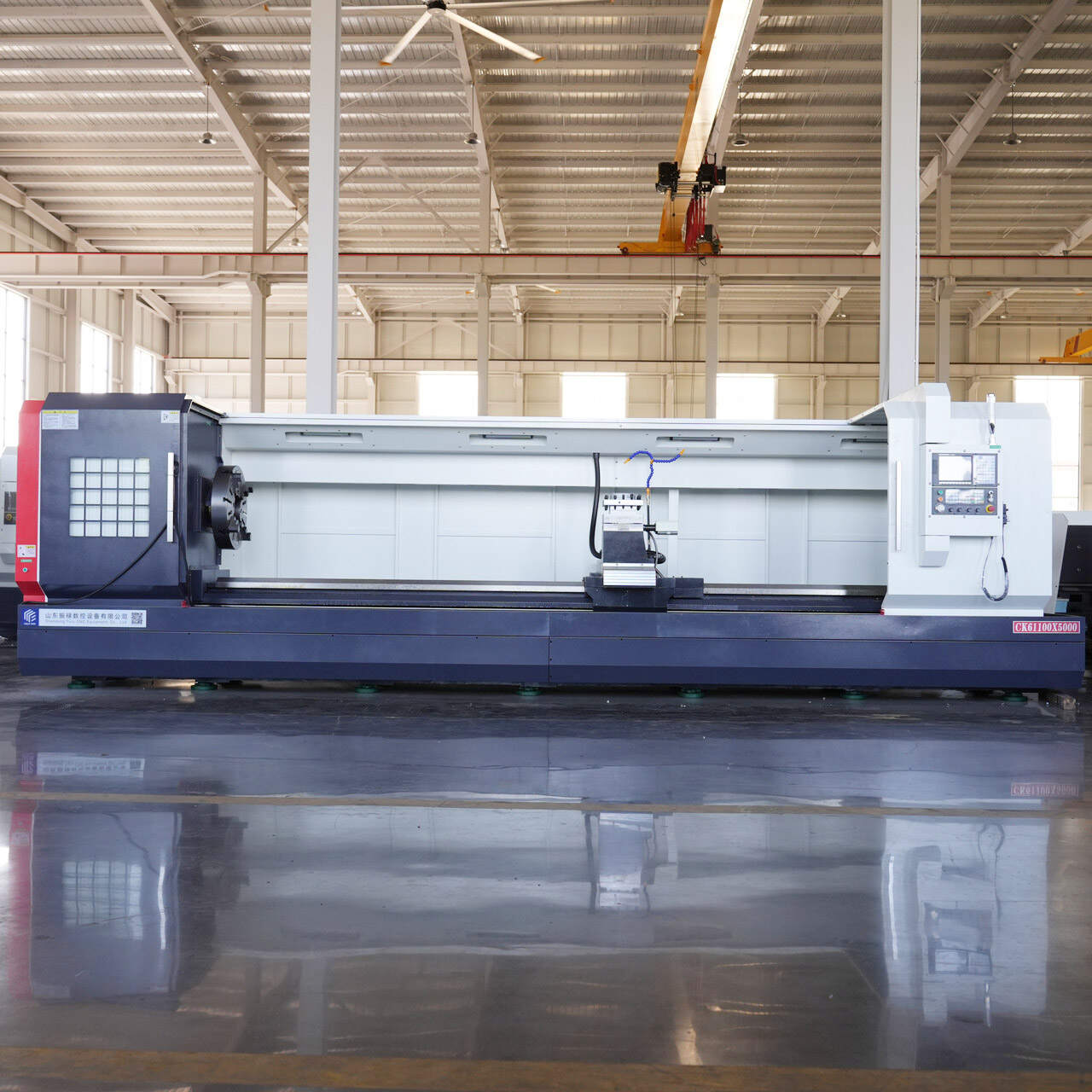

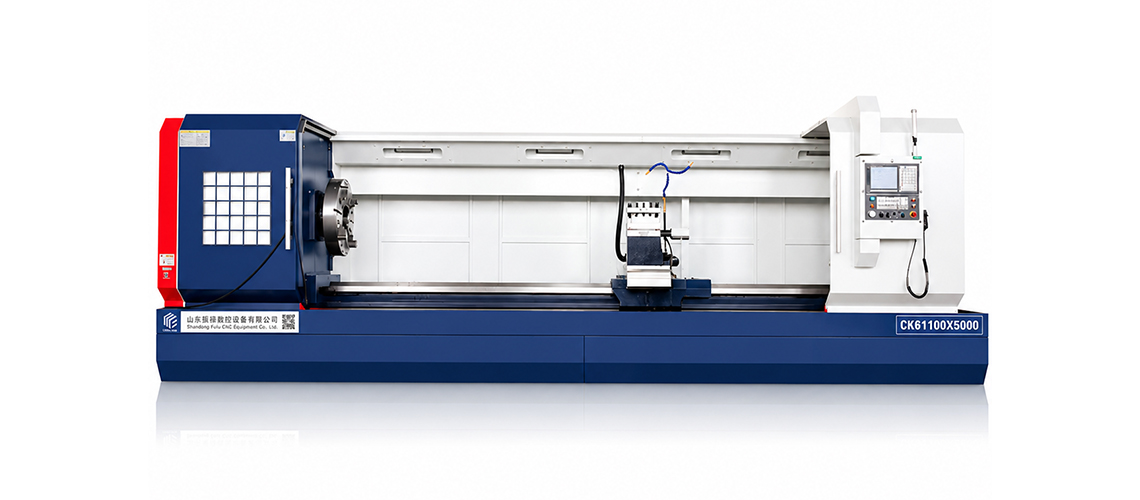

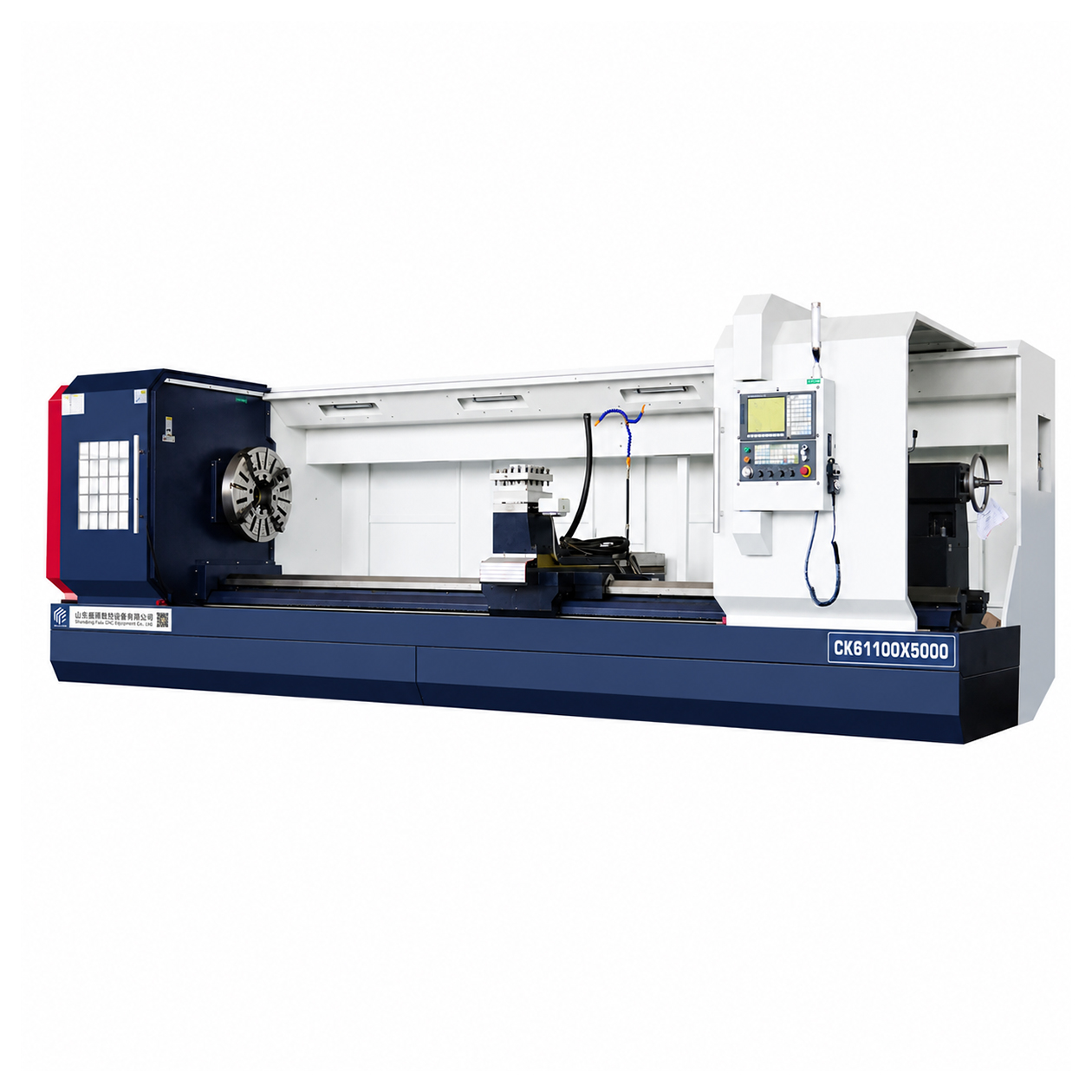

CNC Lathe
Basic Parameters
Project: CK61100-5000
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
1000
Maximum workpiece rotation diameter on the tool holder
mm
650
Maximum workpiece length between centers
mm
5000
Effective processing length
mm
4850
Width of bed guide rail
mm
755/600
Spindle hole diameter
mm
ф105/130
Spindle end code
-
A2-11
Spindle speed range (frequency conversion stepless speed regulation)
r/min
30-500

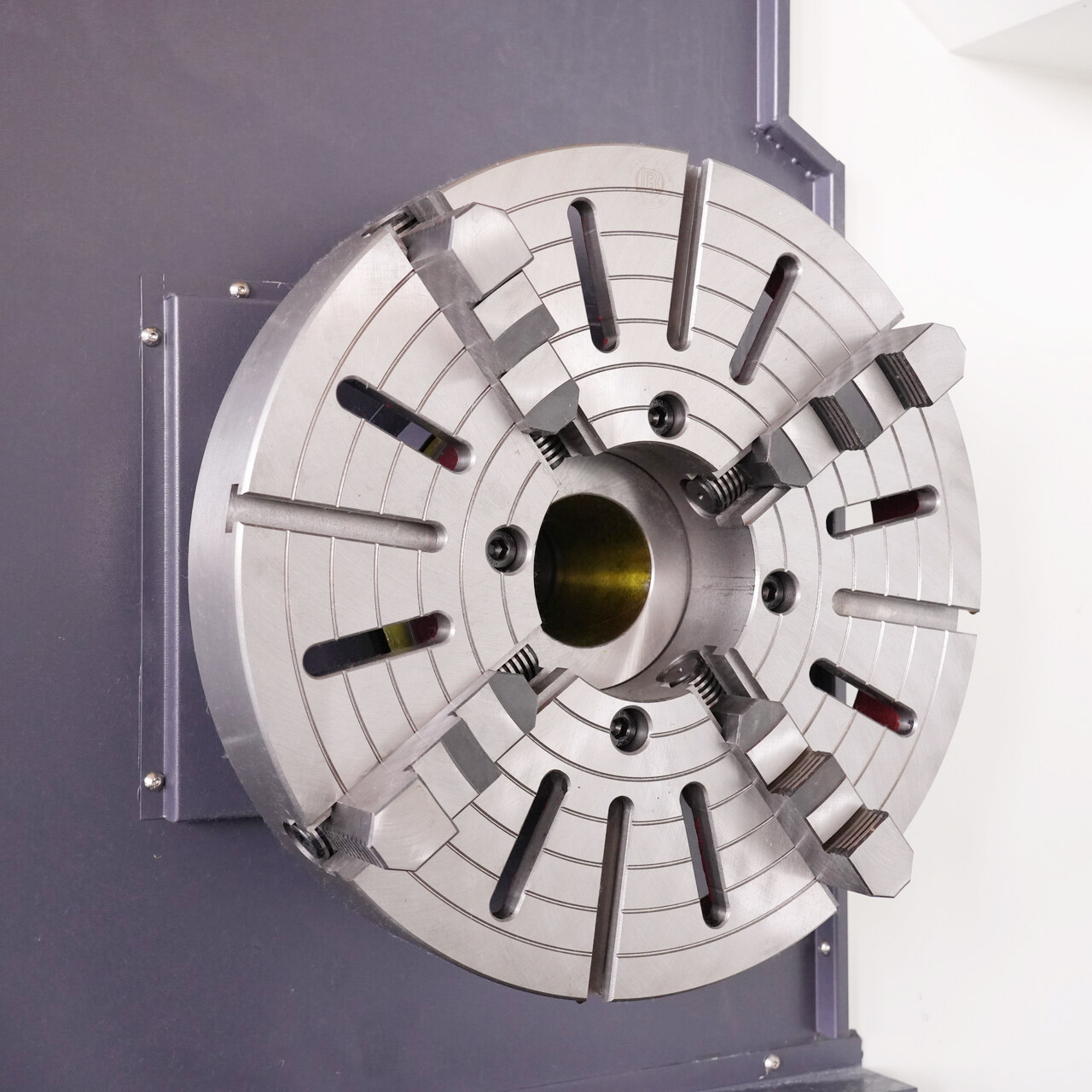

Chuck (manual) four-jaw chuck
mm
800
Main motor power
Kw
11KW/15KW
Tool size
mm
40×40
Electric tool holder
-
Vertical four-station tool holder
Maximum stroke of the bed saddle in the Z direction
mm
5000
Maximum lateral stroke of the tool holder in the X direction
mm
520
Rapid movement speed of the bed saddle in the Z direction
m/min
6
Lateral rapid movement speed of the tool holder in the X direction
m/min
4
X/Z axis torque
nm
10/15/18.5/22
Tailstock sleeve diameter
mm
Φ100
Tailstock sleeve stroke
mm
250
Taper of tailstock sleeve
-
Metric 100/Morse 6
Machine profile (length x width x height)
mm
3500*2000*2000
Standard Configuration

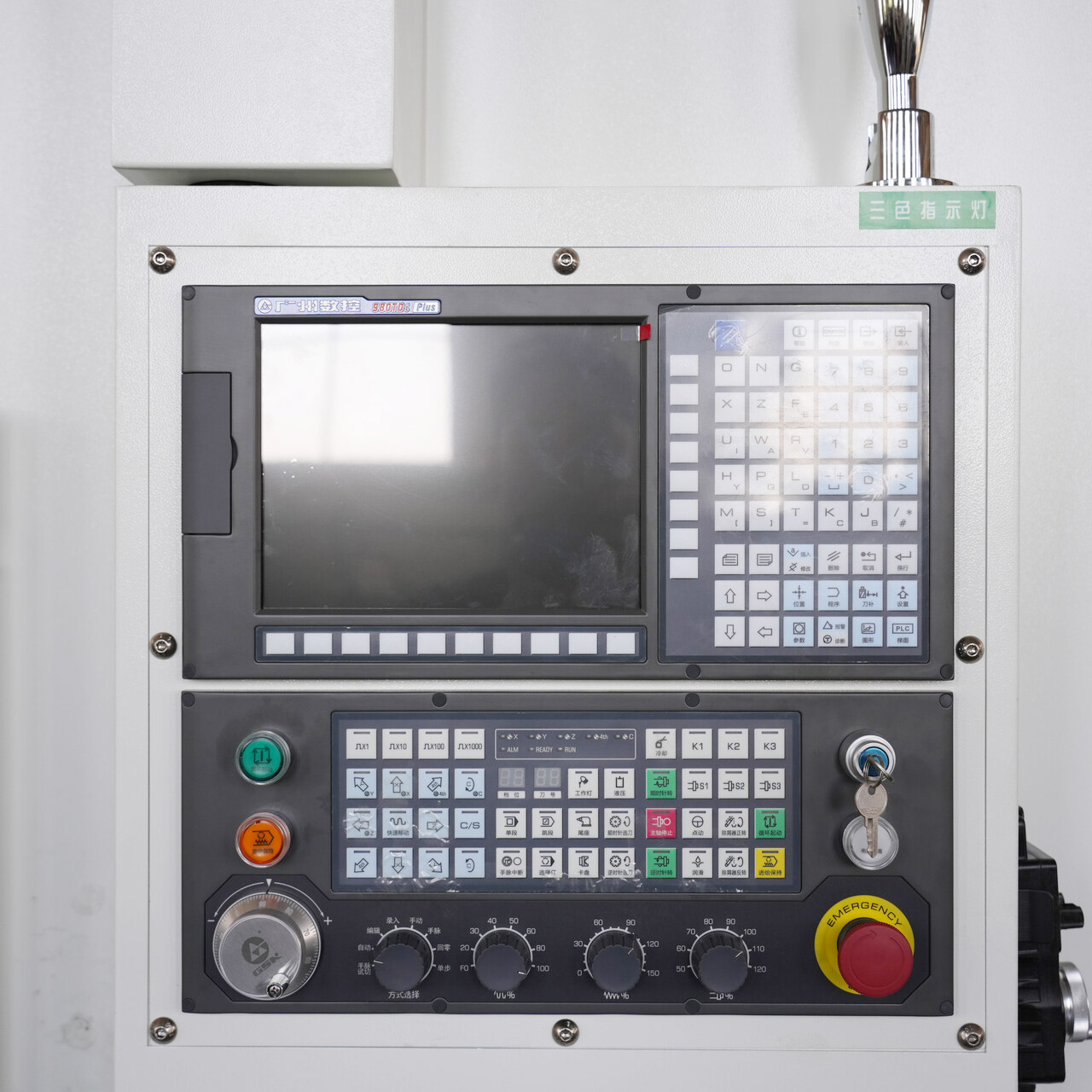

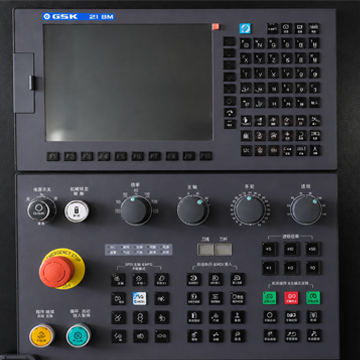

控制系统

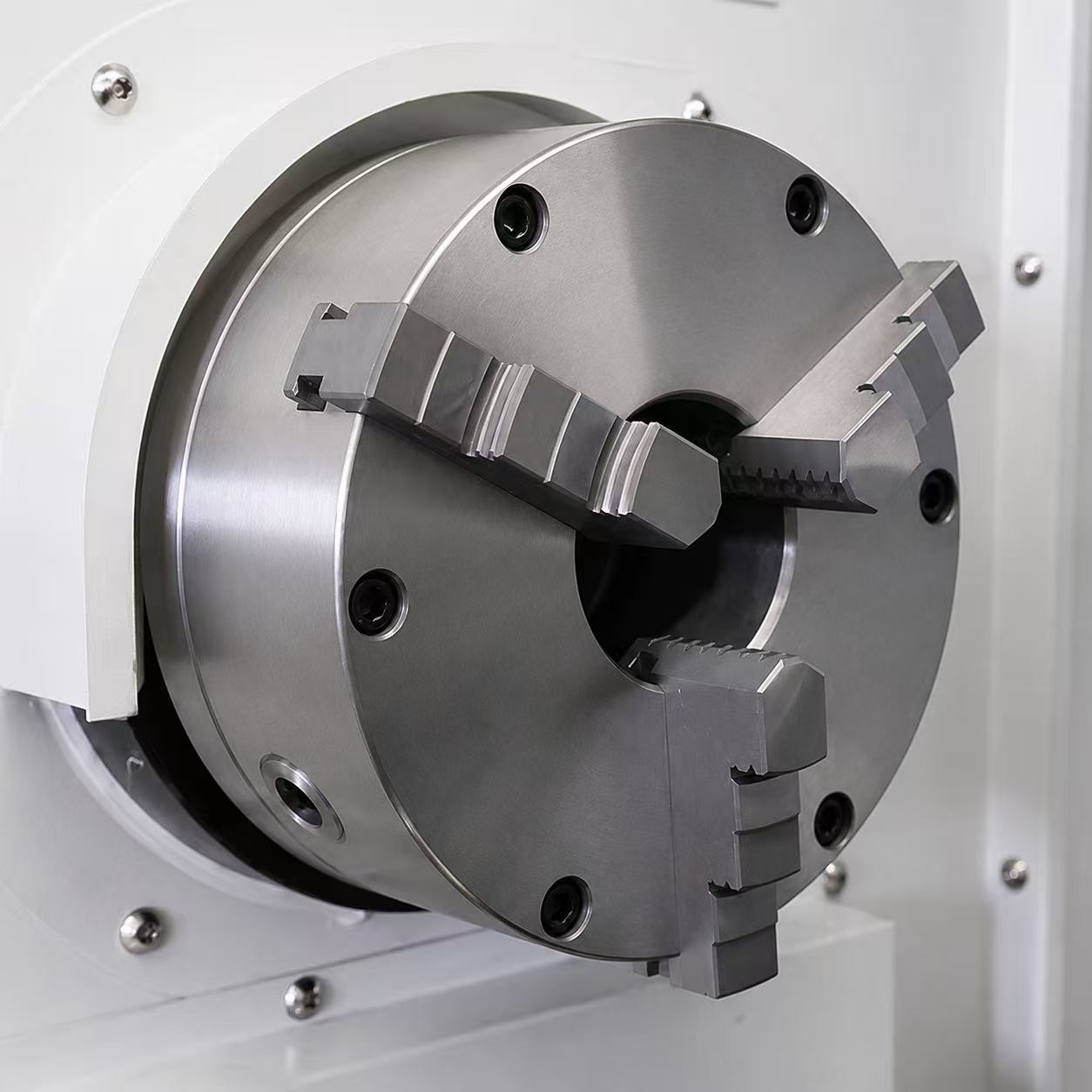

三爪卡盘

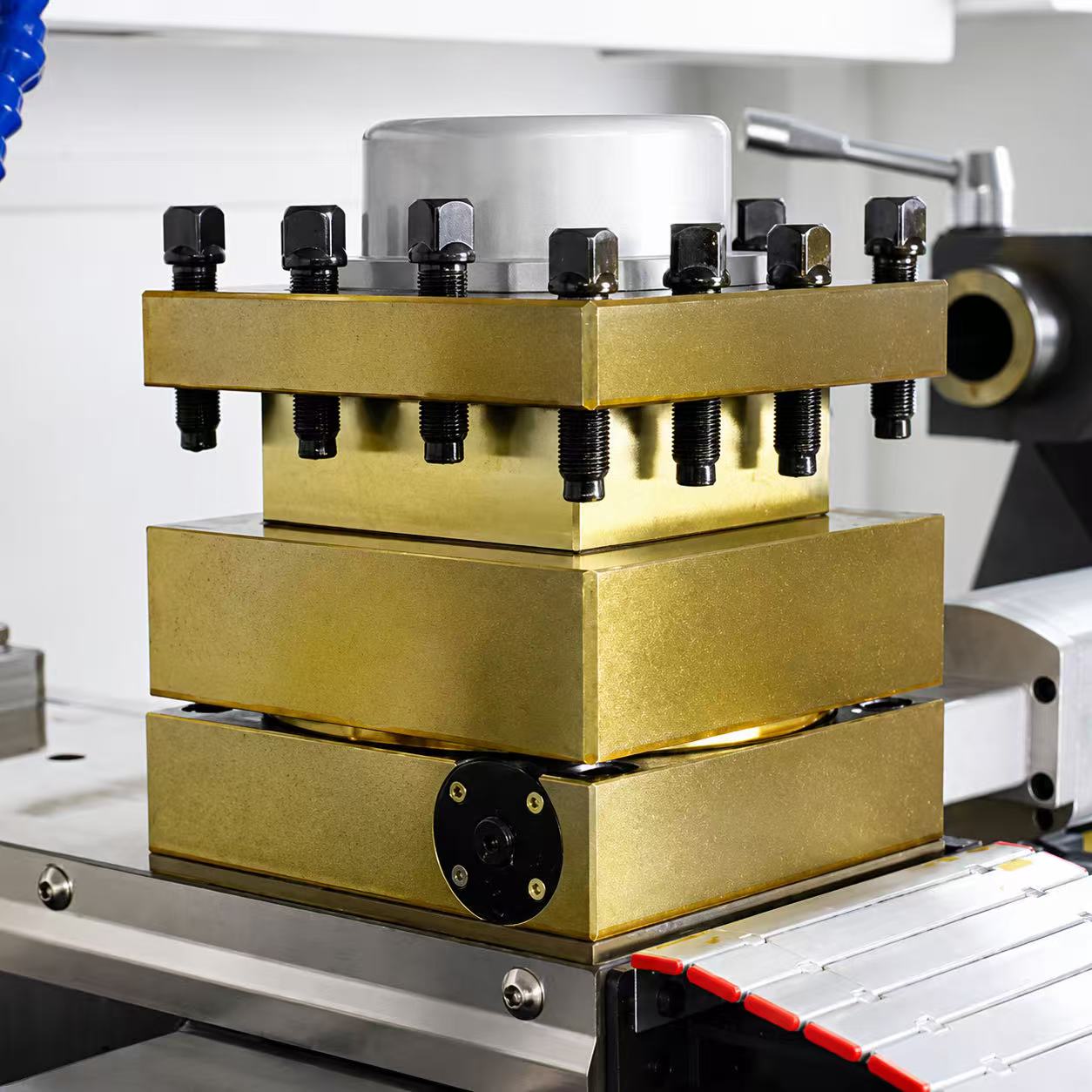

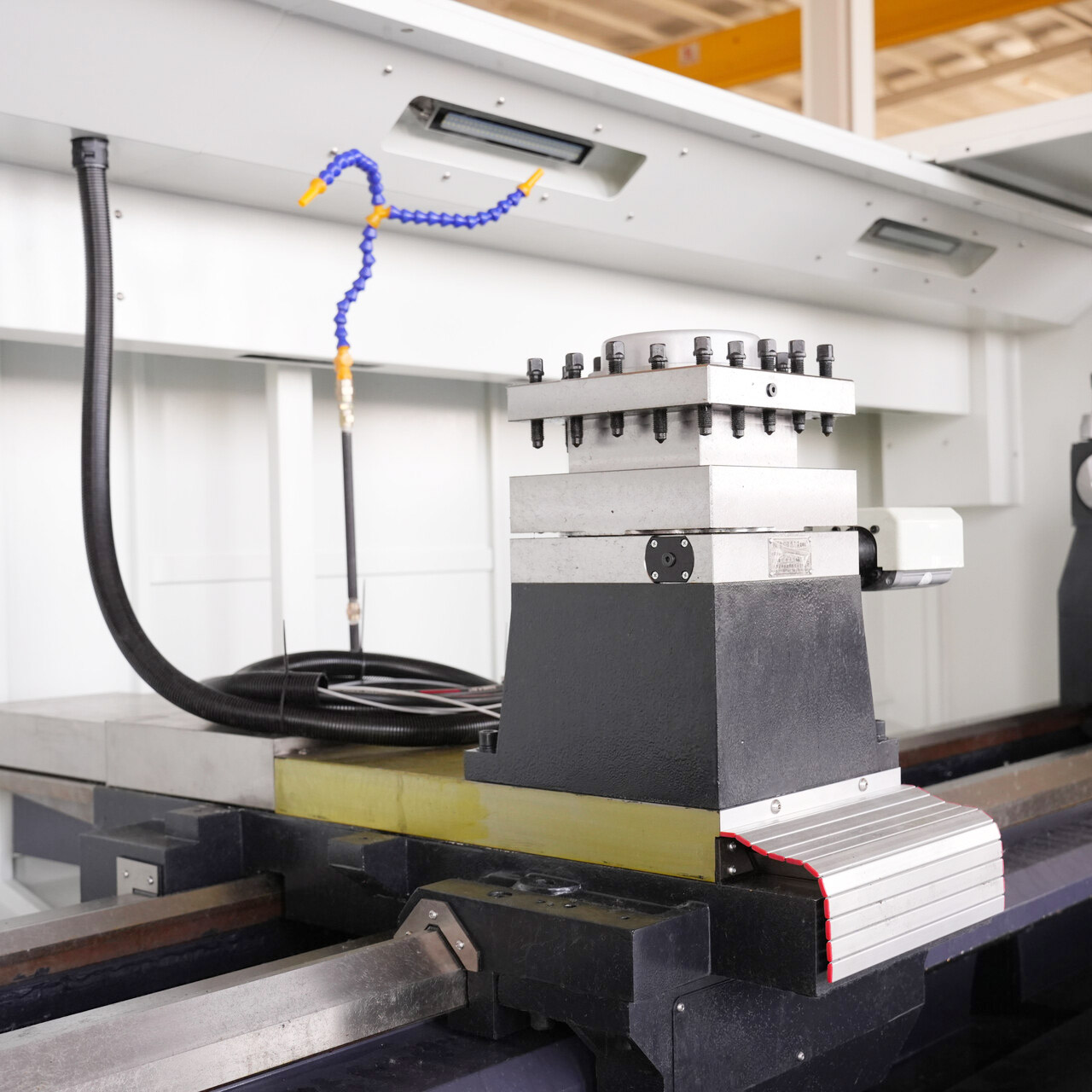

四工位电动刀架

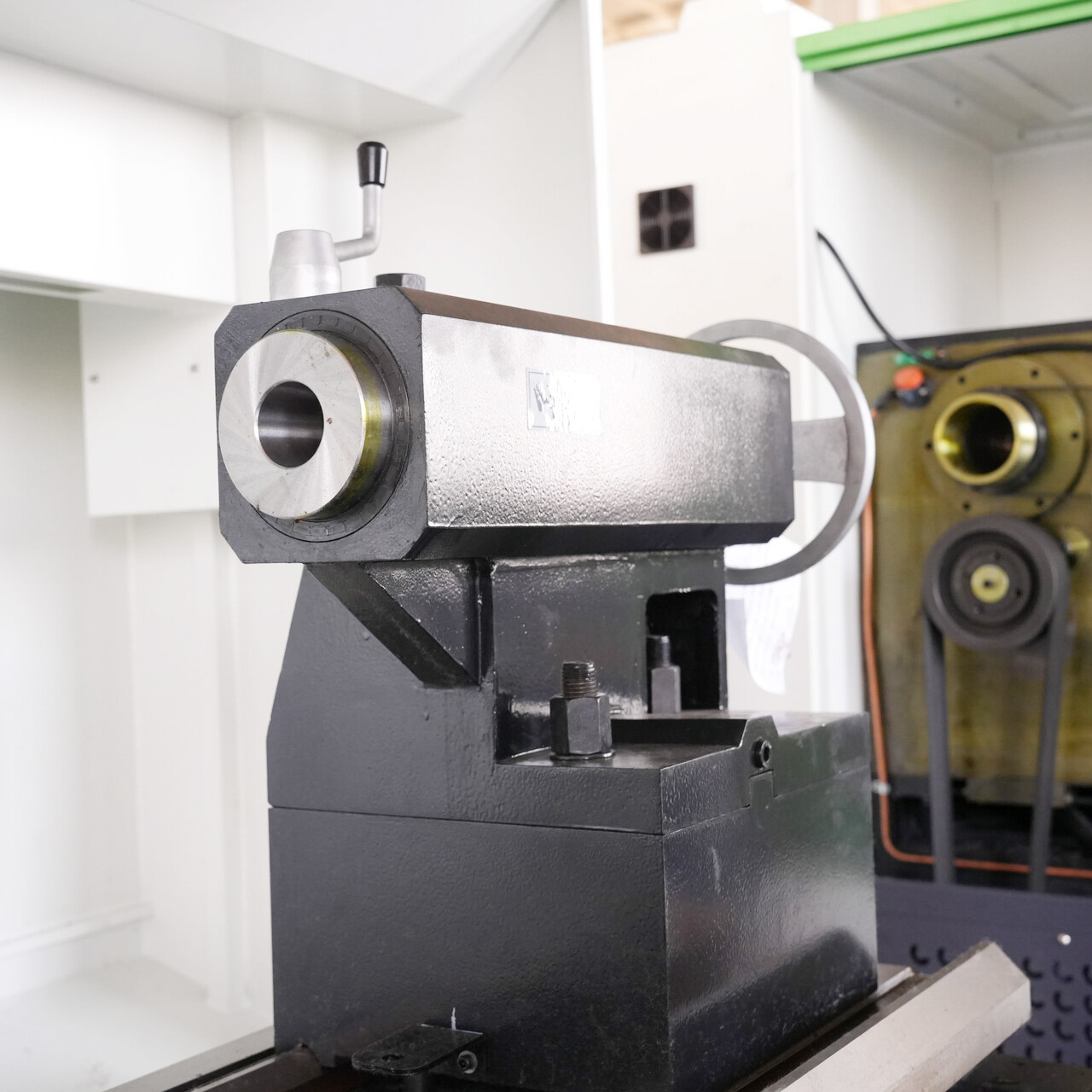

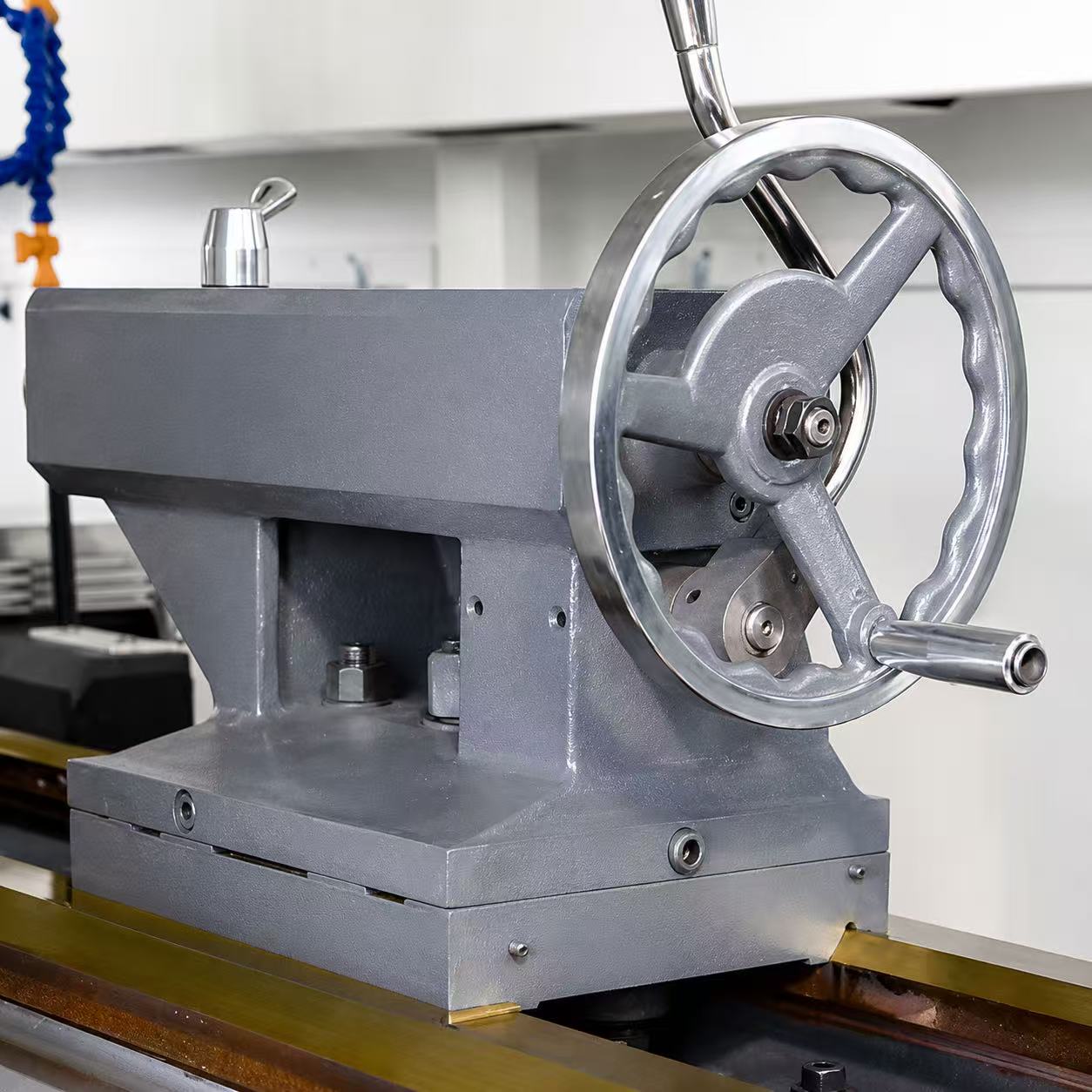

手动尾座
You can choose the control system you need according to your production requirements.

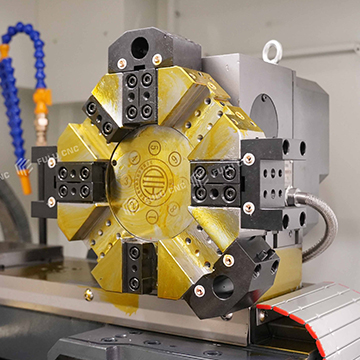

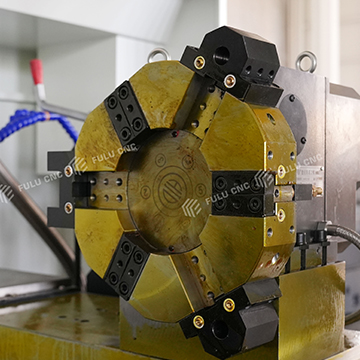

You can choose the tool holder you need according to your production requirements.

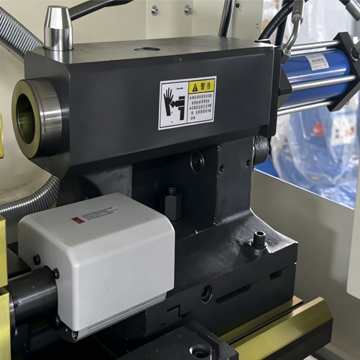

You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
