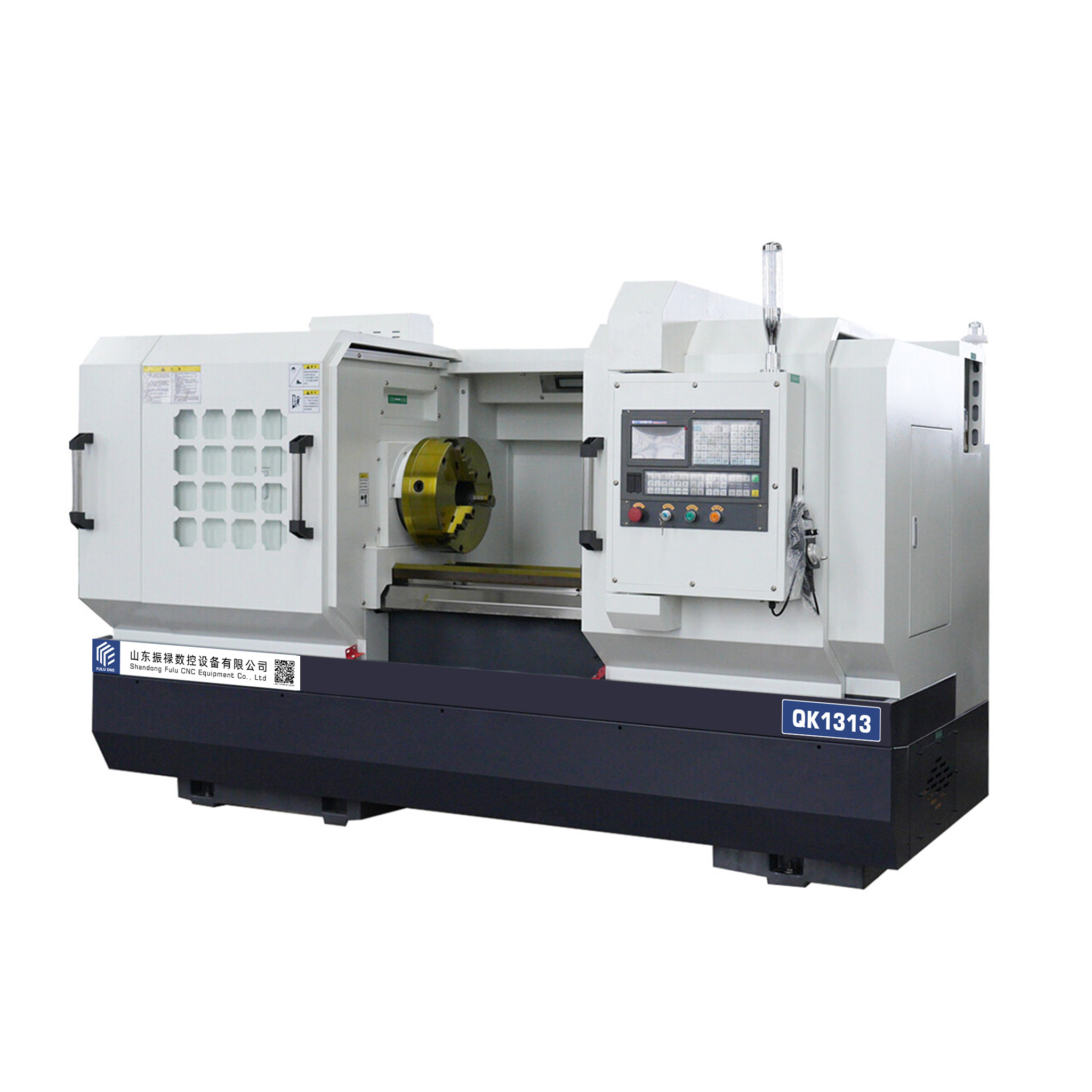

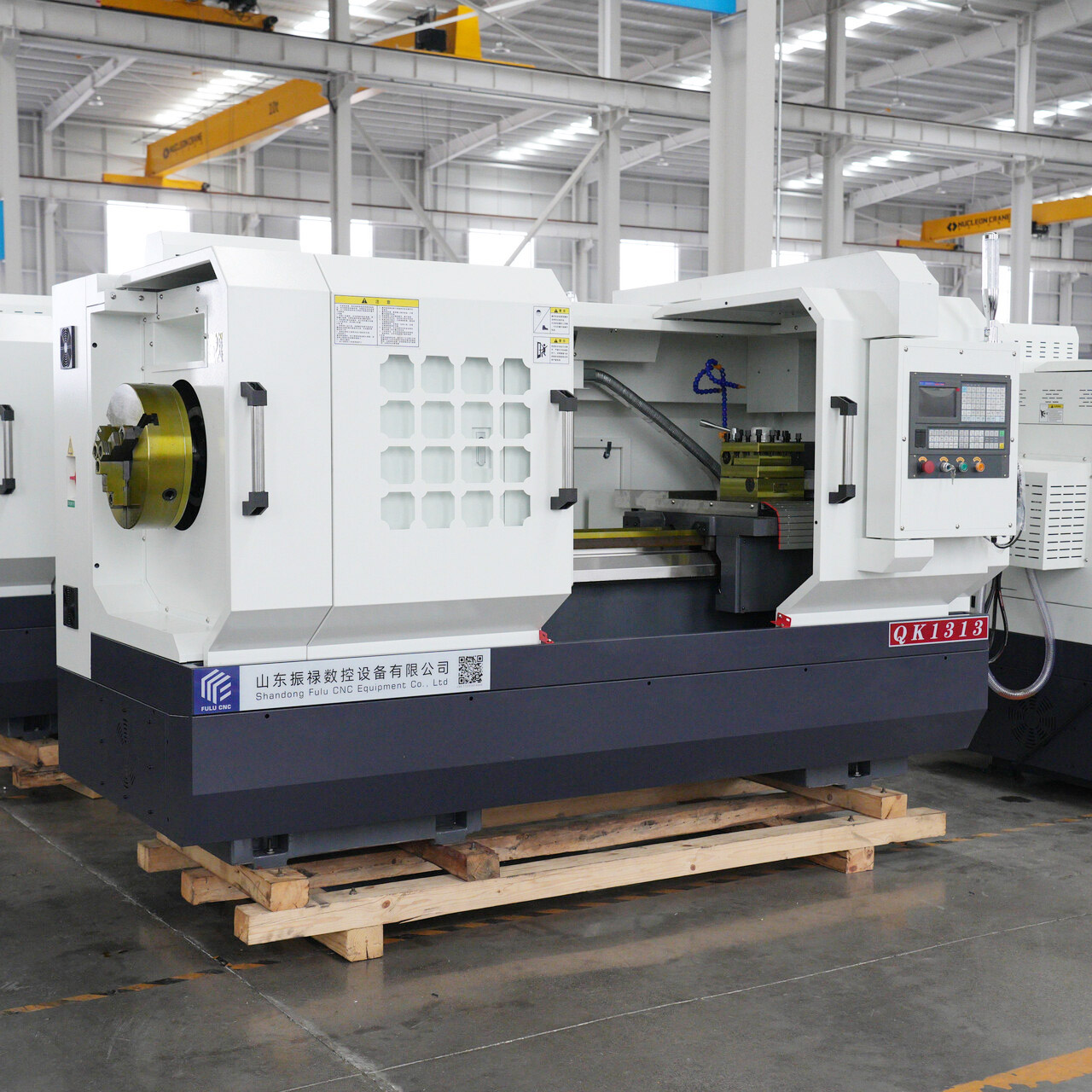

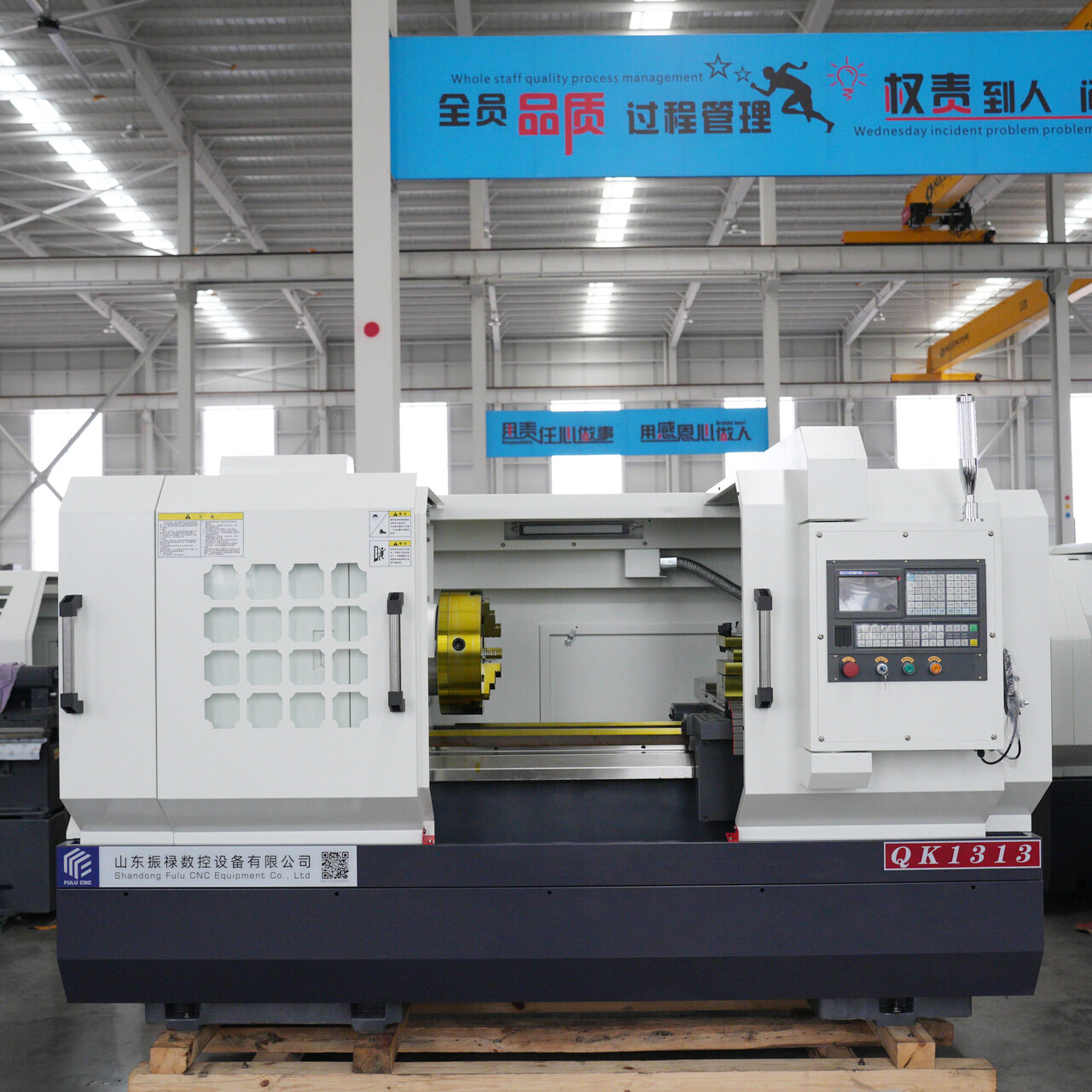

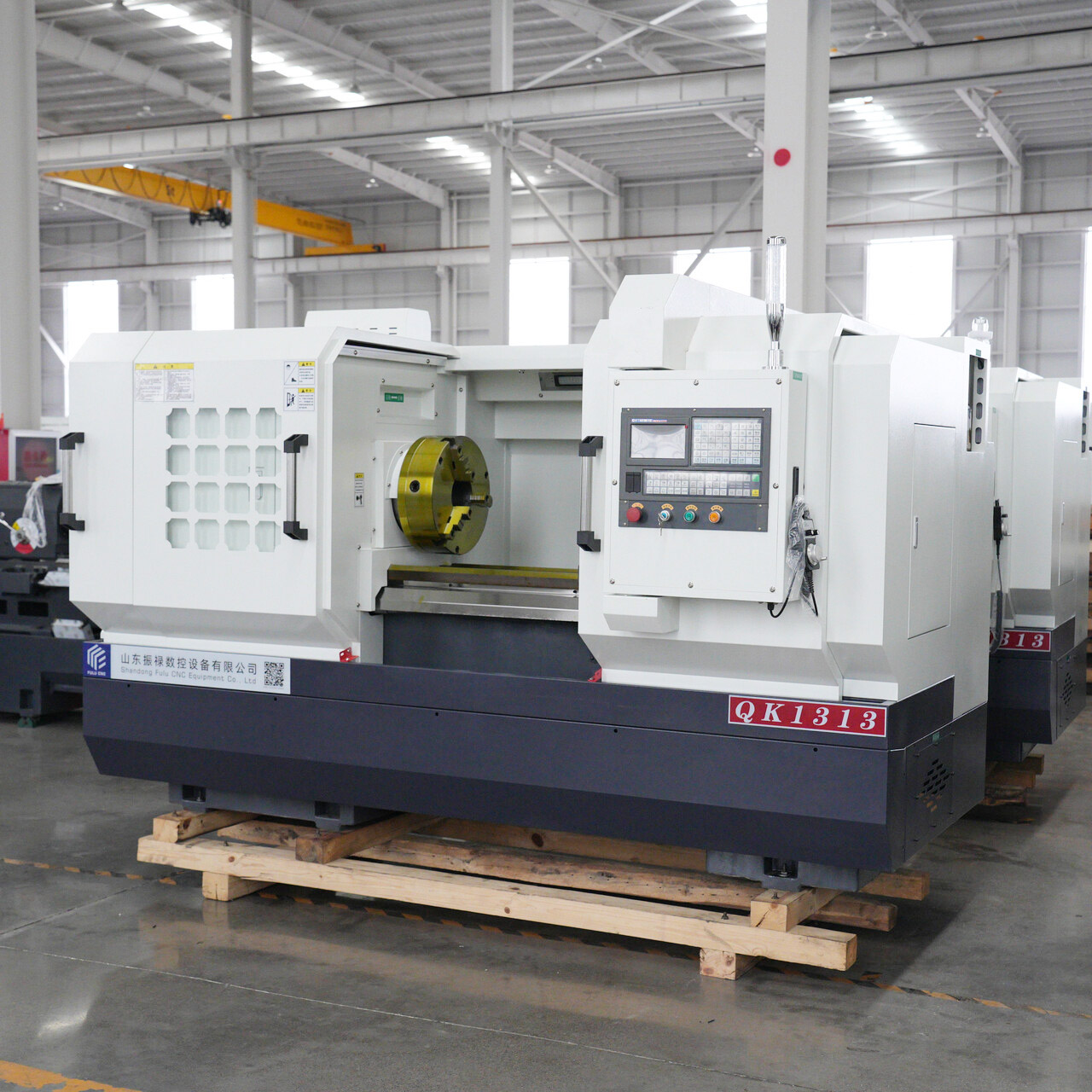

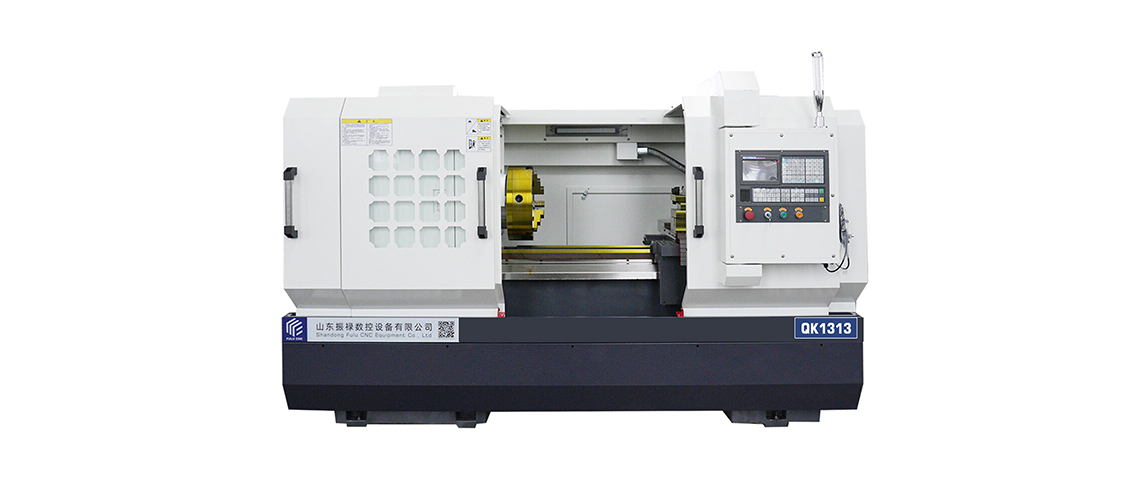

CNC Lathe
Basic Parameters
Project: QK1313
Unit
Specification
Maximum turning diameter on the bed
mm
630
Maximum turning diameter on the tool holder
mm
340
Maximum workpiece length between centers
mm
1500
Maximum processing pipe diameter
mm
Φ340
Spindle through hole diameter
mm
Φ130
Spindle end code
-
A2-11
Spindle speed range
r/min
30-450
Chuck specification (manual four-jaw chuck)
mm
500
Main motor power
kW
11
Tool size
mm
32 × 32
Electric tool holder
-
Vertical four-station electric tool holder
Maximum travel of Z axis
mm
1500
Maximum travel of X axis
mm
350
Rapid movement speed of Z axis
m/min
6
Rapid movement speed of X axis
m/min
4
Torque of X/Z axis servo motor
N·m
10/15
Tailstock sleeve diameter
mm
Φ100
Tailstock sleeve travel
mm
250
Tailstock sleeve taper hole
-
MT6
Guide rail width
mm
550
Machine dimensions (length × width × height)
mm
3800 × 1800 × 1900
Machine weight
kg
4500
Standard Configuration

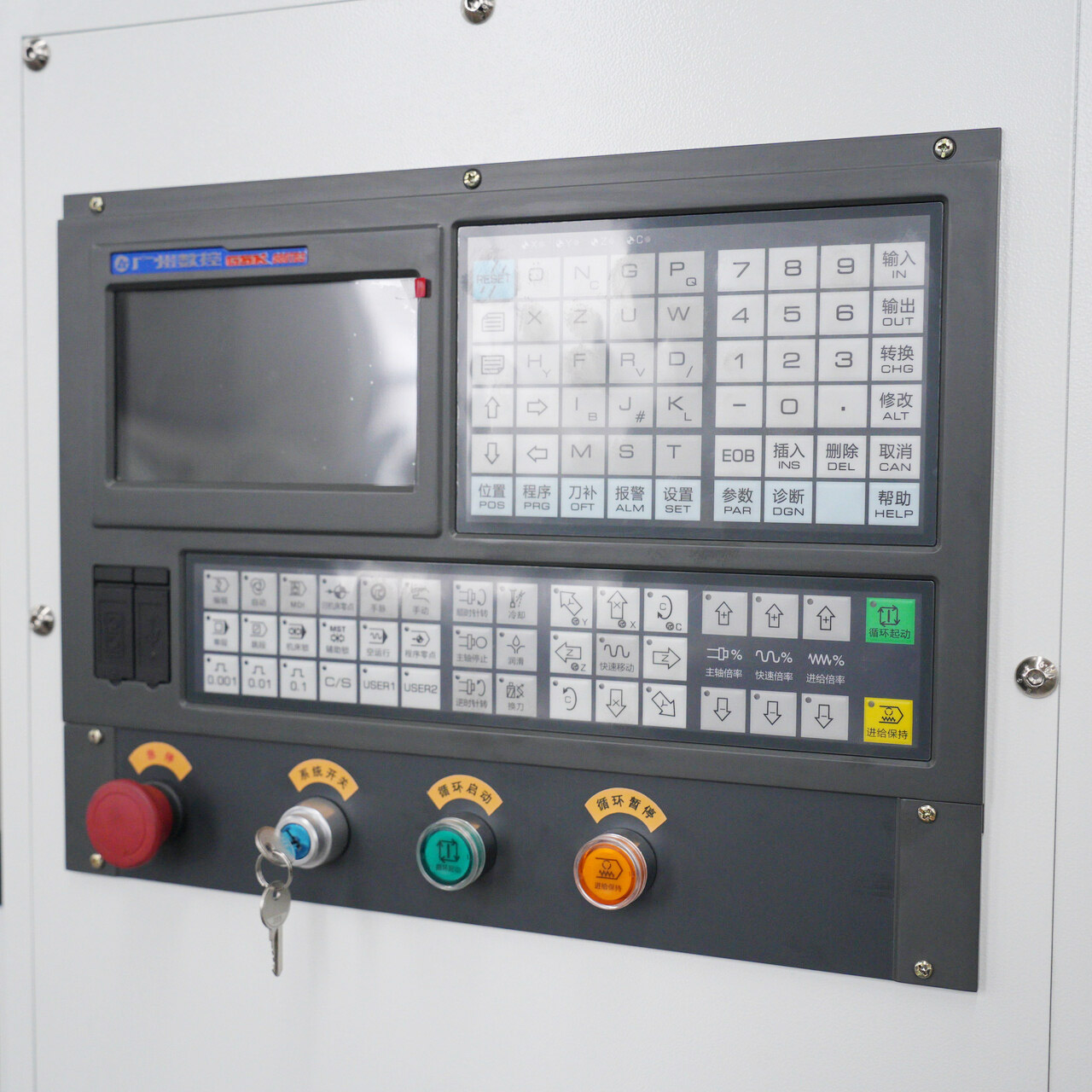

控制系统

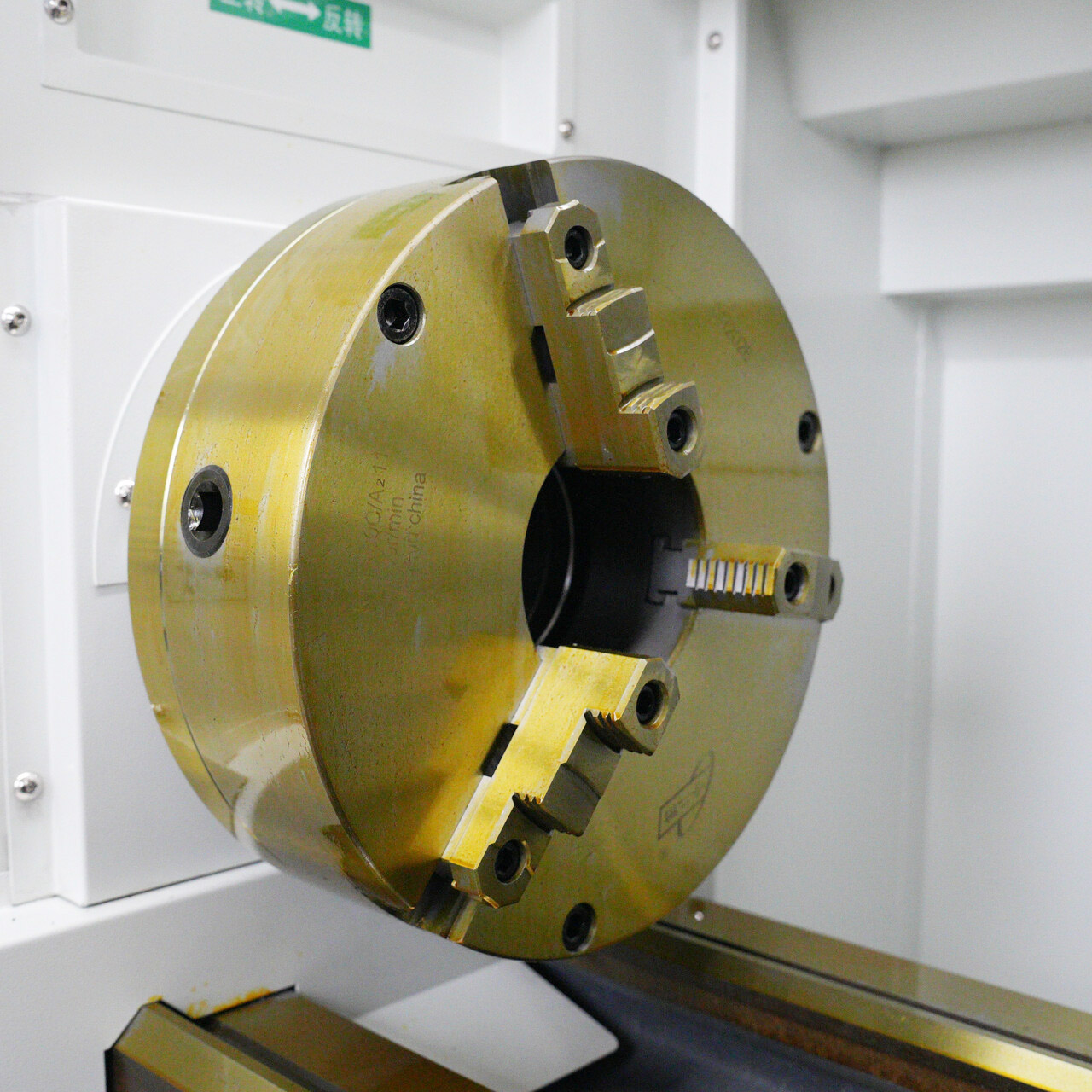

三爪卡盘

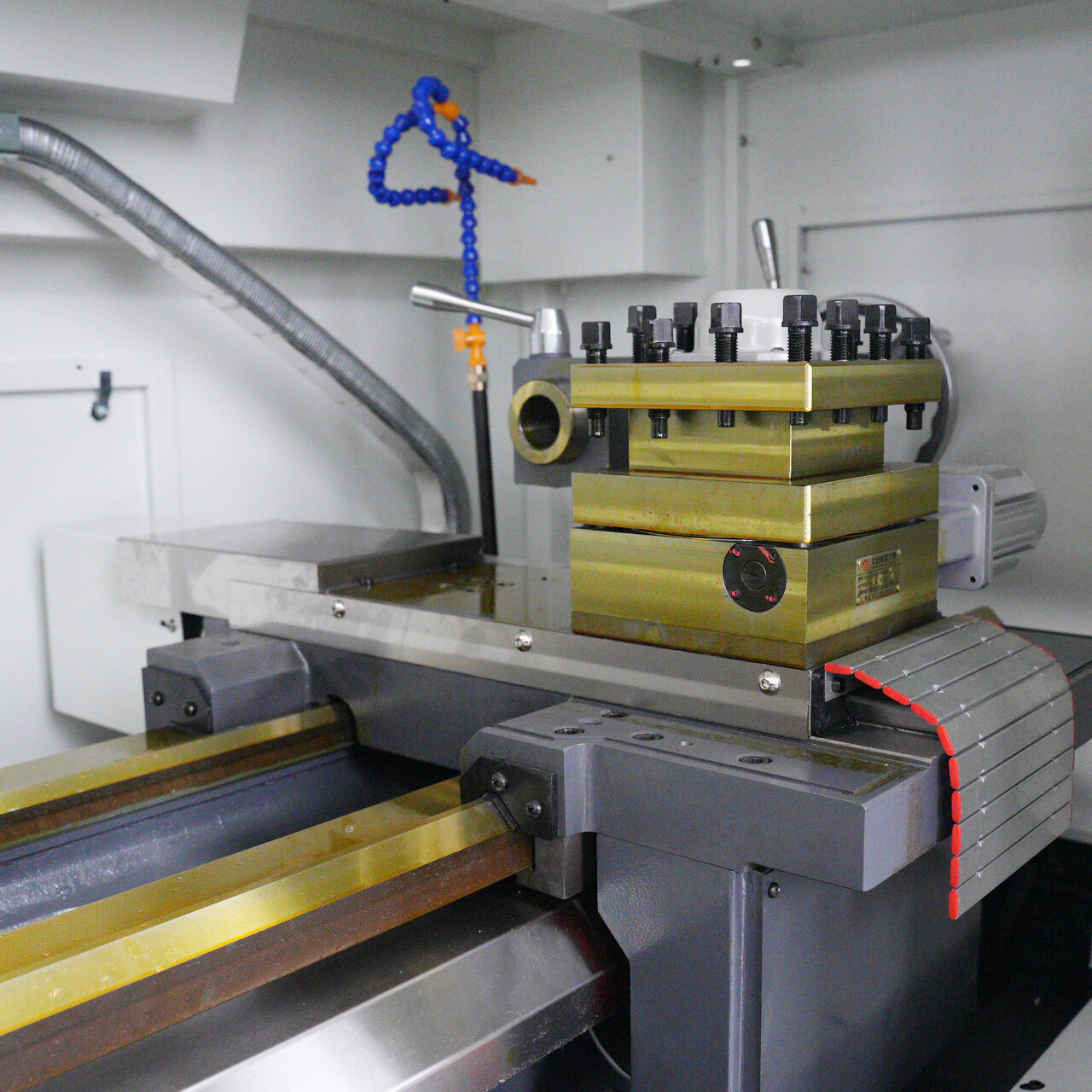

四工位电动刀架
手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
Machinable Parts
