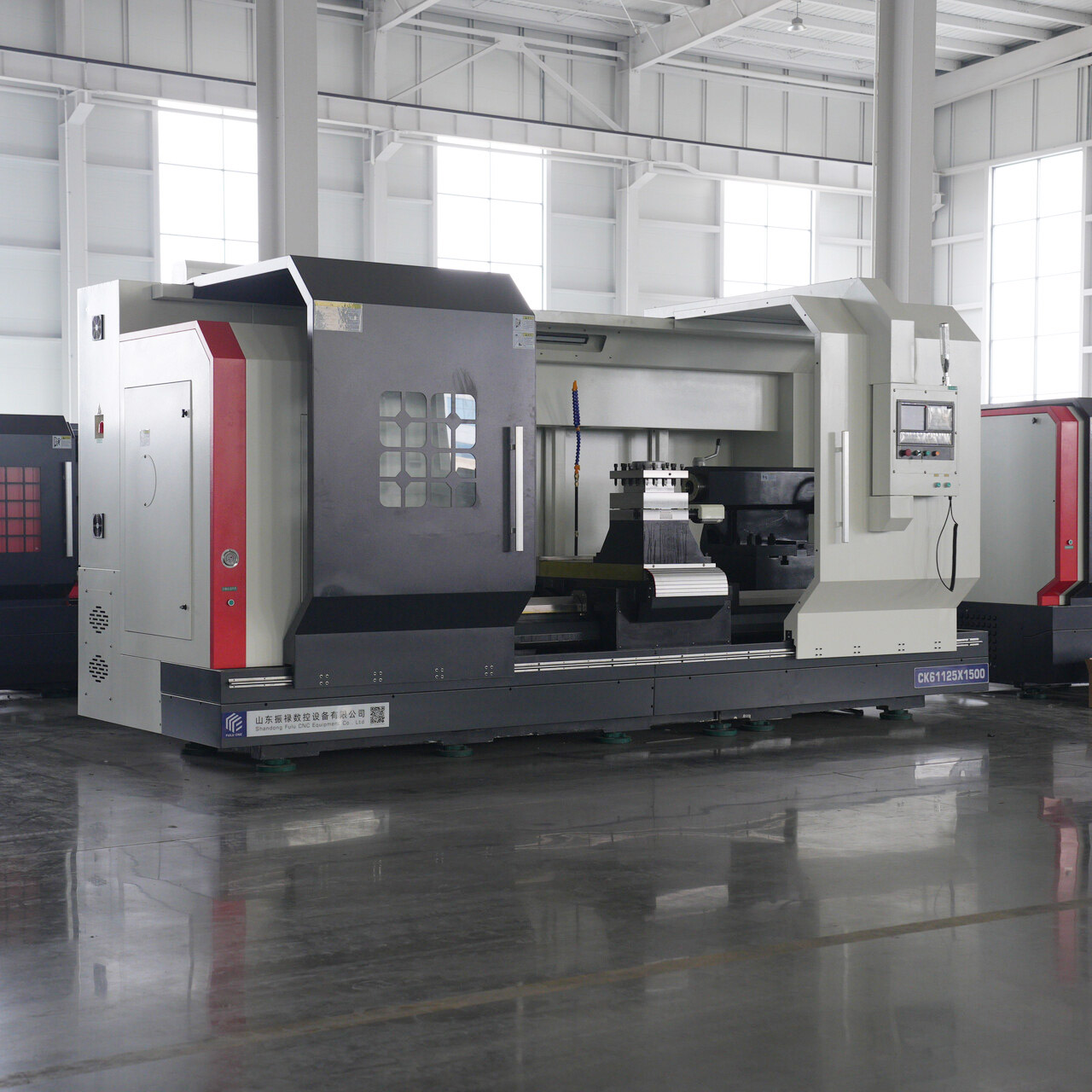

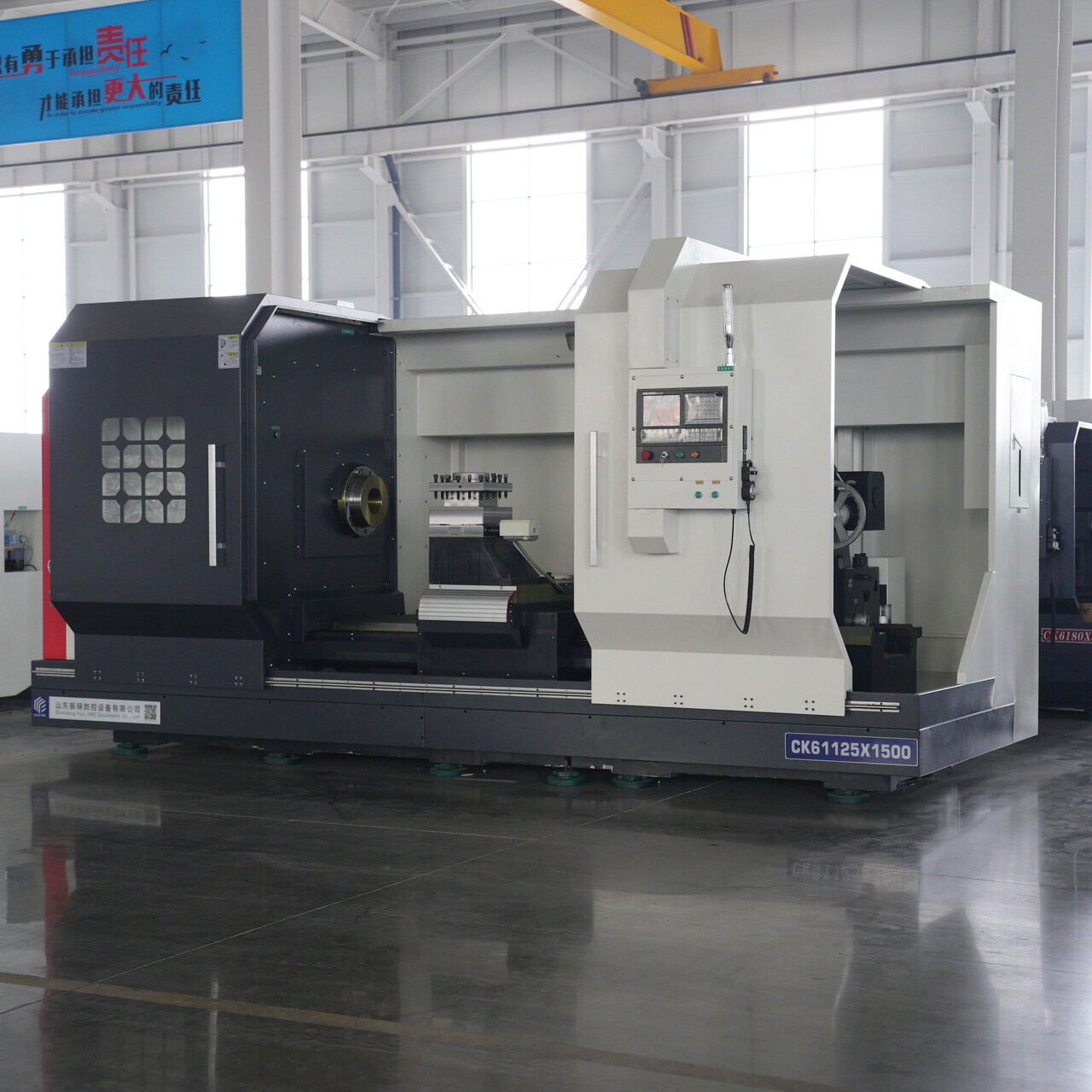

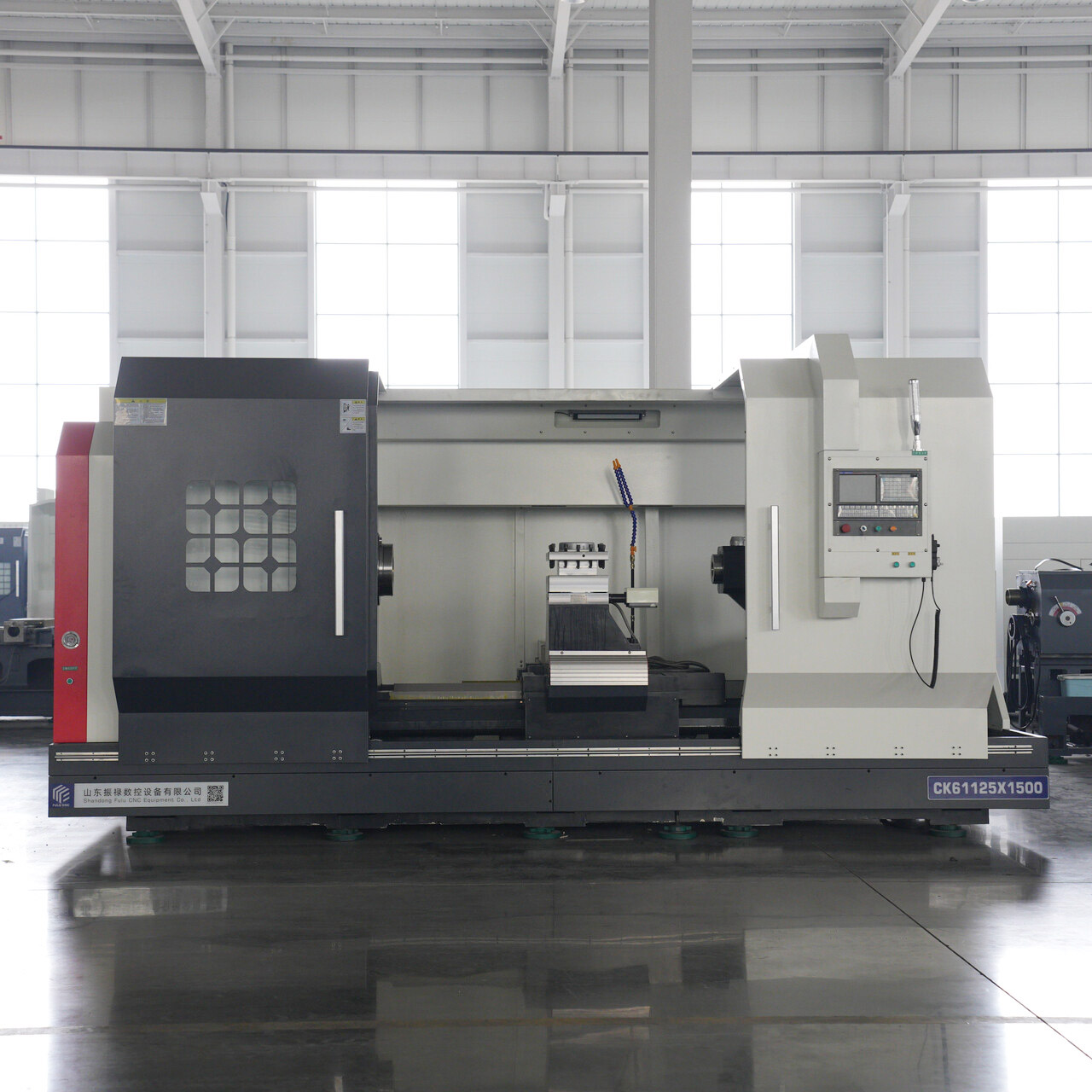

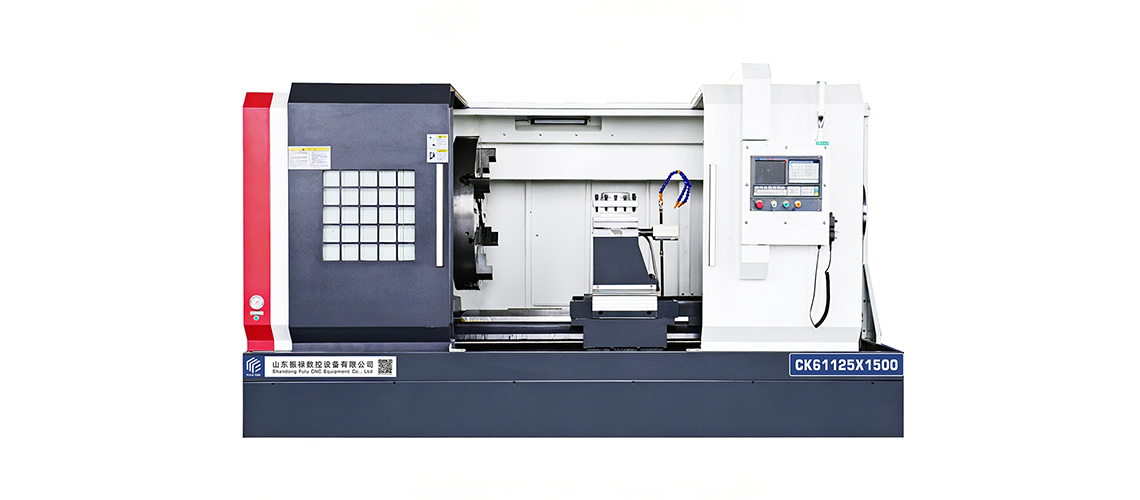

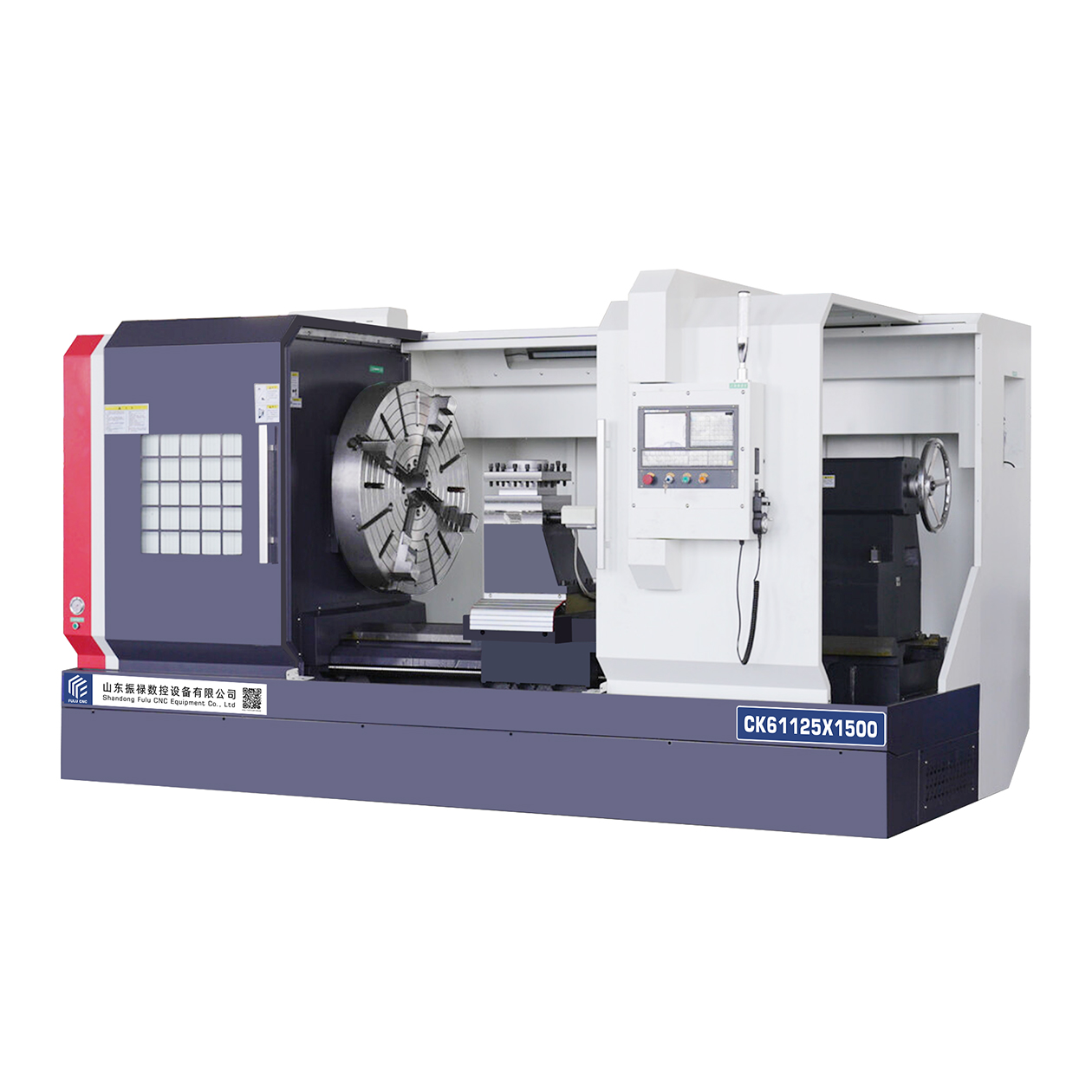

CNC Lathe
Basic Parameters
Project: CK61125-1500
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
1250mm
Maximum workpiece rotation diameter on the tool holder
mm
850mm
Maximum workpiece length between centers
mm
1500
Effective processing length
mm
1350
Width of bed guide rail
mm
755/600
Spindle hole diameter
mm
ф105/130

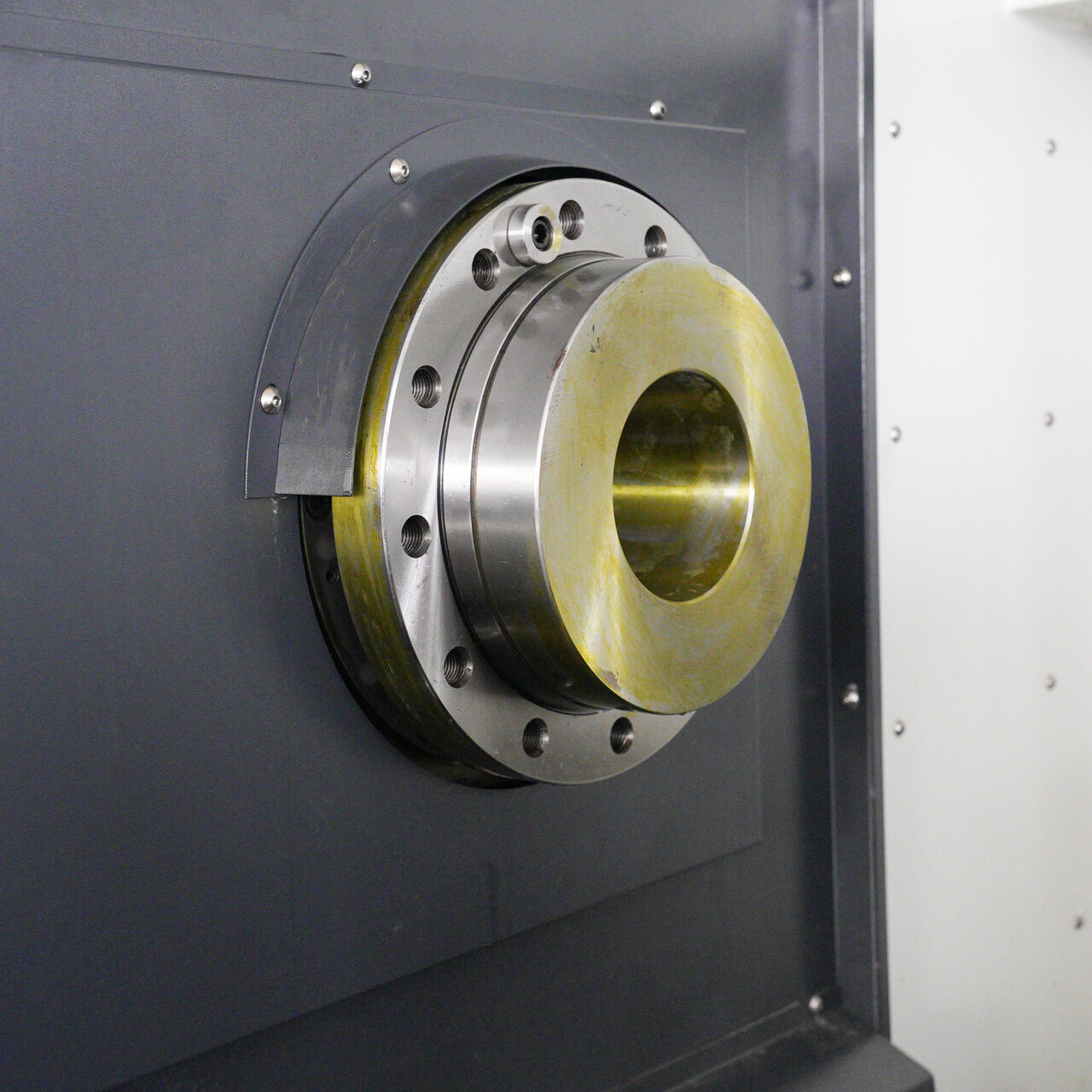

Spindle end code
-
A2-11
Spindle speed range (frequency conversion stepless speed regulation)
r/min
30-84
Chuck (manual) four-jaw chuck
mm
1000
Main motor power
Kw
November 15
Tool size
mm
40×40
Electric tool holder
-
Vertical four-station tool holder
Maximum stroke of the bed saddle in the Z direction
mm
1500
Maximum lateral stroke of the tool holder in the X direction
mm
620
Fast moving speed of the bed saddle in the Z direction
m/min
6
Lateral fast moving speed of the tool holder in the X direction
m/min
4
X/Z axis torque
nm
10/15/18.5/22

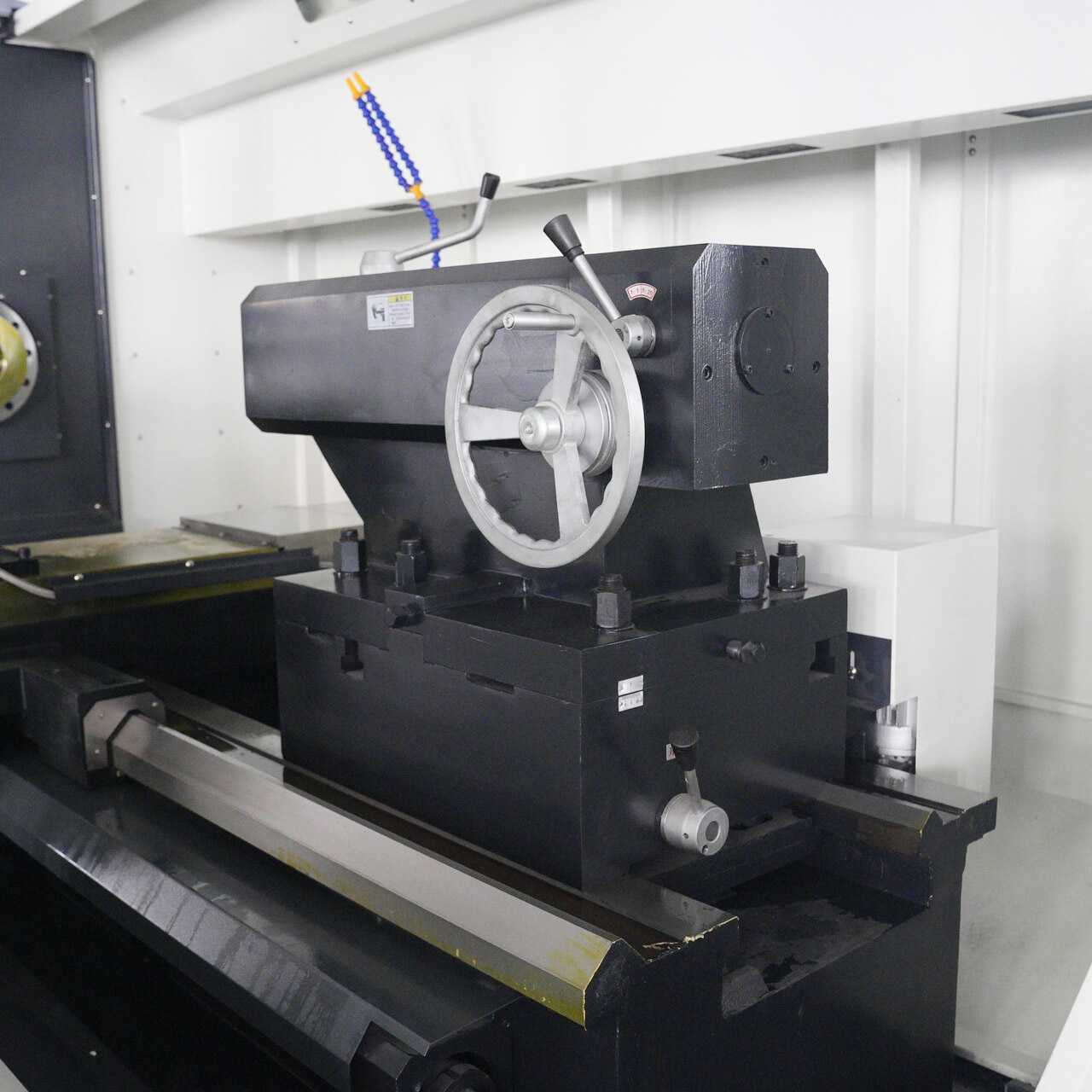

Diameter of tailstock sleeve
mm
φ100
Stroke of tailstock sleeve
mm
250
Taper of tailstock sleeve
-
Metric 100/Morse 6
Machine profile (length x width x height)
mm
3500*2000*2000
Standard Configuration
控制系统
三爪卡盘
四工位电动刀架
手动尾座

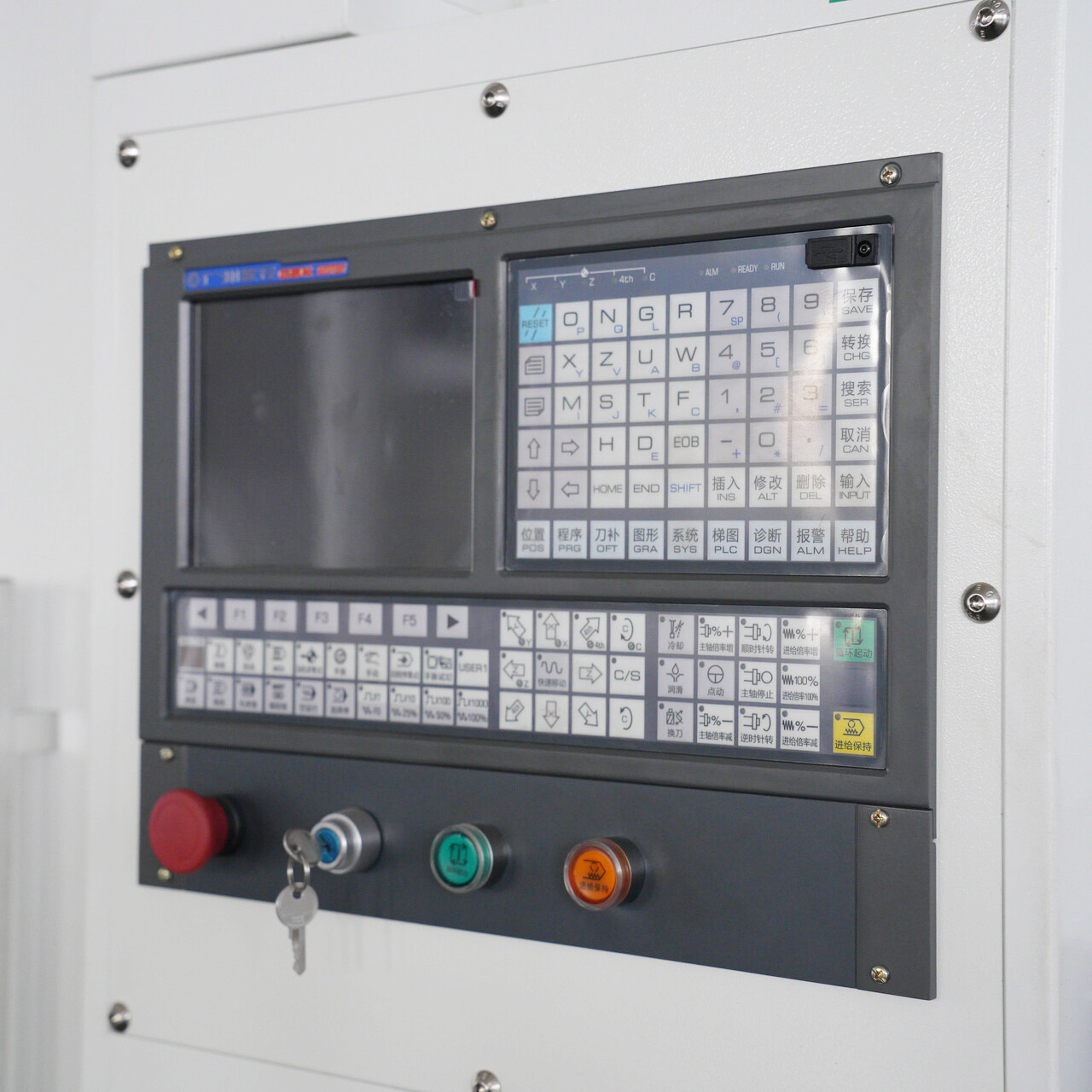

You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
