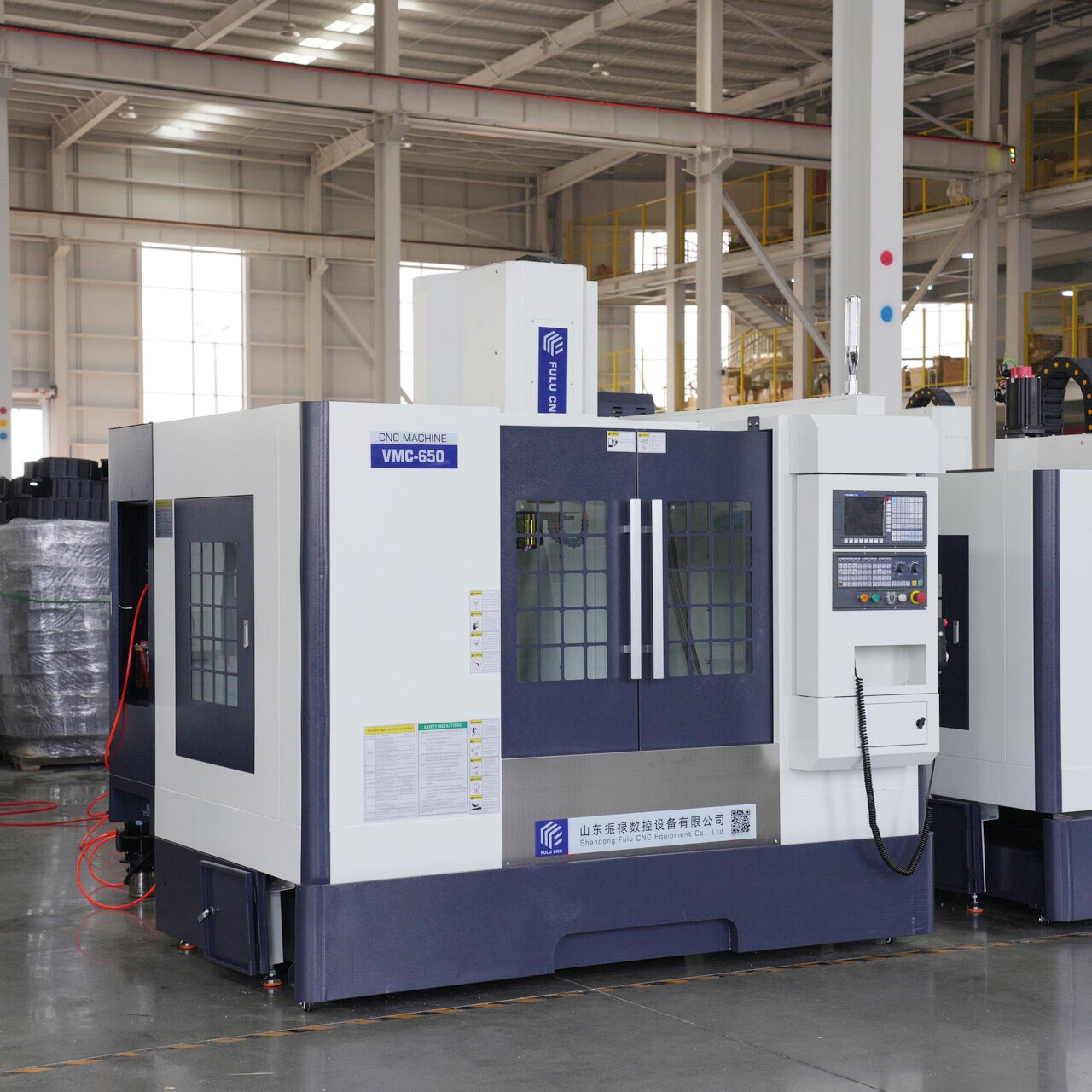

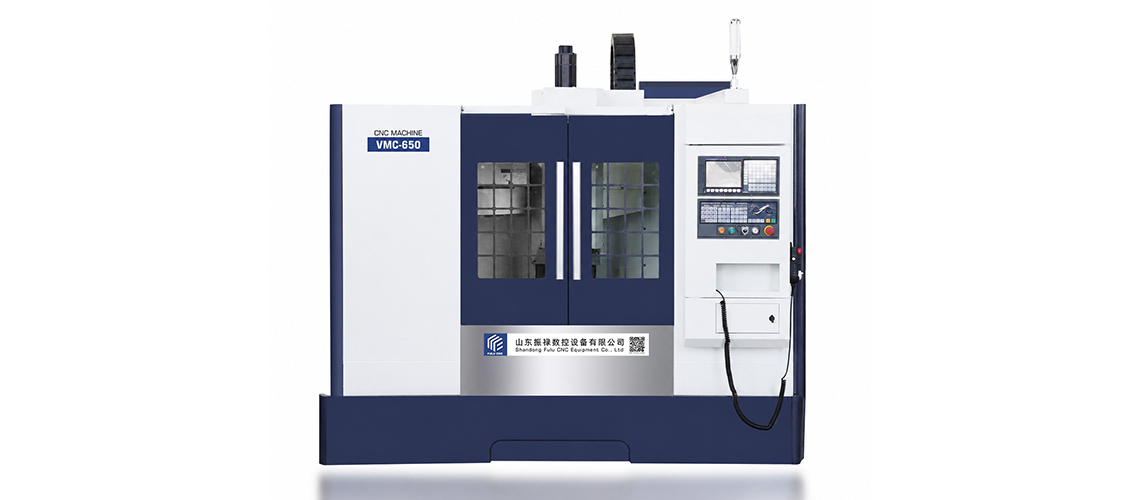

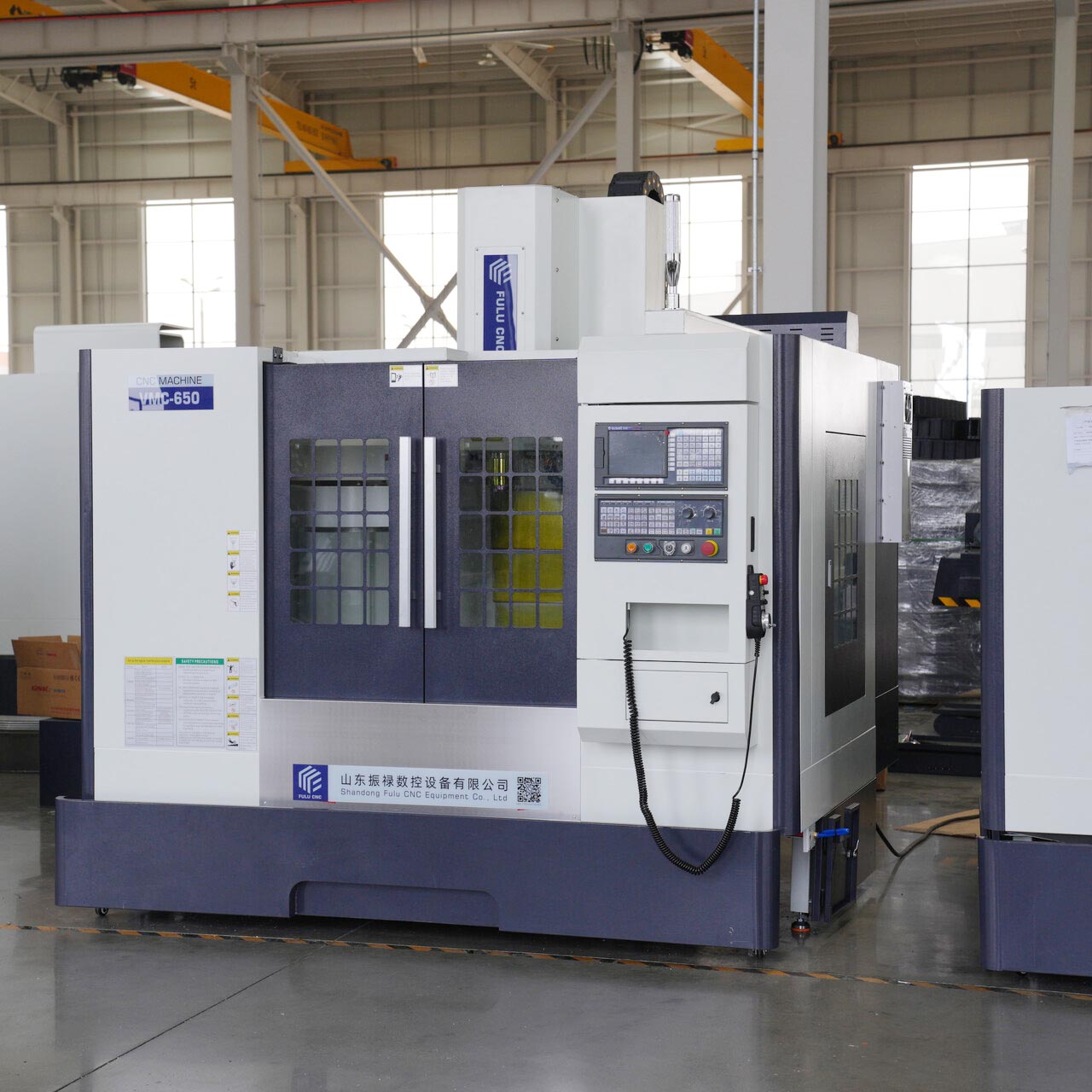

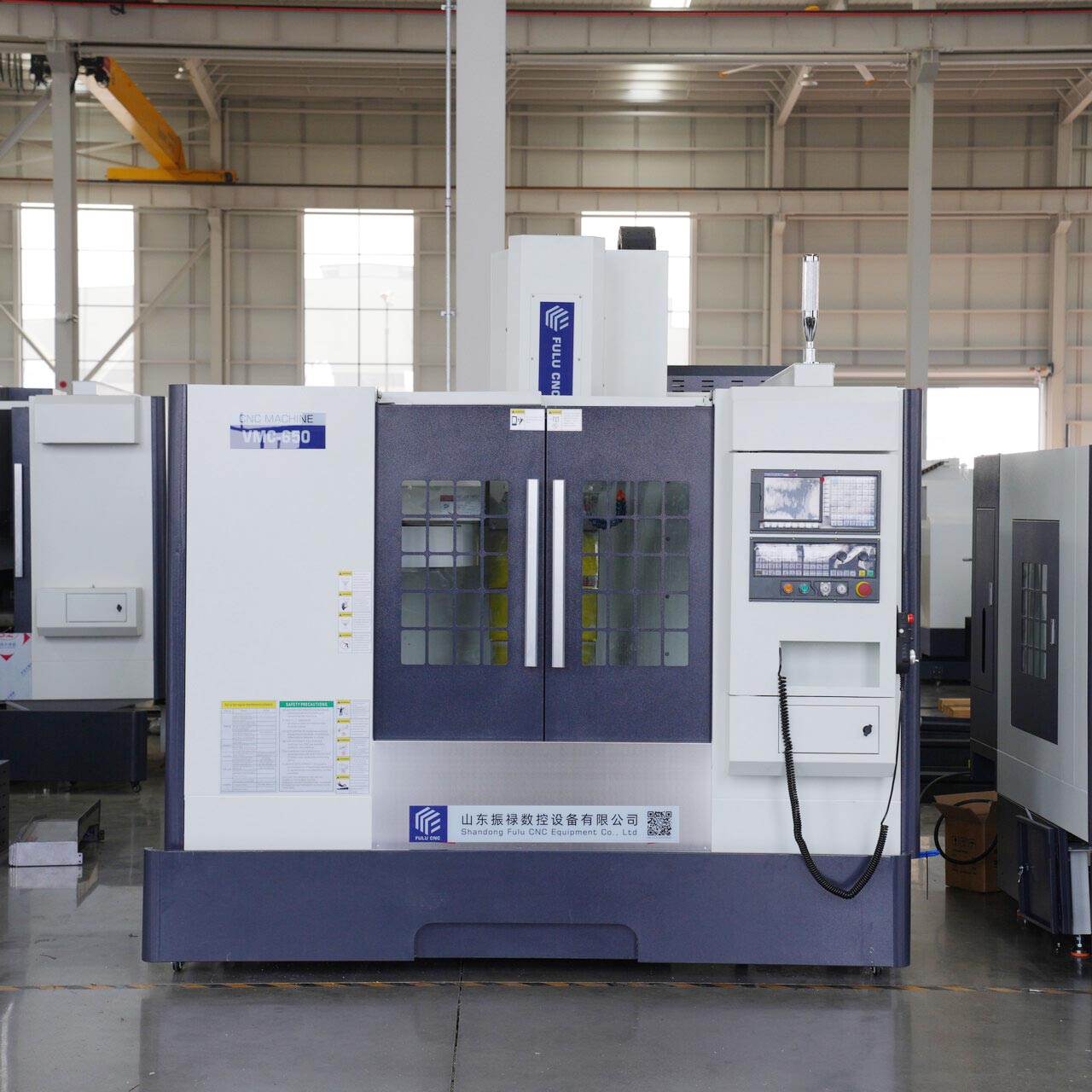

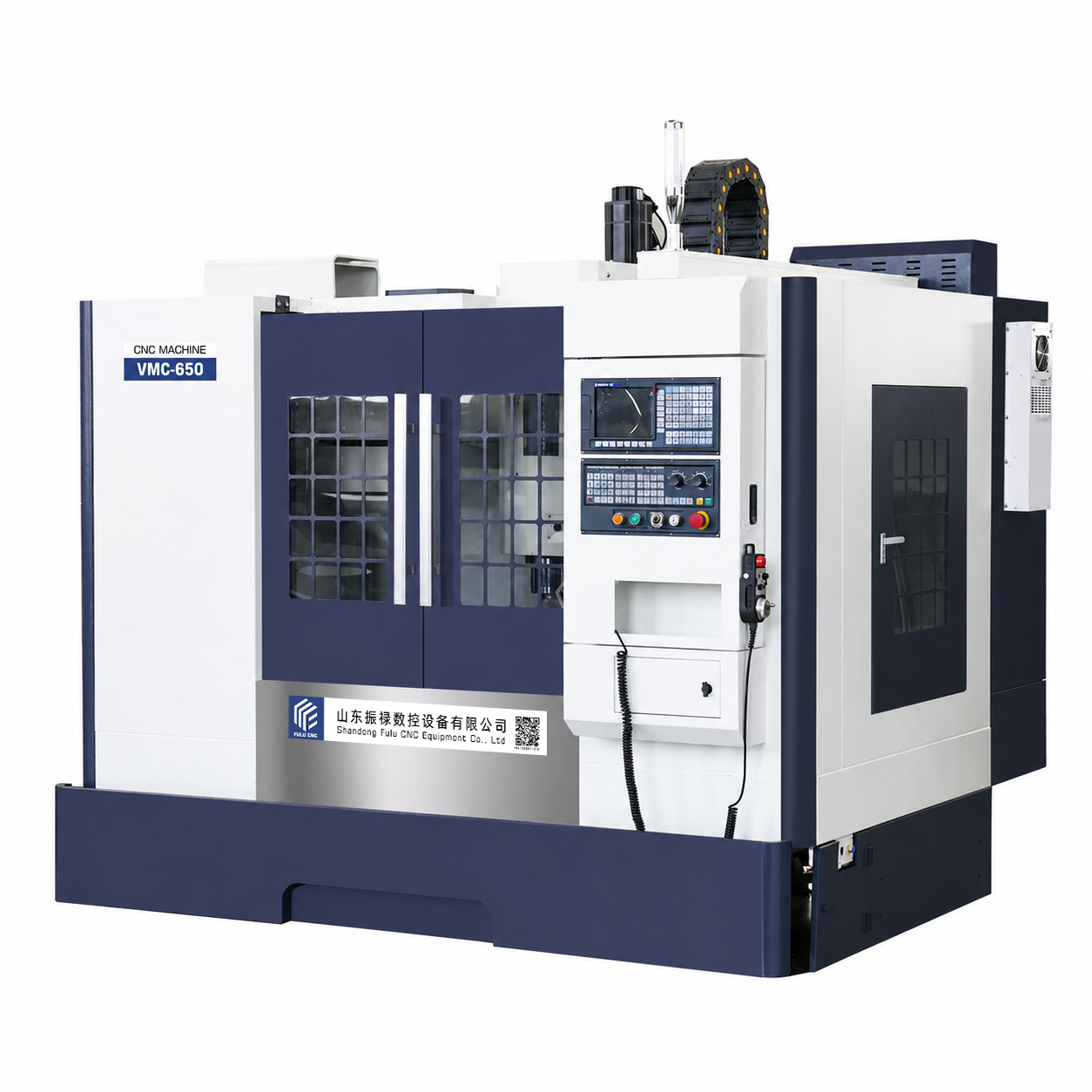

VMC650

CNC Lathe

Basic Parameters

Table size 900×400mm, suitable for clamping and processing various workpieces.
Maximum spindle speed 8000rpm (optional 10000rpm), meets the needs of high-speed precision milling.
X/Y/Z axis travel 650/400/500mm, wide processing range.
Three-axis rapid movement speed 24m/min, improving production processing efficiency.
High rigidity vertical structure design, ensuring stable and reliable processing accuracy.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Project (VMC650)	Unit	Specification
X-axis travel	mm	650
Y-axis travel	mm	450
Z-axis travel	mm	460
Distance from spindle nose to table	mm	90~550
Distance from spindle center to column surface	mm	415
Table area	mm	900*400
Maximum load of table	kg	500
T-slot size (width x number x pitch)	mm	16575
Height of table from ground	mm	780
Spindle taper	-	BT40/φ120
Ball screw accuracy	Level	P4
Control system	-	GSK25i
X-axis motor	nm	10
Y-axis motor	nm	10
Z-axis motor	nm	15
Spindle motor	kw	5.5/7.5
Approximate total weight	kg	2200

◎GSK 980TB3i English System
◎Cutting Cooling System

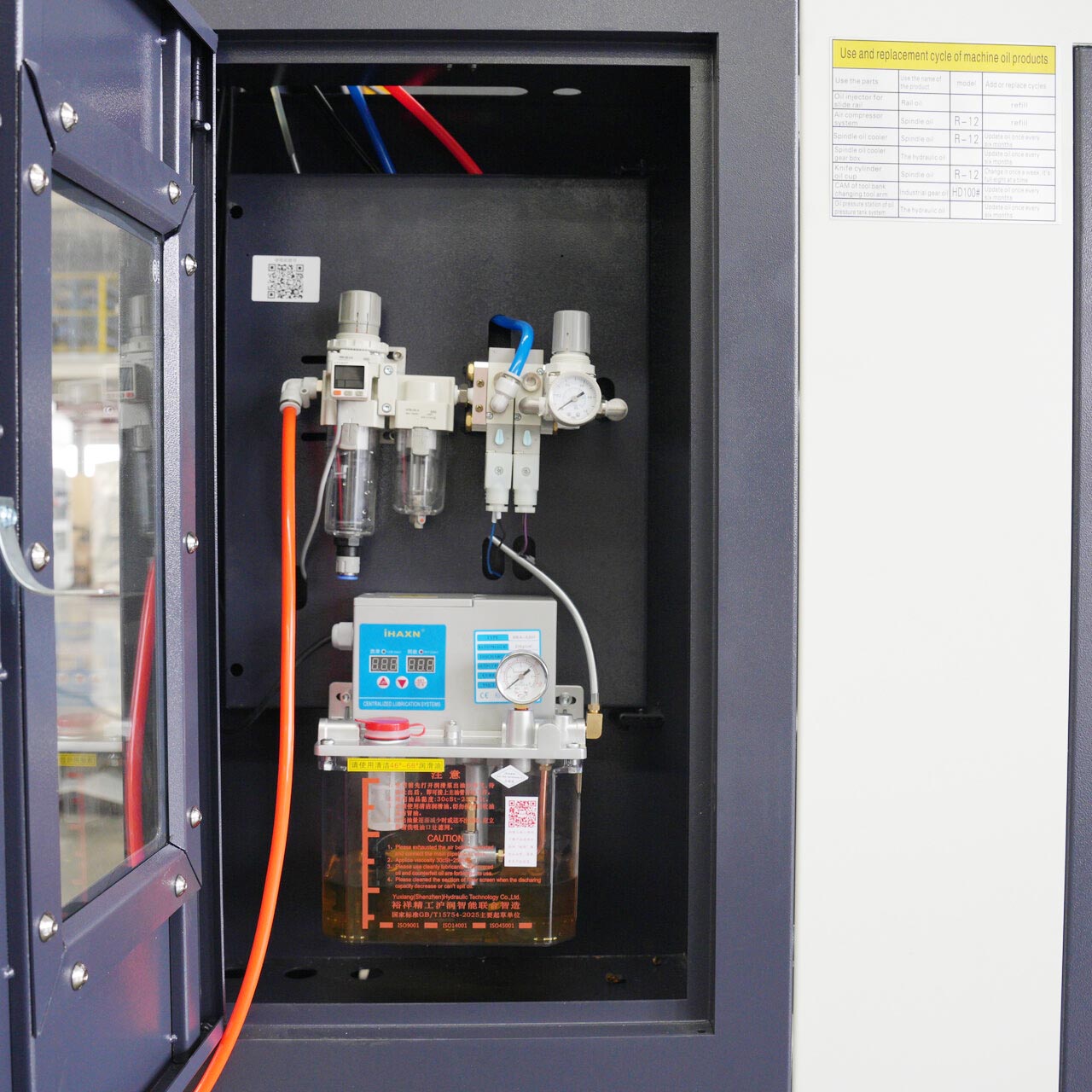

◎Automatic Lubrication System
◎Cutting Blowing Device
◎Spindle and Servo Overload System Protection
◎Three-color Alarm Light

◎Horizontal Adjustment Bolt and Pad

◎Electrical Box Heat Exchanger
◎Three-axis Screw Pre-tensioning Device
◎Program Storage
◎Spindle Ring Water Spray
◎Reserved for Adding Four-axis Interface

◎Internal Work Light

◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kandy
◎10000, 12000rpm spindle speed
◎30kg/50kg center water outlet
◎170/200mm fourth axis
◎125/170mm fifth axis
◎Chain chip conveyor

Learn More

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

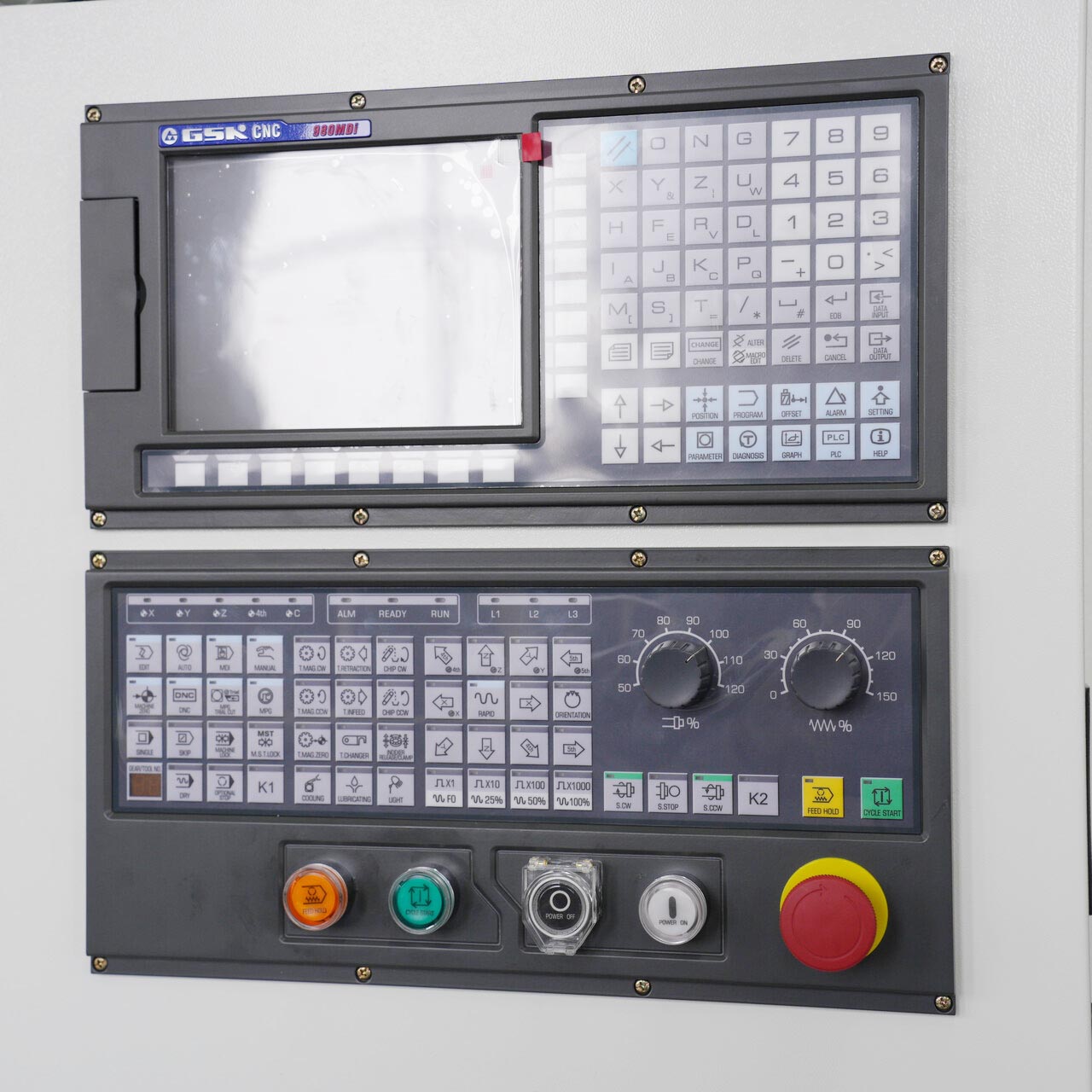

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

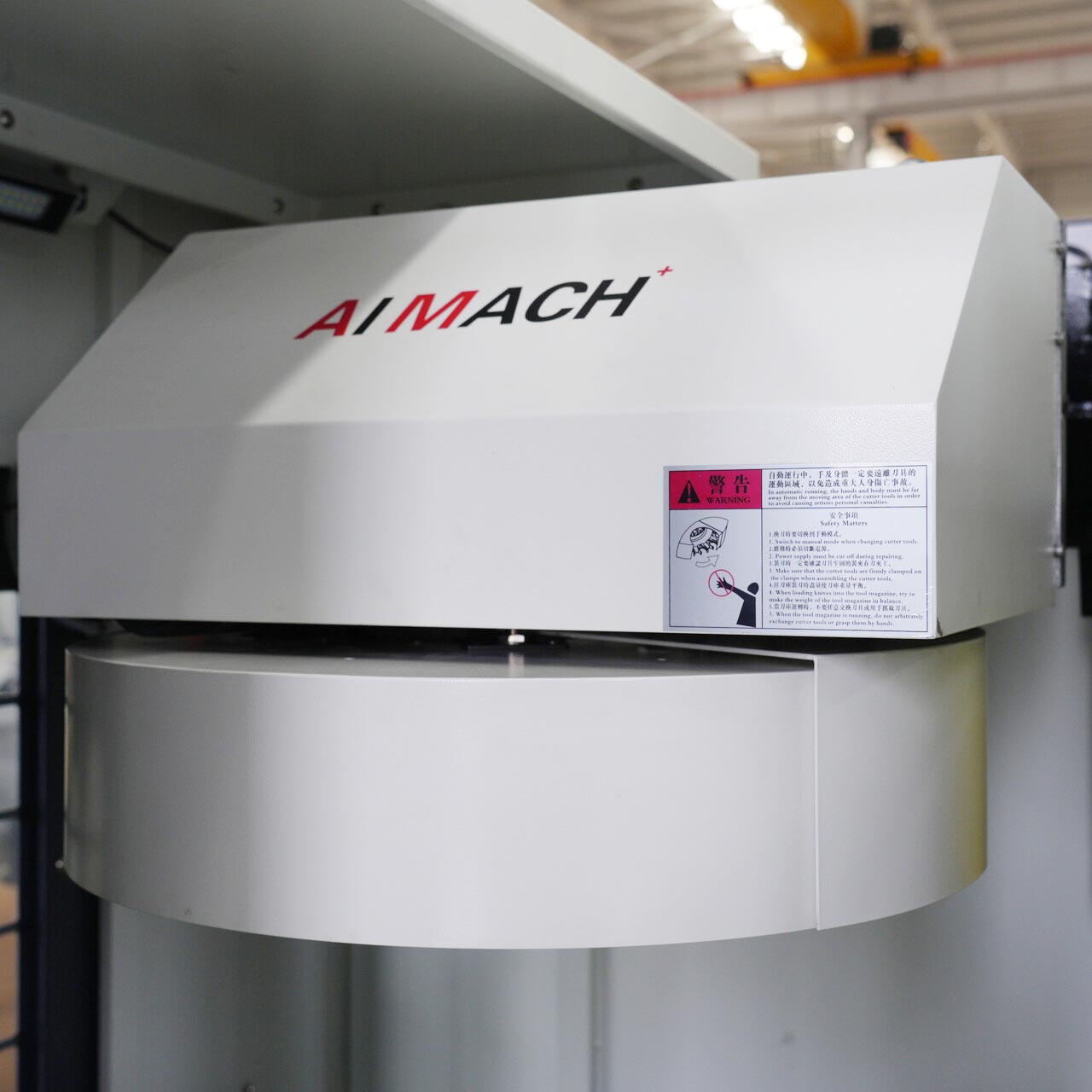

24把圆盘刀库

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

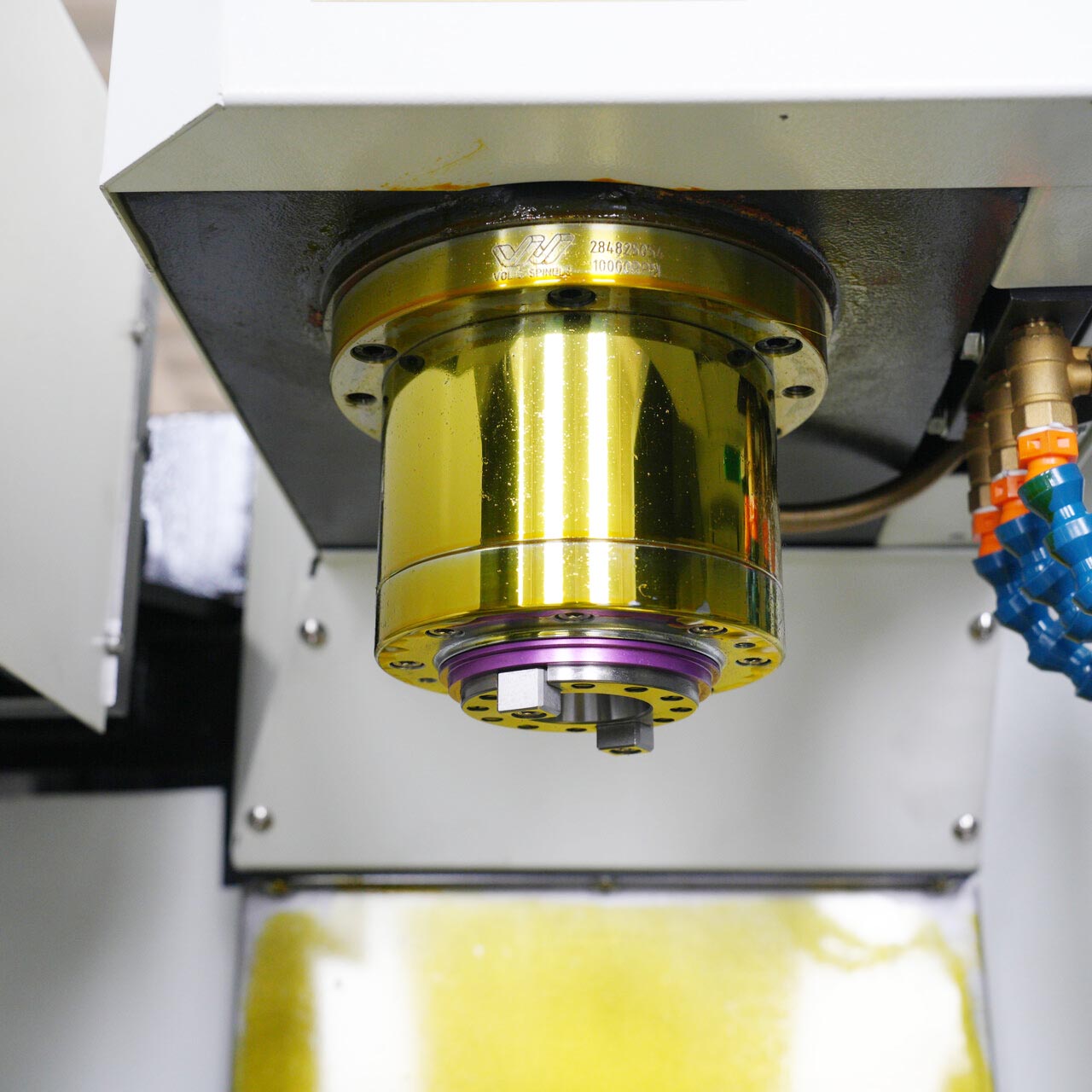

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
