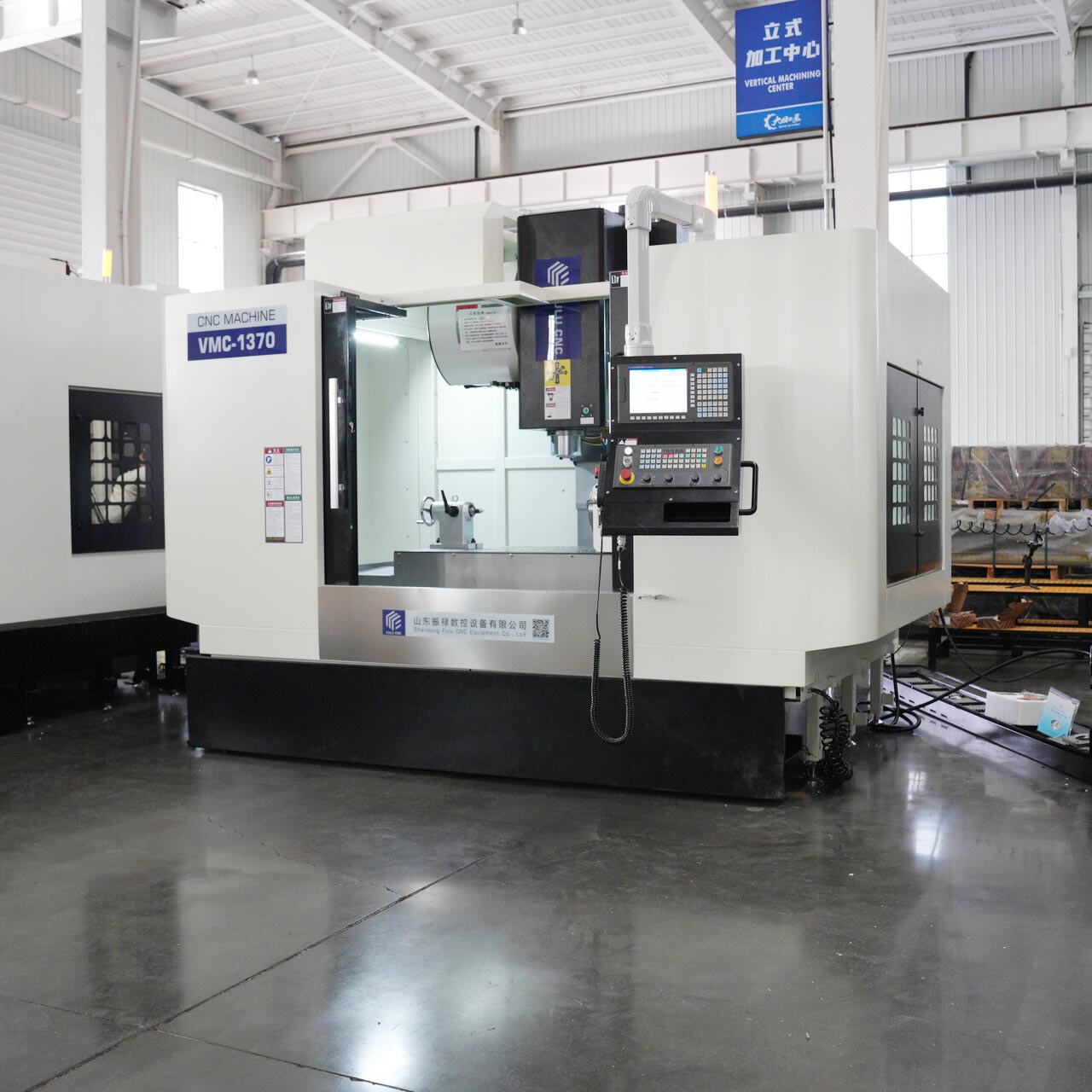

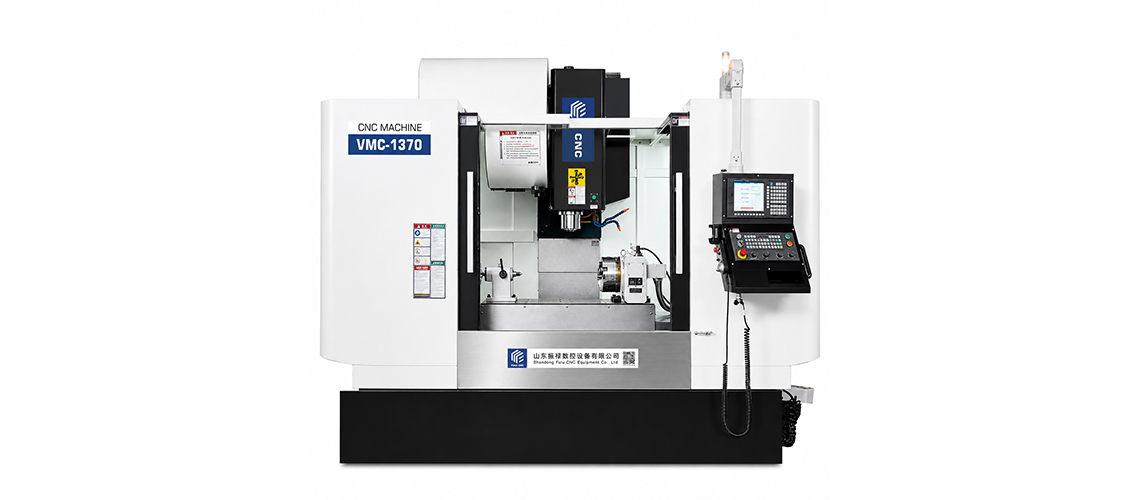

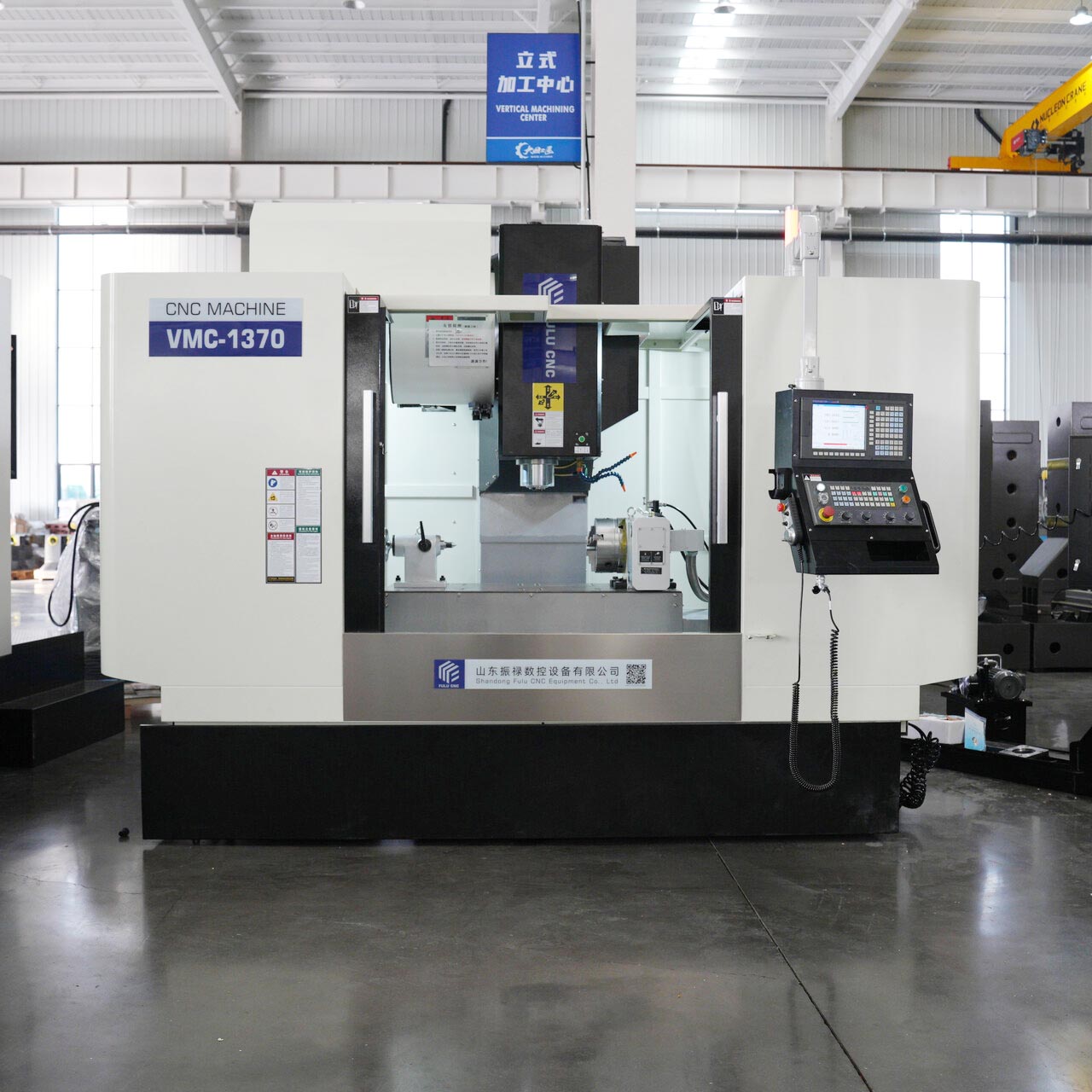

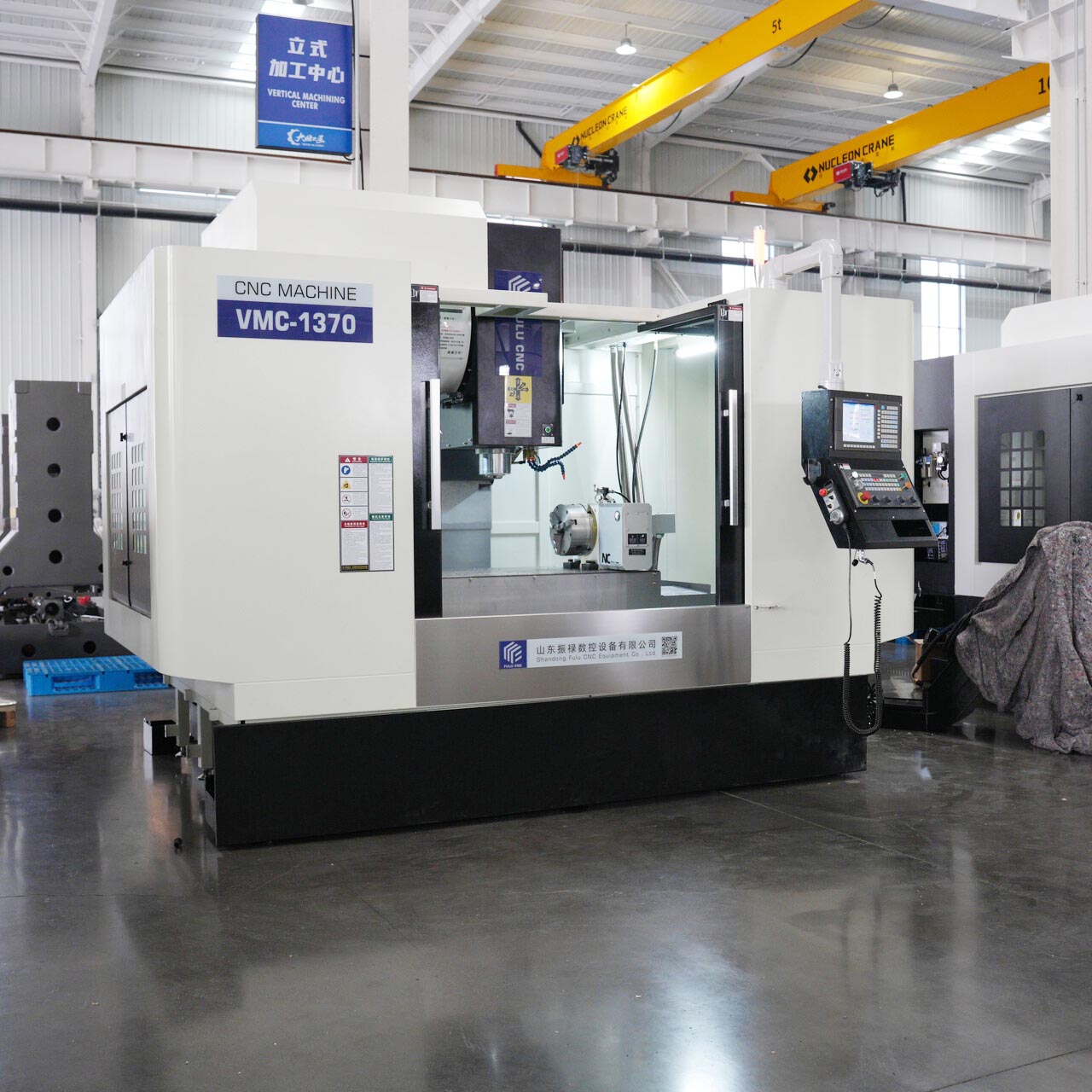

VMC1370

CNC Lathe

Basic Parameters

Maximum spindle speed of 10000rpm, meeting the needs for high-speed precision machining of complex parts.
Table size of 1400×700mm, easily accommodating large workpieces.
X/Y/Z axis travel of 1300/700/700mm, expanding processing application range.
Three-axis rapid travel speed of up to 30m/min, effectively improving production rhythm.
Large span column and widened bed design, providing more stability for heavy cutting.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Project (VMC1370)	Unit	Parameter
Table Size	mm	1400x700
X/Y/Z Axis Travel	mm	1300/700/700
Distance from Spindle Face to Table	mm	100-800
Distance from Spindle Center to Column	mm	810
Maximum Load on Table	Kg	10000
Table T-Slot	mm	5-18*110
X/Y/Z Axis Rapid Feed	m/min	24/24/18
X/Y/Z Guideways	/	RGH45
X, Y, Z Lead Screw Pitch	mm	45*12
Positioning Accuracy	mm	±0.008
Repeatability Accuracy	mm	±0.006/300
Minimum Positioning Unit	mm	±0.001

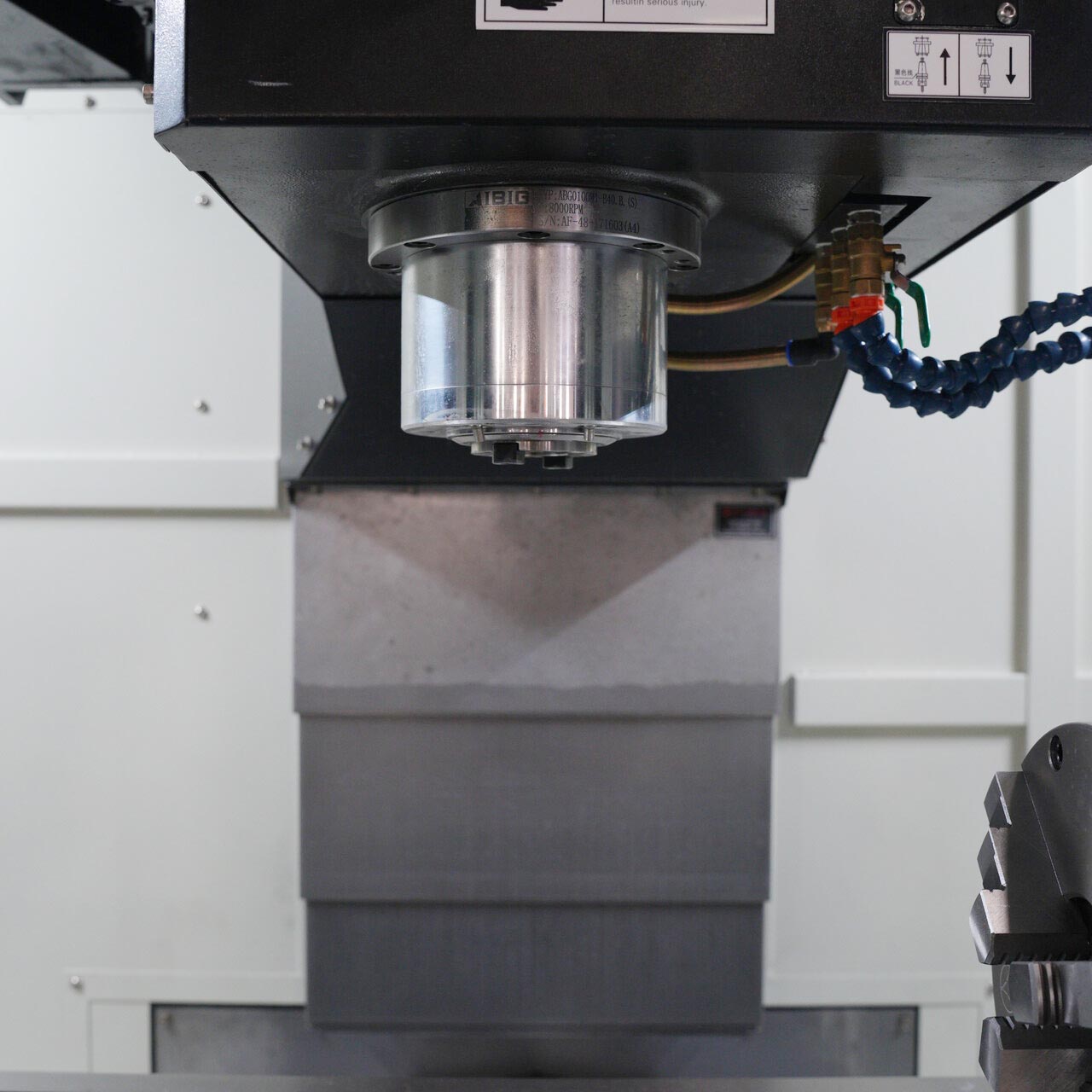

Maximum Spindle Speed	rpm	8000 (Circular Cooling)
Spindle Taper	mm	BT40-150

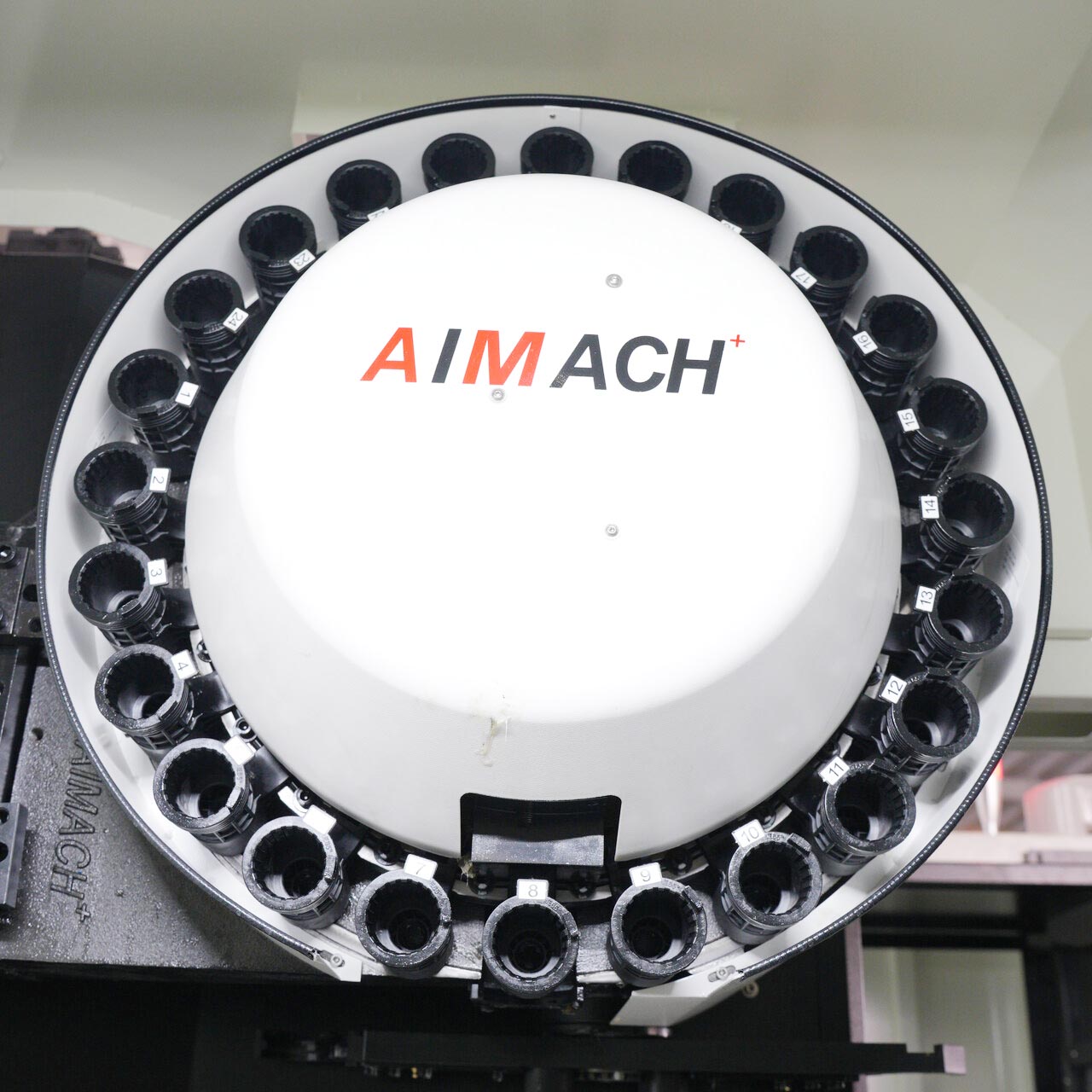

Disc Mechanical Arm Tool Magazine	pcs	24T

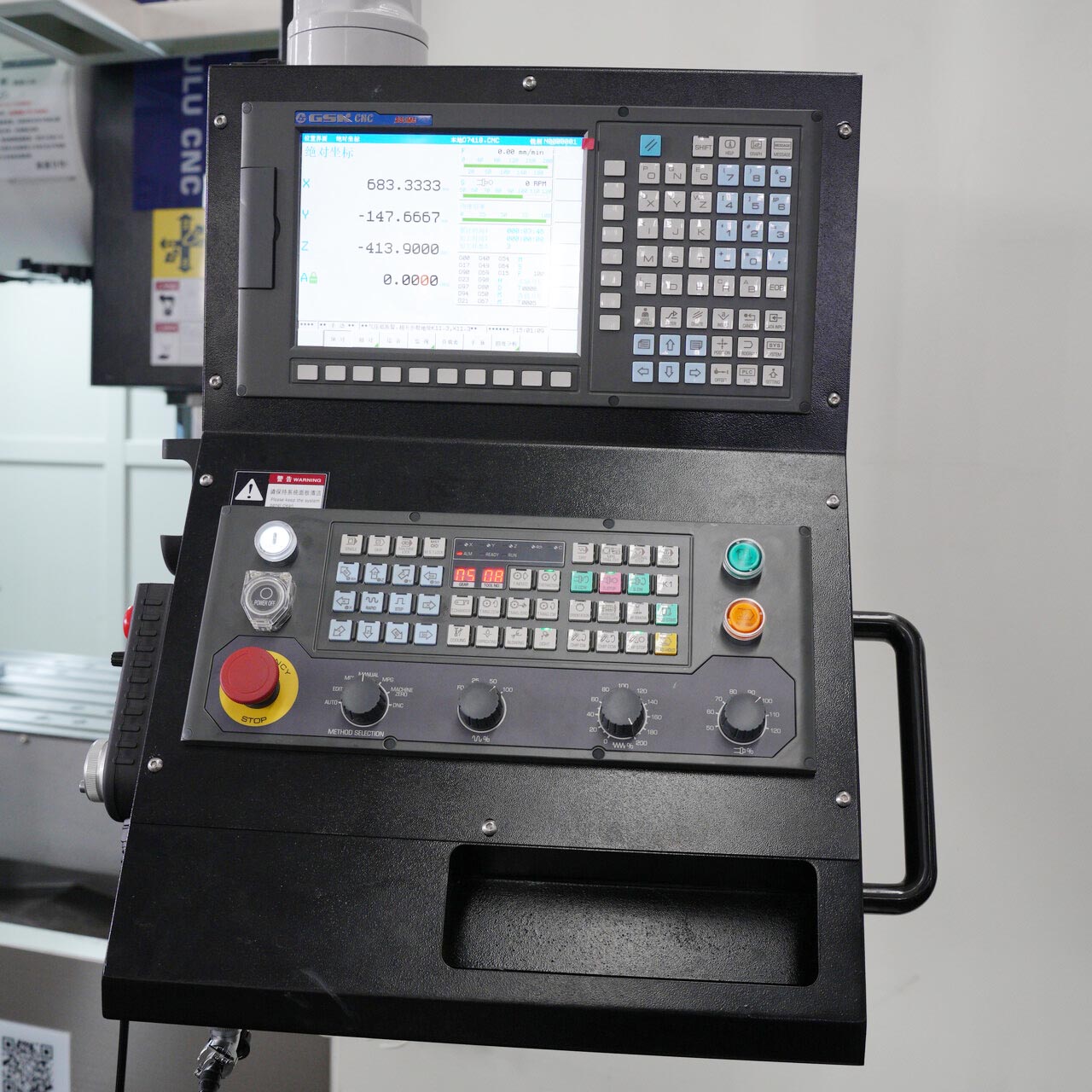

Controller System	/	GSK25i
Spindle Motor Power	Kw	15-18.5
Three-Axis Motor		28/28/28
Approximate Machine Weight	Kg	9500
Dimensions	mm	3700x2900x3300

Serial Number	Configuration Content	Serial Number	Configuration Content
1	Cutting Cooling System	13	Machine Internal Cleaning Device: Chip Blowing Gun, Water Gun
2	Automatic Lubrication System	14	Manual Pulse Generator: Handwheel
3	Cutting Blowing Device	15	External Network Transmission Interface
4	Spindle and Servo Overload System Protection	16	Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal)
5	Three-Color Alarm Light	17	External Protective High-Quality Painted Sheet Metal
6	Horizontal Adjustment Bolt and Spacer	18	Rigid Tapping
7	Electrical Box Heat Exchanger	19	Accuracy Inspection Certificate
8	Three-Axis Screw Pre-Tensioning Device	20	Electrical Manual
9	Program Storage	21	User Manual
10	Spindle Ring Water Spray	22	Program Operation Manual
11	Reserved for Adding Four-Axis Interface	23	Air Curtain Protection
12	Machine Internal Work Light	24	Chassis Powerful Chip Blowing, Dual Water Pumps

◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kain Di
◎10000, 12000rpm spindle speed
◎30kg/50kg/70kg central water outlet

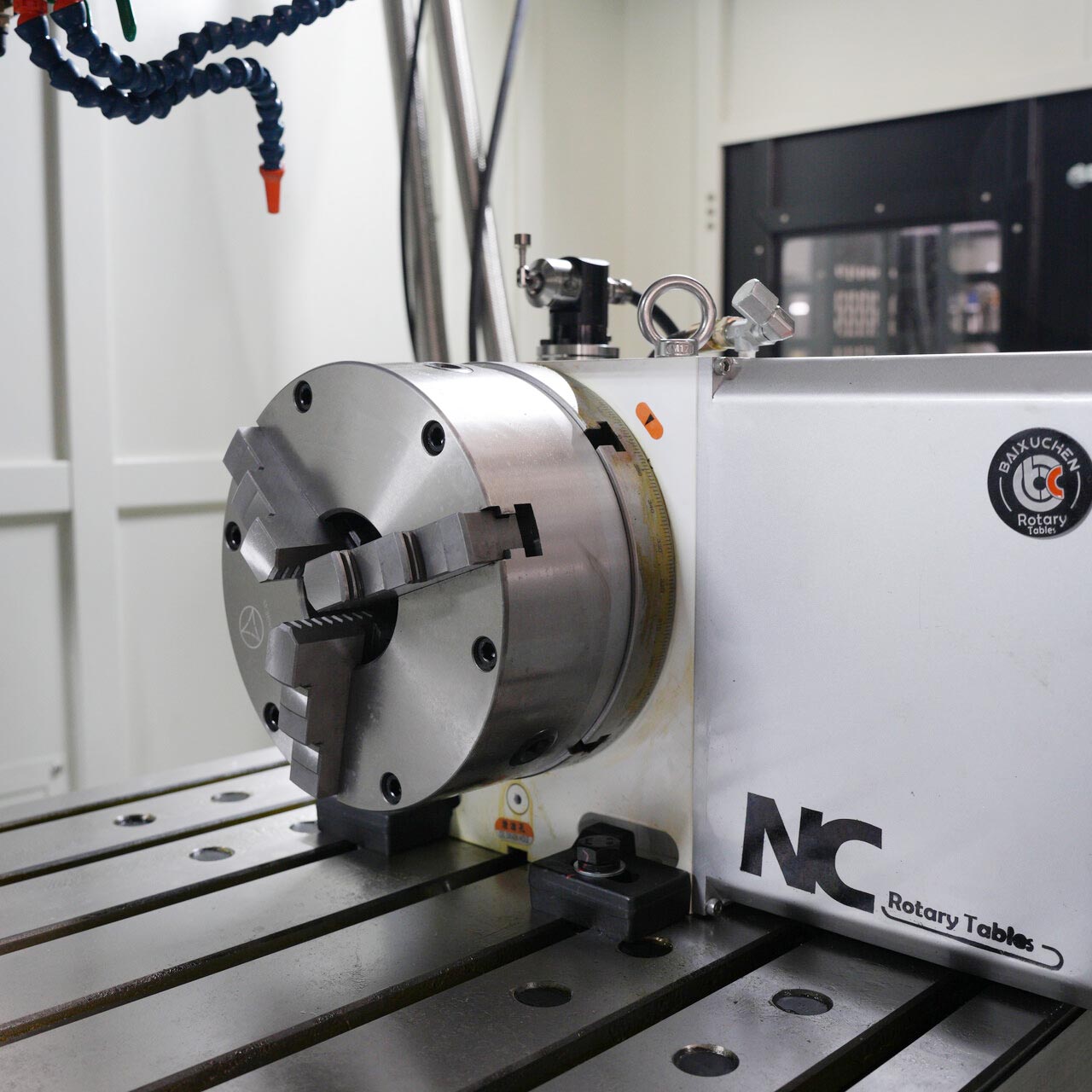

◎170/200/250/300mm fourth axis
◎125/170/210/250mm fifth axis
◎Chain-type chip conveyor
◎Renishaw tool setter

Contact Us

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

24把圆盘刀库

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
