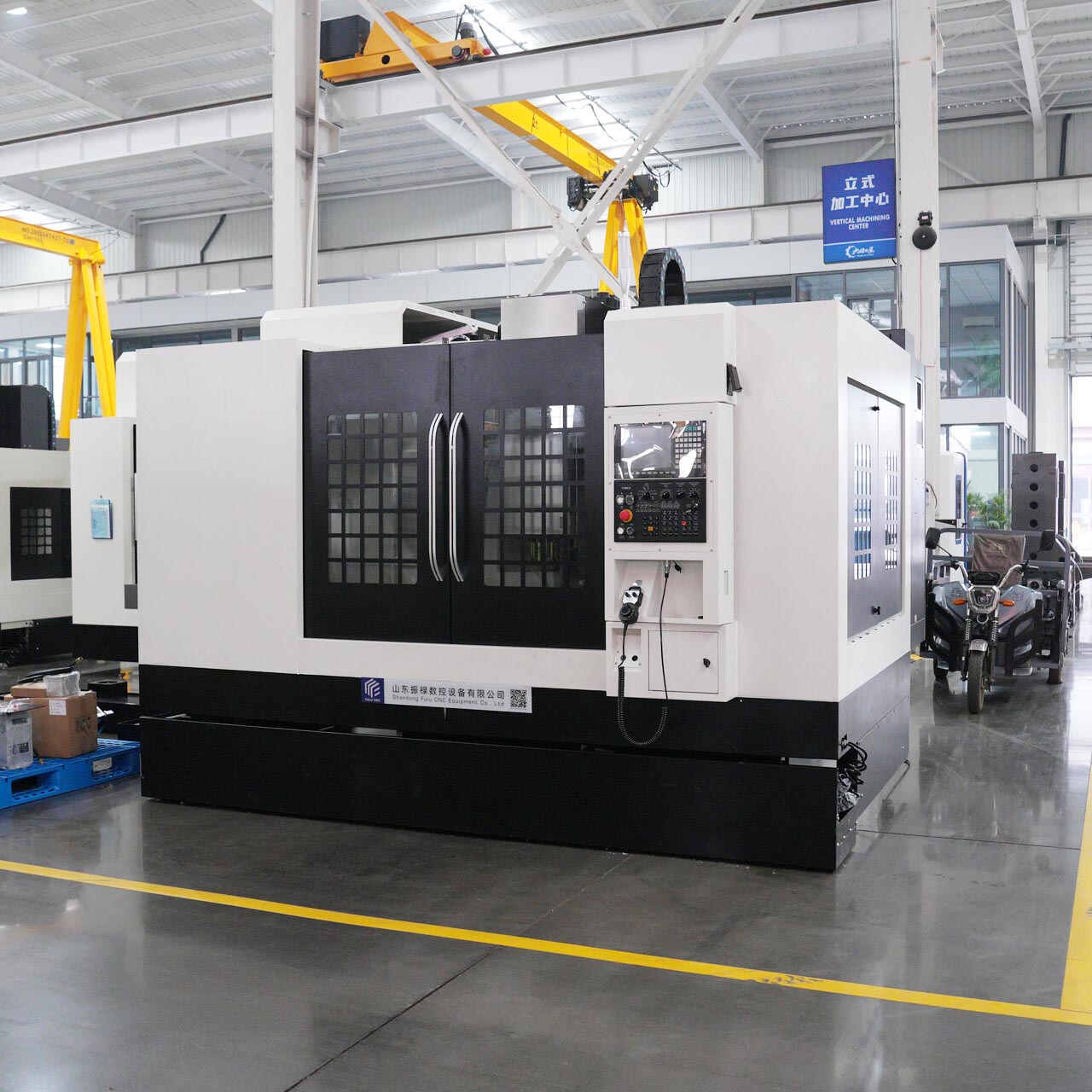

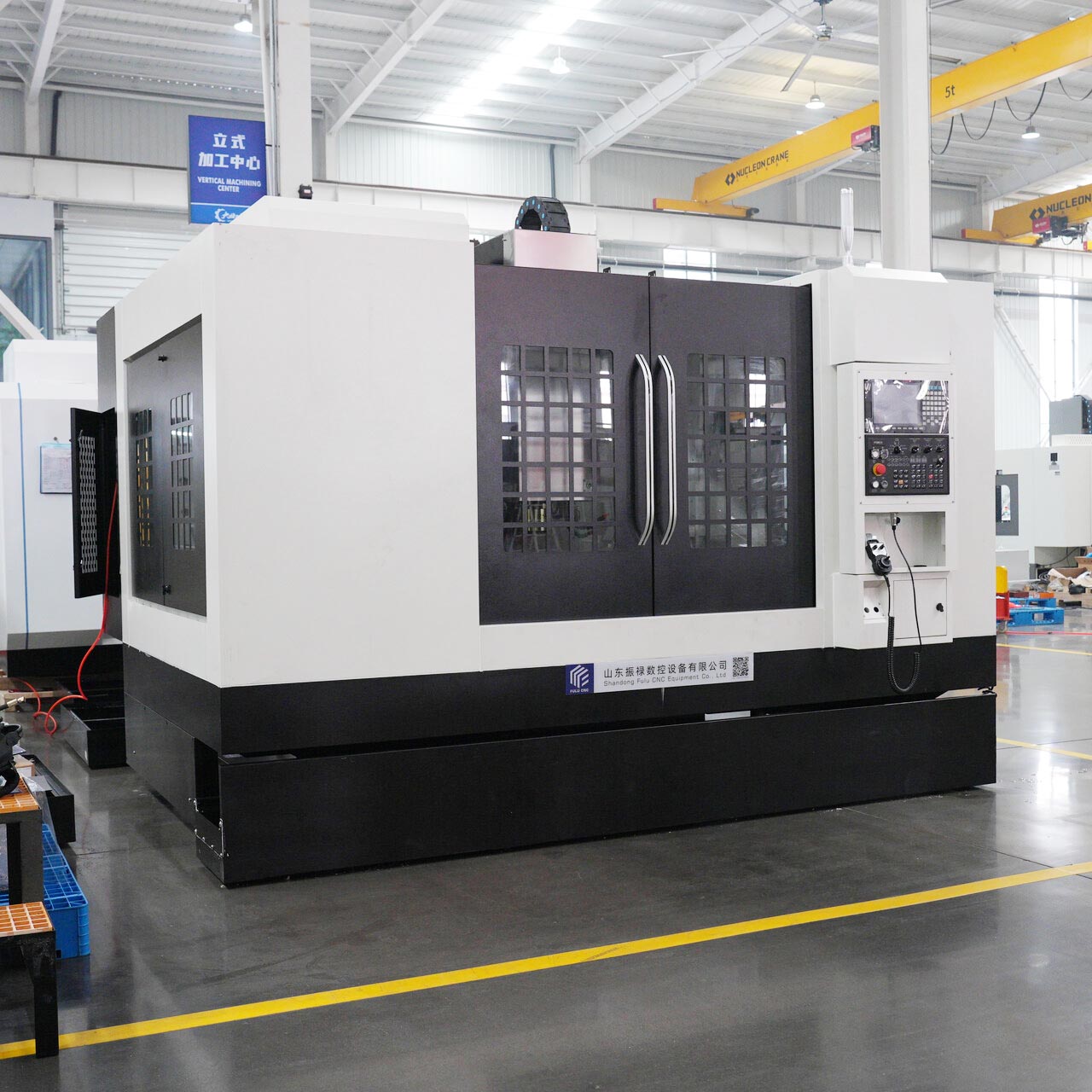

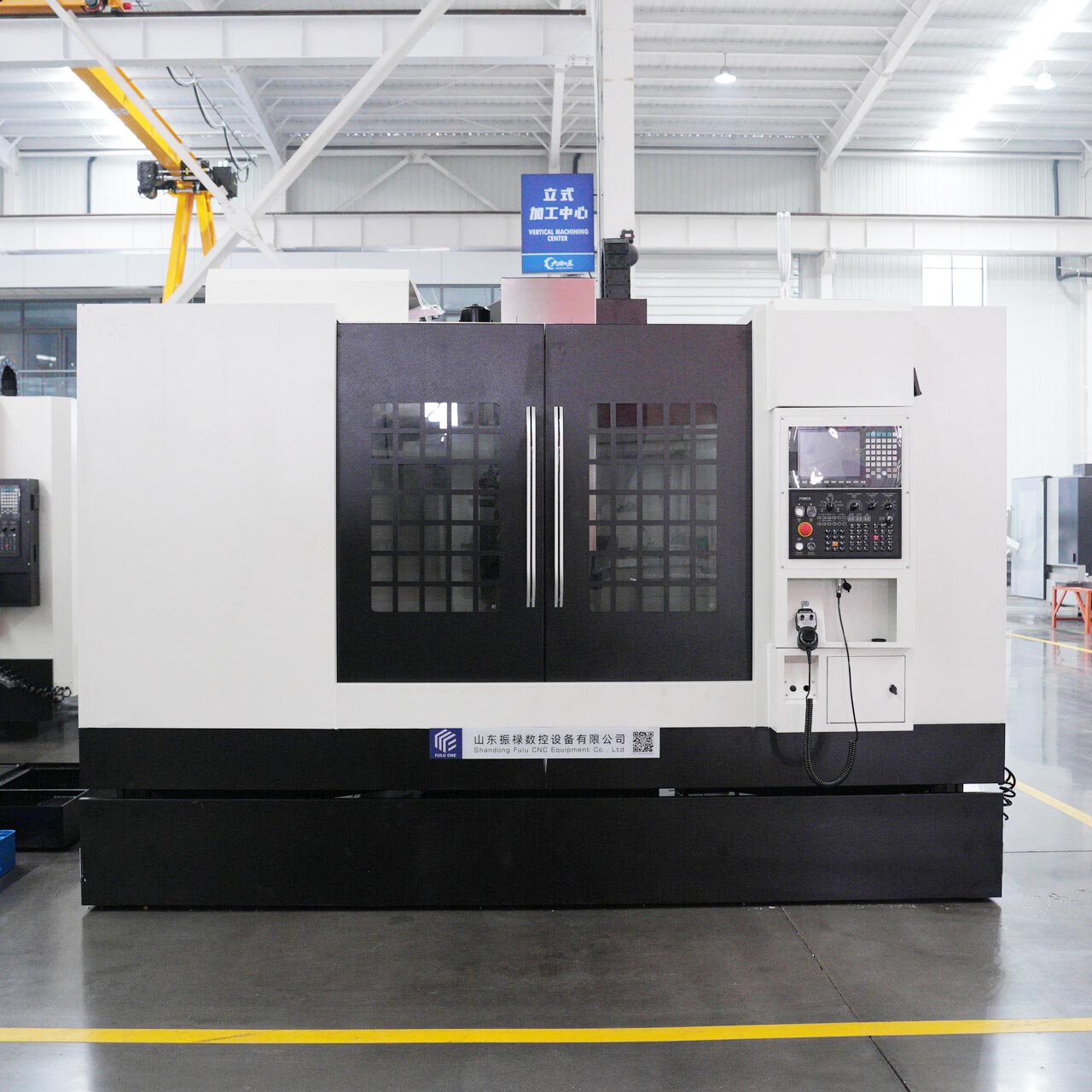

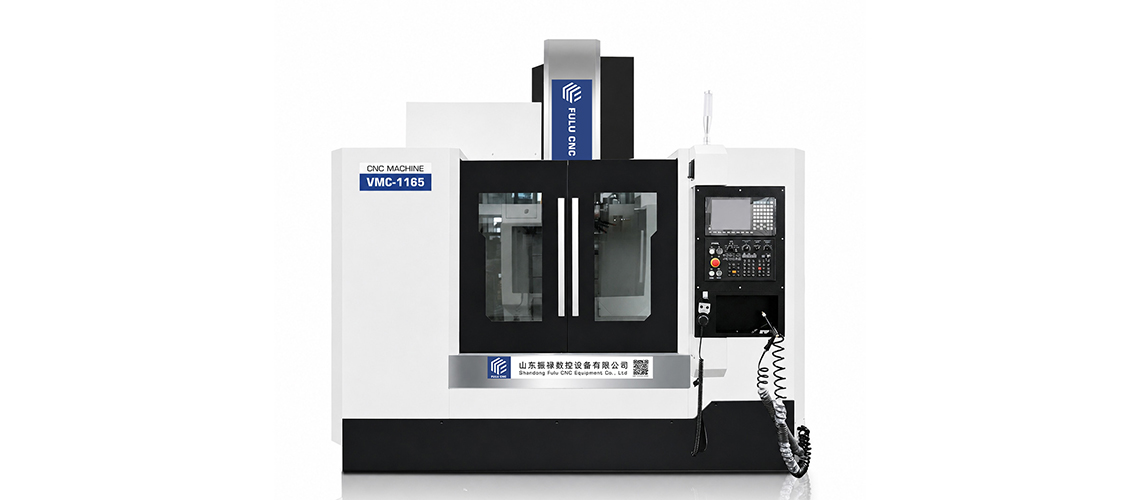

VMC1165

CNC Lathe

Basic Parameters

Table size 1360×700mm, capable of carrying larger workpieces.
X/Y/Z axis travel 1200/700/700mm, wider processing range.
Three-axis rapid movement up to 24m/min, reducing non-cutting auxiliary time.
Maximum spindle speed of 8000rpm, achieving high-speed cutting and fine processing.
Heavy-duty column and wide guide rail structure, ensuring processing rigidity and precision.

Contact Us

Video Display

Technical Parameters
Standard Configuration
Select Configuration

Project: VMC1165	Unit	Parameter
X/Y/Z Axis Travel	mm	1100/650/600
Distance from spindle nose to table surface	mm	120-720
Distance from spindle center to column guide rail surface	mm	665
Spindle speed	rpm	12000
Spindle taper		BT40
Tool specifications		BT40
Spindle motor power	kw	11KW/15KW
X/Y/Z axis power	N.m	18/18/28
Table (length × width)	mm	1200×600
Maximum table load	kg	800
X axis rapid traverse	m/min	36
Y axis rapid traverse	m/min	36
Z axis rapid traverse	m/min	36
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.003
Controller	-	GSK25i
Machine weight {approximately}	T	7.5
Dimensions (length × width × height)	mm	290026002800

Serial Number	Configuration Content	Serial Number	Configuration Content
1	Cutting Cooling System	13	Machine Internal Cleaning Device: Chip Blowing Gun, Water Gun

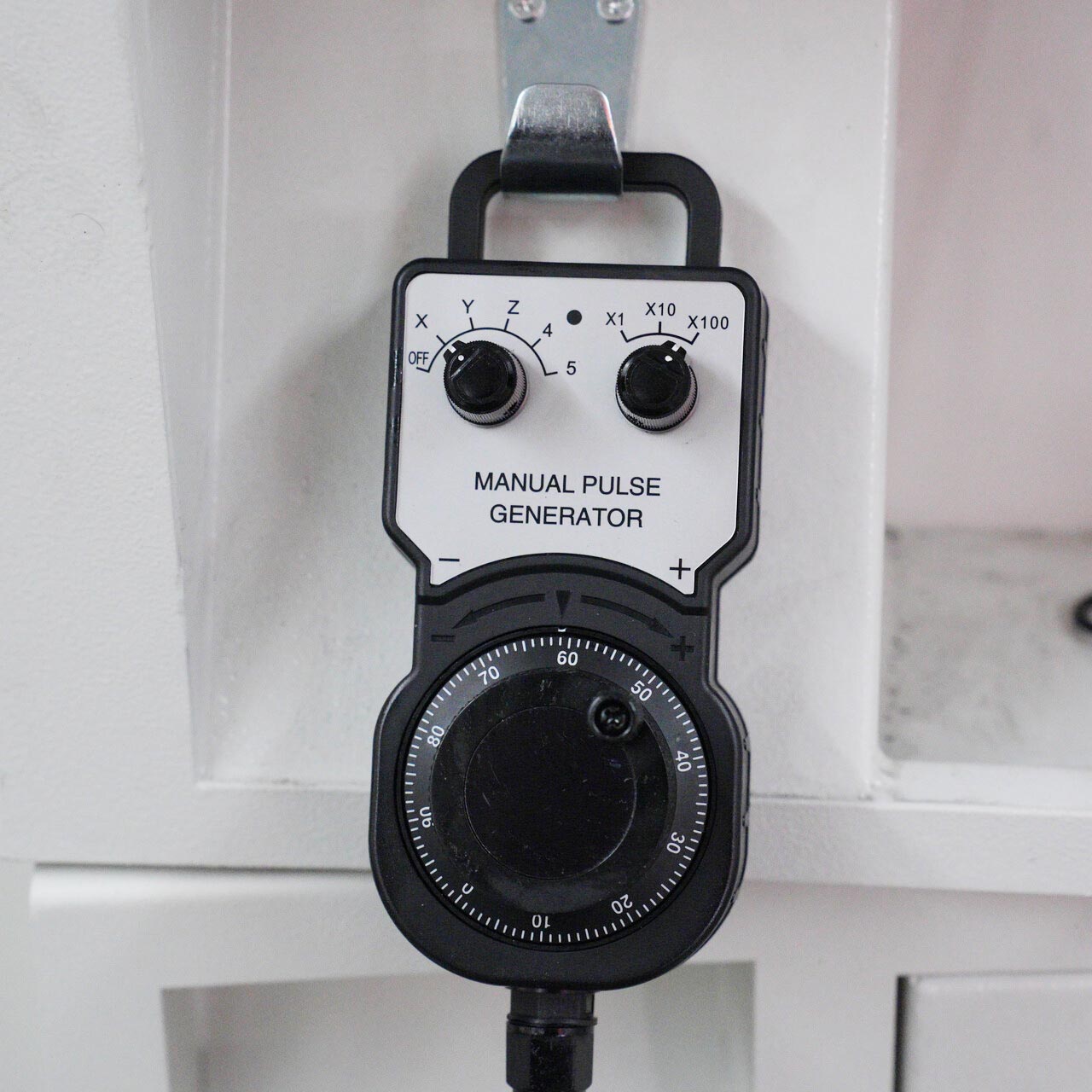

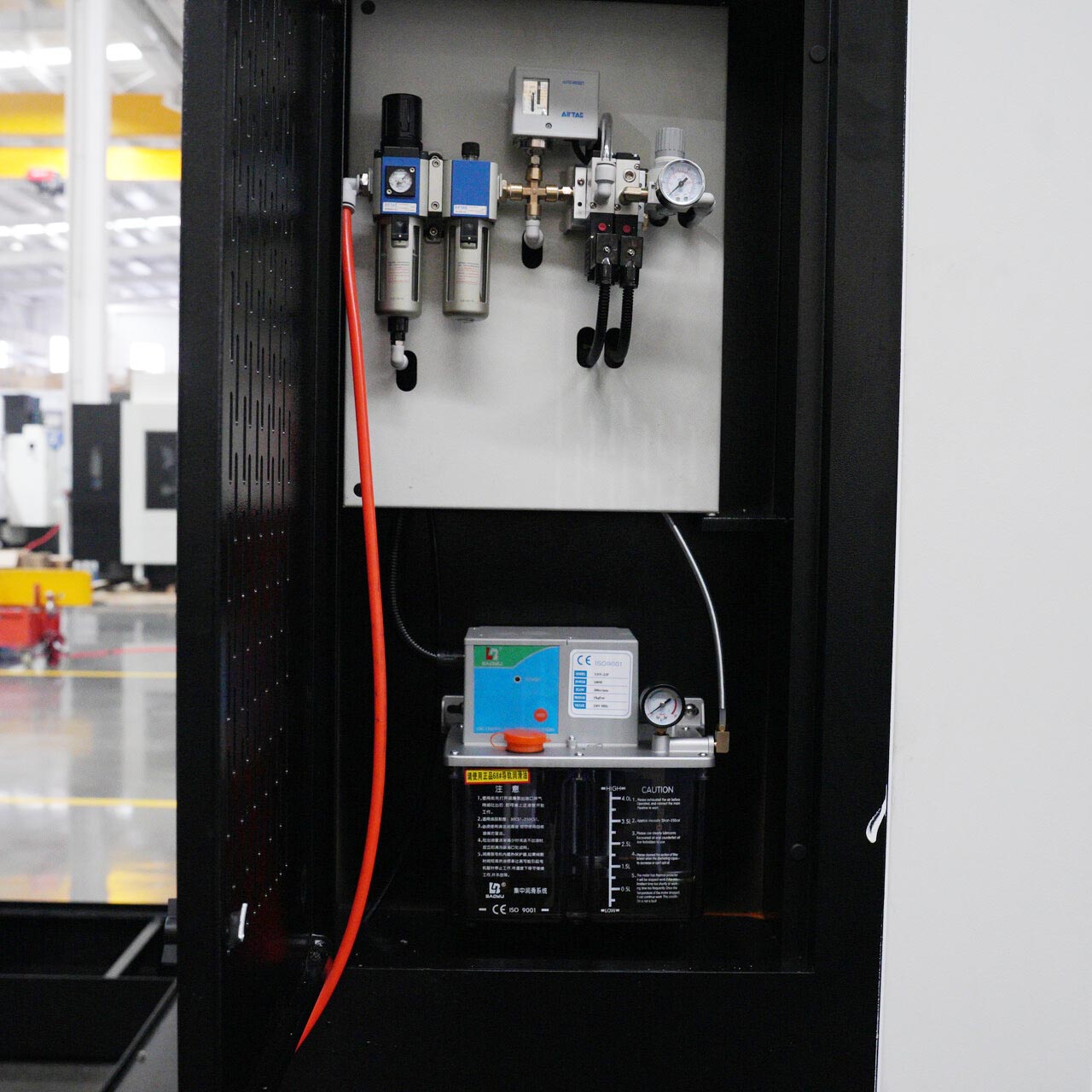

2	Automatic Lubrication System	14	Manual Pulse Generator: Handwheel
3	Cutting Blowing Device	15	External Network Transmission Interface
4	Spindle and Servo Overload System Protection	16	Three-Axis Telescopic Protective Cover (Full Cover Inner Sheet Metal)
5	Three-Color Alarm Light	17	External Protective High-Quality Painted Sheet Metal
6	Horizontal Adjustment Bolt and Spacer	18	Rigid Tapping

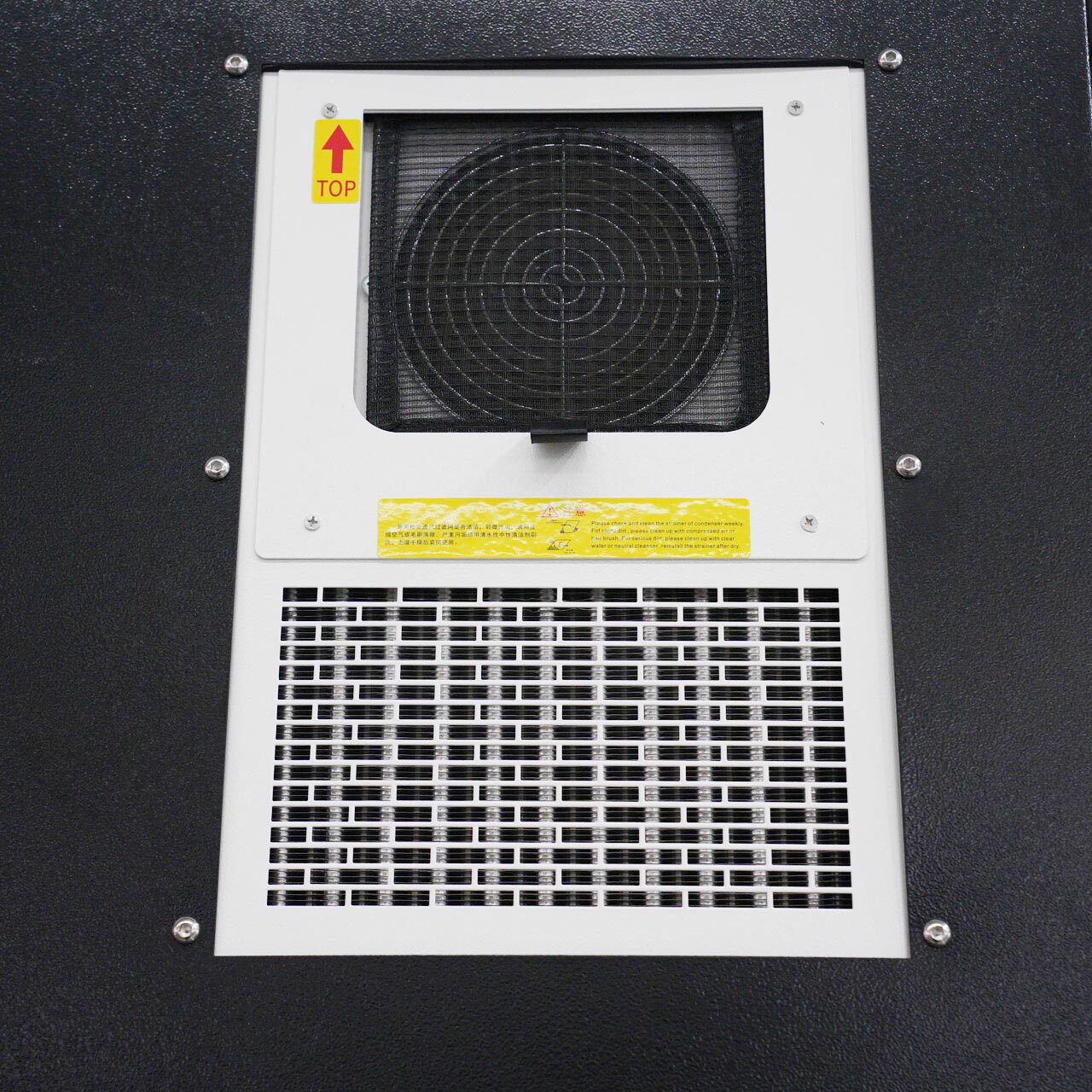

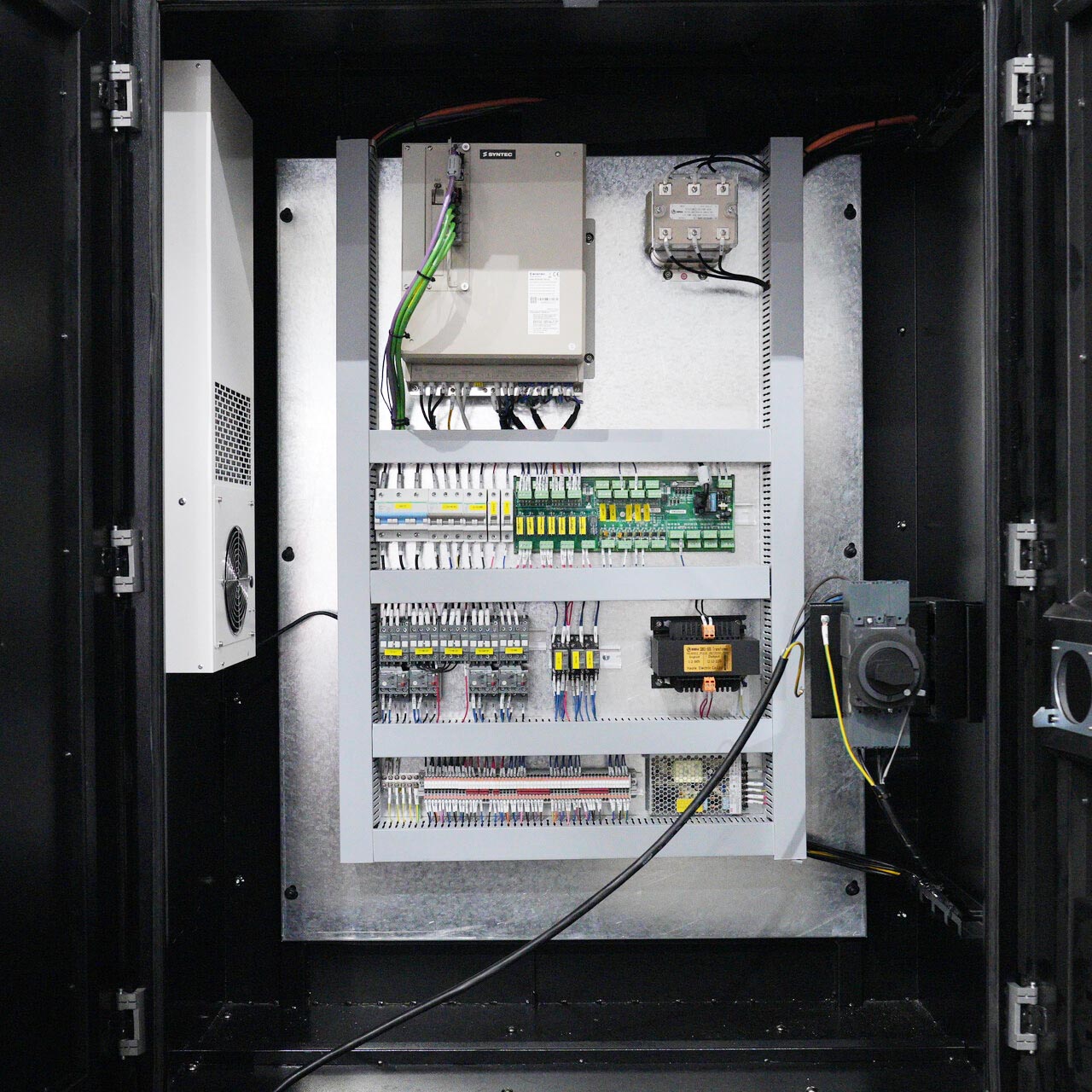

7	Electrical Box Heat Exchanger	19	Precision Inspection Certificate
8	Three-Axis Screw Pre-Tensioning Device	20	Electrical Manual
9	Program Storage	21	User Manual
10	Spindle Ring Water Spray	22	Program Operation Manual
11	Reserved for Adding Four-Axis Interface	23	Air Curtain Protection
12	Machine Internal Work Light	24	Chassis Powerful Chip Blowing, Dual Water Pumps

◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kaendi
◎10000, 12000rpm spindle speed
◎30kg/50kg/70kg central water outlet
◎170/200/250/300mm fourth axis
◎125/170/210/250mm fifth axis
◎Chain type chip conveyor
◎Renishaw tool setter

Learn More

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144050_1412.jpg

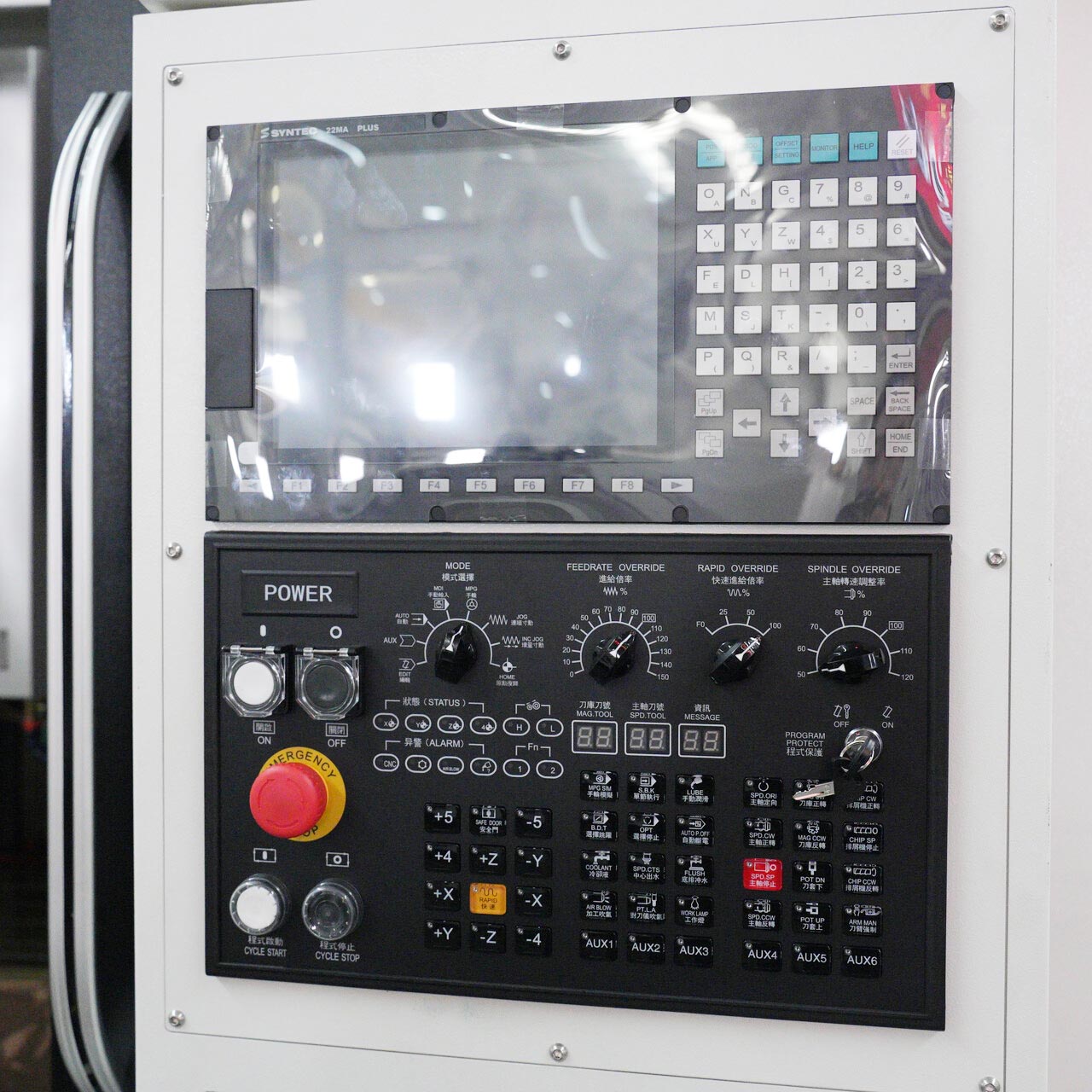

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144123_8285.jpg

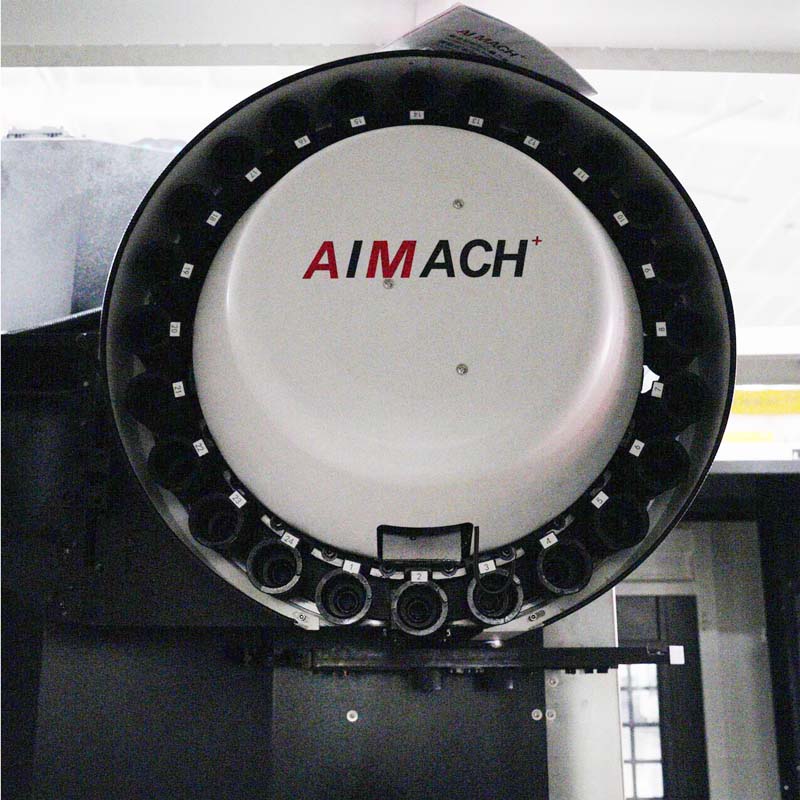

24把圆盘刀库

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144500_3397.jpg

冷却系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_144818_4105.jpg

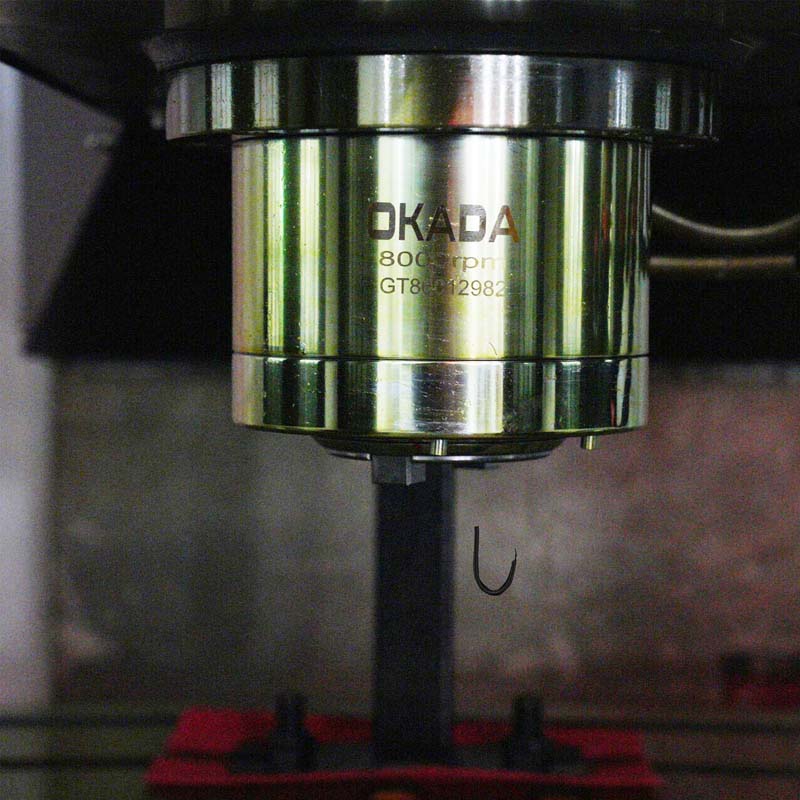

主轴

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.

Cooling method optional

You can choose the cooling method you need according to your production requirements.

Other options

You can choose the configuration you need according to your production requirements.

Processable Parts

The vertical machining center can complete composite processing such as milling, drilling, boring, tapping, and chamfering, mainly processing mold accessories, box shells, mechanical brackets, irregular precision parts, flange connectors, etc., covering many industries such as molds, automobiles, aviation, engineering machinery, automation, and hydraulics.
