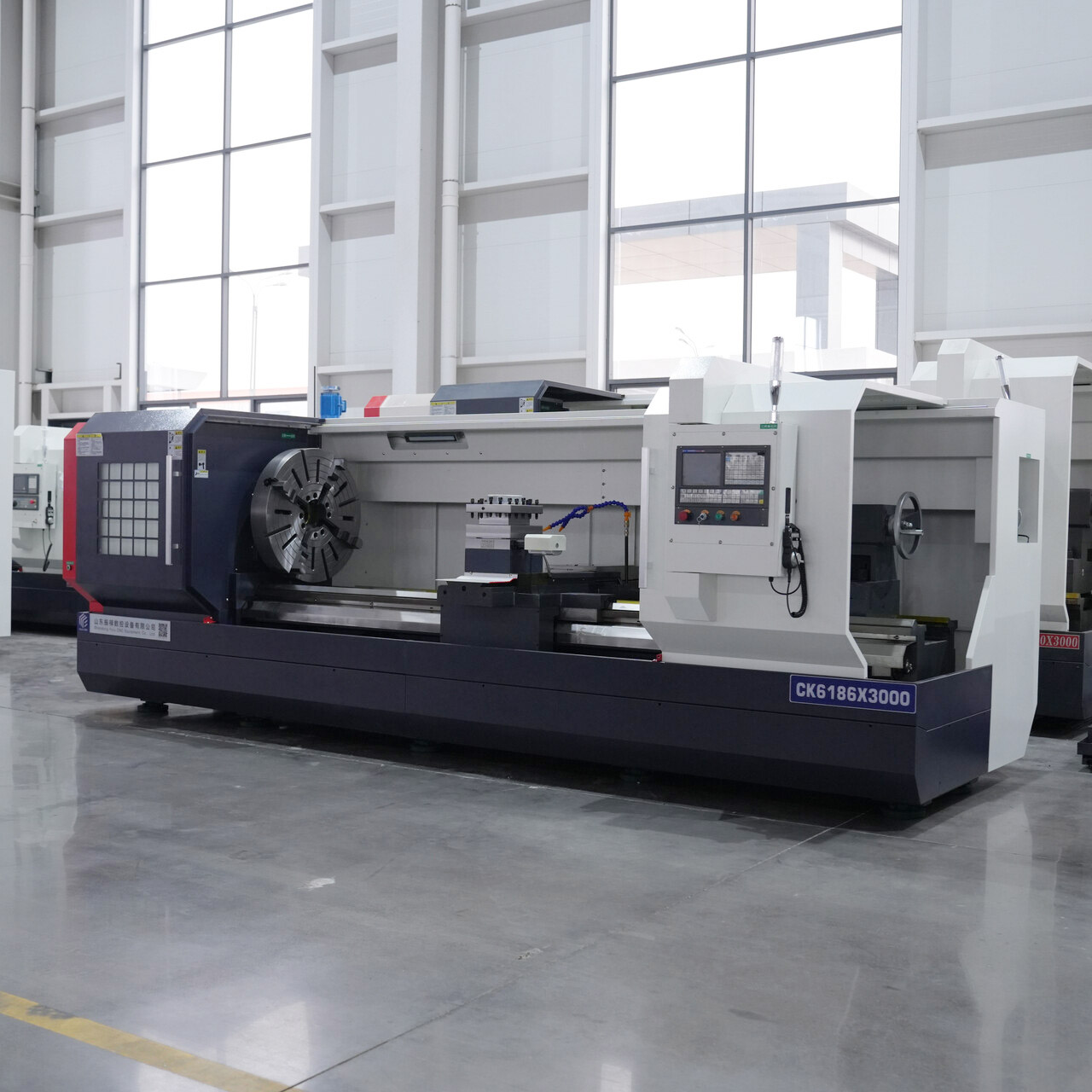

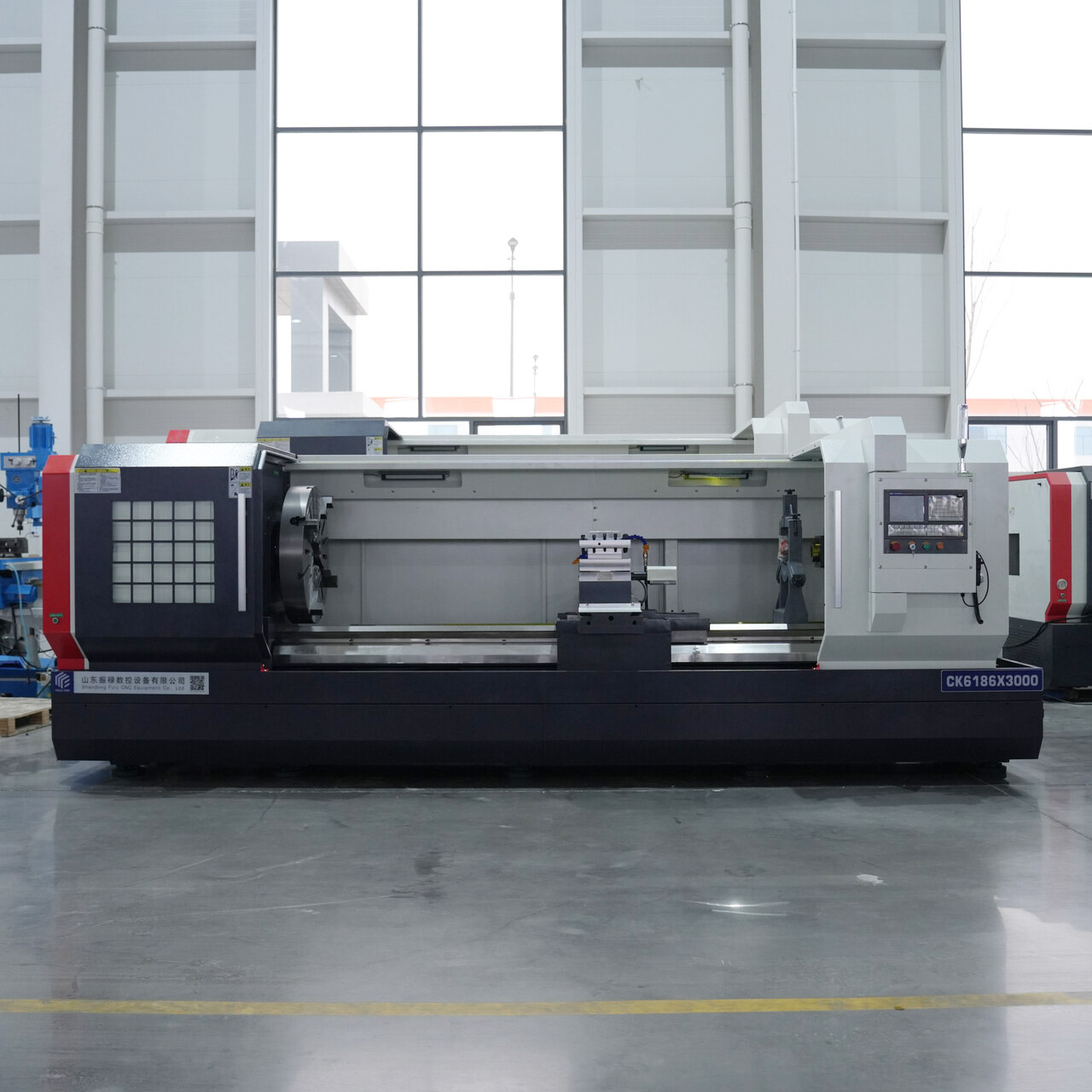

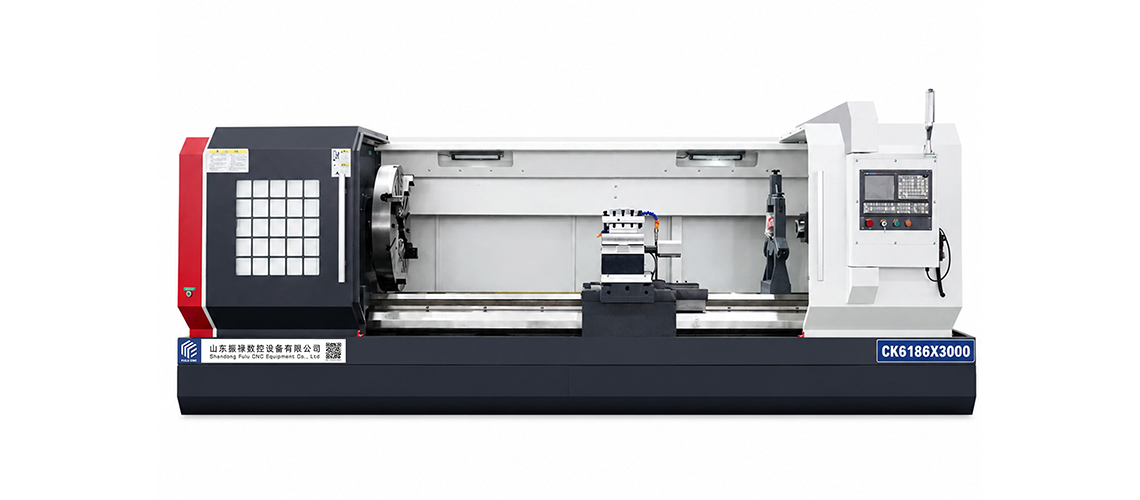

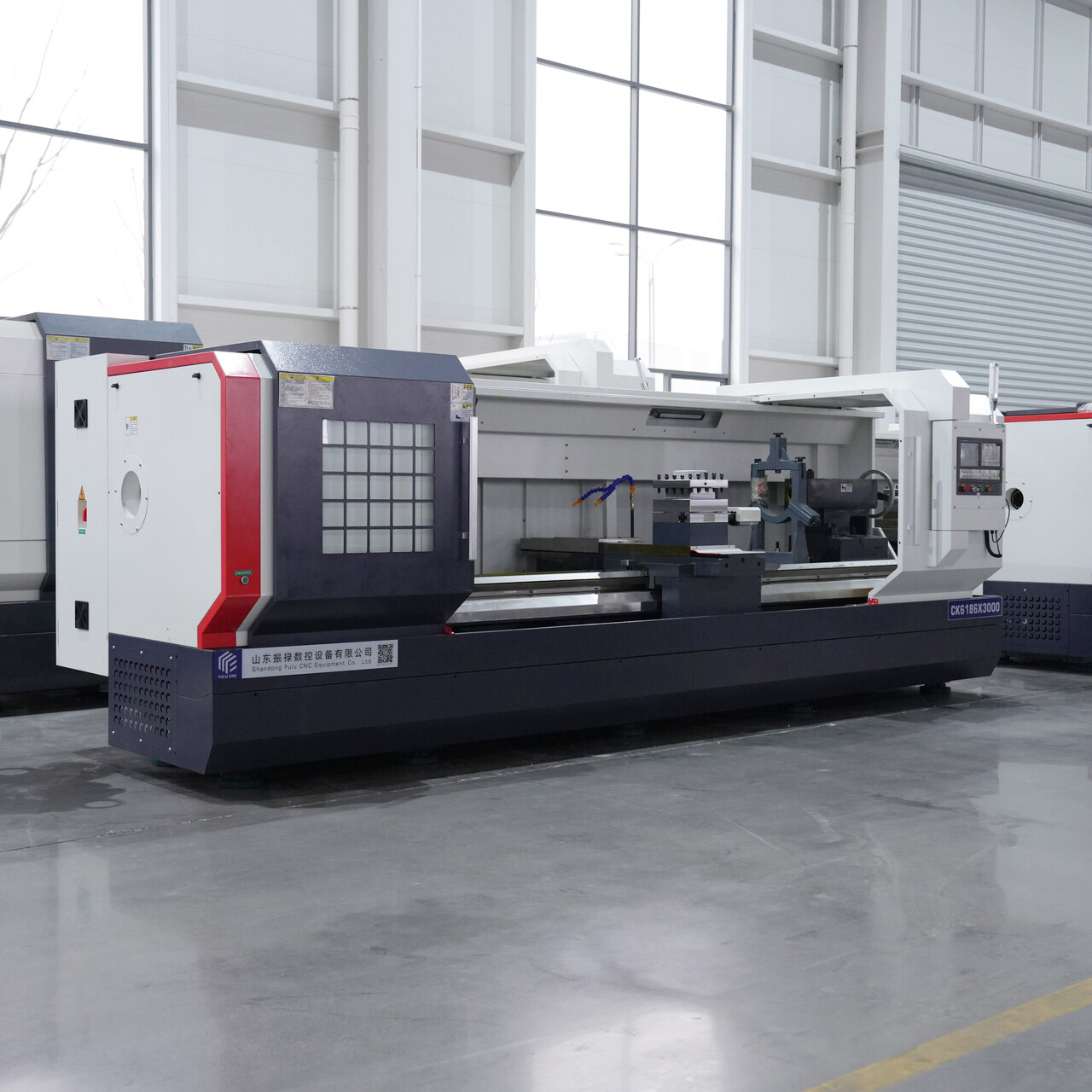

CNC Lathe
Basic Parameters
CK6186-3000
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
860
Maximum workpiece rotation diameter on the tool holder
mm
520
Maximum workpiece length
mm
3000
Width of bed guide rail
mm
600
Spindle hole diameter
mm
105
Spindle end code
-
C11
Spindle speed range (frequency conversion stepless speed regulation)
r/min
40-125/110-350/290-950

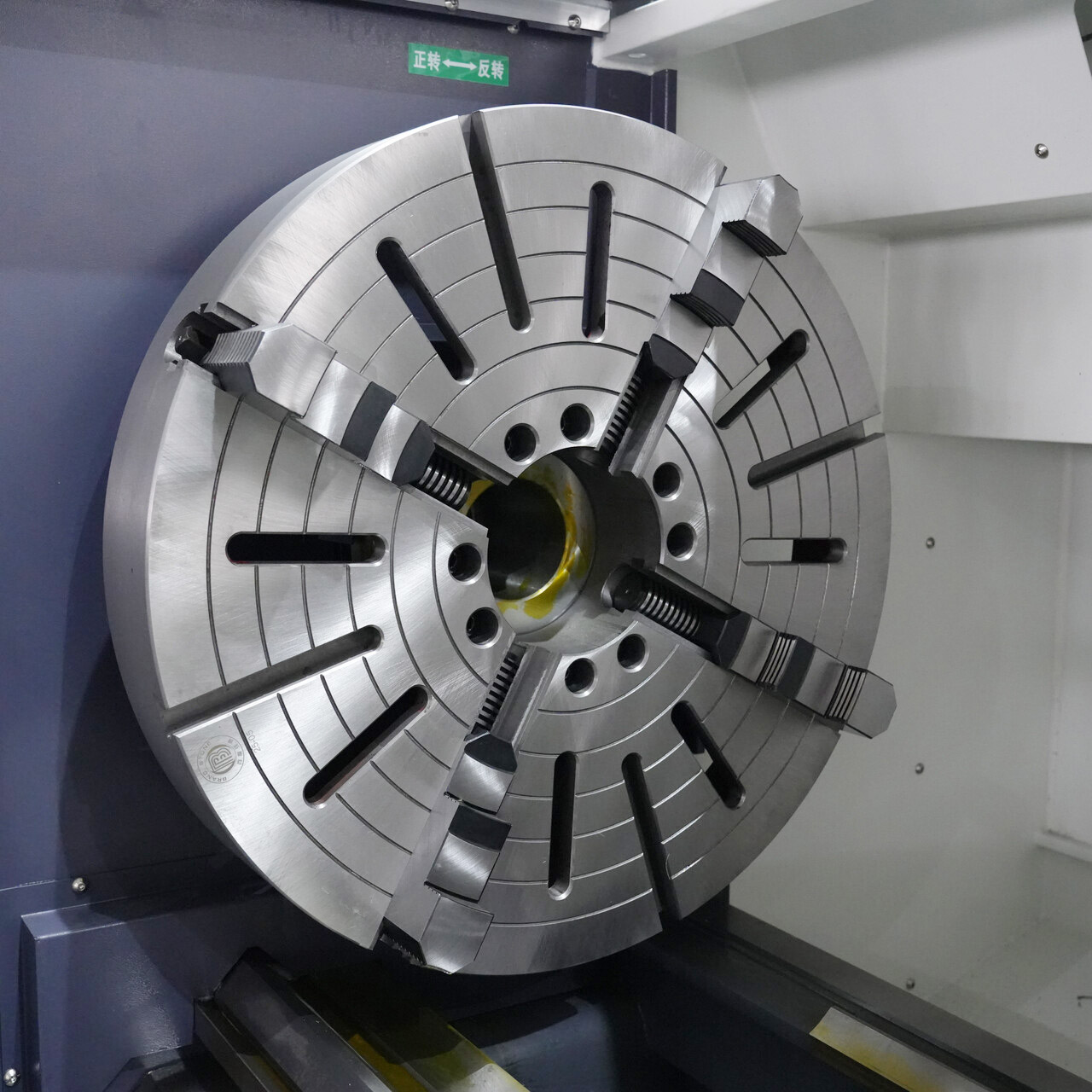

Chuck (manual) three-jaw chuck
mm
Ф400
Main motor power
Kw
11KW/15KW
Tool size
mm
32×32

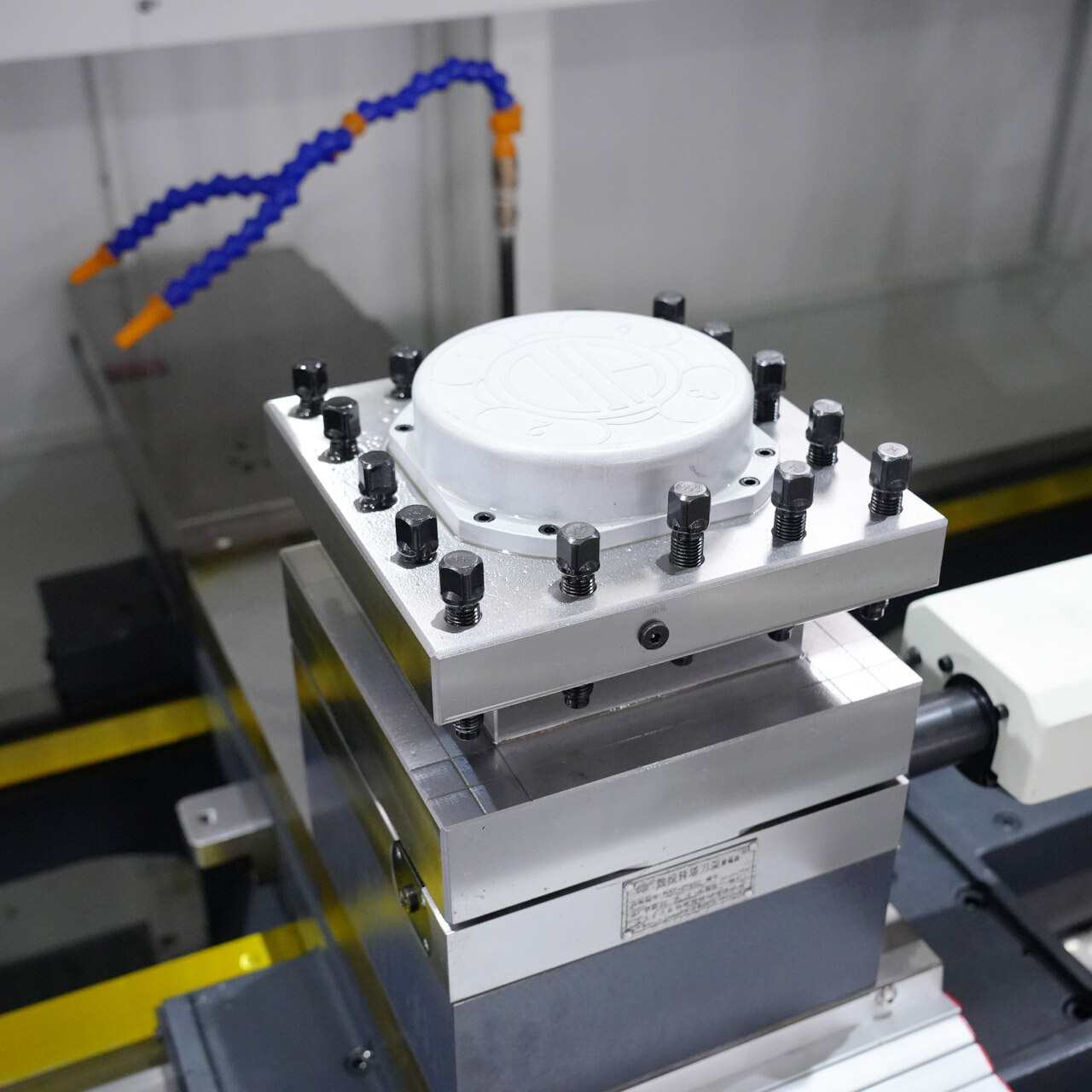

Electric tool holder
-
Vertical four-station tool holder
Maximum stroke of the bed saddle in the Z direction
mm
3000
Maximum lateral stroke of the tool holder in the X direction
mm
420
Rapid movement speed of the bed saddle in the Z direction
m/min
6
Rapid movement speed of the tool holder in the X direction
m/min
4
X/Z axis torque
nm
10N·m/15N·m

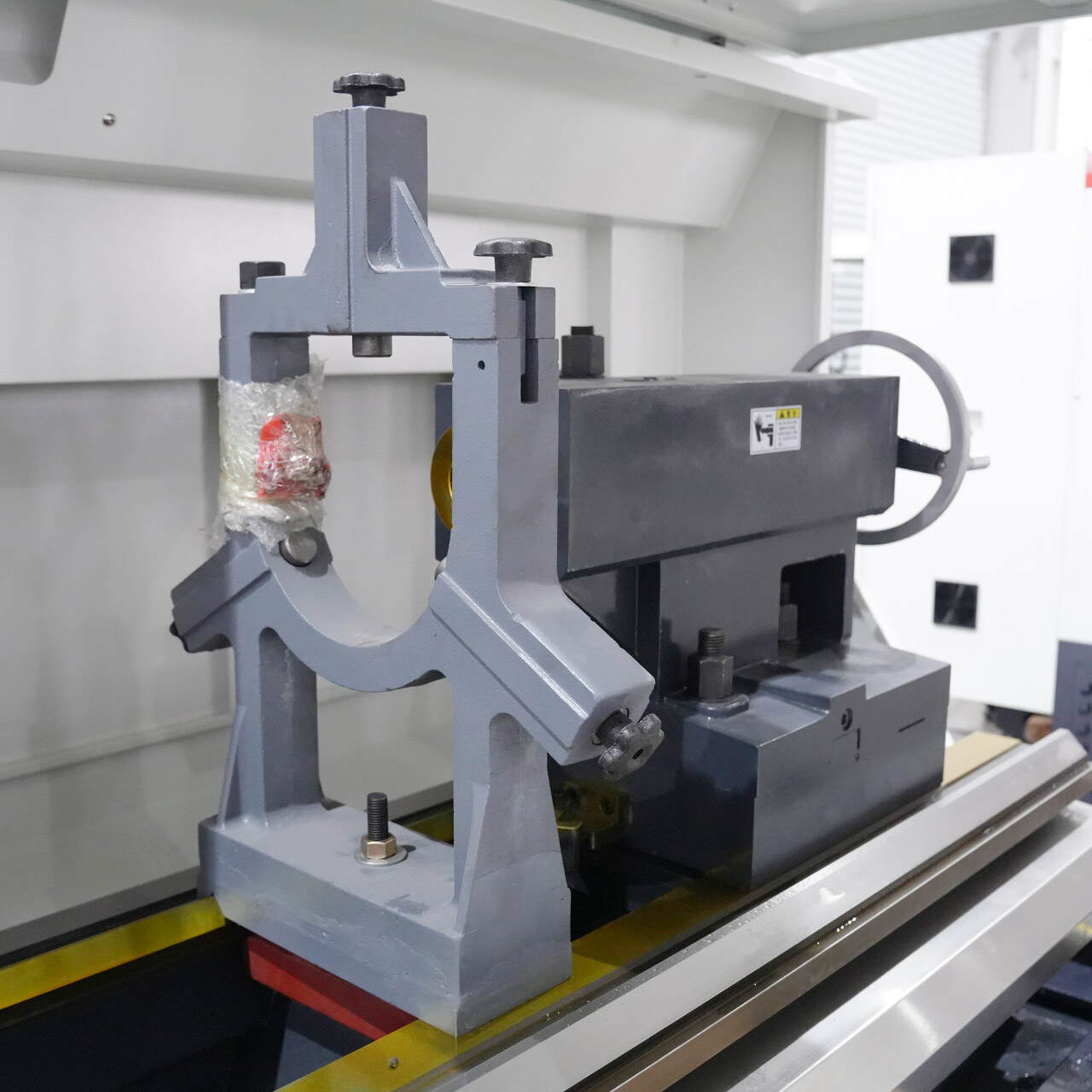

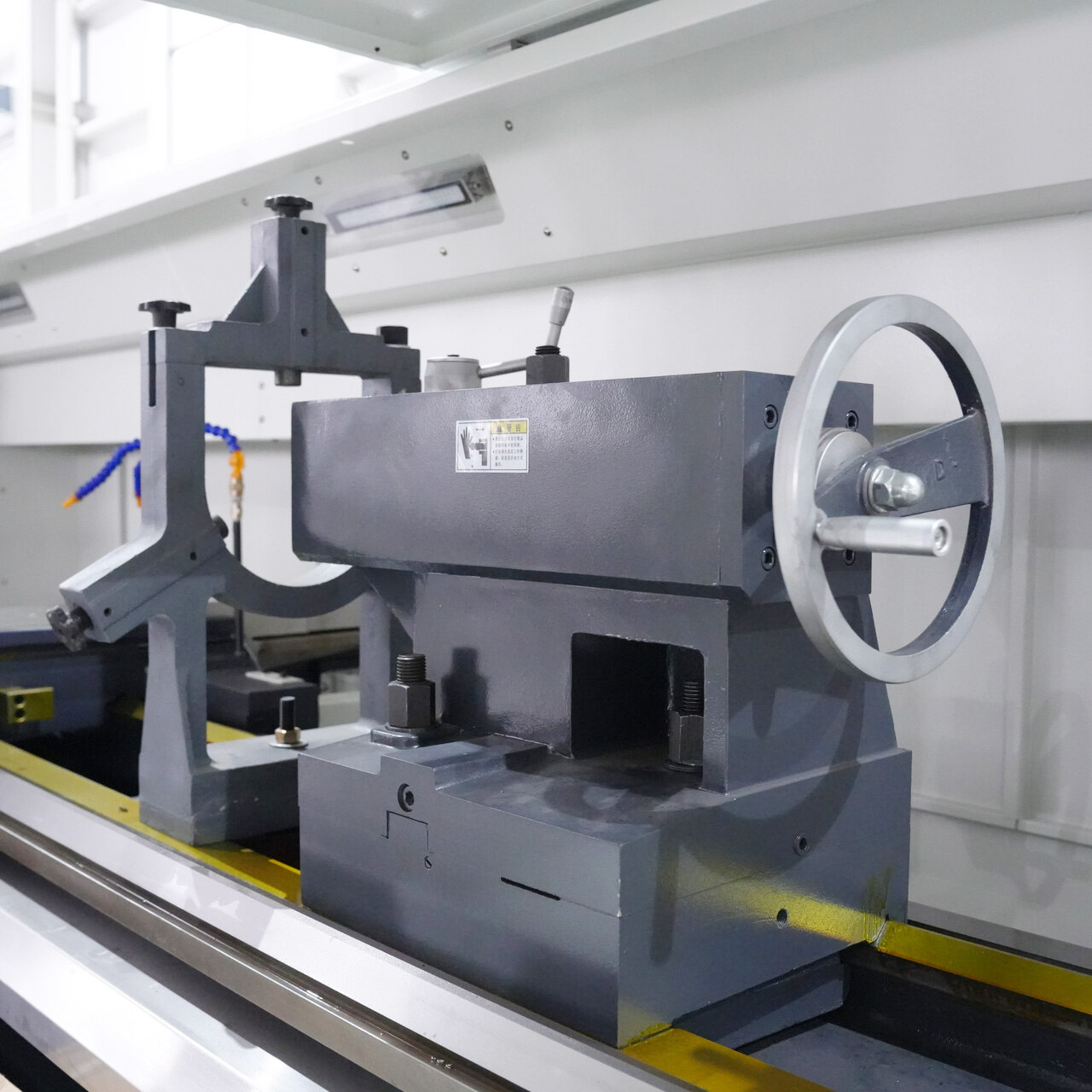

Tailstock sleeve diameter
mm
Φ100
Tailstock sleeve stroke
mm
250
Taper of tailstock sleeve
-
Morse 6
Machine tool profile (Length x Width x Height)
mm
4200 × 2000 × 2100
Standard Configuration
控制系统
三爪卡盘
四工位电动刀架
手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
Machinable Parts
