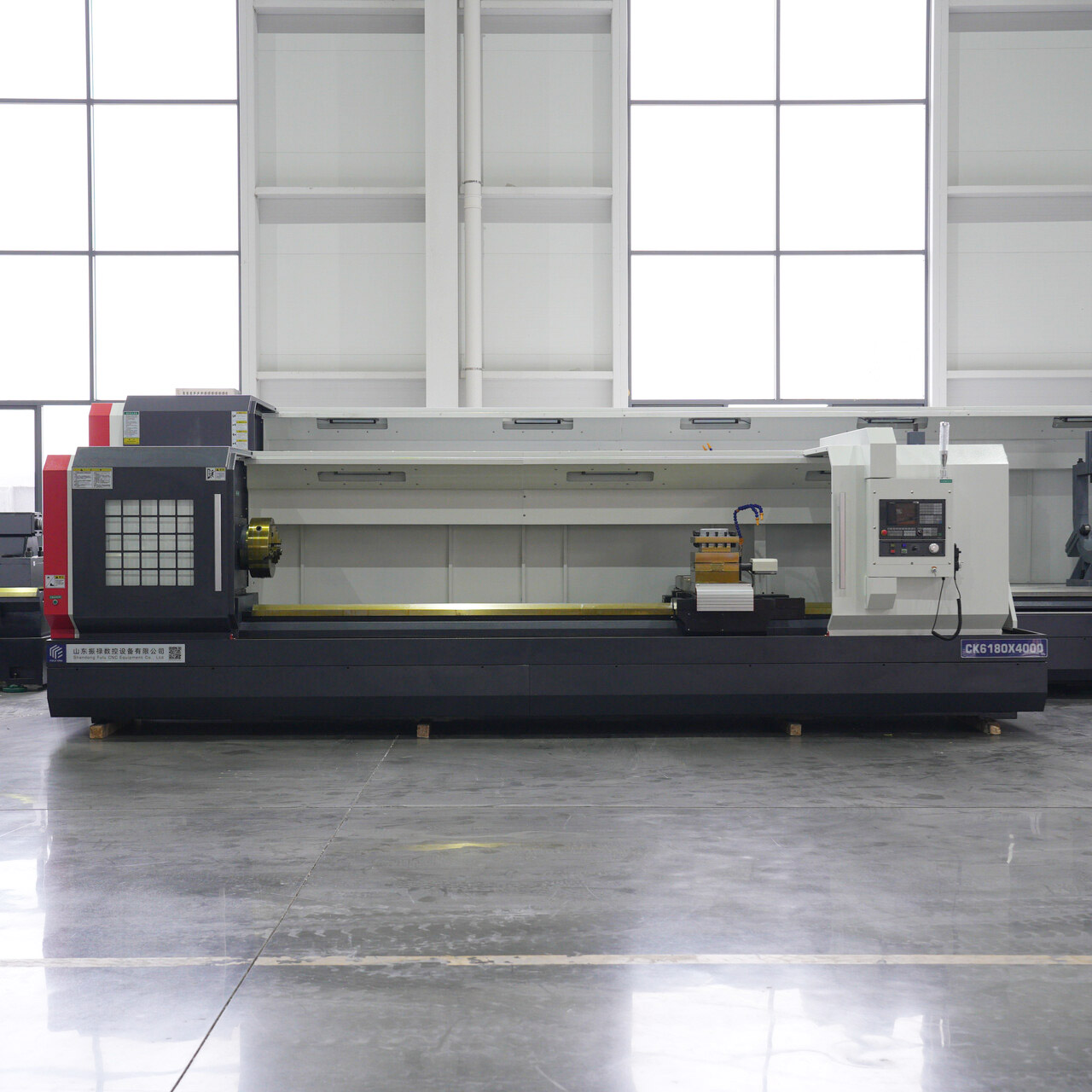

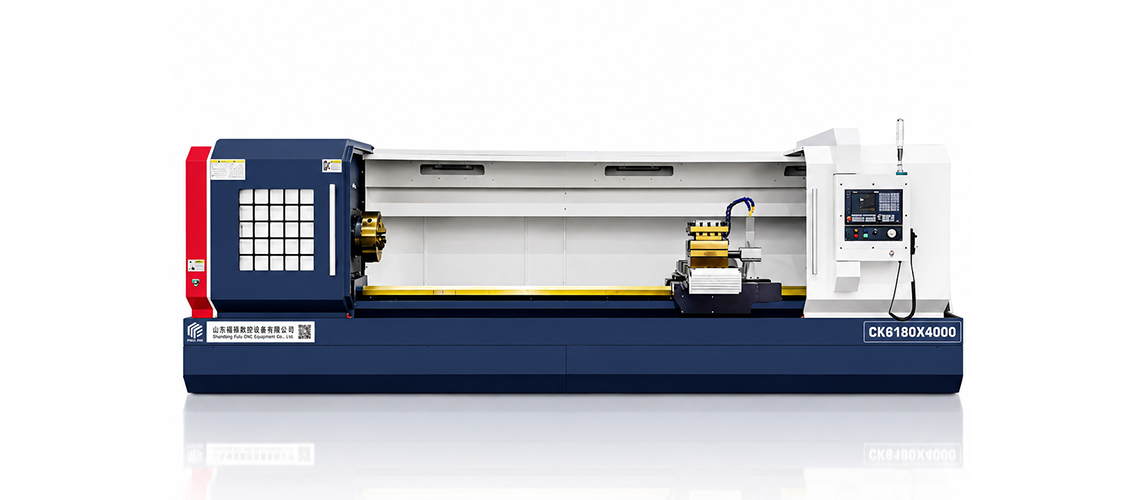

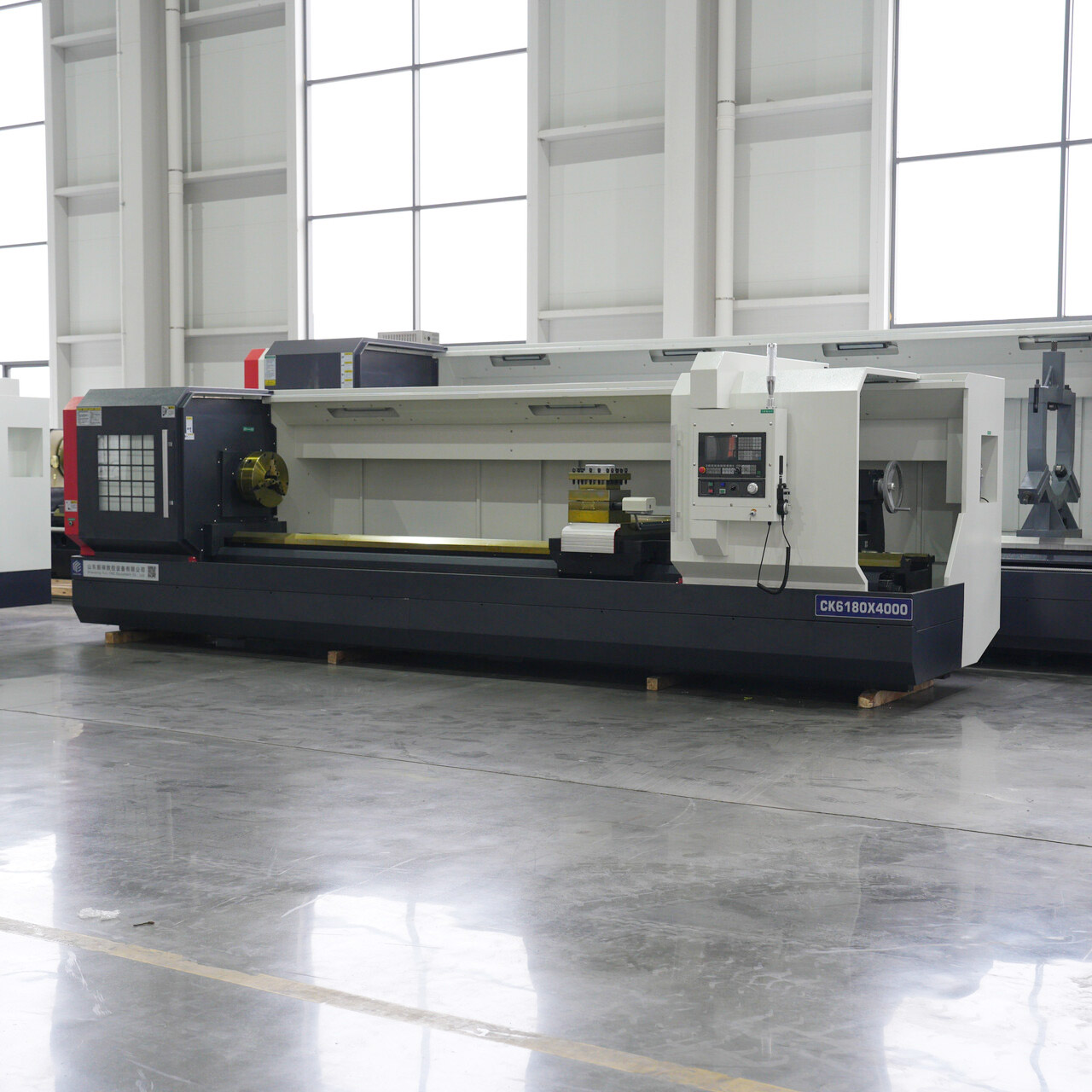

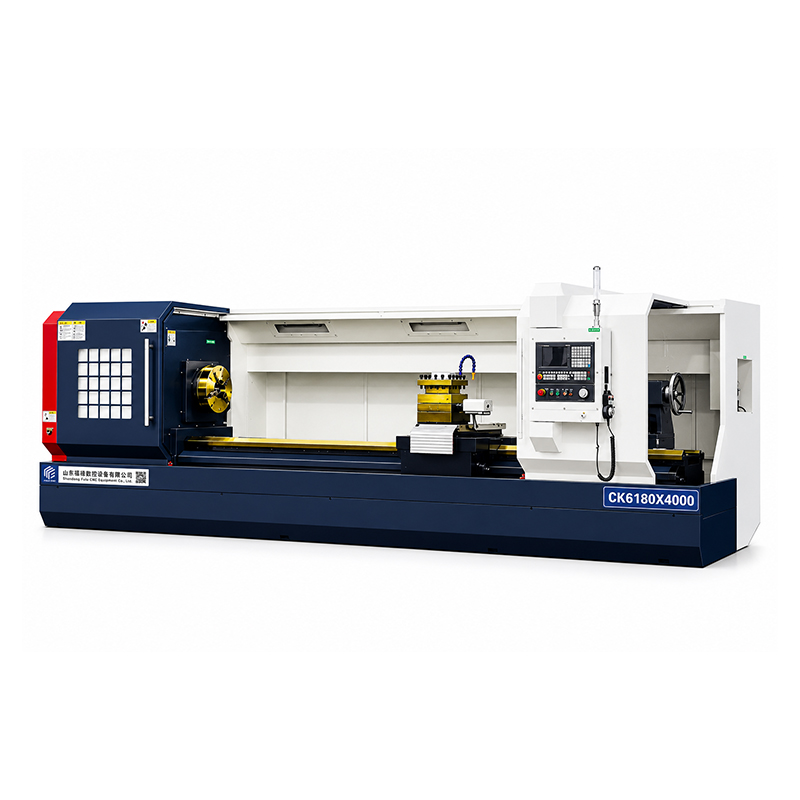

CNC Lathe
Basic Parameters
CK6180-4000
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
800
Maximum workpiece rotation diameter on the tool holder
mm
480
Maximum workpiece length
mm
4000
Width of the bed guide rail
mm
600
Spindle hole diameter
mm
105
Spindle end code
-
C11
Spindle speed range (frequency conversion stepless speed regulation)
r/min
40-125/110-350/290-950
Chuck (manual) four-jaw chuck
mm
Ф630
Main motor power
Kw
11KW/15KW
Tool size
mm
32×32
Electric tool holder
-
Vertical four-position tool holder
Maximum stroke of the saddle in the Z direction
mm
4000
Maximum lateral stroke of the tool holder in the X direction
mm
420
Rapid movement speed of the saddle in the Z direction
m/min
6
Rapid movement speed of the tool holder in the X direction
m/min
4
X/Z axis torque
nm
10N·m/15N·m
Tailstock sleeve diameter
mm
Φ120
Tailstock sleeve stroke
mm
250
Taper of the tailstock sleeve
-
Morse 6
Machine tool profile (length x width x height)
mm
2600 × 1800 × 1850
Standard Configuration

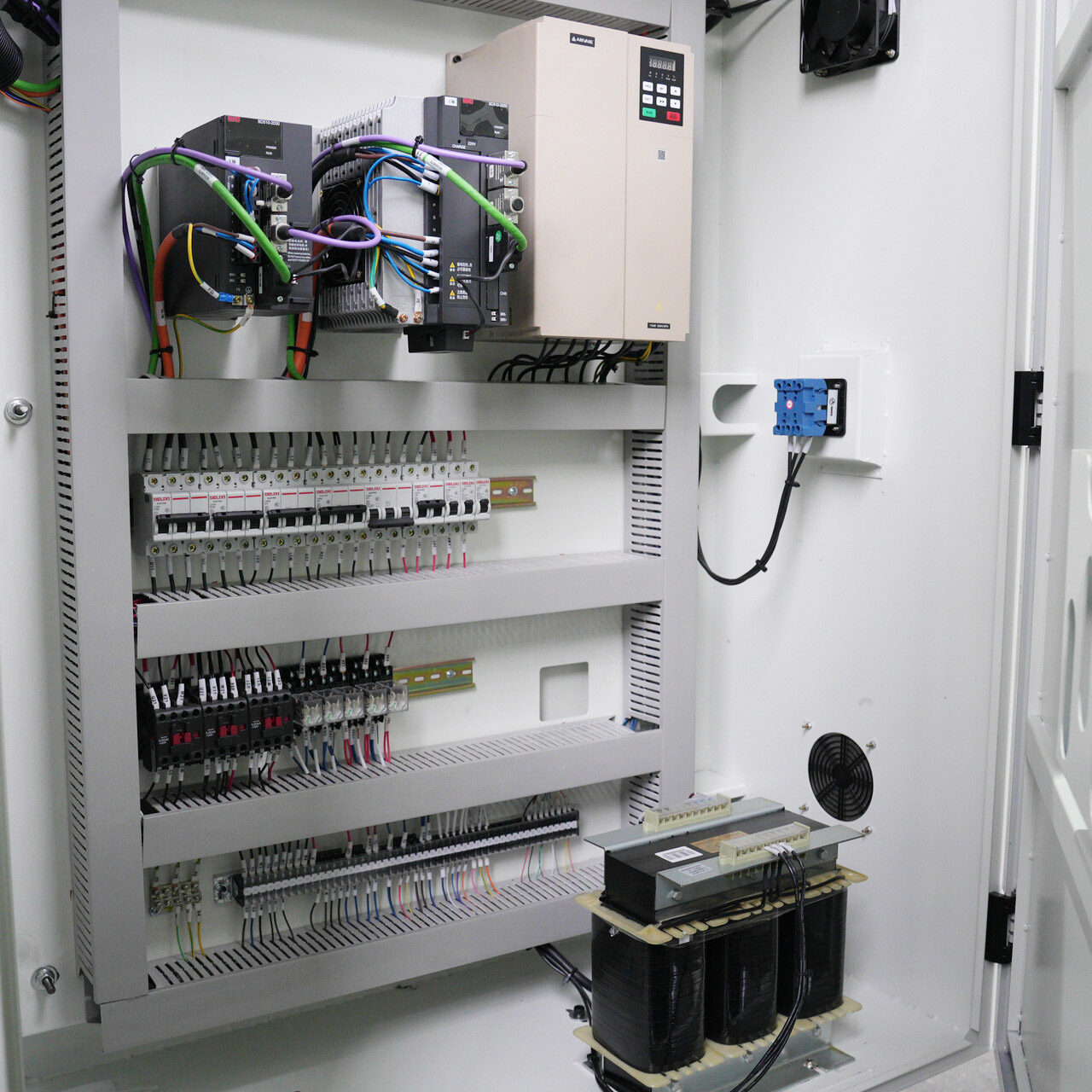

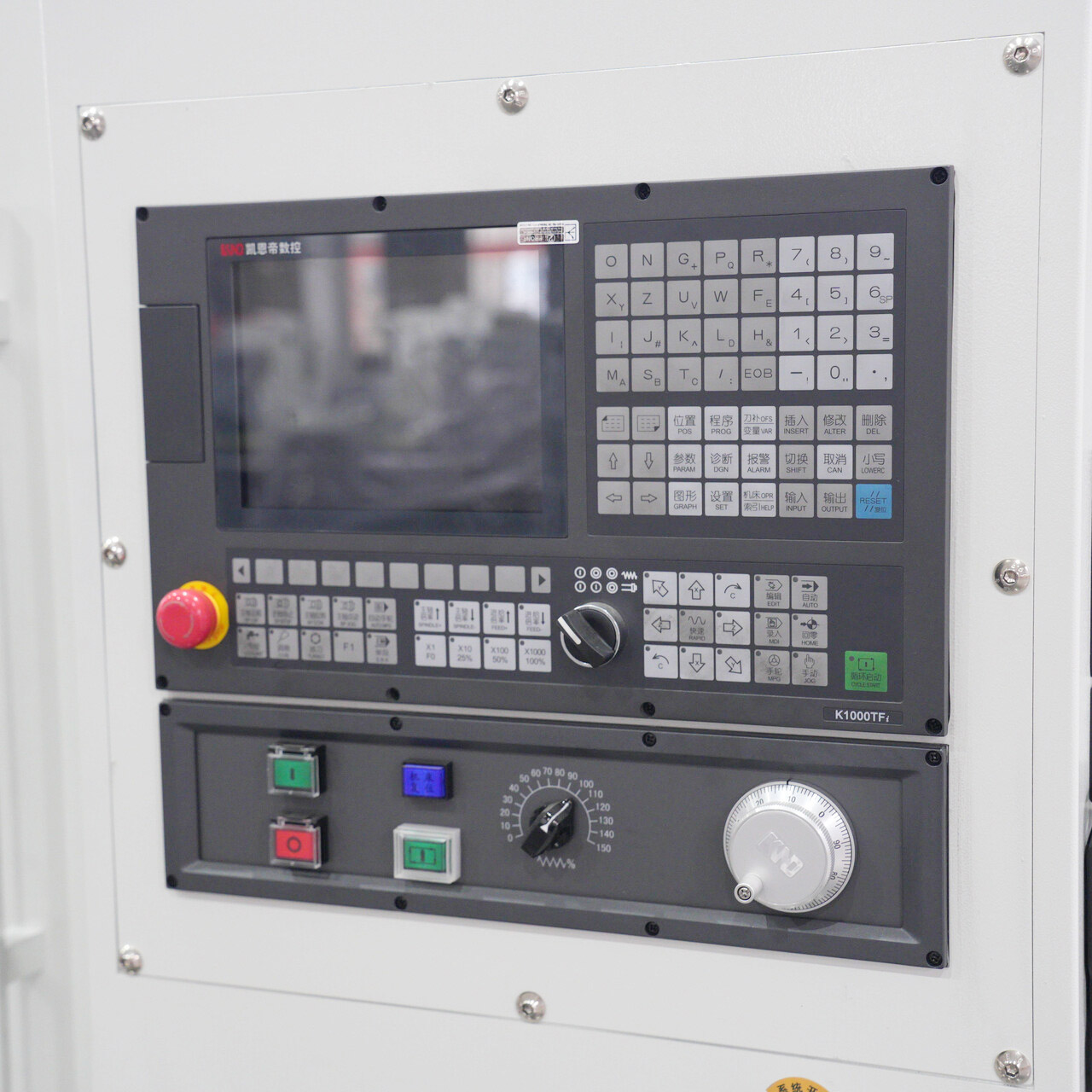

控制系统

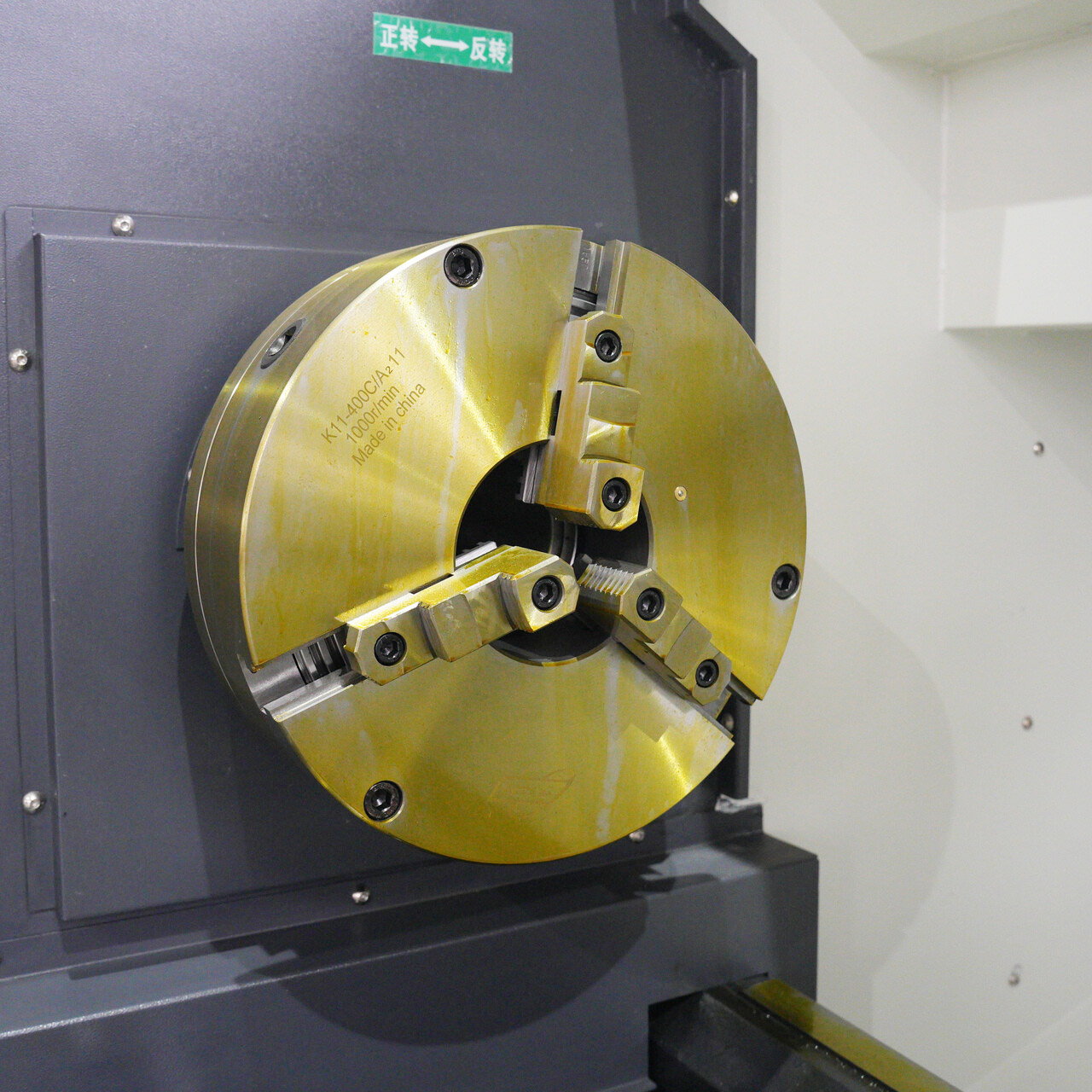

三爪卡盘

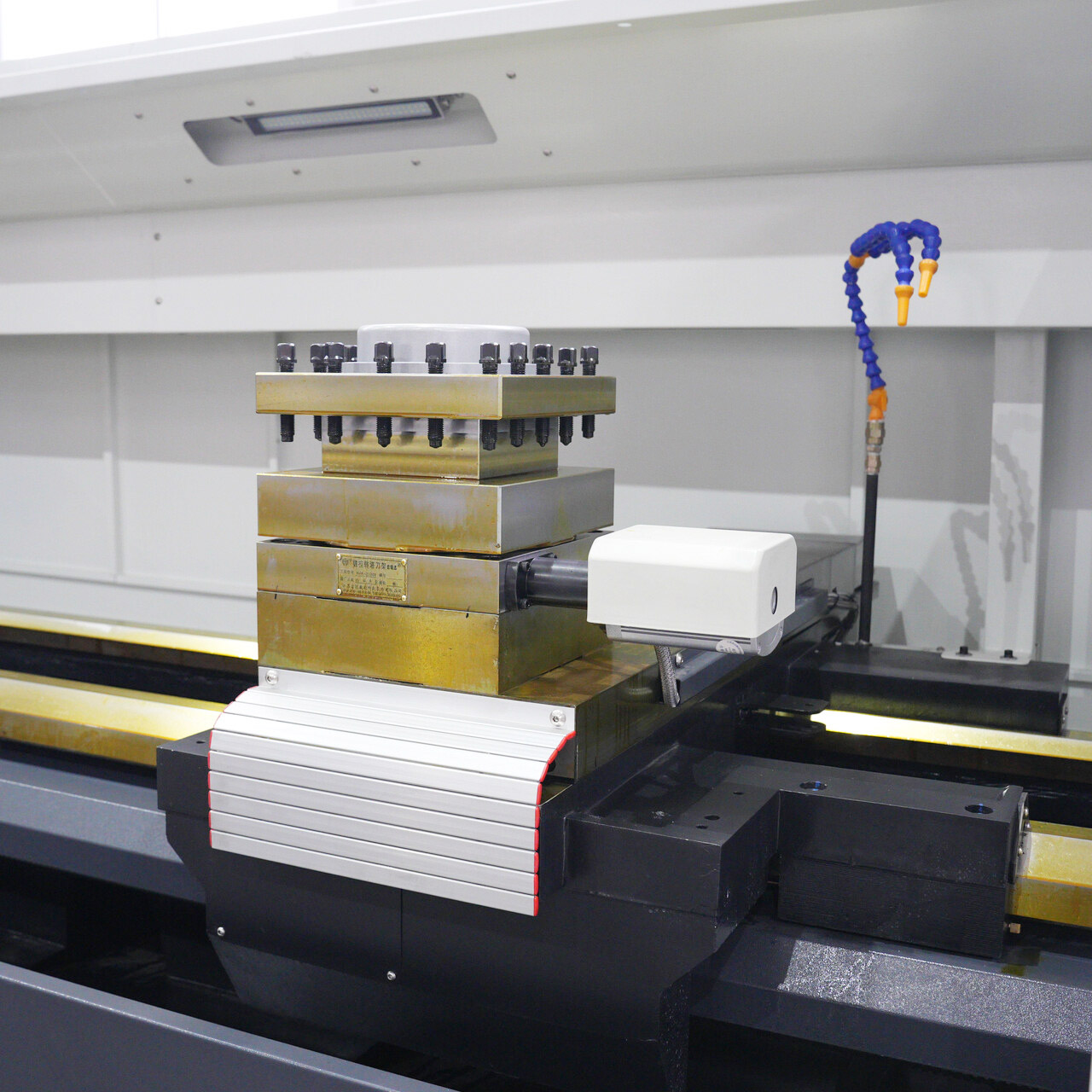

四工位电动刀架

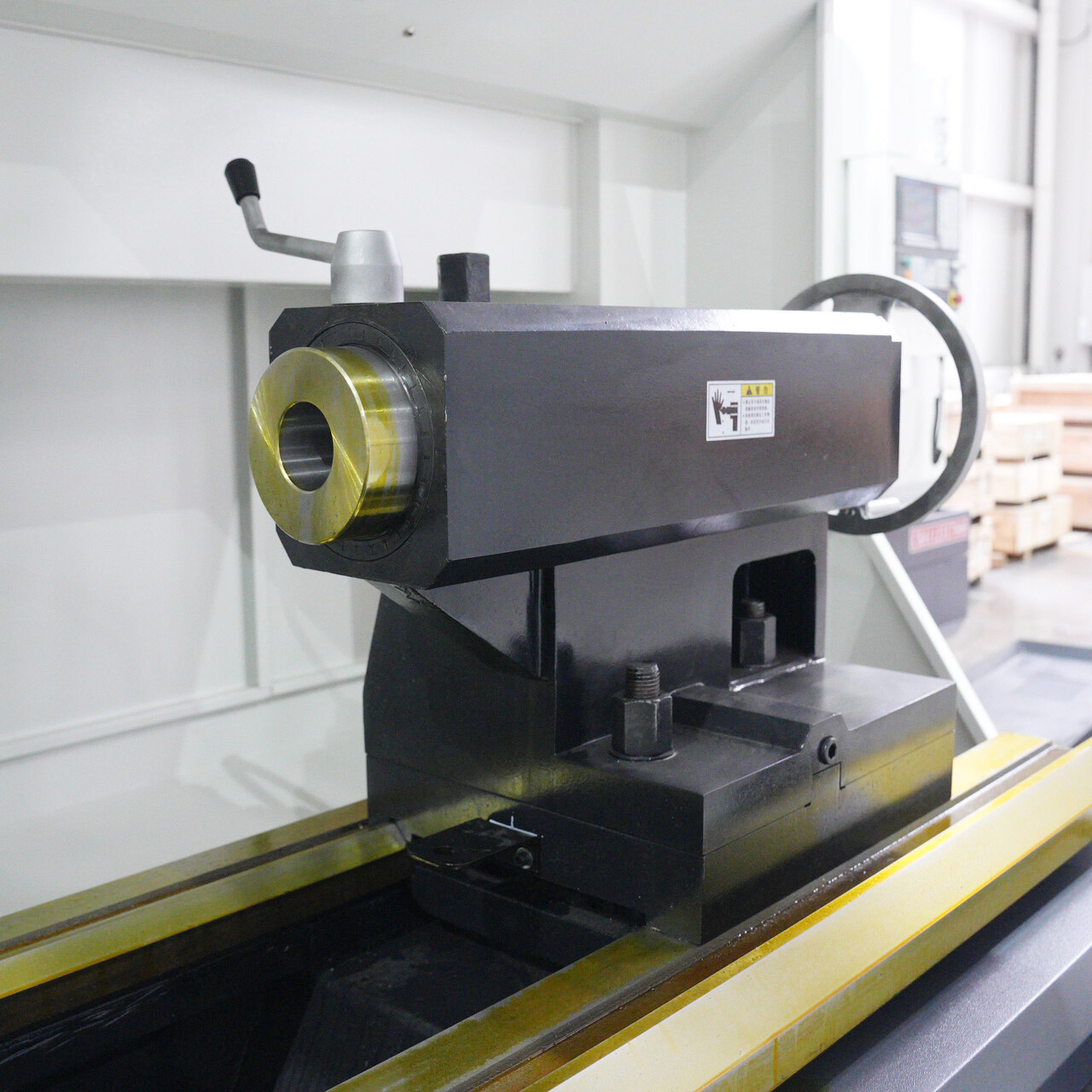

手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
Machinable Parts
Strength Showcase

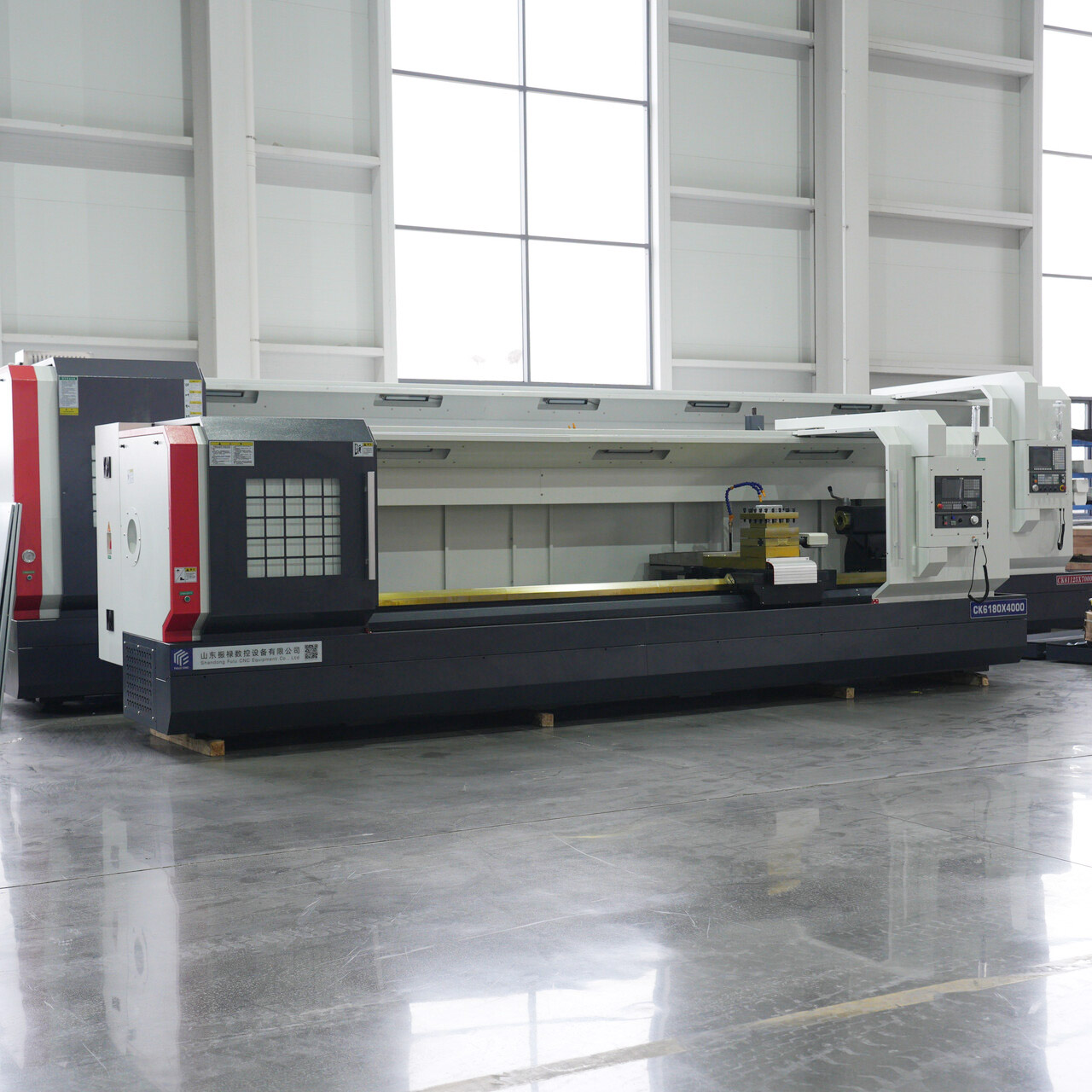

Factory Strength
