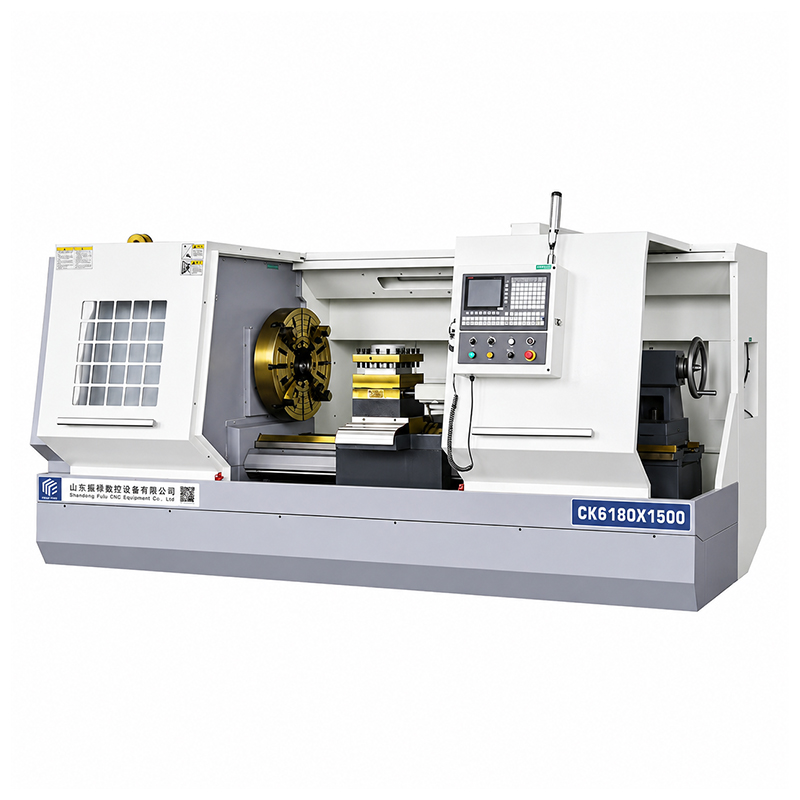

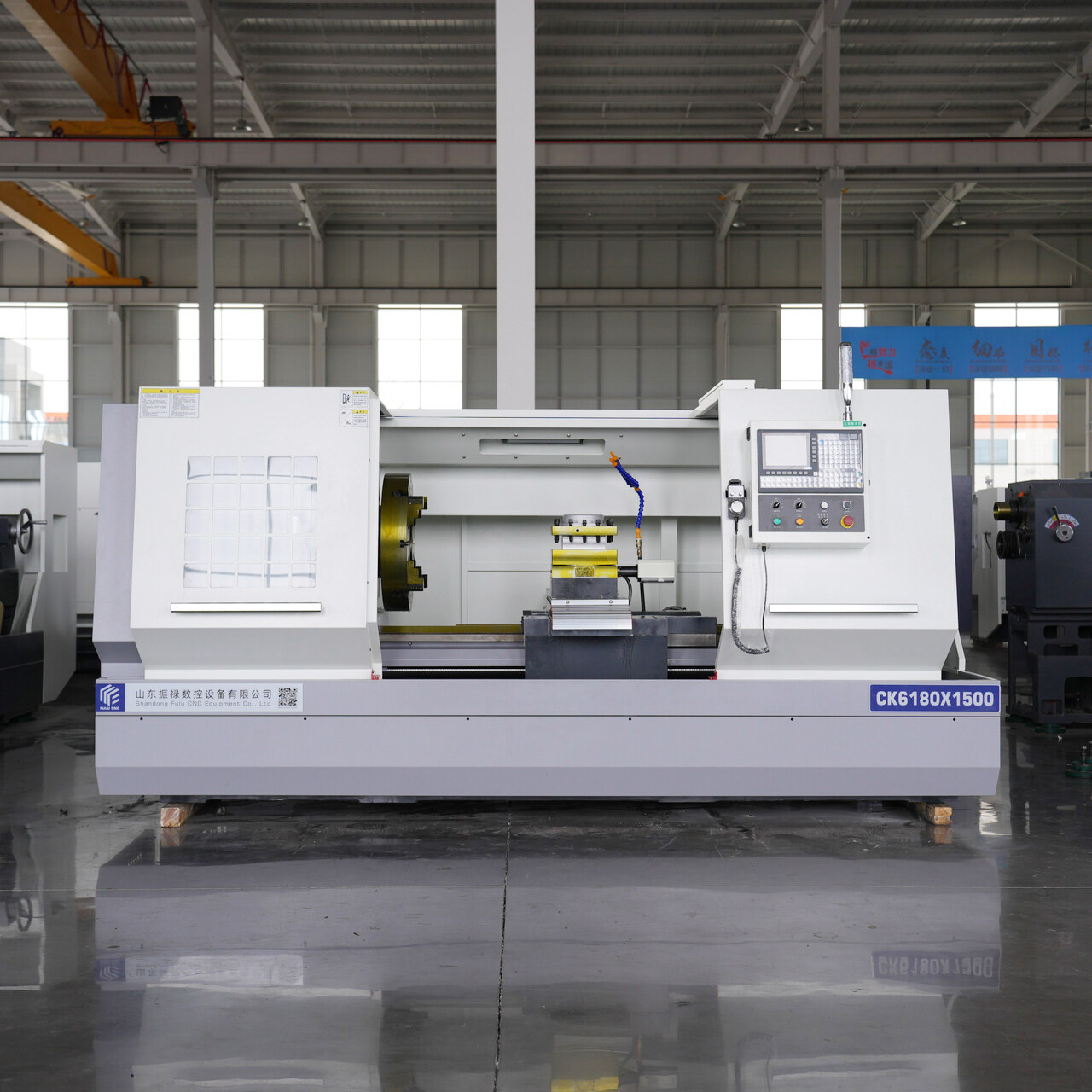

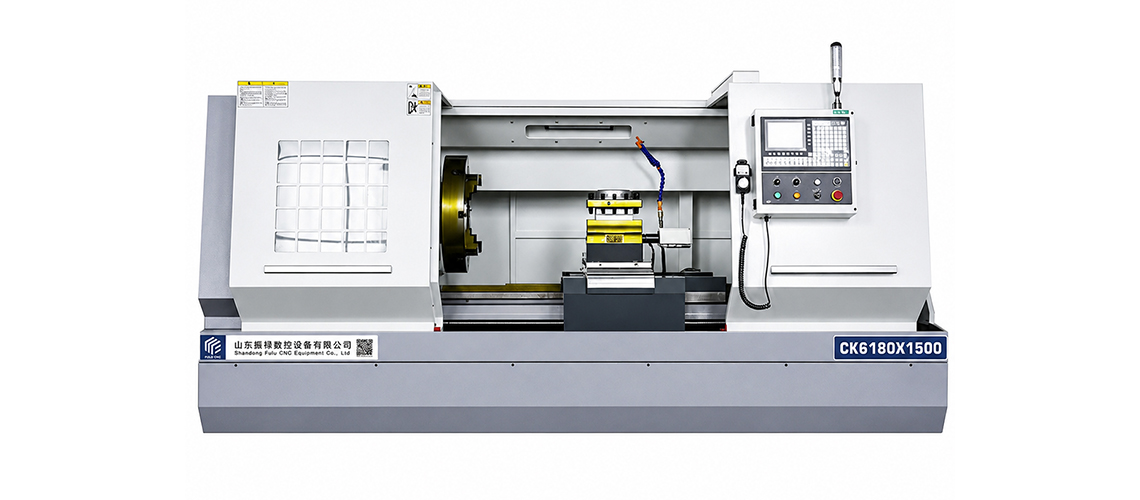

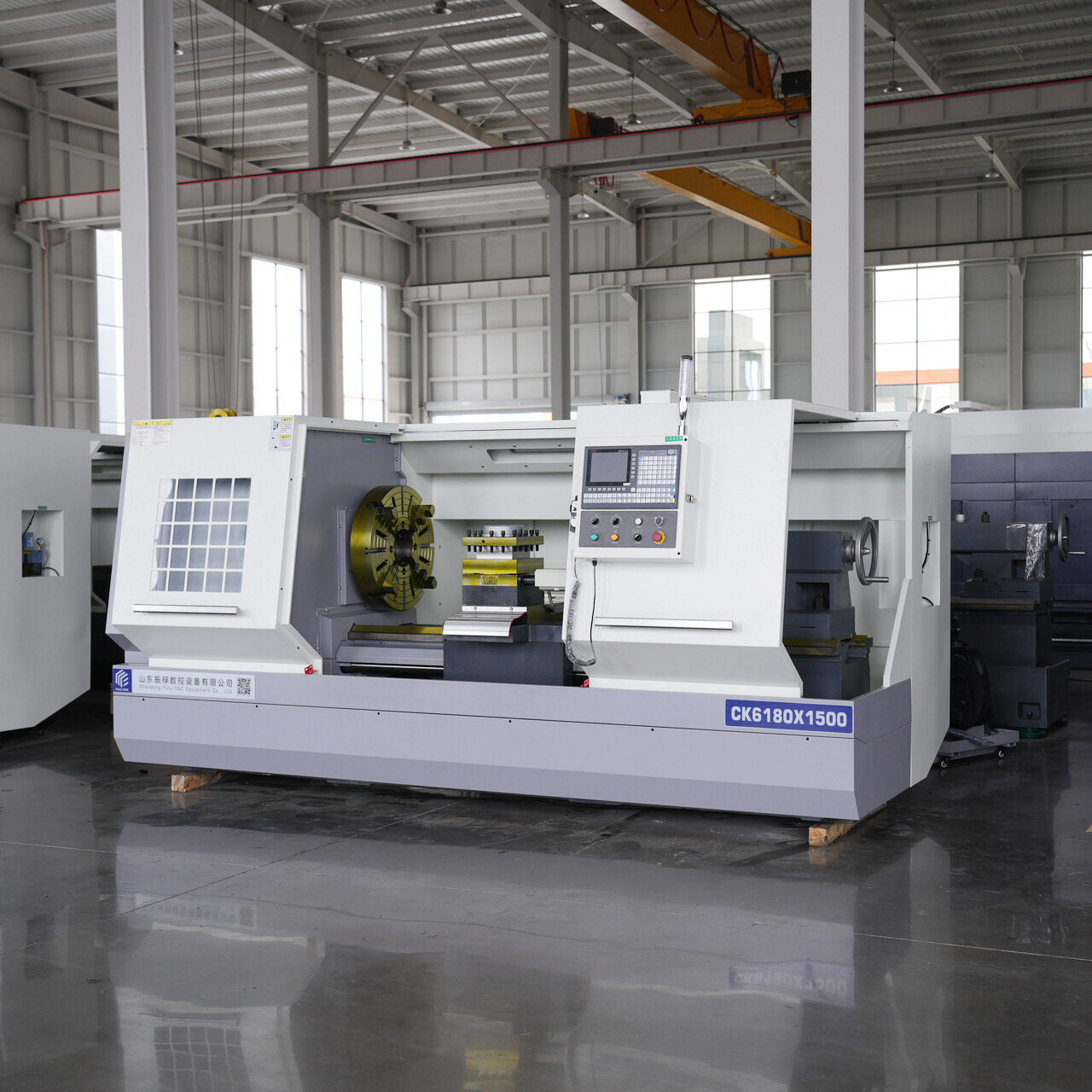

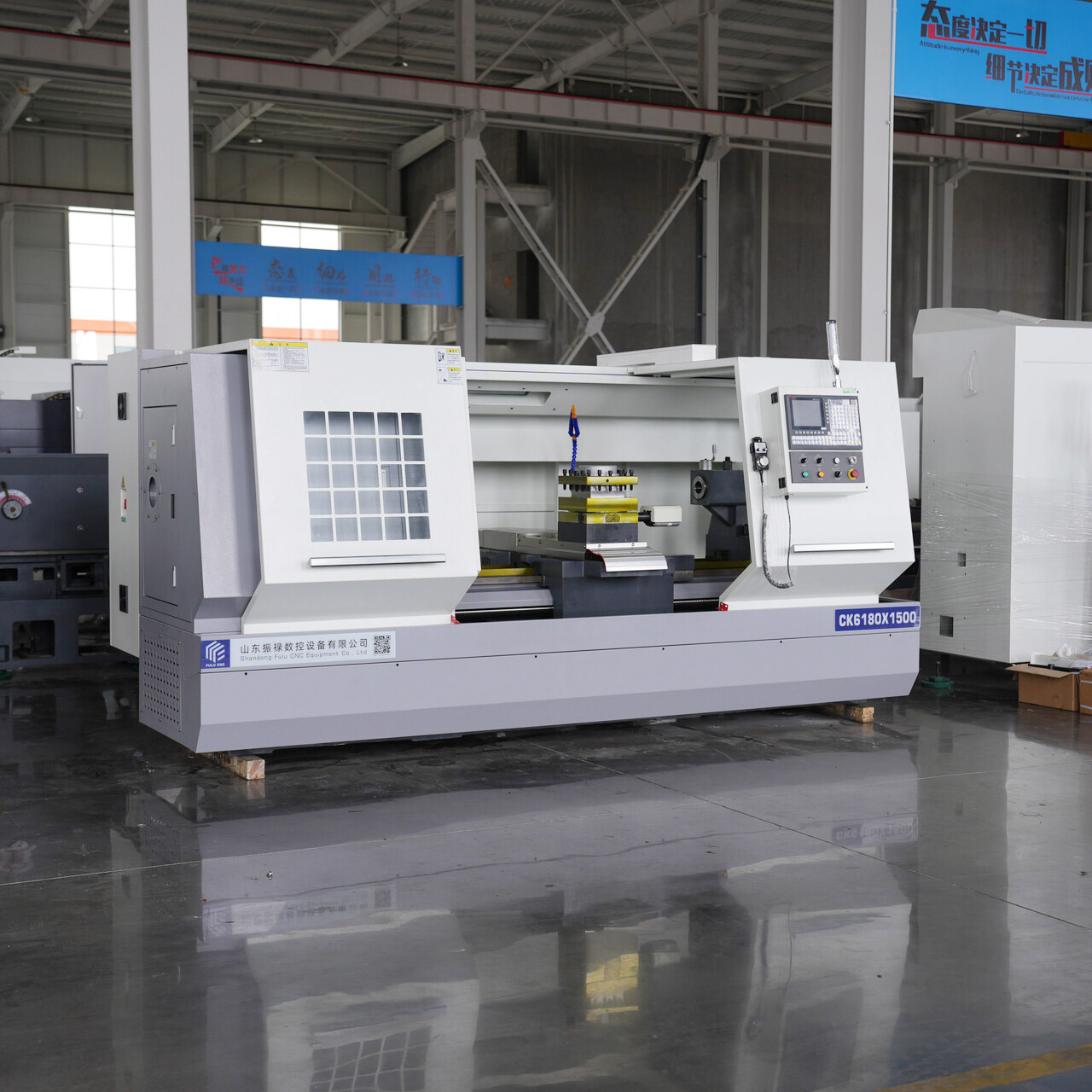

CNC Lathe
Basic Parameters
CK6180-1500
Unit
Specification
Maximum workpiece rotation diameter on the bed
mm
800
Maximum workpiece rotation diameter on the tool holder
mm
480
Maximum workpiece length
mm
1500
Width of the bed guide rail
mm
600
Spindle hole diameter
mm
105
Spindle end code
-
C11

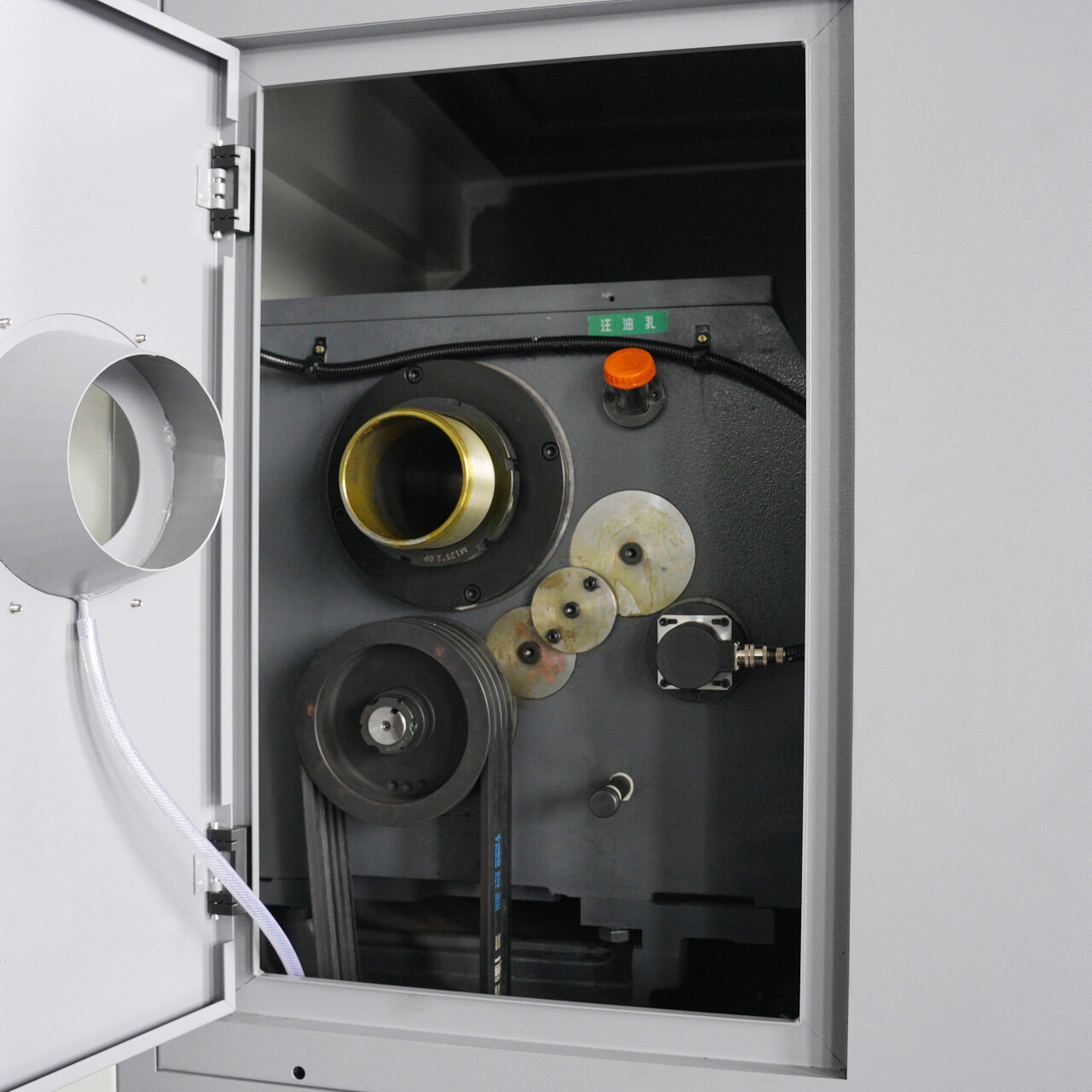

Spindle speed range (frequency conversion stepless speed regulation)
r/min
40-125/110-350/290-950

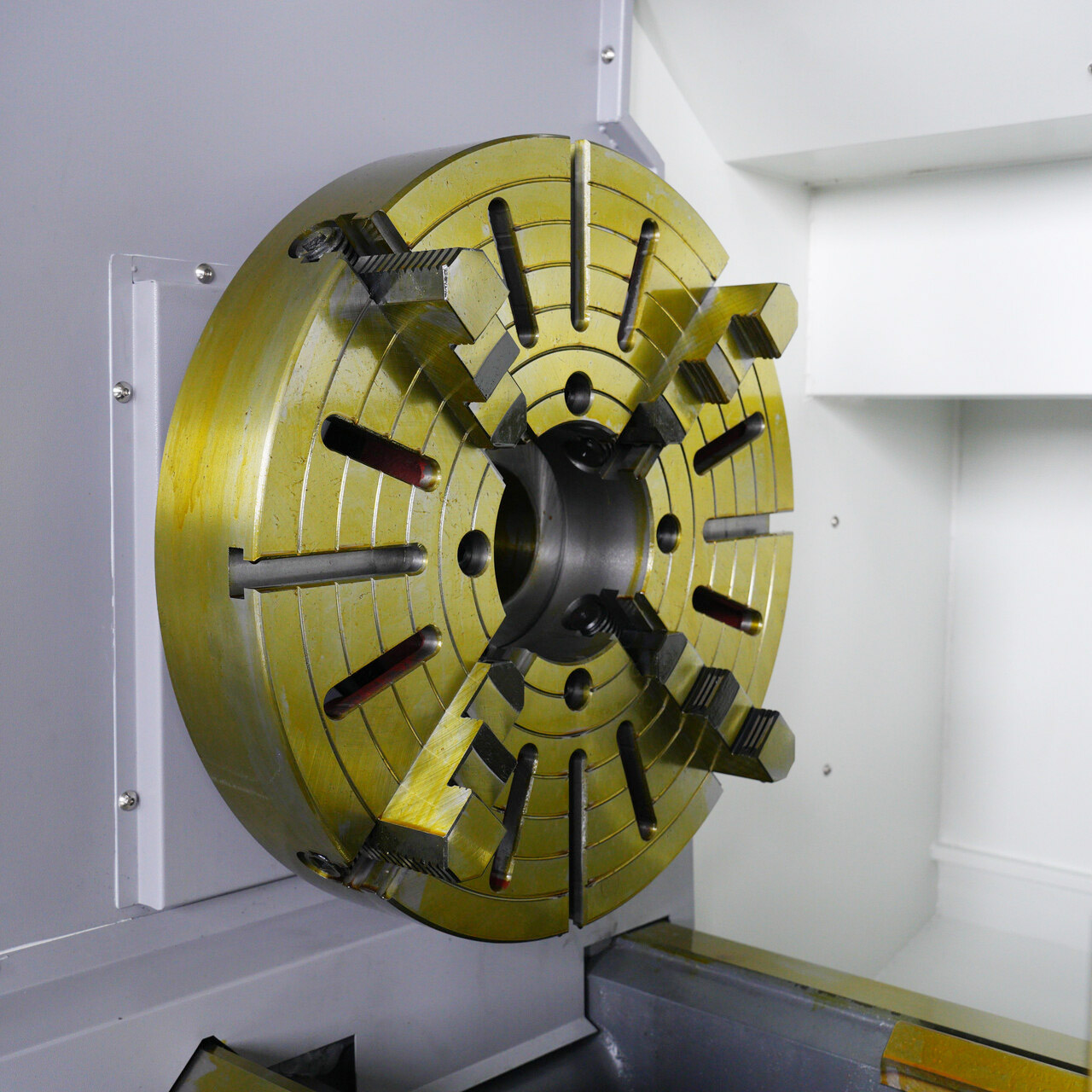

Chucks (manual) four-jaw chuck
mm
Ф630
Main motor power
Kw
11KW/15KW
Tool size
mm
32×32

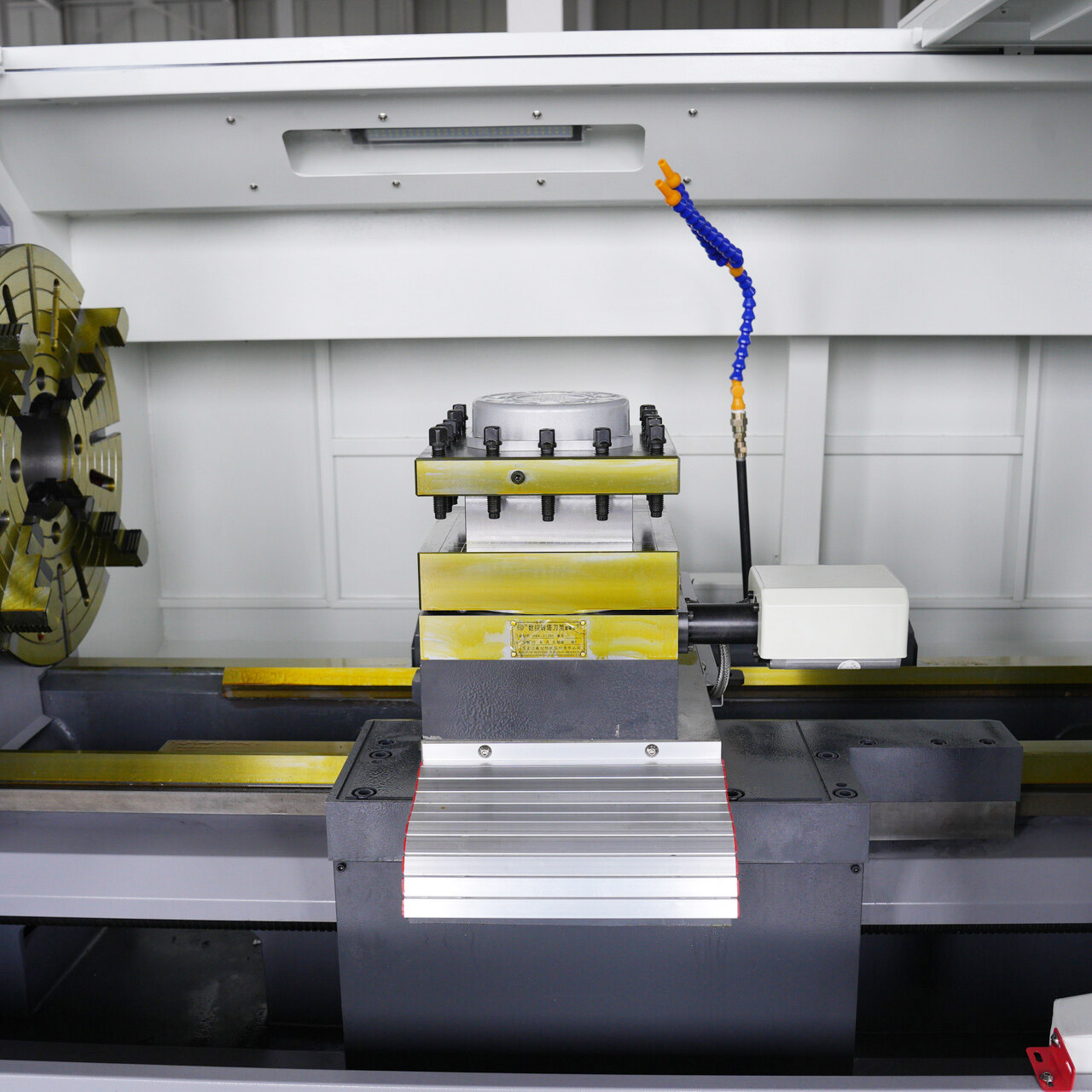

Electric tool holder
-
Vertical four-position tool holder
Maximum stroke of the bed saddle in the Z direction
mm
1500
Maximum lateral stroke of the tool holder in the X direction
mm
420
Fast moving speed of the bed saddle in the Z direction
m/min
6
Fast moving speed of the tool holder in the X direction
m/min
4
Torque of X/Z axis
nm
10N·m/15N·m

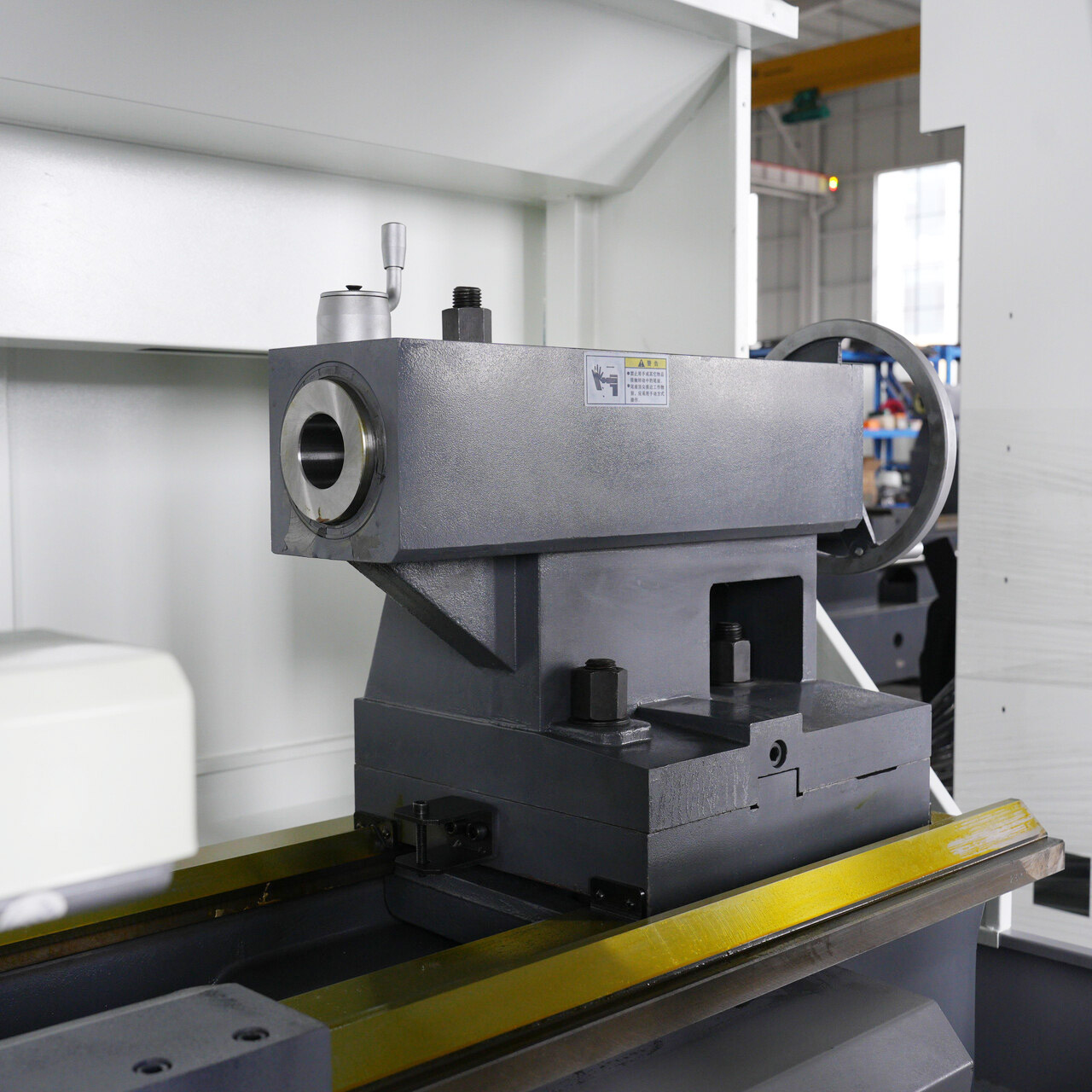

Diameter of tailstock sleeve
mm
Φ120
Stroke of tailstock sleeve
mm
250
Taper of tailstock sleeve
-
Morse 6
Machine tool profile (length X width X height)
mm
2600 × 1800 × 1850
Standard Configuration

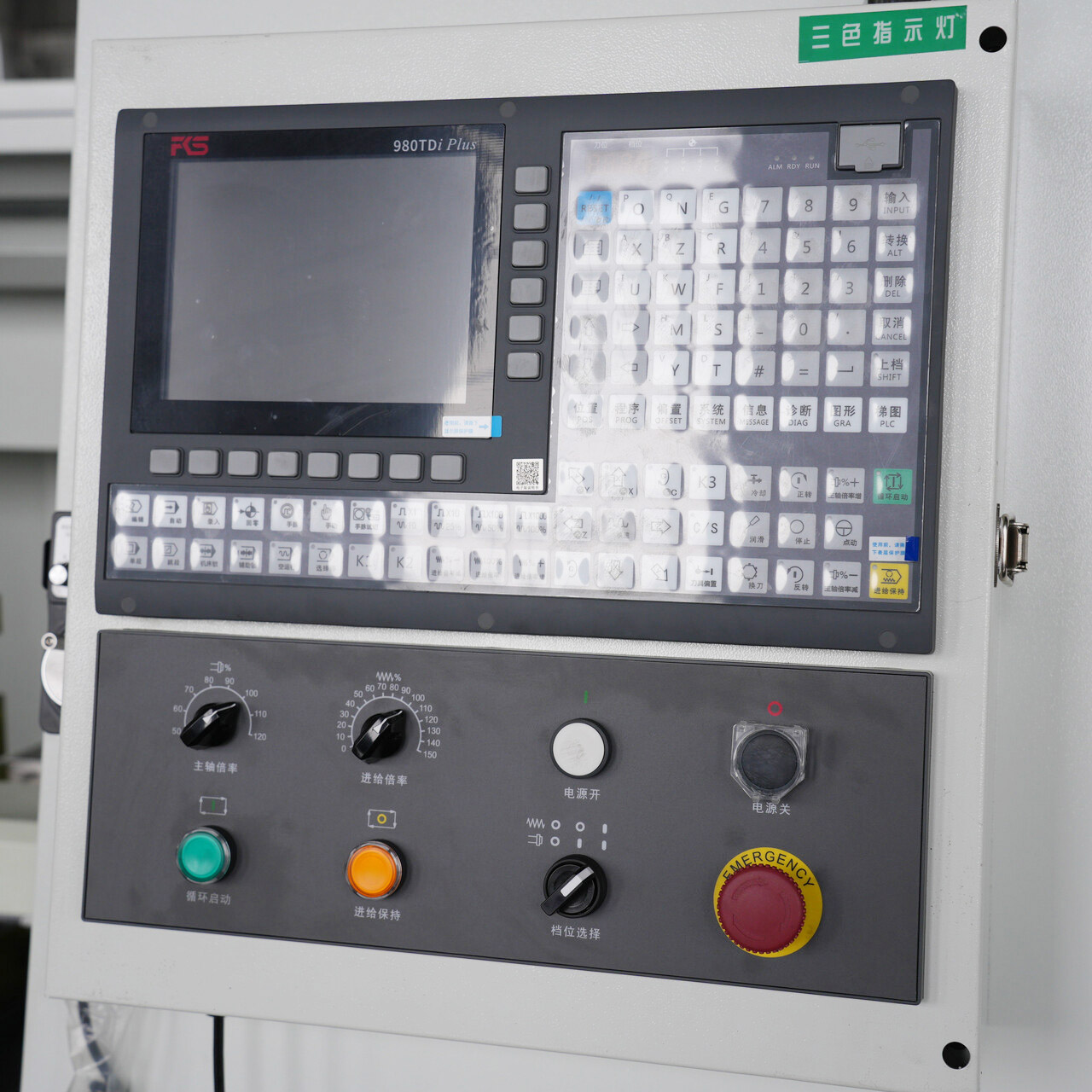

控制系统
三爪卡盘
四工位电动刀架
手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
Machinable Parts
