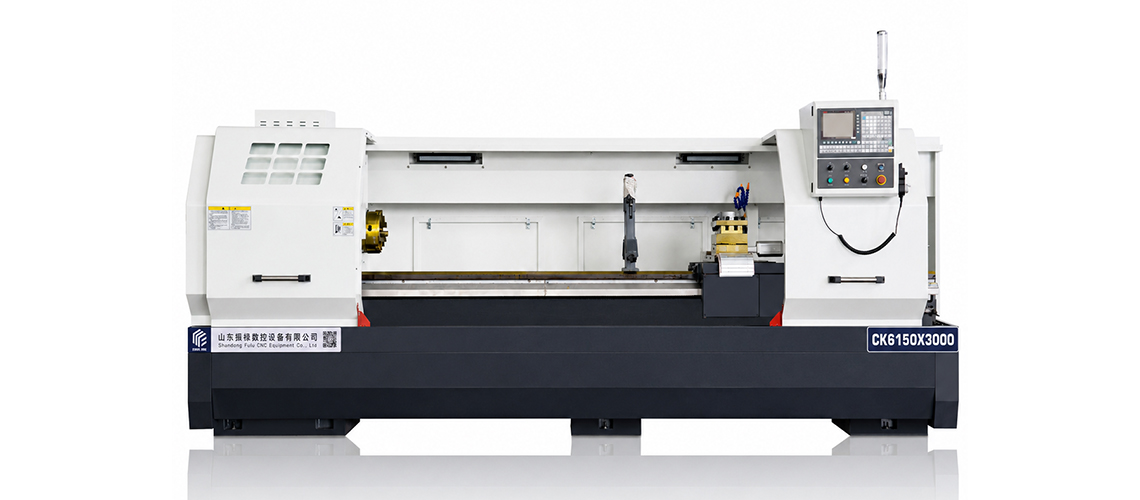

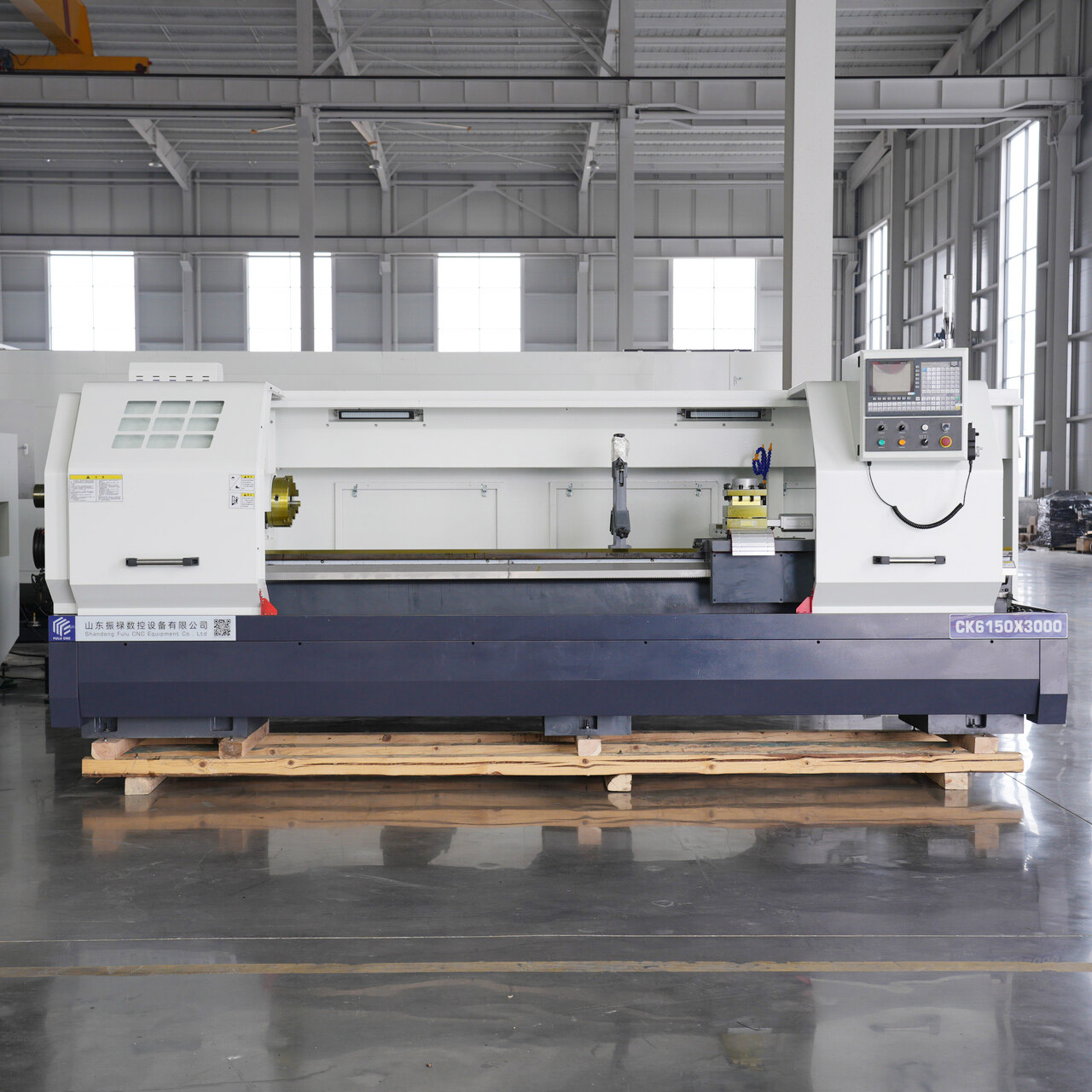

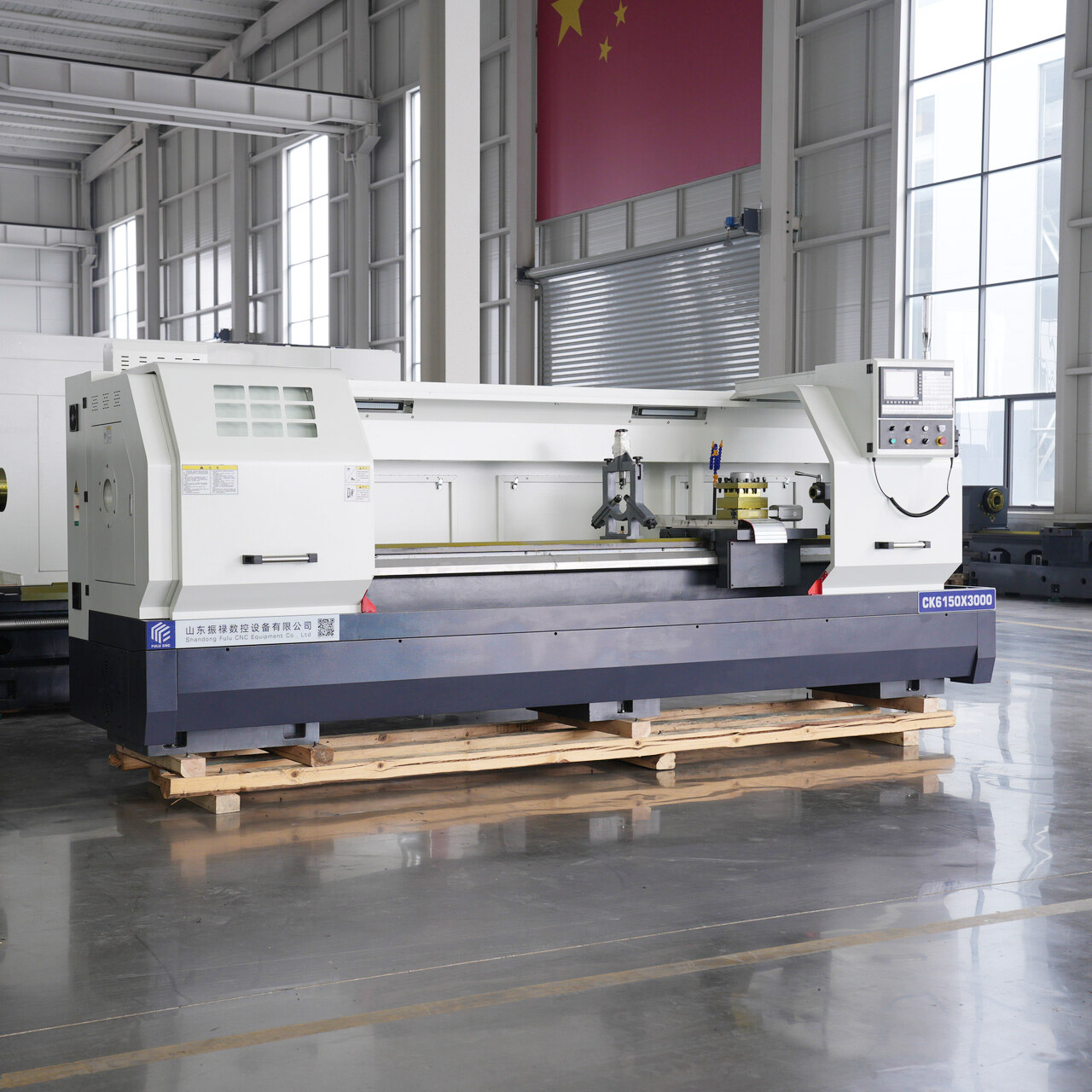

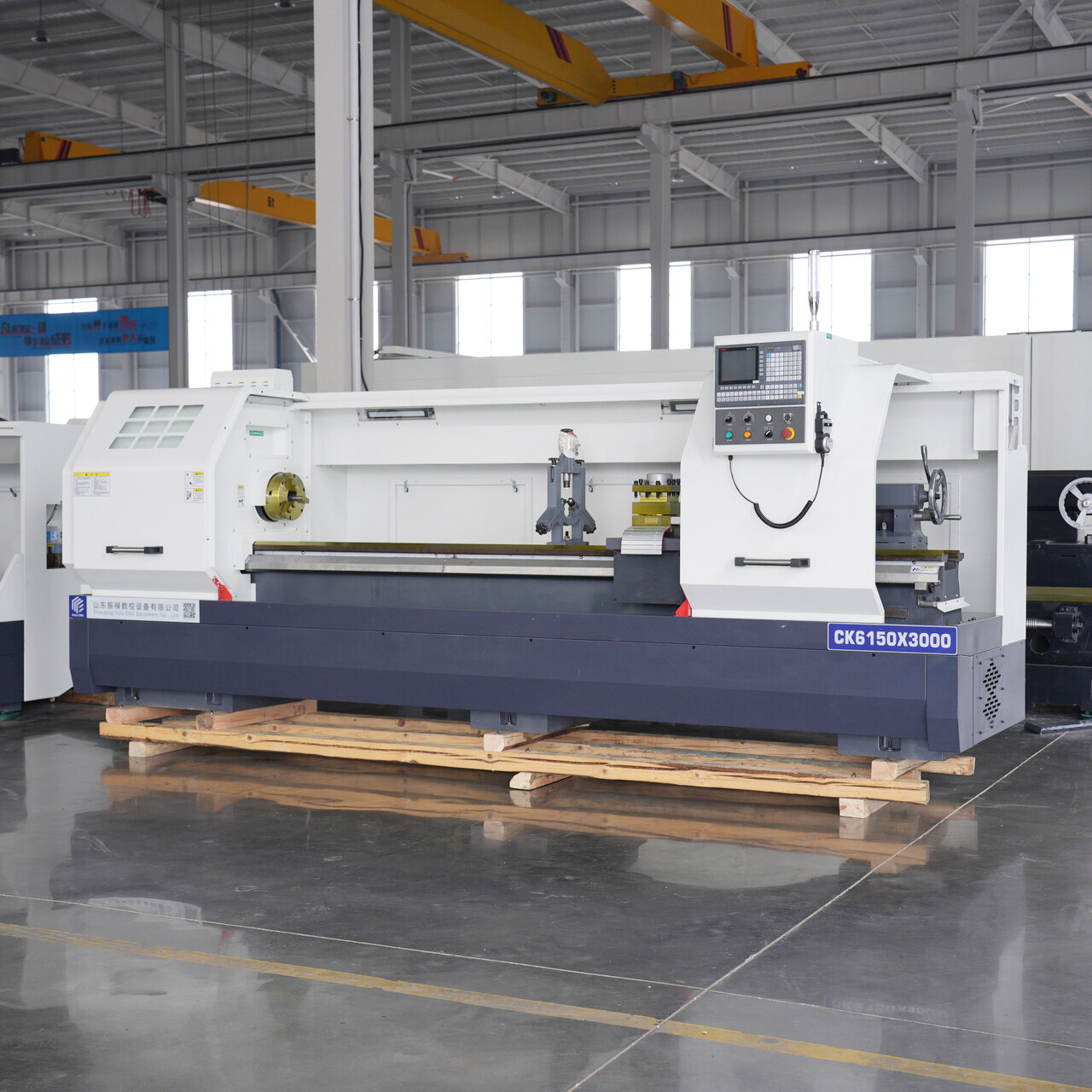

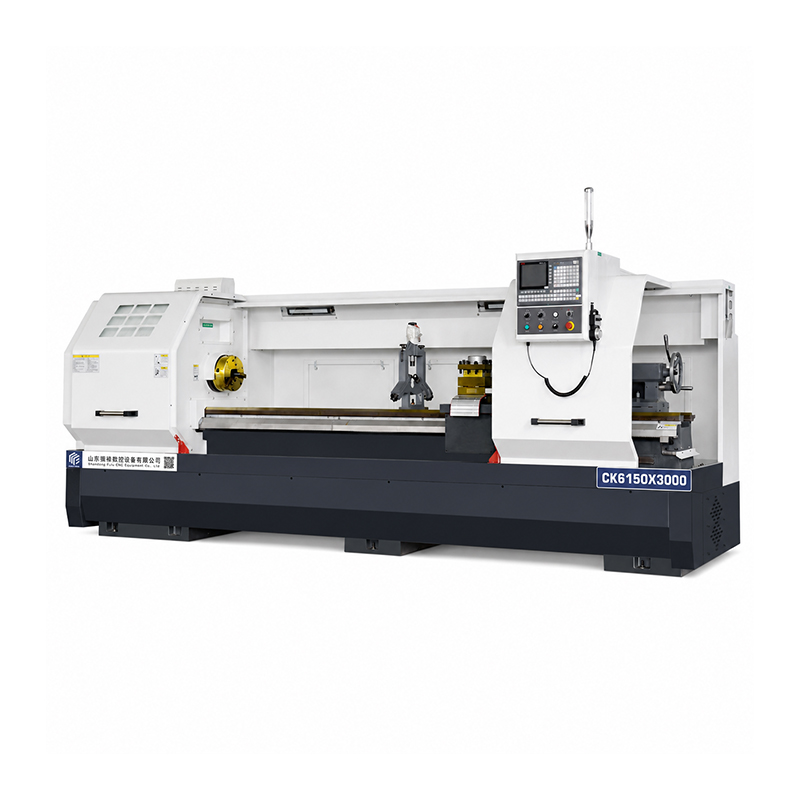

CNC Lathe
Basic Parameters
Project
Unit
CK6150-3000
Maximum turning diameter on the bed
mm
500
Maximum turning diameter on the saddle slide
mm
270
Guide rail span
mm
400
Effective processing length
mm
2850
Maximum travel X
mm
280
Maximum travel Z
mm
3000

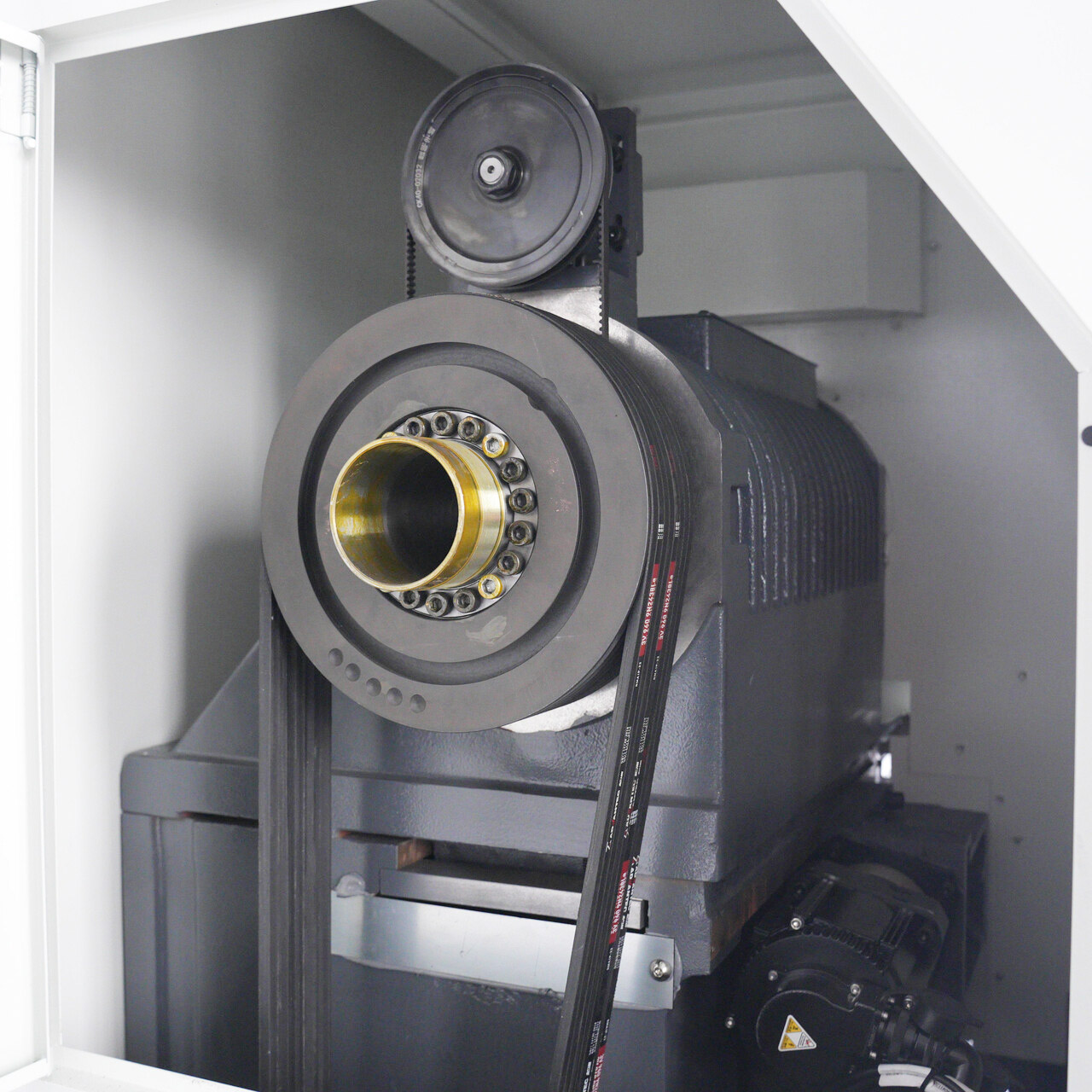

Spindle speed range
r/min
45-1600/1200 (three-speed)
Spindle through hole diameter
mm
Φ82/Φ105
Spindle taper hole
Metric
Metric 90 (1:20)
Spindle end model
A2-8
Height from spindle center to bed surface
mm
255
Maximum travel of tailstock sleeve
mm
150
Tailstock sleeve diameter
mm
75
Taper of tailstock sleeve taper hole
Morse No. 5
Rapid movement speed (X/Z axis)
m/min
≥6/8
Turning thread range (metric thread)
mm
0.2～30
Repeat positioning accuracy (X/Z axis)
mm
0.007～0.01
Processing accuracy
IT6～IT7
Processing roughness
Ra1.6
Maximum load for shaft parts
kg
500
Maximum load for disc parts
kg
300
Dimensions: Length × Width × Height
mm
4500×1700×1800
Machine weight (approximately)
kg
3500
Standard Configuration

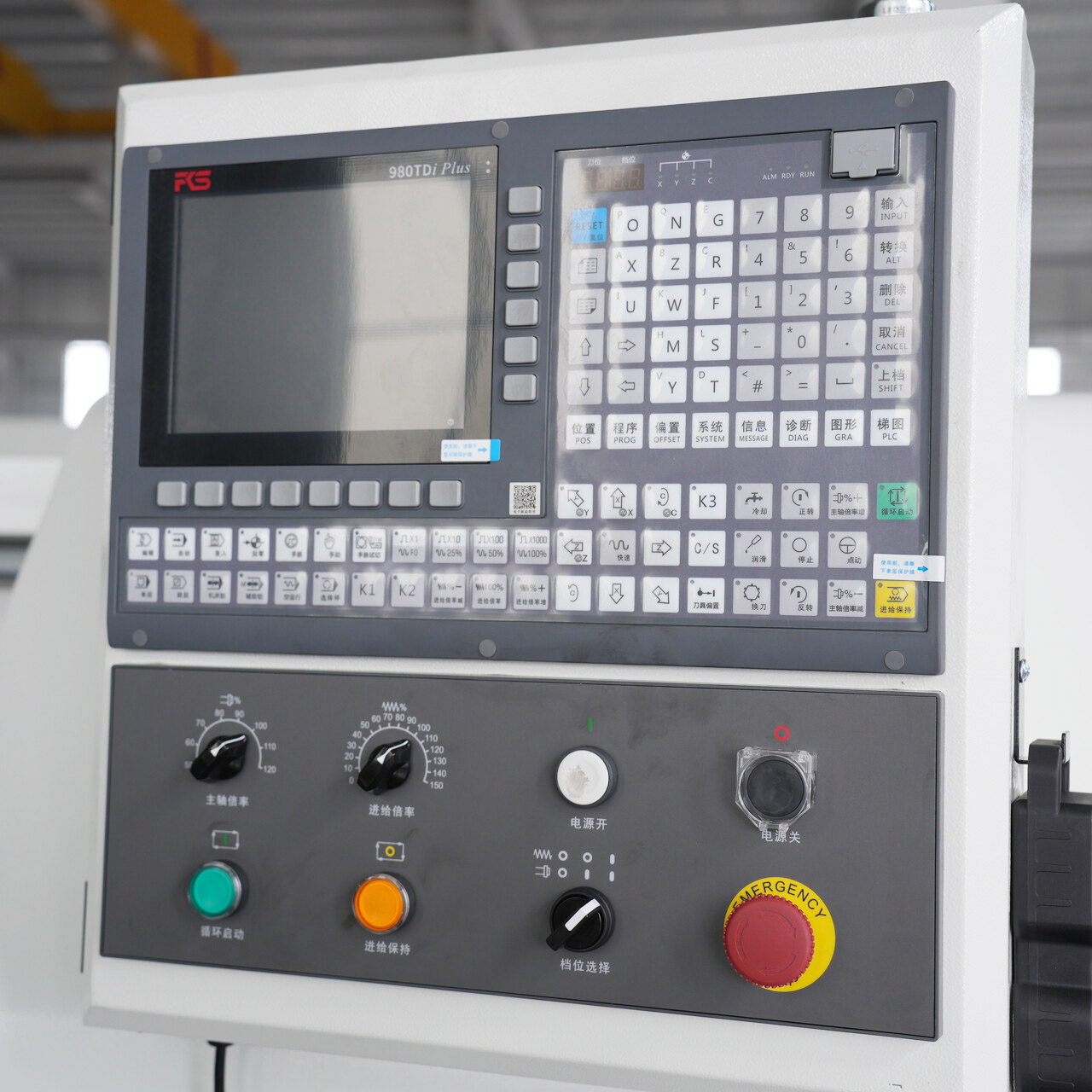

控制系统

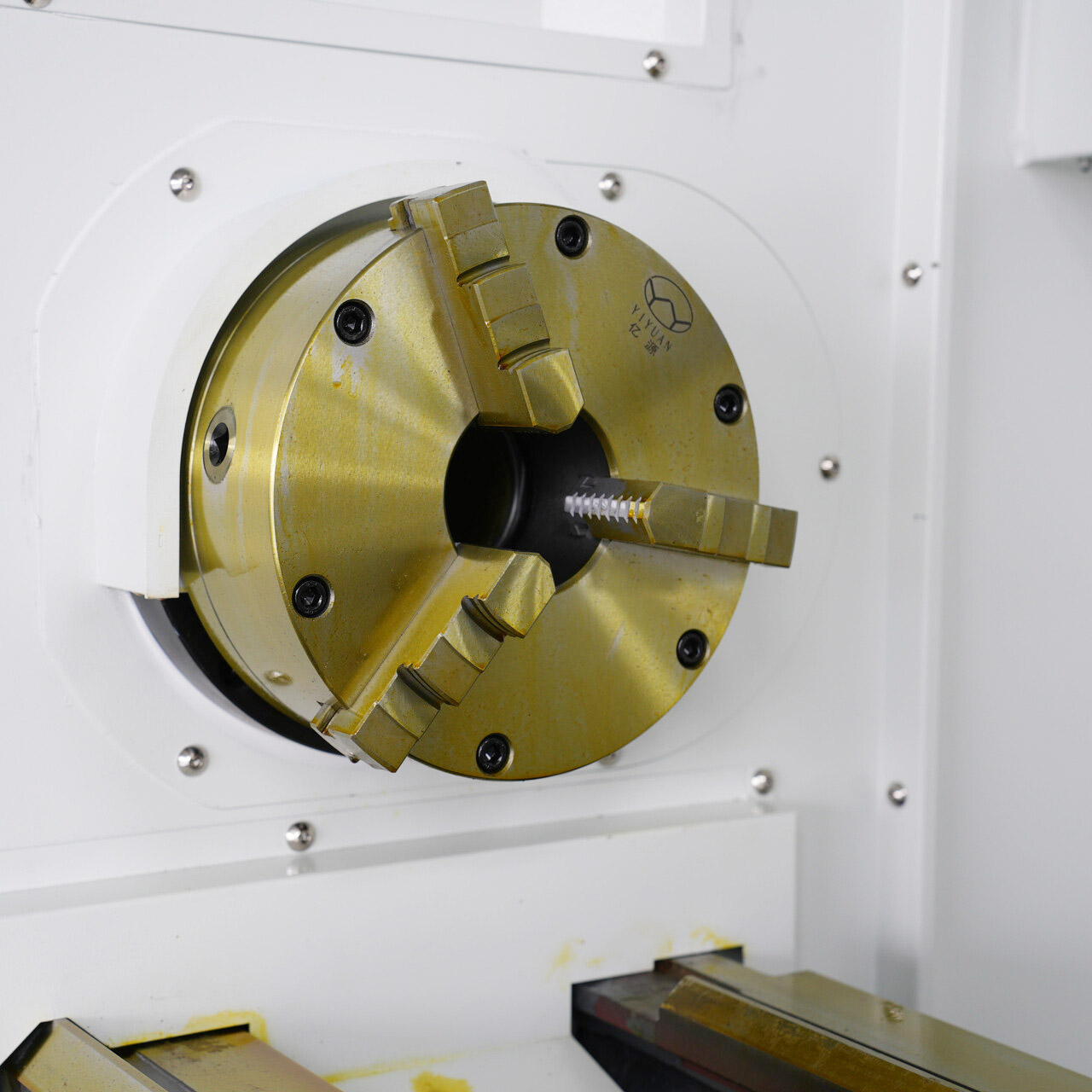

三爪卡盘
四工位电动刀架

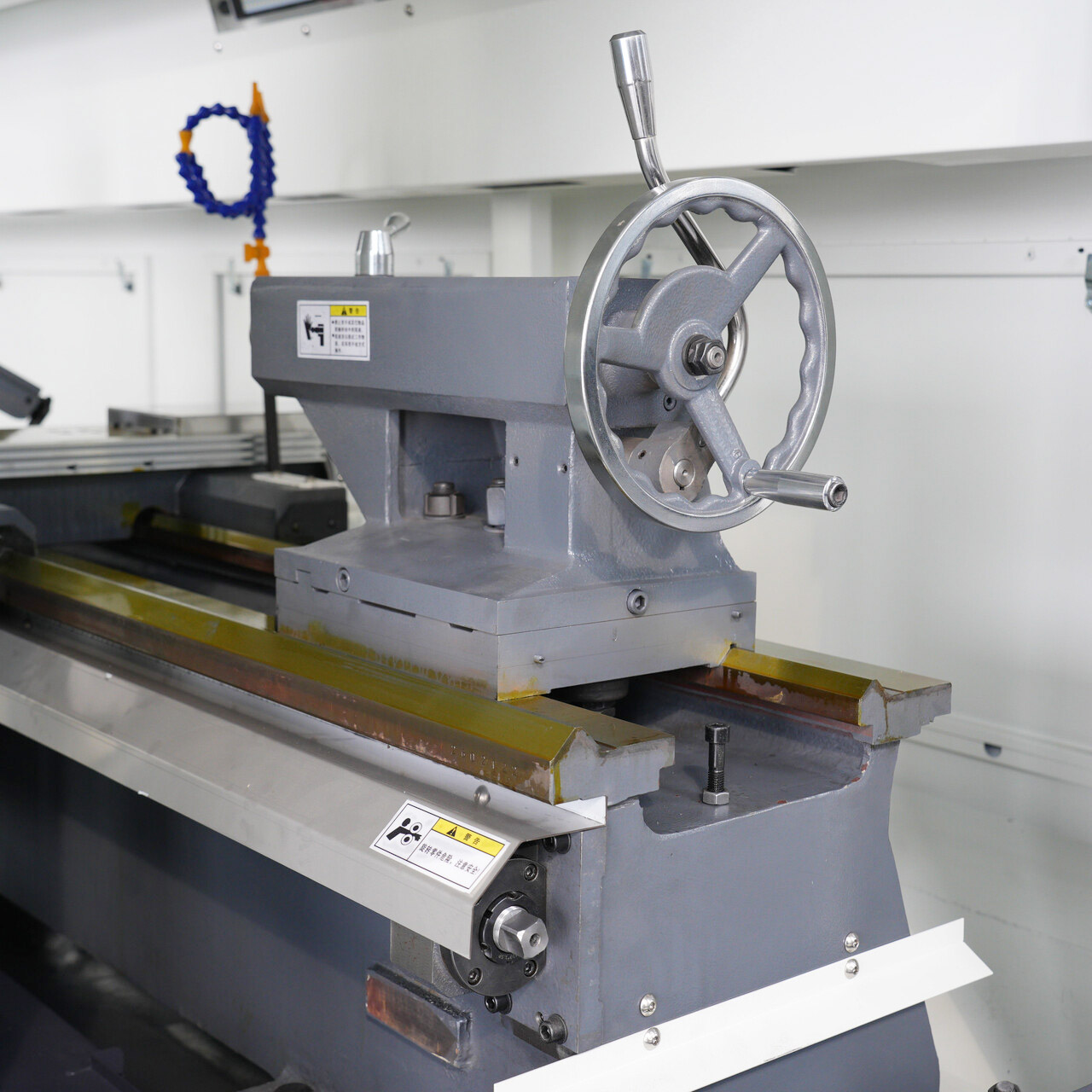

手动尾座
You can choose the control system you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
You can choose the tailstock you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.
