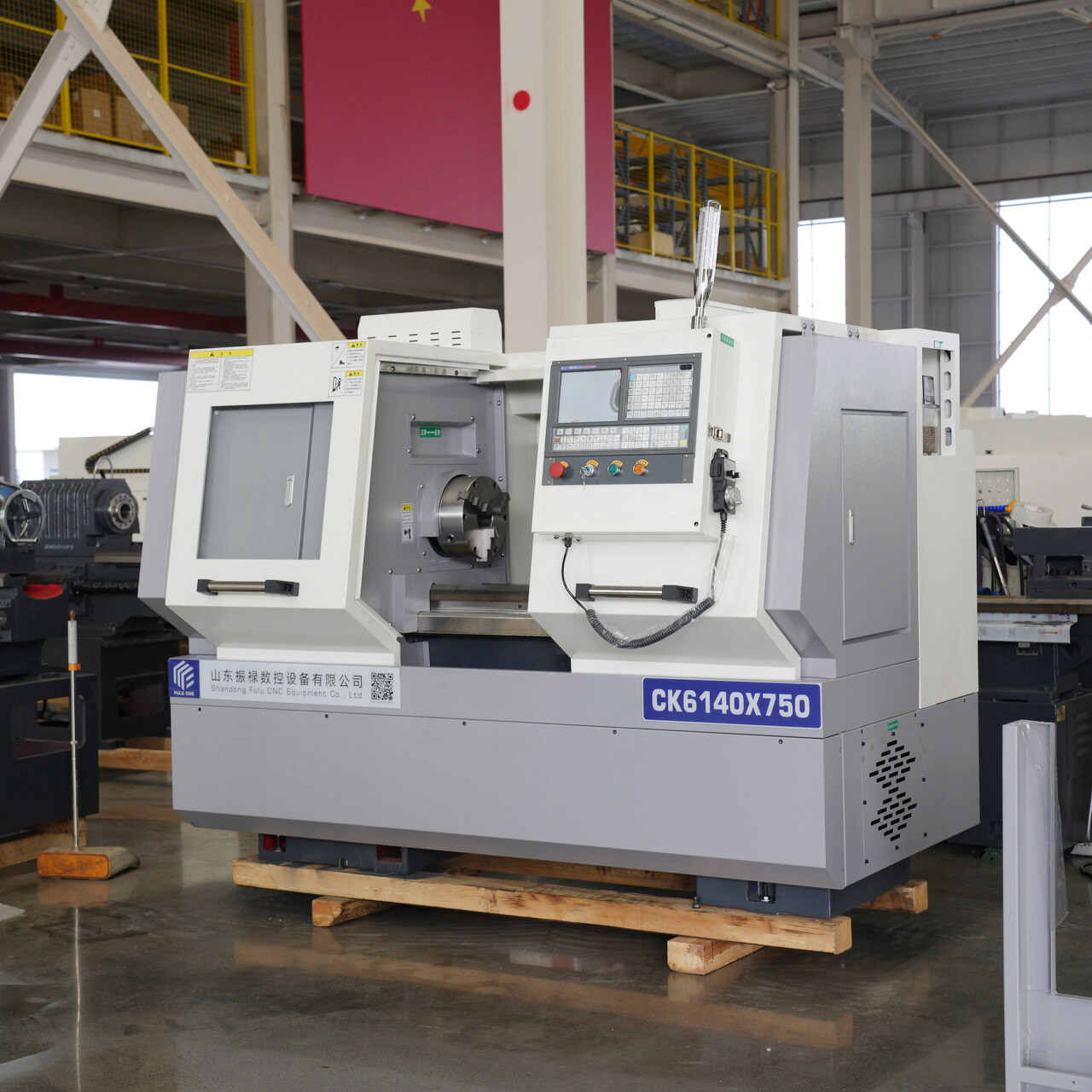

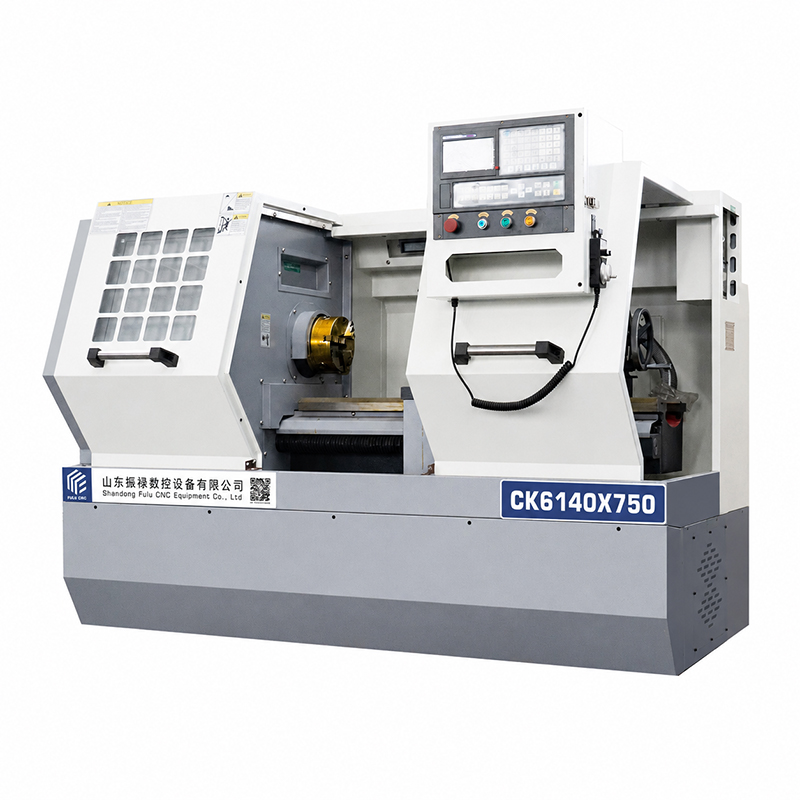

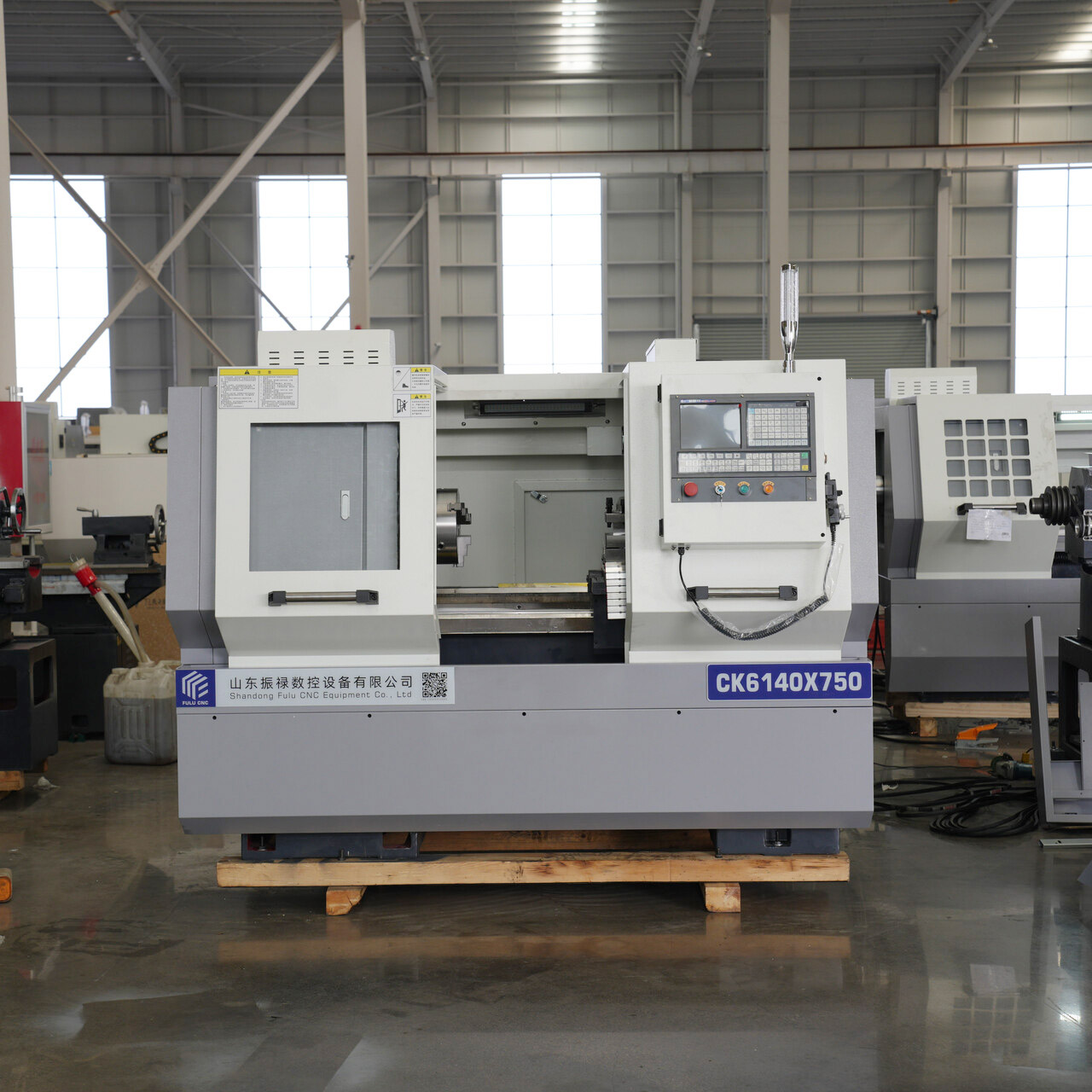

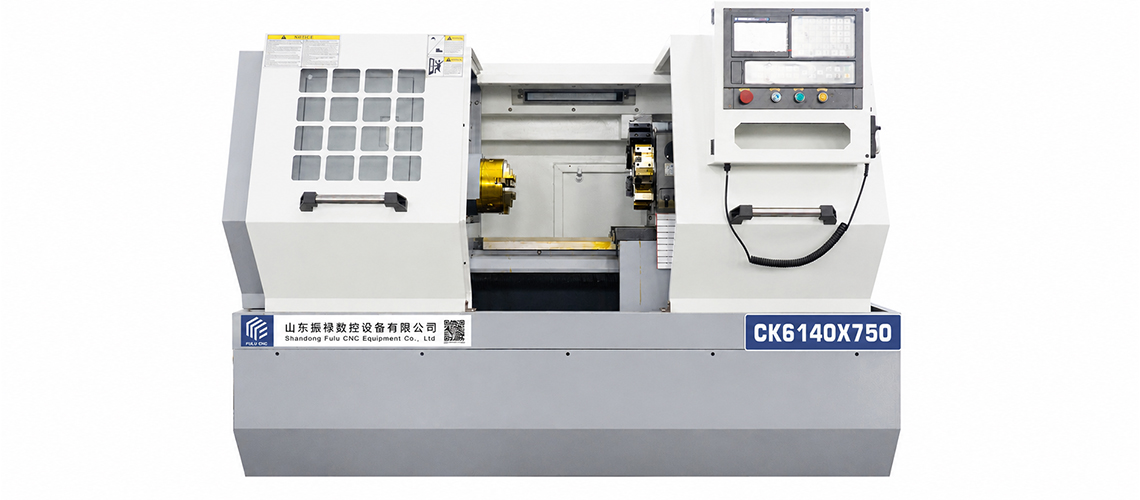

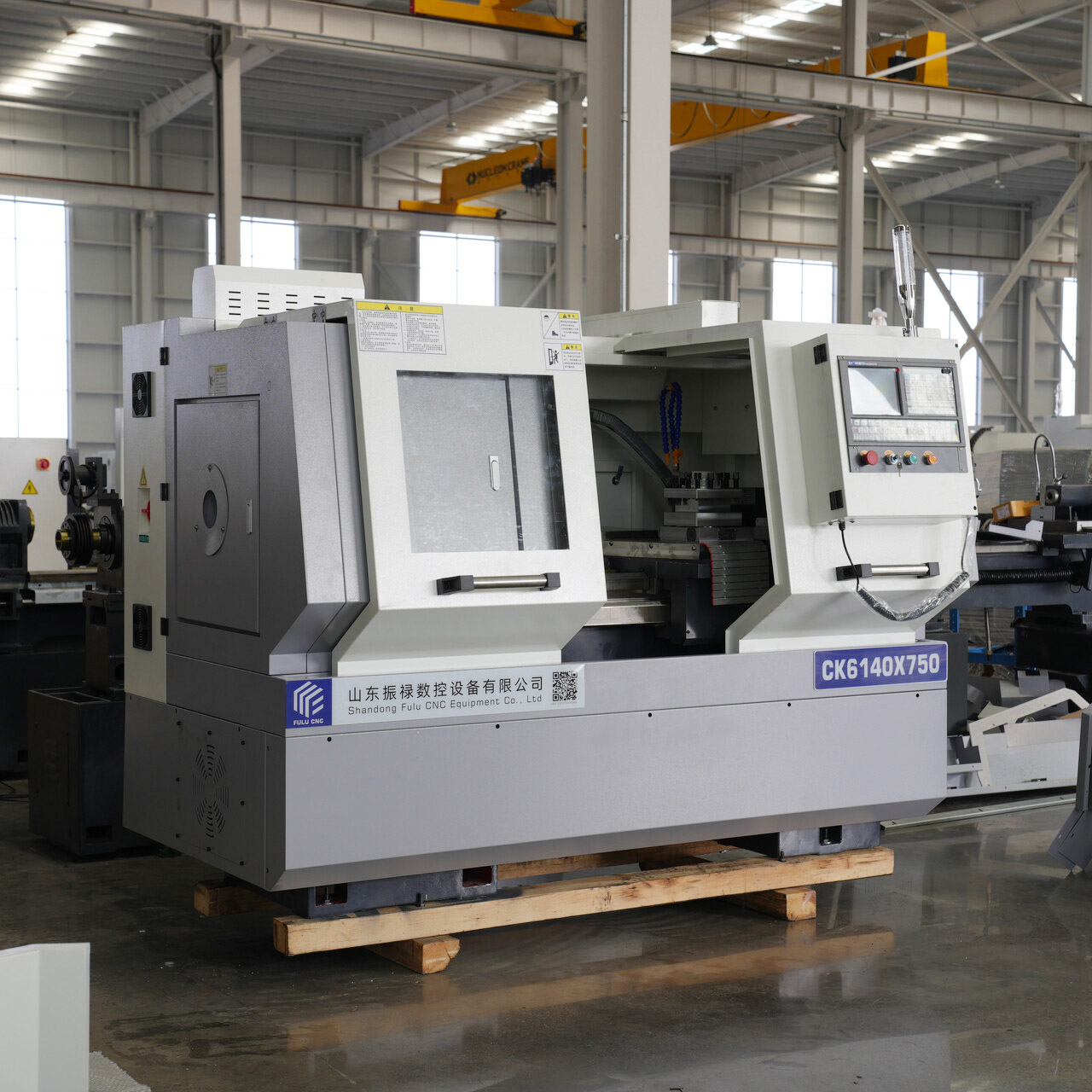

CK6140-750

CNC Lathe

Basic Parameters

  • Maximum turning diameter 400mm, suitable for processing various shafts.
  • Maximum processing length 750mm, meets the needs of medium and small workpieces.
  • Spindle through hole 52mm, improves bar material processing efficiency.
  • Spindle speed 50-2500rpm, stepless speed regulation is stable.
  • Equipped with high-precision ball screw, positioning is accurate and reliable.
Contact Us

Contact the salesperson to receive the product catalog

* Company Name ：

Plsease input value

* Email ：

Error E-mail format

* Whats app ：

Error cellphone format

* Country ：

Plsease input value

* Equipment Requirements ：

Plsease input value

Video Display

Project (CK6140) Unit CK6140-750
Maximum turning diameter on the bed slide mm Φ400
Maximum turning diameter on the slide   Φ200
Maximum processing length mm 750
Maximum processing diameter mm Φ400
Maximum bar diameter mm Φ200
Chuck   200 three-jaw chuck
Spindle head type   ISO (GB)A2-6
Spindle through hole diameter mm Φ52
Spindle levels   Variable speed/two gears (frequency conversion within gears)
Spindle speed range r/min 10-1800/50-1600
X/Z axis travel mm 200/（750/1000/1500）
X/Z axis screw diameter × pitch mm Φ20/φ40
X/Z rapid traverse speed m/min April 6
Tool holder type   Electric vertical
Number of stations   4
Tool holder size mm 20×20
Sleeve diameter/stroke mm Φ65/100
Sleeve inner hole taper   MT4
Sleeve drive type   Manual
Tailstock body movement type   Manual
Spindle motor power Kw 5.5
Cooling pump motor power W 90
Bed saddle layout type   Flat bed
Guide rail type   Hard rail (average HRC55)
Machine dimensions: length × width × height mm 2150X1500X1700

  • ◎ Cutting Cooling System

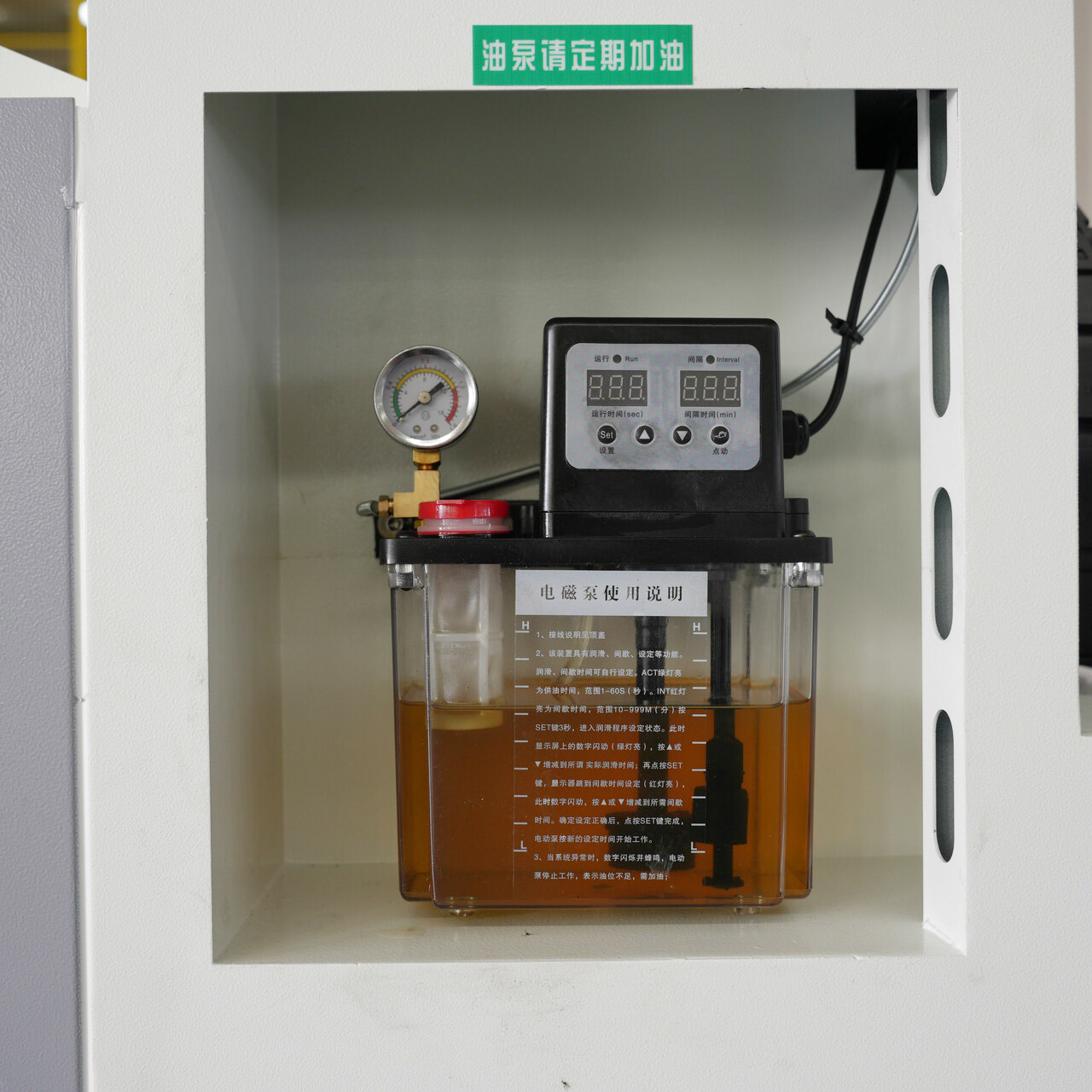

  • ◎ Automatic Lubrication System

  • ◎ Cutting Blowing Device

  • ◎ Spindle and Servo Overload System Protection

  • ◎ Three-color Alarm Light

  • ◎ Horizontal Adjustment Bolt and Pad

  • ◎ Electrical Box Heat Exchanger

  • ◎ Three-axis Screw Pre-tensioning Device

  • ◎ Program Storage

  • ◎ Spindle Ring Water Spray

  • ◎ Reserved for Adding Four-axis Interface

  • ◎ Internal Work Light of the Machine Tool

  • ◎ Internal Cleaning Device: Chip Blowing Gun, Water Gun

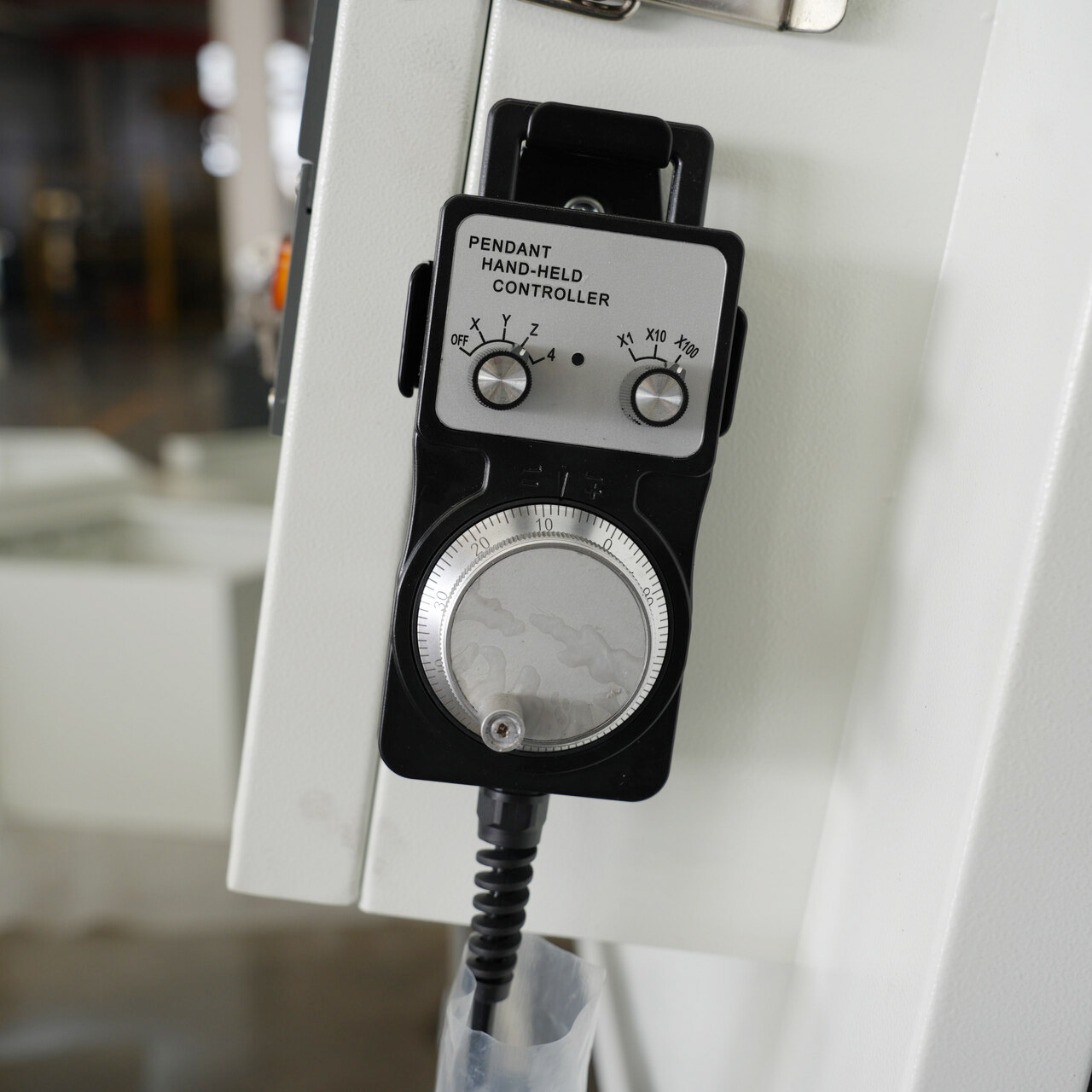

  • ◎ Manual Pulse Generator: Handwheel

  • ◎ External Network Transmission Interface

  • ◎ Three-axis Telescopic Protective Cover (Fully Enclosed Inner Sheet Metal)

  • ◎ High-grade Painted Sheet Metal for External Protection

  • ◎ Rigid Tapping

  • ◎ Chassis Strong Chip Removal, Dual Water Pumps



  • ◎Control System: Siemens, New代, Mitsubishi, Fanuc, Kandy

  • ◎Three-jaw chuck, Four-jaw chuck

  • ◎Four-station electric tool holder, Six-station electric turret, Eight-station electric turret, Twelve-station electric turret

  • ◎Manual tailstock, Electric tailstock
Learn More

Standard Configuration

Standard Configuration

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_175808_3786.jpg

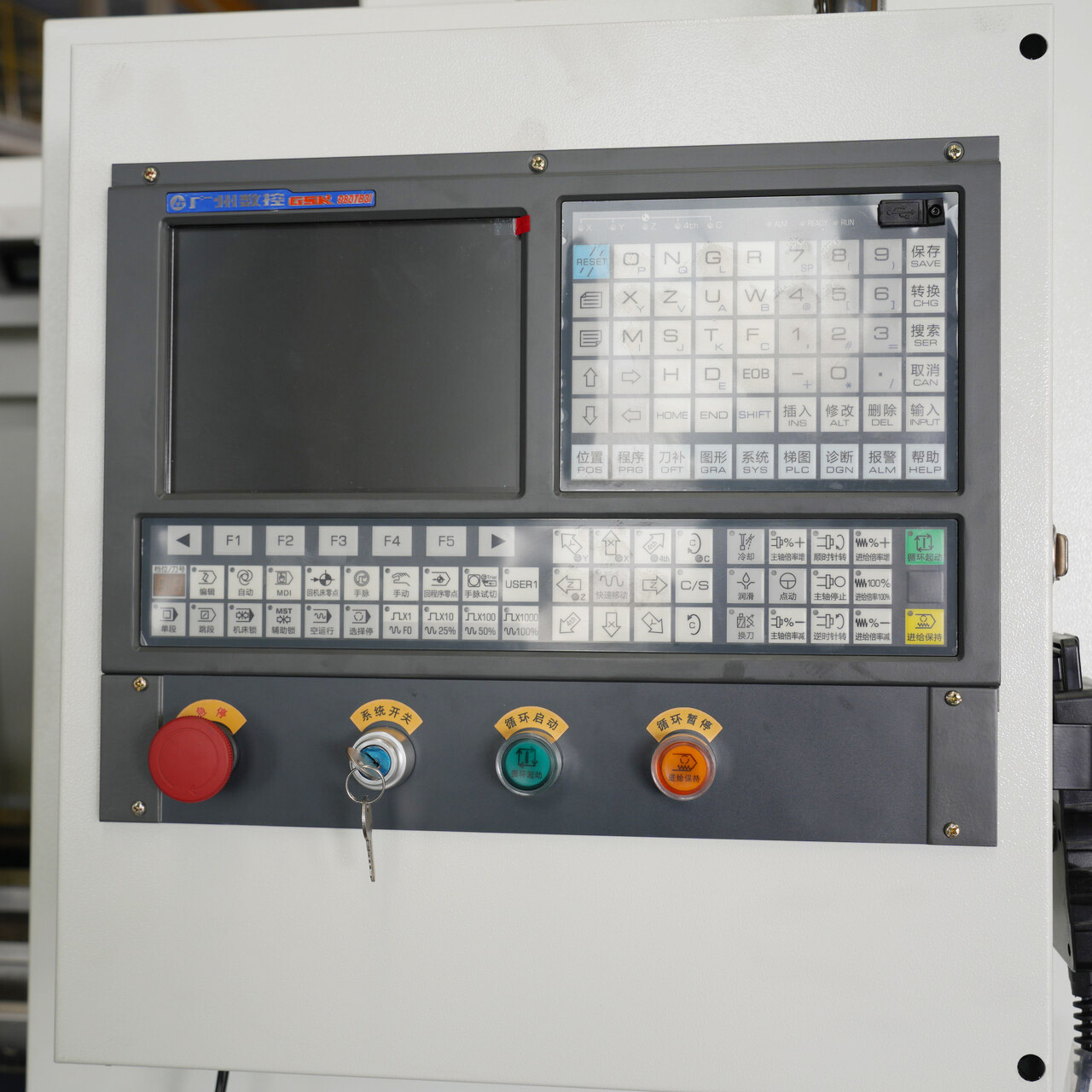

控制系统

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_182234_3858.jpg

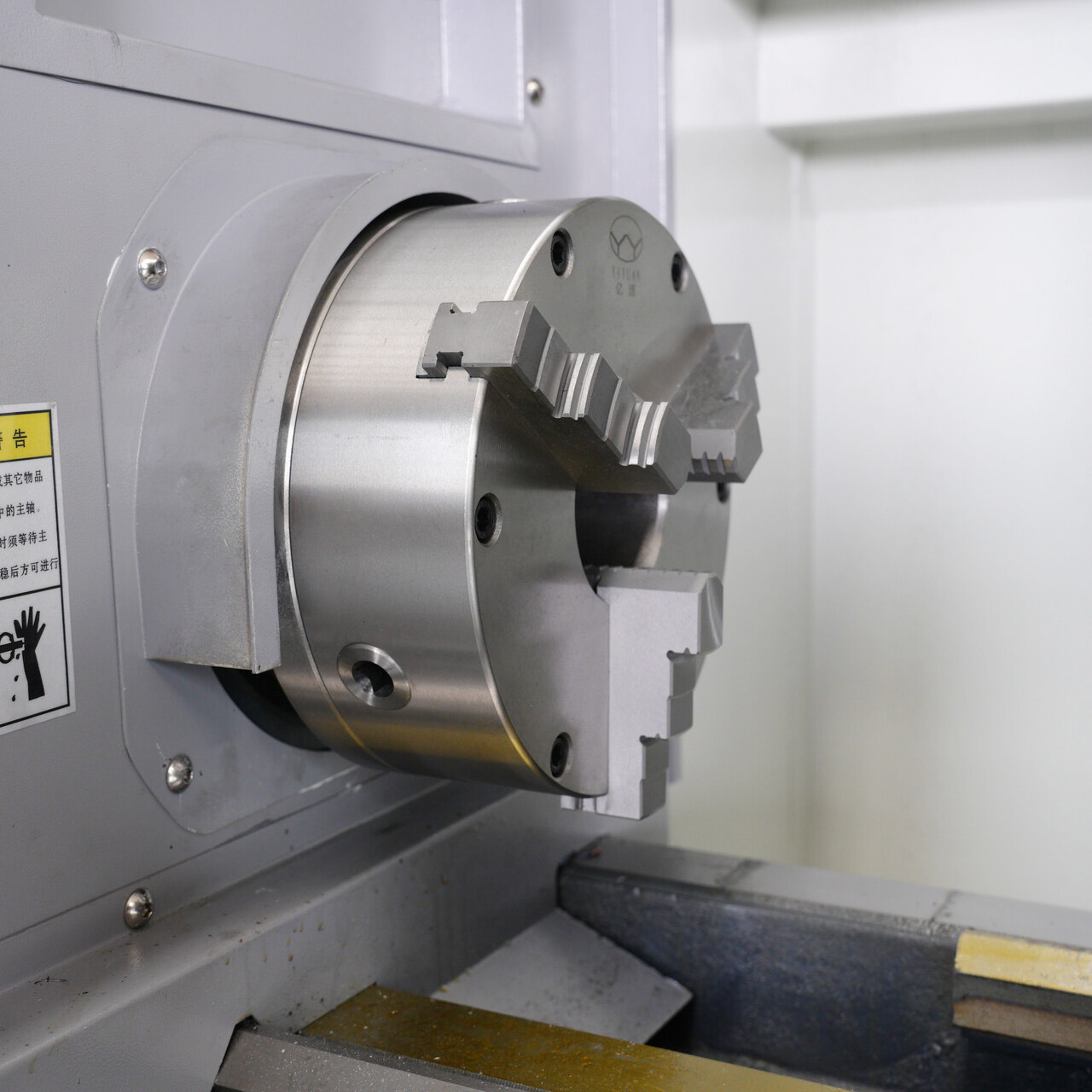

三爪卡盘

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_182257_6273.jpg

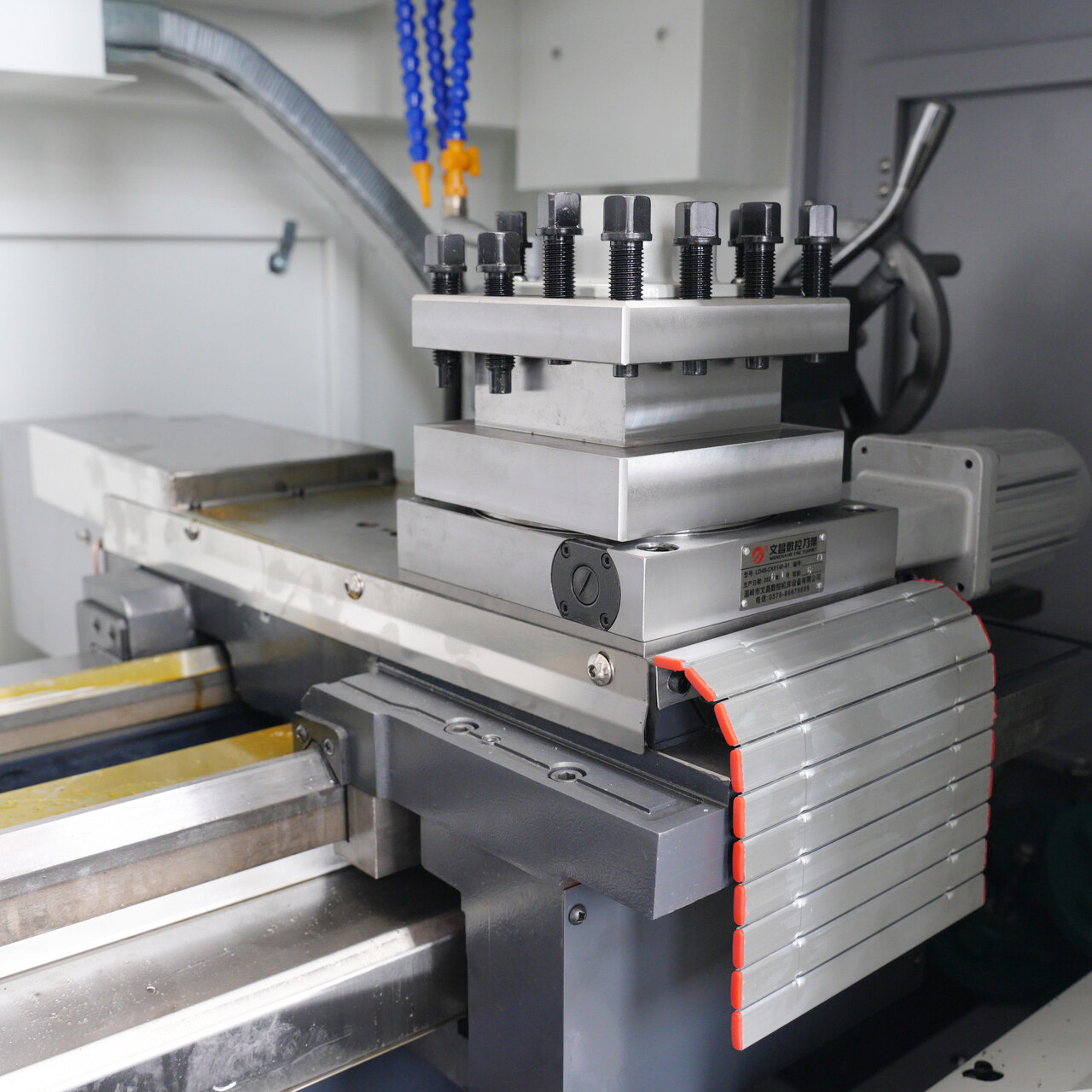

四工位电动刀架

https://www.fulucncfactory.com/DM-static/upload/image/effimg/20260611_182316_8233.jpg

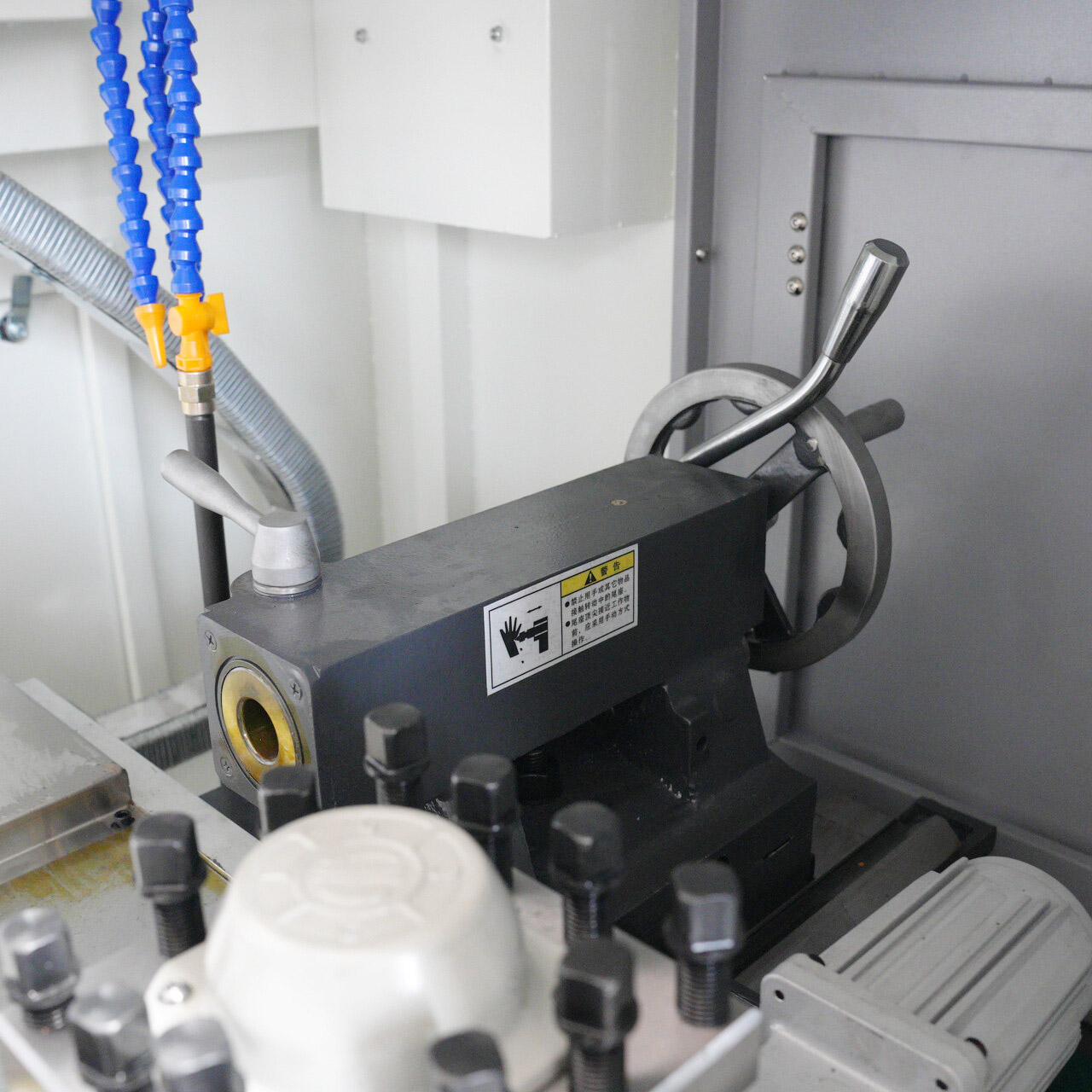

手动尾座

Optional Configuration

Control system options

You can choose the control system you need according to your production requirements.



Knife holder optional

You can choose the tool holder you need according to your production requirements.

Tailstock optional

You can choose the tailstock you need according to your production requirements.

Chuck optional

You can choose the chuck you need according to your production requirements.





Machinable Parts

CNC lathes are mainly used for processing metal parts, capable of machining some shaft-type and disc-type parts.

Disc-type Parts
Disc-type Parts
Shaft and Disc Composite Parts
Shaft and Disc Composite Parts
Disc Sleeve Parts
Disc Sleeve Parts
Threaded Shaft Parts
Threaded Shaft Parts
Shaft Parts
Shaft Parts
