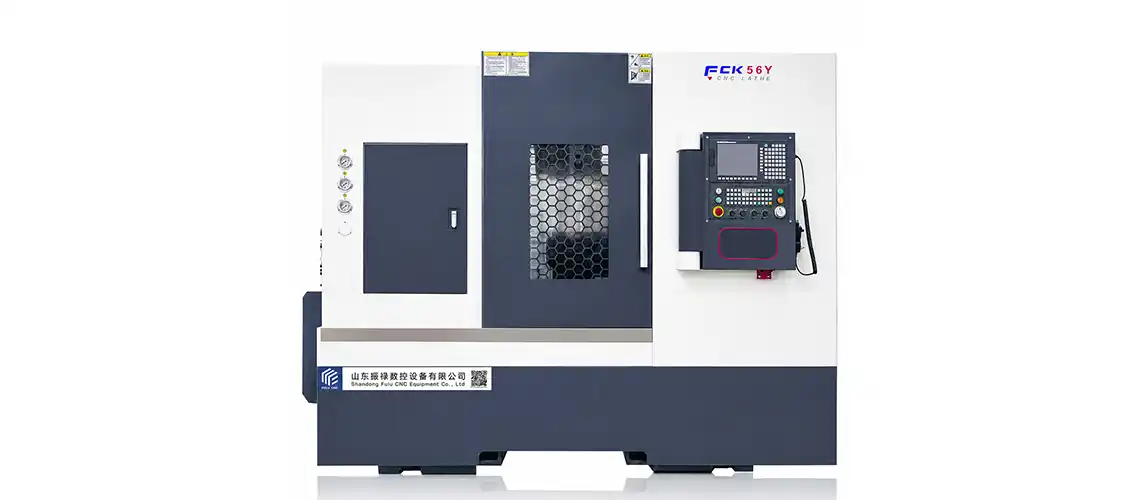

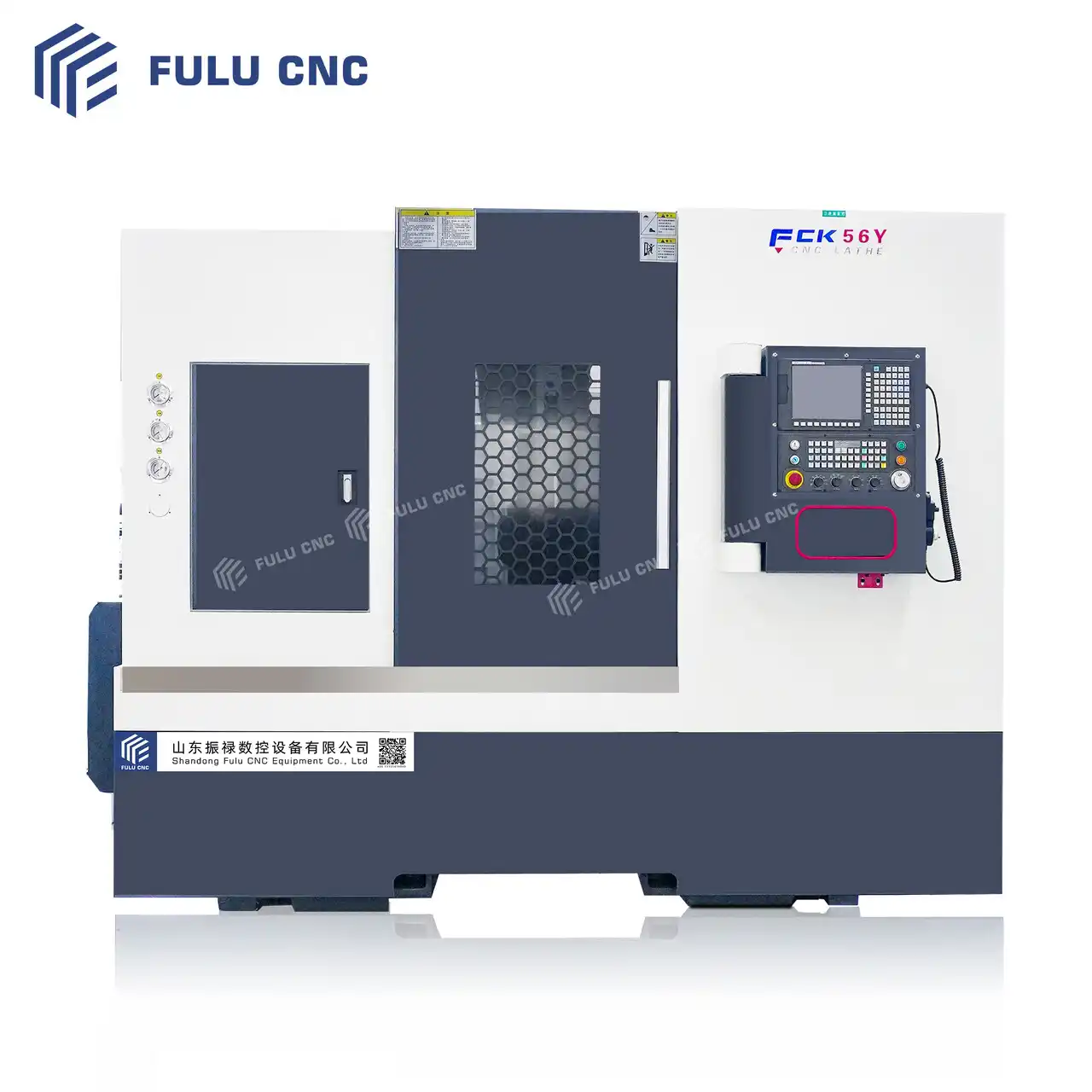

CNC Lathe
Basic Parameters
Standard Configuration Select Configuration
Technical Parameters
Project:FCK56
Unit
Specification
Maximum spindle diameter on the bed
mm
Φ560
Maximum cutting diameter
mm
Φ500
Processing diameter under the turret
mm
Φ360
Maximum cutting length
mm
600
X-axis travel
mm
300
Z-axis travel
mm
700
X-axis rapid movement speed
mm/min
20000
Z-axis rapid movement speed
mm/min
20000
Minimum setting unit of handwheel
mm
0.001 / 0.01 / 0.1
X, Z-axis feed speed
mm/min
0～5000
X, Z-axis manual feed speed
mm/min
0～1260
X-axis repeat positioning accuracy
mm
0.005
X-axis positioning accuracy
mm
0.006
Z-axis repeat positioning accuracy
mm
0.006
Z-axis positioning accuracy
mm
0.008
Spindle speed range
rpm
35～3000
Maximum spindle torque
N·m
72
Spindle nose
-
A2-8
Spindle through hole diameter
mm
Φ80
Hollow hydraulic chuck through hole diameter
mm
Φ66
Chuck specification
-
12″ (optional 15″)
Number of turrets
-
12-station hydraulic turret
Tool mounting size
mm
25 × 25
Boring tool holder mounting diameter
mm
Φ40
Tailstock travel
mm
600
Center taper
-
MT-5#
Main motor power
kW
11
Main motor torque
N·m
72
X-axis servo motor power
kW
2.2
Z-axis servo motor power
kW
2.2
Dimensions (Length × Width × Height)
mm
3200 × 2200 × 2100
Machine weight
kg
4500
Standard Configuration The 12-Station Hydraulic Turret provides 12 tool positions, allowing multiple cutting tools to be installed for flexible and efficient CNC turning operations. Its high-rigidity structure and reliable hydraulic clamping system ensure fast tool changes, accurate positioning, and excellent stability during machining. The turret supports a variety of operations, including external turning, internal boring, facing, grooving, threading, and drilling. With its large tool capacity and dependable performance, it reduces tool change time and improves overall machining efficiency, making it an ideal configuration for CNC lathes and slant bed CNC lathes used in precision machining and batch production. The three-jaw self-centering chuck is one of the most commonly used clamping devices on CNC lathes, featuring fast clamping speed, high positioning accuracy, and easy operation. The three jaws can automatically center synchronously, enabling quick clamping of round, hexagonal, and other workpieces, reducing clamping time and improving processing efficiency. Its clamping force is stable and uniform, effectively ensuring the stability of the workpiece during high-speed rotation and heavy cutting, enhancing machining accuracy and surface quality. With a sturdy and durable structure and simple maintenance, it is suitable for processing various parts such as shafts, discs, and sleeves. Widely used in machinery manufacturing, automotive parts, mold processing, and hardware industries, it is an ideal clamping solution that balances efficiency, precision, and reliability. The hydraulic tailstock uses a hydraulic drive method, enabling quick clamping, releasing, and position adjustment. Compared to manual tailstock operation, it saves time and effort, significantly improving processing efficiency. The hydraulic system provides stable and uniform clamping force, effectively supporting long shaft workpieces, reducing errors caused by vibration or deformation during processing, and enhancing machining accuracy and surface quality. It is simple to operate and accurately positions, and can be integrated with CNC systems for automated processing, reducing manual intervention. It is especially suitable for batch production and continuous processing. The hydraulic tailstock is widely used in the machining of shafts, pipes, and heavy parts. The GSK control system is known for its stability, reliability, ease of operation, and cost-effectiveness, and is widely used in CNC lathes, vertical machining centers, and other CNC equipment. The system features high-speed computing capabilities and precise interpolation control, enabling high-precision and high-efficiency machining, ensuring consistent workpiece dimensions and surface quality. The Chinese operation interface is intuitive and easy to learn, with convenient programming, helping operators quickly get started and reducing training costs. Additionally, the GSK control system offers strong compatibility, stable operation, low failure rates, ample spare parts supply, and comprehensive after-sales service, effectively reducing equipment maintenance costs.

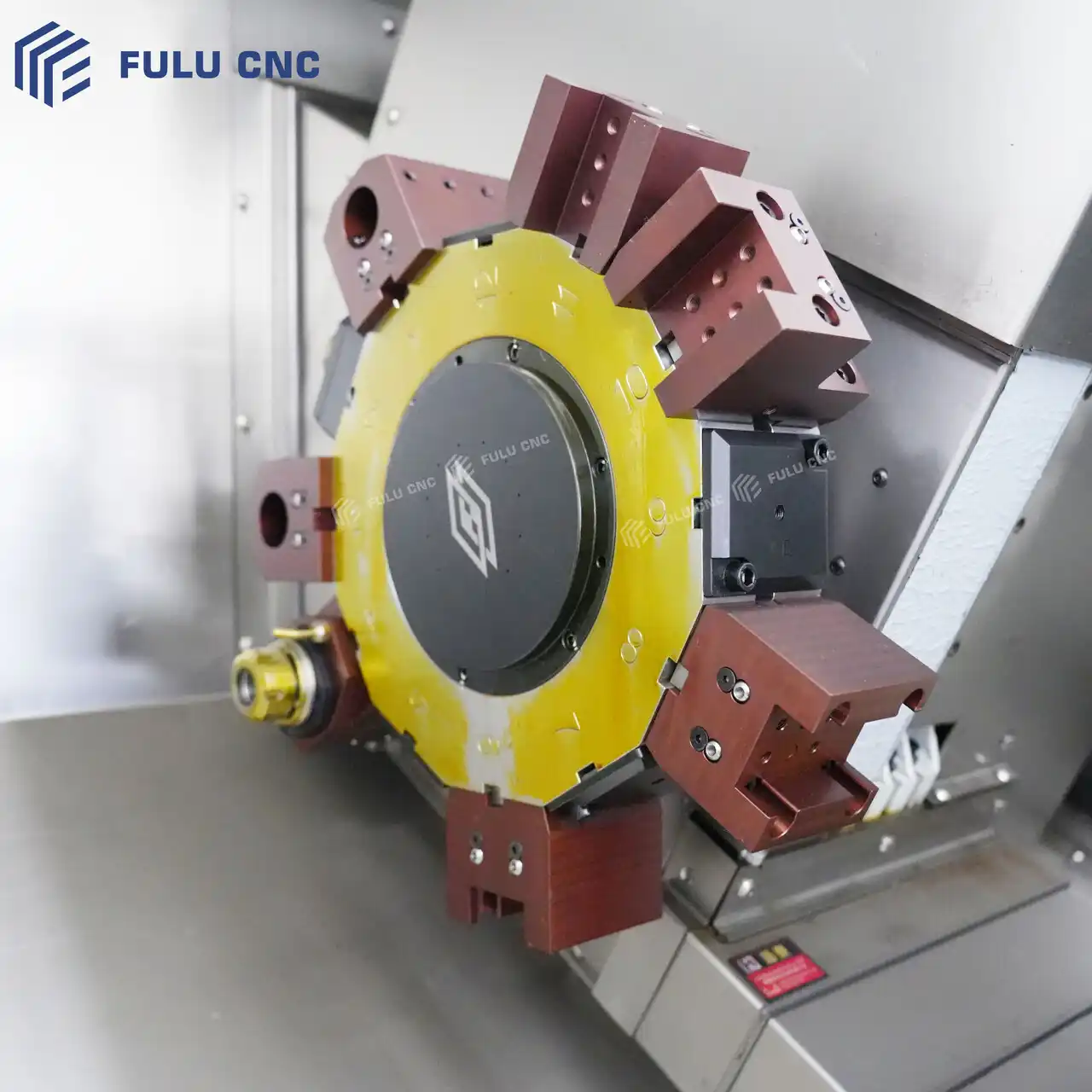

12-Station Hydraulic Turret

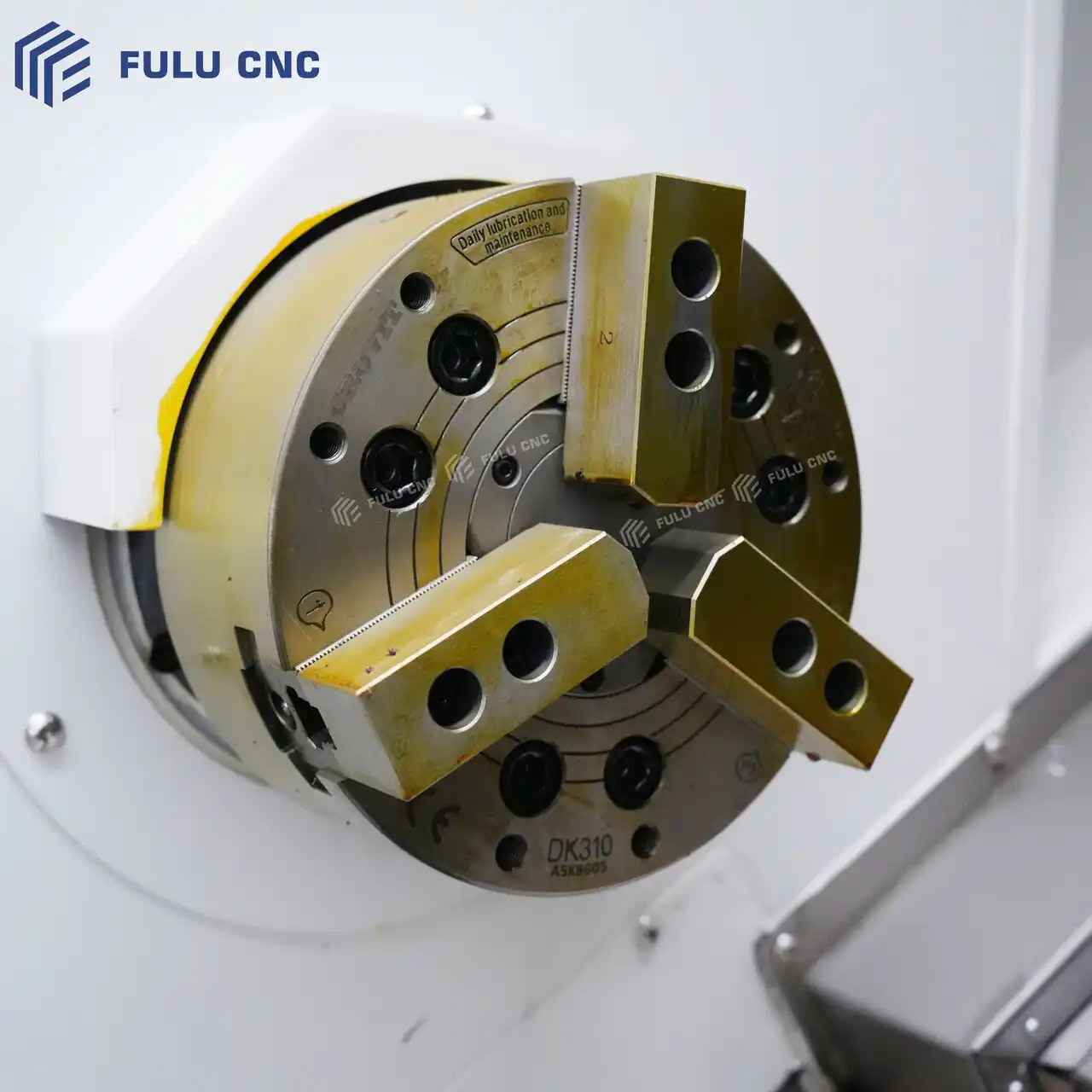

Three-Jaw Chuck
Hydraulic Tailstock

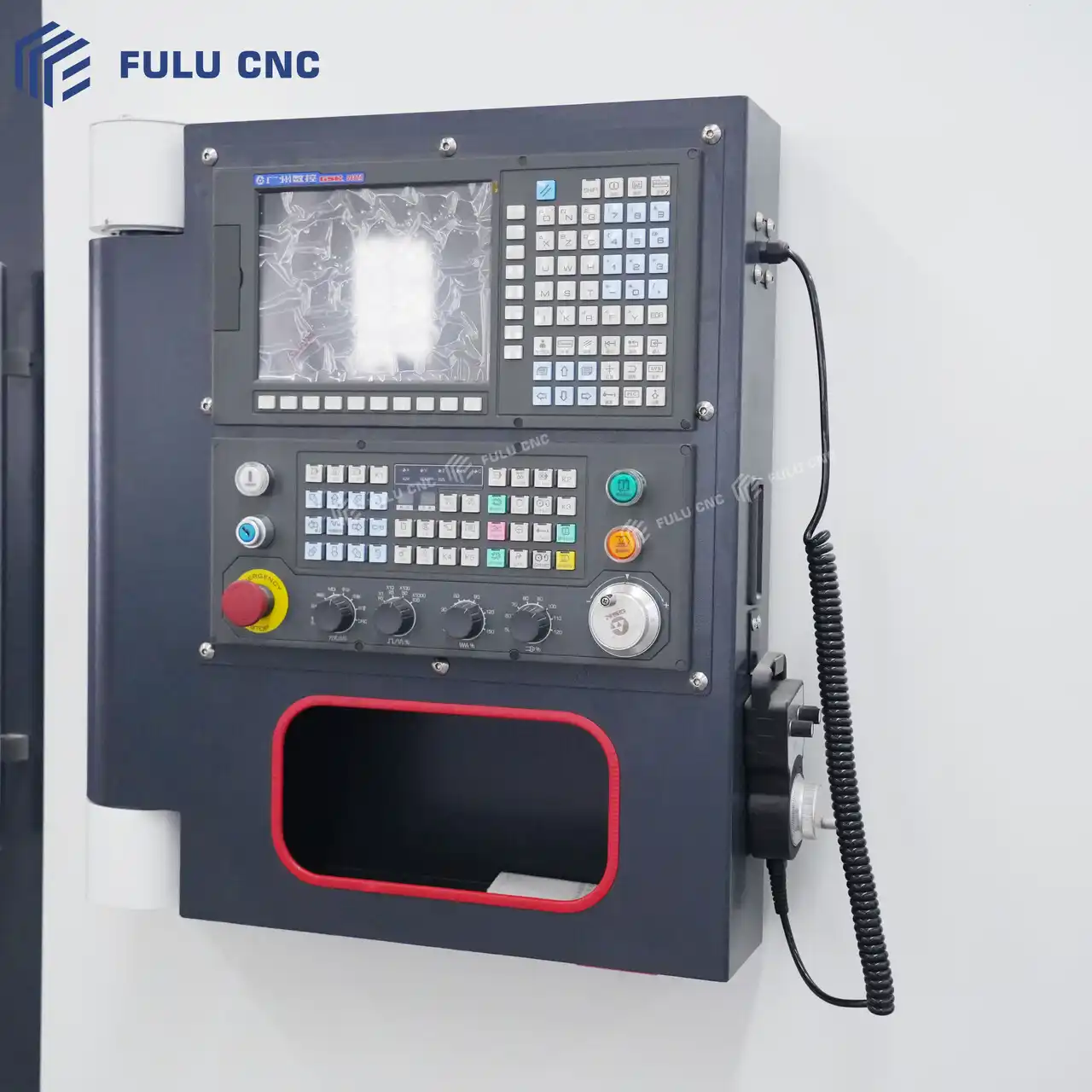

GSK Control System
You can choose the control system you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
Parts
Machinable Parts
Ideal for machining pins, connectors, small shafts, and other components directly from bar stock. When equipped with a Servo Bar Feeder, the CNC lathe can support continuous automatic feeding, making it especially suitable for efficient batch production.
Suitable for machining various disc-shaped components, including round discs, end covers, and wheel-type parts. The CNC lathe can efficiently perform facing, external turning, internal boring, grooving, and other precision operations.
Sleeve parts such as bushings, bearing sleeves, and connecting sleeves can be efficiently machined with a slant bed CNC lathe. Stable cutting performance helps maintain accurate internal and external diameters and consistent surface quality.
The machine is suitable for producing various internal and external threaded components, including threaded shafts, threaded sleeves, and pipe fittings. Precise CNC control ensures consistent thread pitch, profile, and machining accuracy.
Slant bed CNC lathes can efficiently machine flanges and other circular connection components. Operations such as facing, OD turning, internal boring, grooving, and chamfering can be completed with high precision and excellent repeatability.
Slant bed CNC lathes are ideal for machining precision shaft components such as stepped shafts, motor shafts, transmission shafts, and small drive shafts. They provide stable turning accuracy for external diameters, grooves, threads, and other features.
FULU CNC operates a modern manufacturing facility equipped with advanced production equipment, professional assembly lines, and strict quality control systems. Each CNC machine undergoes precision machining, careful assembly, accuracy checks, and comprehensive performance testing before delivery. Our commitment to quality, reliability, and continuous innovation enables us to provide high-performance CNC machine solutions to meet the diverse needs of customers worldwide.
Factory Strength
Slant Bed CNC Lathe Workshop
Professional production and strict quality inspection ensure high precision, stable performance, and reliable machine quality.
Slant Bed CNC Lathe Body
The rigid slant bed structure ensures excellent stability, high machining accuracy, and reliable performance.
Slant Bed CNC Lathe
Aiming to achieve high precision and high efficiency in turning, with excellent rigidity and smooth chip removal.
