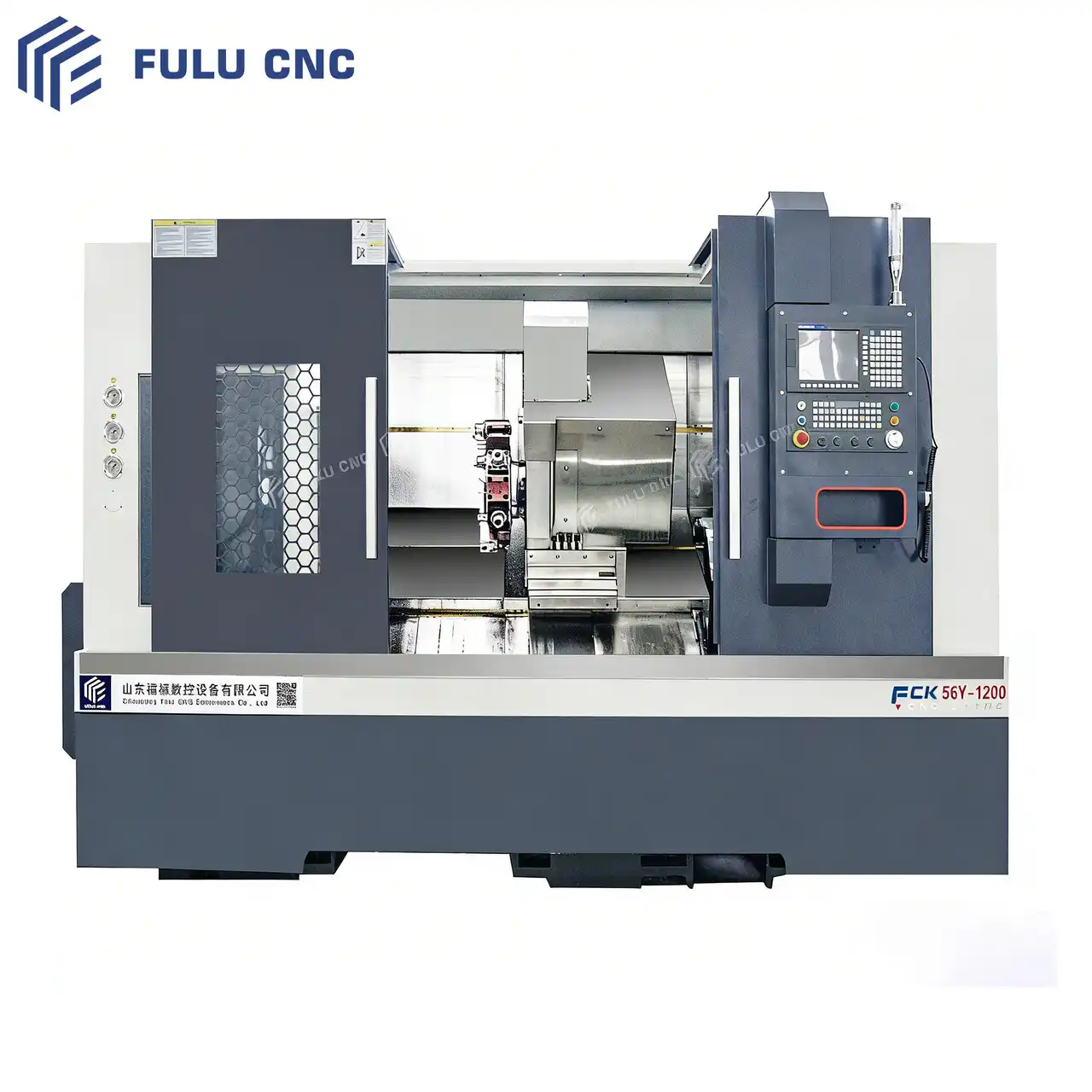

CNC Lathe
Basic Parameters
Standard Configuration Select Configuration
Technical Parameters
Item: FCK56
Specifications
Maximum spindle diameter on bed (mm)
Φ650
Maximum cutting diameter (mm)
Φ540
Maximum cutting length (mm)
990
X-axis travel (mm)
280
Z-axis travel (mm)
1100
X-axis moving speed (mm/min)
24000
Z-axis moving speed (mm/min)
24000
Handwheel (mm)
0.001/0.01/0.1
X, Z feed speed (mm/min)
0~5000
X, Z manual feed speed (mm/min)
0~1260
X-axis repeat positioning accuracy (mm)
0.005
X-axis positioning accuracy (mm)
0.01
Z-axis repeat positioning accuracy (mm)
0.006
Z-axis positioning accuracy (mm)
0.015
Spindle speed (rpm)
10-3000 (8-inch hydraulic chuck up to 3500)
Maximum spindle torque (N.m)
72
Spindle nose
A2-6
Spindle through hole diameter (mm)
Φ66
Hollow hydraulic chuck through hole diameter (mm)
Φ52
Chuck
8” (optional 10”)
Number of tool holders
12 stations
Tool change time (s)
0.25
Tool mounting size (mm)
25×25
Boring tool holder mounting diameter (mm)
Φ32
Tailstock travel (mm)
480
Center taper
MT-5#
Main motor power (kw)
11(4500rpm)
Main motor torque (N.m)
72
X-axis feed motor power (kw)
2.3
X-axis feed motor torque (N.m)
15
Z-axis feed motor power (kw)
2.3
Z-axis feed motor torque (N.m)
15
Coolant capacity (L)
200
Motor type (1HP) (kw)
0.18
Installation (L*W*H) (mm)
3400/2060/2100
Machine weight (kg)
4200
Standard Configuration The 12-Station Hydraulic Turret provides 12 tool positions, allowing multiple cutting tools to be installed for flexible and efficient CNC turning operations. Its high-rigidity structure and reliable hydraulic clamping system ensure fast tool changes, accurate positioning, and excellent stability during machining. The turret supports a variety of operations, including external turning, internal boring, facing, grooving, threading, and drilling. With its large tool capacity and dependable performance, it reduces tool change time and improves overall machining efficiency, making it an ideal configuration for CNC lathes and slant bed CNC lathes used in precision machining and batch production. The three-jaw self-centering chuck is one of the most commonly used clamping devices on CNC lathes, featuring fast clamping speed, high positioning accuracy, and easy operation. The three jaws can automatically center synchronously, enabling quick clamping of round, hexagonal, and other workpieces, reducing clamping time and improving processing efficiency. Its clamping force is stable and uniform, effectively ensuring the stability of the workpiece during high-speed rotation and heavy cutting, enhancing machining accuracy and surface quality. With a sturdy and durable structure and simple maintenance, it is suitable for processing various parts such as shafts, discs, and sleeves. Widely used in machinery manufacturing, automotive parts, mold processing, and hardware industries, it is an ideal clamping solution that balances efficiency, precision, and reliability. The hydraulic tailstock uses a hydraulic drive method, enabling quick clamping, releasing, and position adjustment. Compared to manual tailstock operation, it saves time and effort, significantly improving processing efficiency. The hydraulic system provides stable and uniform clamping force, effectively supporting long shaft workpieces, reducing errors caused by vibration or deformation during processing, and enhancing machining accuracy and surface quality. It is simple to operate and accurately positions, and can be integrated with CNC systems for automated processing, reducing manual intervention. It is especially suitable for batch production and continuous processing. The hydraulic tailstock is widely used in the machining of shafts, pipes, and heavy parts. The GSK control system is known for its stability, reliability, ease of operation, and cost-effectiveness, and is widely used in CNC lathes, vertical machining centers, and other CNC equipment. The system features high-speed computing capabilities and precise interpolation control, enabling high-precision and high-efficiency machining, ensuring consistent workpiece dimensions and surface quality. The Chinese operation interface is intuitive and easy to learn, with convenient programming, helping operators quickly get started and reducing training costs. Additionally, the GSK control system offers strong compatibility, stable operation, low failure rates, ample spare parts supply, and comprehensive after-sales service, effectively reducing equipment maintenance costs.
12-Station Hydraulic Turret

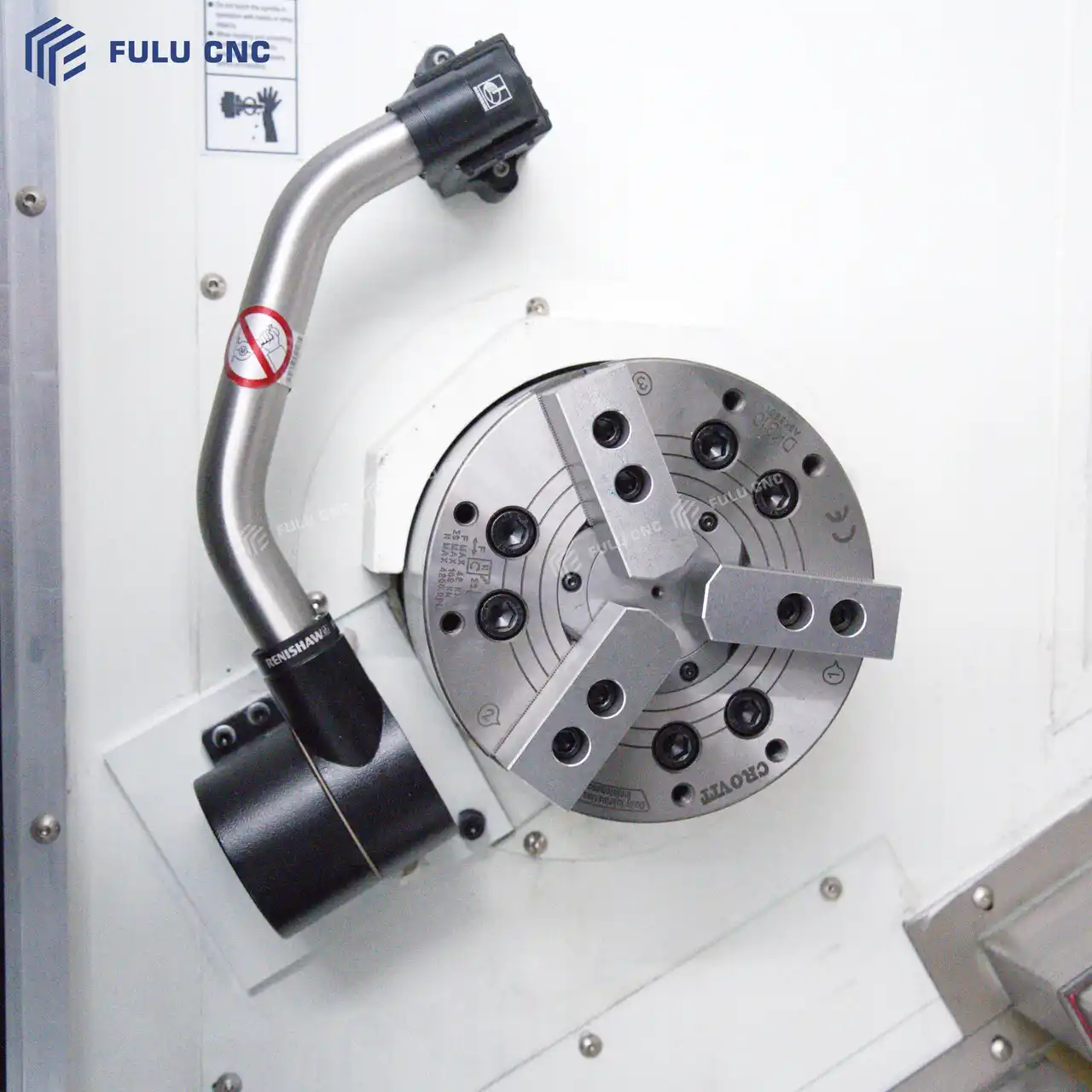

Three-Jaw Chuck

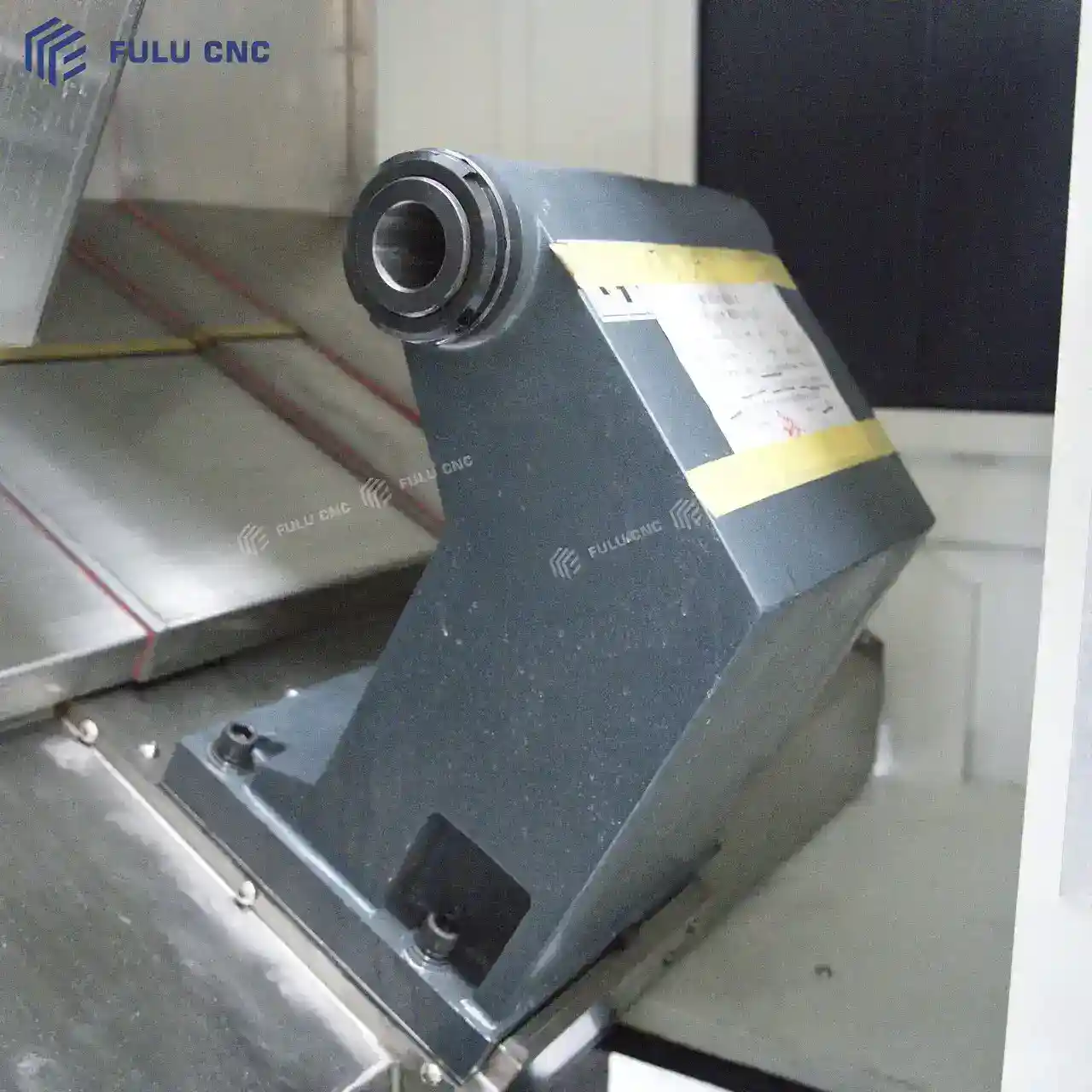

Hydraulic Tailstock

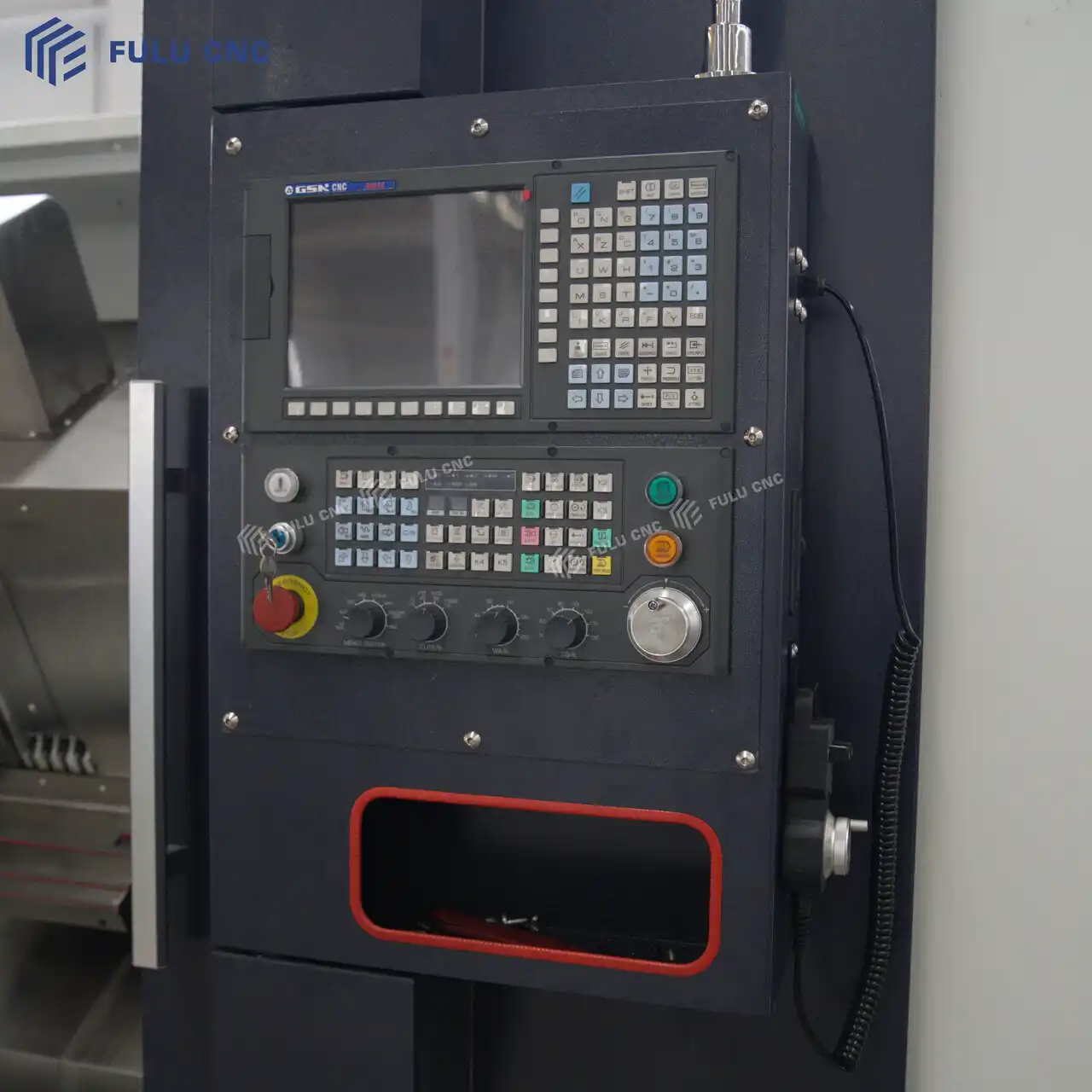

GSK Control System
You can choose the control system you need according to your production requirements.
You can choose the chuck you need according to your production requirements.
You can choose the tool holder you need according to your production requirements.
Parts
Machinable Parts
Ideal for machining pins, connectors, small shafts, and other components directly from bar stock. When equipped with a Servo Bar Feeder, the CNC lathe can support continuous automatic feeding, making it especially suitable for efficient batch production.
Suitable for machining various disc-shaped components, including round discs, end covers, and wheel-type parts. The CNC lathe can efficiently perform facing, external turning, internal boring, grooving, and other precision operations.
Sleeve parts such as bushings, bearing sleeves, and connecting sleeves can be efficiently machined with a slant bed CNC lathe. Stable cutting performance helps maintain accurate internal and external diameters and consistent surface quality.
The machine is suitable for producing various internal and external threaded components, including threaded shafts, threaded sleeves, and pipe fittings. Precise CNC control ensures consistent thread pitch, profile, and machining accuracy.
Slant bed CNC lathes can efficiently machine flanges and other circular connection components. Operations such as facing, OD turning, internal boring, grooving, and chamfering can be completed with high precision and excellent repeatability.
Slant bed CNC lathes are ideal for machining precision shaft components such as stepped shafts, motor shafts, transmission shafts, and small drive shafts. They provide stable turning accuracy for external diameters, grooves, threads, and other features.
