CNC Lathe
Basic Parameters
Standard Configuration Select Configuration

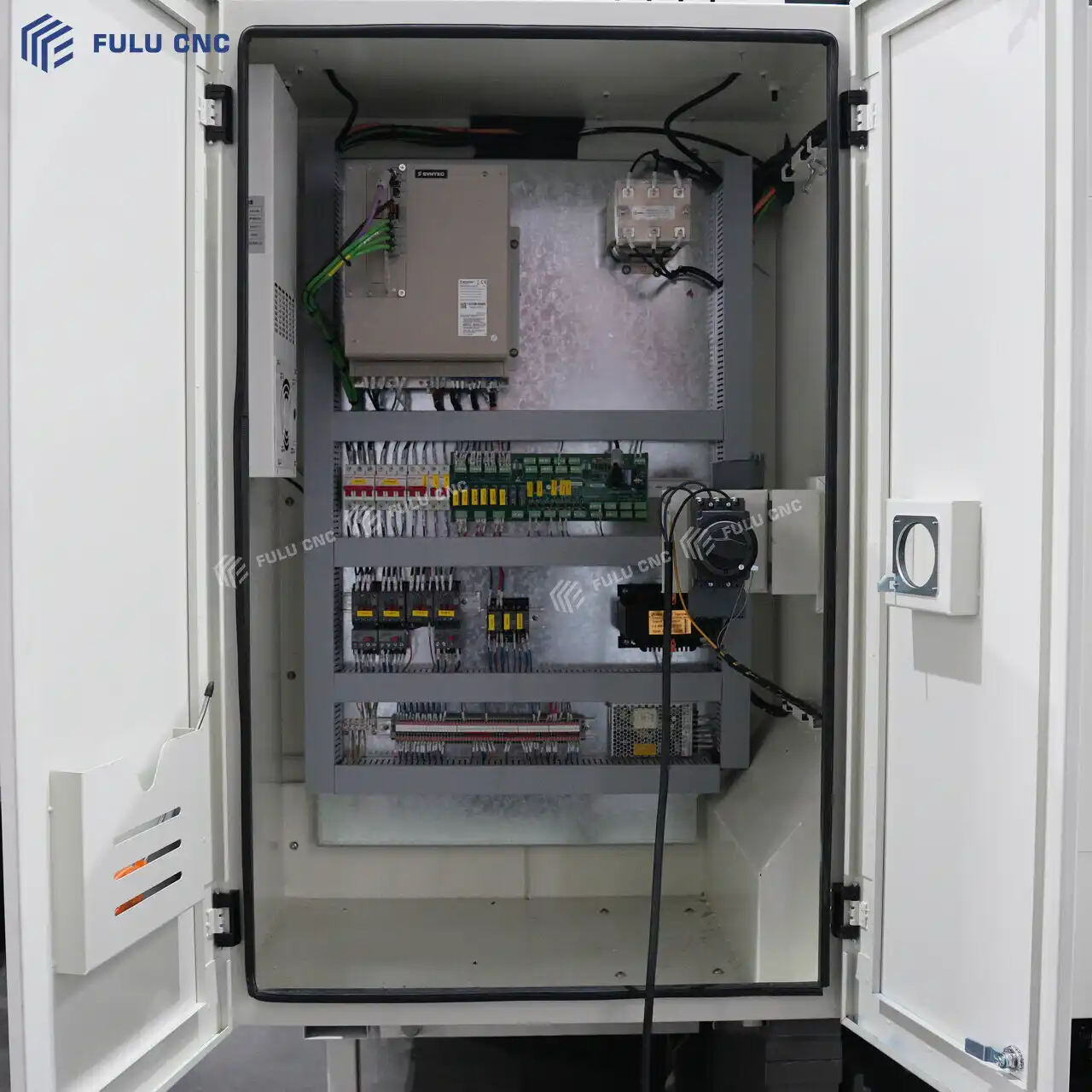

◎GSK 980TB3i English System ◎Horizontal Adjustment Bolt and Pad ◎Electrical Box Heat Exchanger ◎Internal Work Light
Technical Parameters

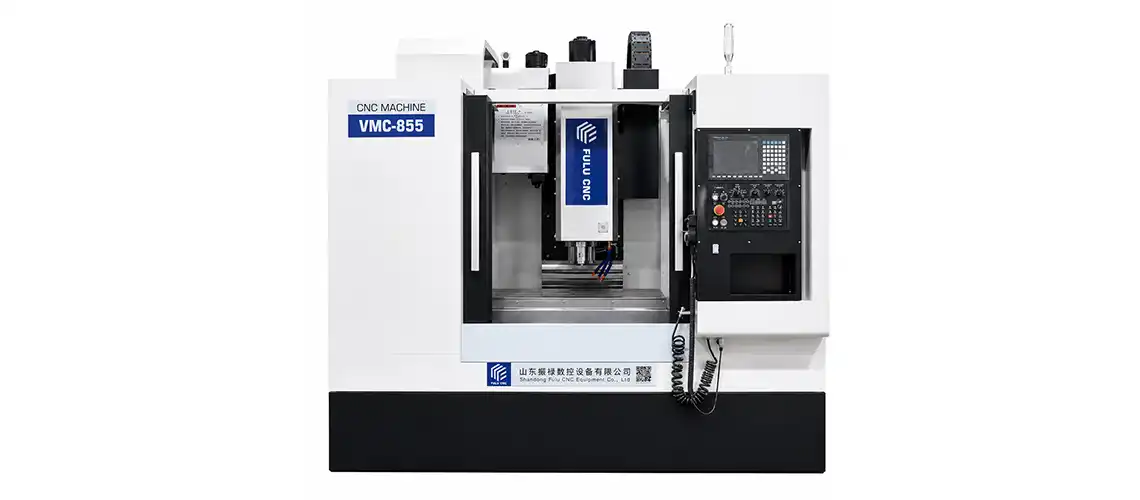

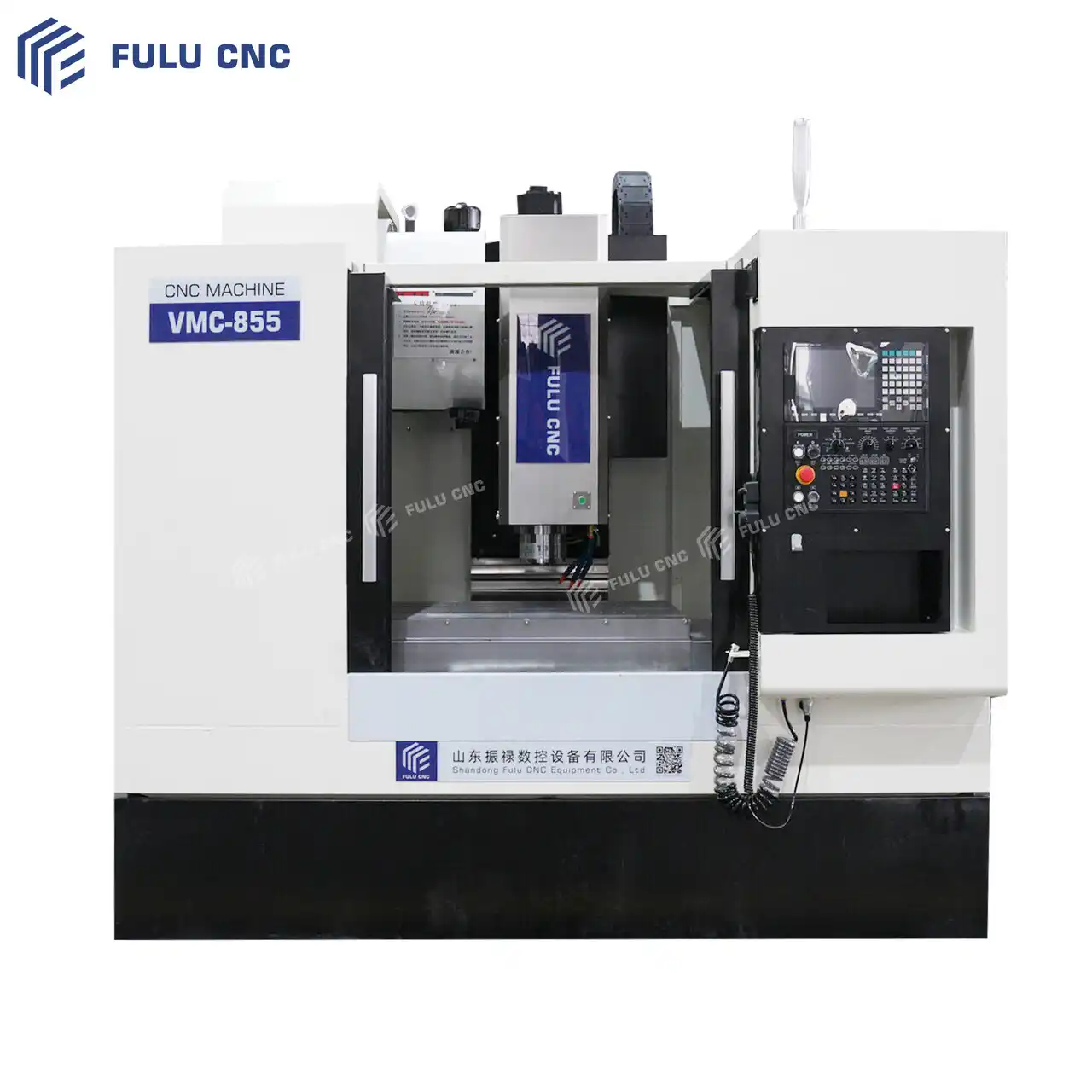

Machine Model: VMC855
Unit
Specification
Table Size
mm
1000x550
X/Y/Z Axis Travel
mm
800/550/550
Distance from Spindle End Face to Table
mm
120-670
Distance from Spindle Center to Column
mm
590
Maximum Load on Table
Kg
600
Table T-Slot
mm
5-18x90
X/Y/Z Axis Rapid Feed
m/min
36/36/32
X/Y/Z Guide Rail Width Specification
mm
RGH35/45/45 Roller Linear Guide
X/Y/Z Lead Screw Specification
mm
φ4016
Positioning Accuracy
mm
±0.008
Repeat Positioning Accuracy
mm
±0.006 /300
Minimum Positioning Unit
mm
±0.001
Fourth Axis Accuracy
mm
≤0.01
Maximum Spindle Speed
rpm
8000 (Spindle Through Coolant)
Spindle Taper
mm
BT40-150
Disc Type Tool Magazine
pcs
24T
Controller System
/
GSK25i
X/Y/Z Axis Motor Power
Nm
15/15/22
Spindle Motor Power
Kw
11
Machine Weight Approximately
Kg
5000
Dimensions
mm
2600x2400x2650
◎Cutting Cooling System

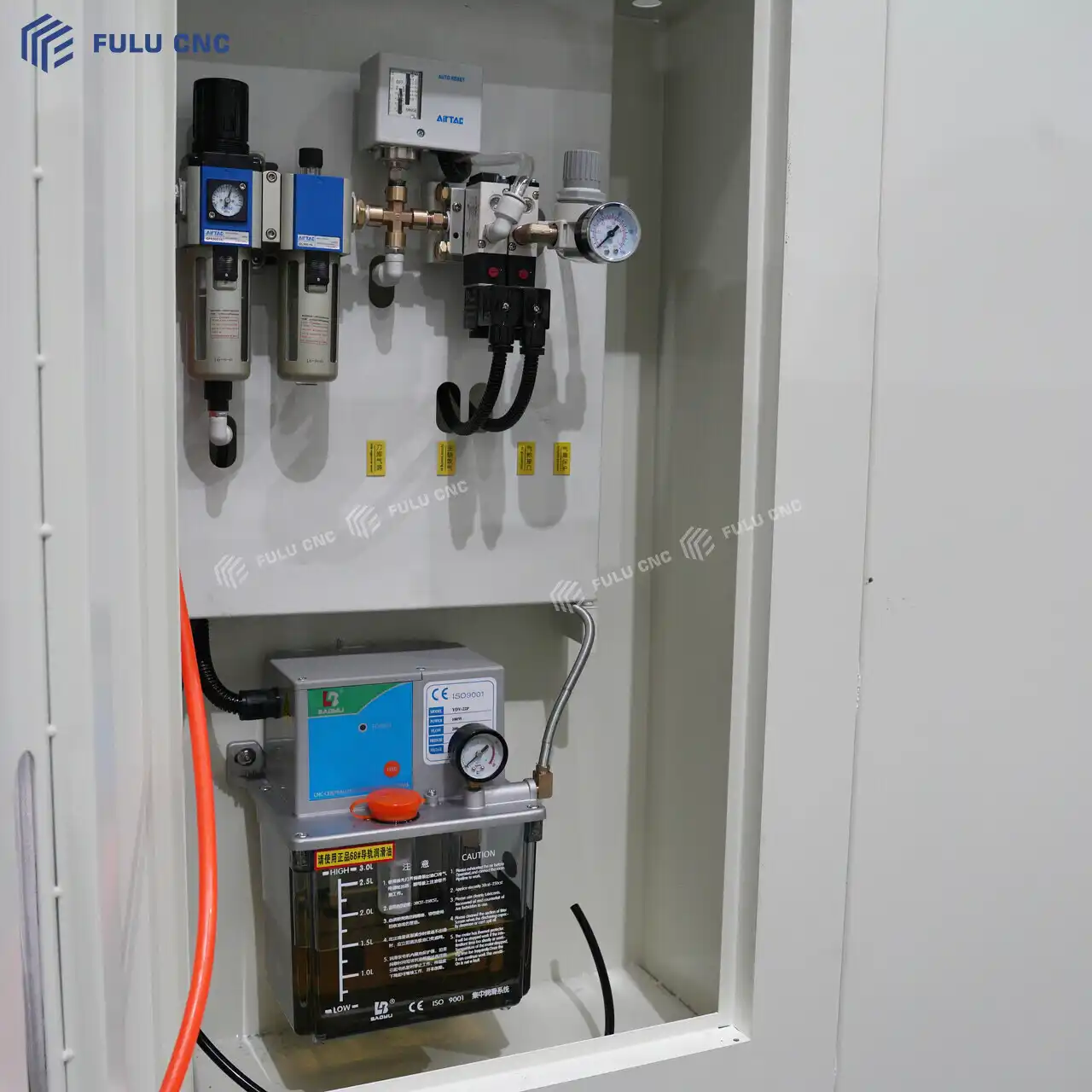

◎Automatic Lubrication System
◎Cutting Blowing Device
◎Spindle and Servo Overload System Protection
◎Three-color Alarm Light
◎Three-axis Screw Pre-tensioning Device
◎Program Storage
◎Spindle Ring Water Spray
◎Reserved for Adding Four-axis Interface
Standard Configuration The GSK control system is known for its stability, reliability, ease of operation, and cost-effectiveness, and is widely used in CNC lathes, vertical machining centers, and other CNC equipment. The system features high-speed computing capabilities and precise interpolation control, enabling high-precision and high-efficiency machining, ensuring consistent workpiece dimensions and surface quality. The Chinese operation interface is intuitive and easy to learn, with convenient programming, helping operators quickly get started and reducing training costs. Additionally, the GSK control system offers strong compatibility, stable operation, low failure rates, ample spare parts supply, and comprehensive after-sales service, effectively reducing equipment maintenance costs. The 24-tool disc magazine features large capacity, fast tool change speed, and stable operation, meeting the needs of complex parts with multi-process continuous machining. Equipped with an Automatic Tool Changer (ATC) system, it can quickly and accurately complete tool switching, effectively reducing auxiliary processing time and significantly improving production efficiency. The tool magazine can store various specifications of tools, supporting multiple machining processes such as drilling, milling, tapping, and boring in one setup, reducing repeated clamping, and improving machining accuracy and product consistency. With a compact structure, reliable operation, and easy maintenance, it effectively reduces manual labor intensity and is widely used in mold manufacturing, automotive parts, aerospace, mechanical processing, and precision parts production. It is an important configuration for enhancing the automation level and machining efficiency of vertical machining centers. The external cooling system precisely sprays coolant onto the cutting area between the tool and the workpiece through nozzles, effectively reducing cutting temperature, minimizing tool wear, extending tool life, and improving machining stability. Continuous cooling and lubrication can effectively enhance the surface quality of the workpiece, reduce thermal deformation, and ensure machining accuracy. At the same time, the coolant can promptly wash away chips, preventing chip accumulation from affecting the machining process and improving machining efficiency. The external cooling system features a simple structure, easy maintenance, and cost-effectiveness, making it suitable for various machining processes such as turning, milling, drilling, and tapping. It is widely used in vertical machining centers and various metal cutting equipment, serving as a practical configuration to improve machining quality and production efficiency. The high-precision spindle is one of the core components of CNC machine tools, featuring high rotational speed, strong rigidity, stable operation, and high machining accuracy. By using high-quality bearings and precision assembly processes, it effectively reduces vibration and noise, maintaining stable performance during high-speed and heavy cutting, ensuring workpiece dimensional accuracy and surface finish. The spindle has excellent load-bearing capacity and heat dissipation performance, allowing for long-term continuous stable operation, extending service life, and reducing maintenance costs. Additionally, various spindle speeds and taper specifications can be selected according to different machining requirements, making it widely applicable to turning, milling, drilling, tapping, and other machining processes, meeting the demands for high-efficiency and high-precision machining in industries such as mold manufacturing, automotive parts, aerospace, mechanical processing, and precision parts production.
GSK Control System

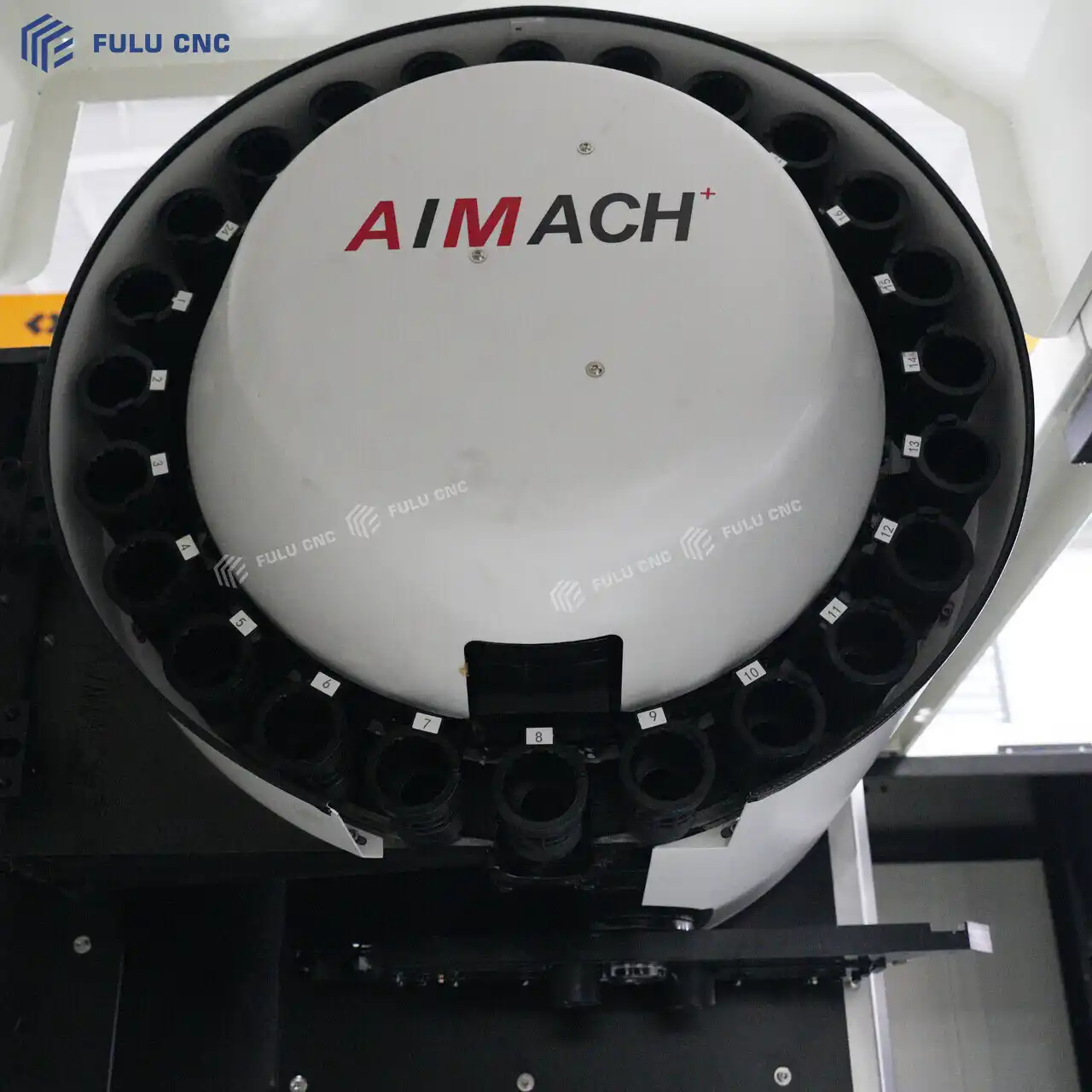

24-Position Circular Tool Magazine
Cooling System

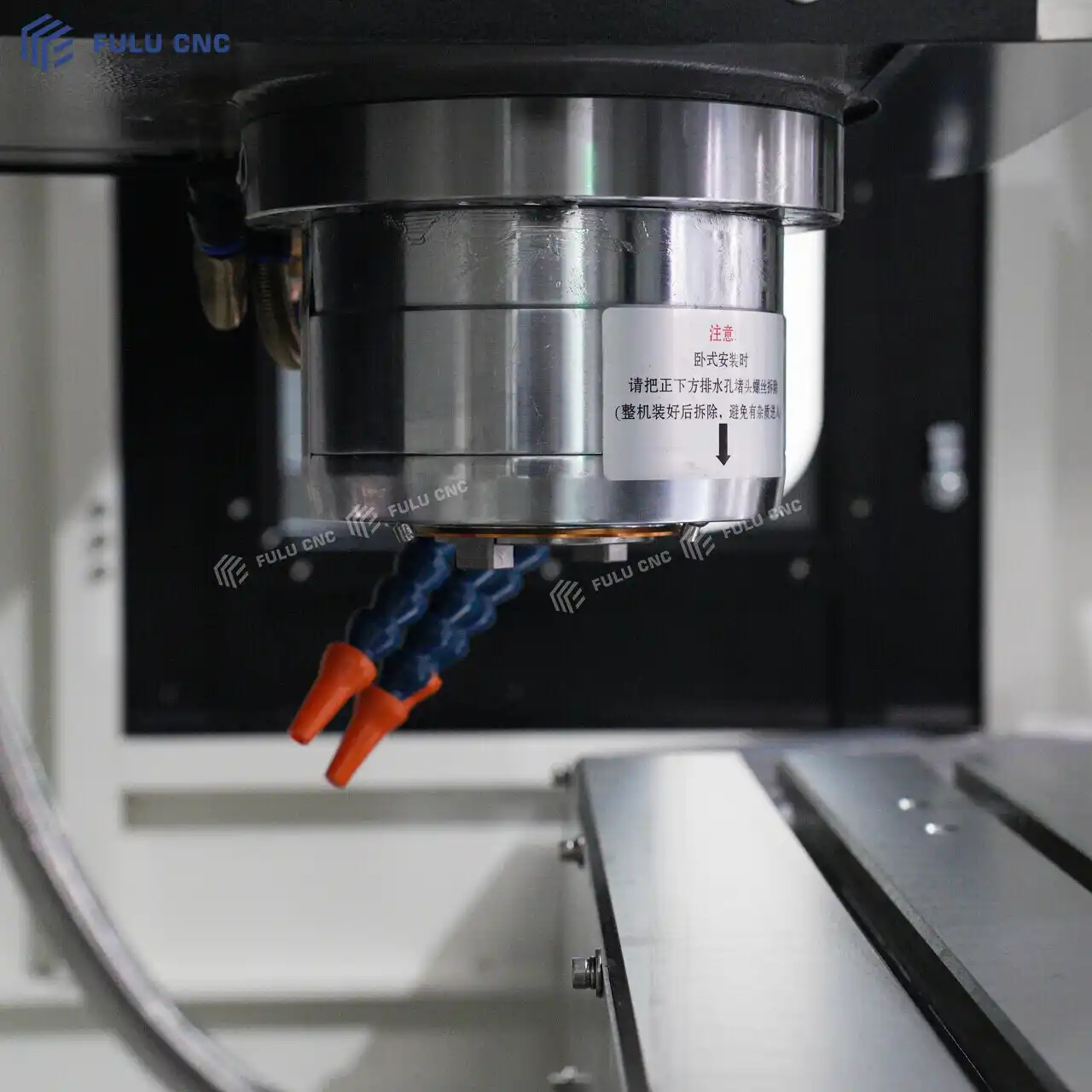

Spindle
You can choose the control system you need according to your production requirements.
You can choose the cooling method you need according to your production requirements.
You can choose the configuration you need according to your production requirements.
Parts
Machinable Parts
Vertical machining centers are ideal for machining injection molds, die-casting molds, mold cavities, and other precision mold components. High spindle speed and stable cutting performance help achieve accurate contours, smooth surfaces, and consistent machining quality.
Suitable for machining mounting plates, base plates, connecting plates, and other flat components. A CNC machining center can efficiently perform milling, drilling, tapping, boring, and other operations in a single setup, improving productivity and accuracy.
Machining centers are widely used for gearboxes, housings, machine casings, and other box-type components. Multiple surfaces, holes, grooves, and mounting features can be precisely machined, making them suitable for complex industrial components.
Mechanical brackets, mounting brackets, and structural components can be efficiently processed on a vertical machining center. Flexible CNC machining allows accurate milling of planes, holes, slots, steps, and complex profiles.
Suitable for machining curved molds, blades, complex contours, and other 3D surface components. When equipped with a 4th axis, 5th axis, or 5-axis CNC system, the machine can handle more complex angles and multi-sided machining requirements.
Vertical machining centers provide reliable solutions for fixtures, connectors, equipment components, and other high-precision mechanical parts. High positioning accuracy and repeatability help ensure consistent dimensions and stable quality in both prototype and batch production.
