CNC Lathe
Basic Parameters
Standard Configuration
Select Configuration
| Project (VMC650) | Unit | Specification |
| X-axis travel | mm | 650 |
| Y-axis travel | mm | 450 |
| Z-axis travel | mm | 460 |
| Distance from spindle nose to table | mm | 90~550 |
| Distance from spindle center to column surface | mm | 415 |
| Table area | mm | 900*400 |
| Maximum table load | kg | 500 |
| T-slot number size (width x number x pitch) | mm | 16*5*75 |
| Height of table from ground | mm | 780 |
| Spindle taper | - | BT40/φ120 |
| Ball screw accuracy | Level | P4 |
| Control system | - | GSK25i |
| X-axis motor | nm | 10 |
| Y-axis motor | nm | 10 |
| Z-axis motor | nm | 15 |
| Spindle motor | kw | 5.5/7.5 |
| Approximate total weight | kg | 2200 |
◎GSK 980TB3i English System
◎Cutting Cooling System
◎Automatic Lubrication System
◎Cutting Blowing Device
◎Spindle and Servo Overload System Protection
◎Three-color Alarm Light
◎Horizontal Adjustment Bolt and Pad
◎Electrical Box Heat Exchanger
◎Three-axis Screw Pre-tensioning Device
◎Program Storage
◎Spindle Ring Water Spray
◎Reserved for Adding Four-axis Interface
◎Internal Work Light
Standard Configuration The GSK control system is known for its stability, reliability, ease of operation, and cost-effectiveness, and is widely used in CNC lathes, vertical machining centers, and other CNC equipment. The system features high-speed computing capabilities and precise interpolation control, enabling high-precision and high-efficiency machining, ensuring consistent workpiece dimensions and surface quality. The Chinese operation interface is intuitive and easy to learn, with convenient programming, helping operators quickly get started and reducing training costs. Additionally, the GSK control system offers strong compatibility, stable operation, low failure rates, ample spare parts supply, and comprehensive after-sales service, effectively reducing equipment maintenance costs. The hat-type tool magazine is a compact and stable automatic tool-changing device widely used in vertical machining centers. The standard configuration can accommodate 16 tools, meeting various machining requirements such as milling, drilling, tapping, and boring, enabling automatic tool changes to enhance machining efficiency. With its simple structure, easy maintenance, and reliable operation, the hat-type tool magazine offers high cost performance, making it particularly suitable for small to medium batch production and multi-variety part processing. Featuring a precise tool-changing mechanism, it ensures smooth tool-changing actions and accurate positioning, effectively reducing non-cutting time and improving overall production efficiency. Additionally, this tool magazine occupies minimal space, is easy to install and maintain, and can be configured with BT40 tool holders and various specifications of tools. It is widely applied in industries such as mold manufacturing, automotive components, mechanical processing, electronics, and general metalworking, providing users with stable and efficient automated machining solutions. The high-precision spindle is one of the core components of CNC machine tools, featuring high rotational speed, strong rigidity, stable operation, and high machining accuracy. By using high-quality bearings and precision assembly processes, it effectively reduces vibration and noise, maintaining stable performance during high-speed and heavy cutting, ensuring workpiece dimensional accuracy and surface finish. The spindle has excellent load-bearing capacity and heat dissipation performance, allowing for long-term continuous stable operation, extending service life, and reducing maintenance costs. Additionally, various spindle speeds and taper specifications can be selected according to different machining requirements, making it widely applicable to turning, milling, drilling, tapping, and other machining processes, meeting the demands for high-efficiency and high-precision machining in industries such as mold manufacturing, automotive parts, aerospace, mechanical processing, and precision parts production. The external cooling system precisely sprays coolant onto the cutting area between the tool and the workpiece through nozzles, effectively reducing cutting temperature, minimizing tool wear, extending tool life, and improving machining stability. Continuous cooling and lubrication can effectively enhance the surface quality of the workpiece, reduce thermal deformation, and ensure machining accuracy. At the same time, the coolant can promptly wash away chips, preventing chip accumulation from affecting the machining process and improving machining efficiency. The external cooling system features a simple structure, easy maintenance, and cost-effectiveness, making it suitable for various machining processes such as turning, milling, drilling, and tapping. It is widely used in vertical machining centers and various metal cutting equipment, serving as a practical configuration to improve machining quality and production efficiency.

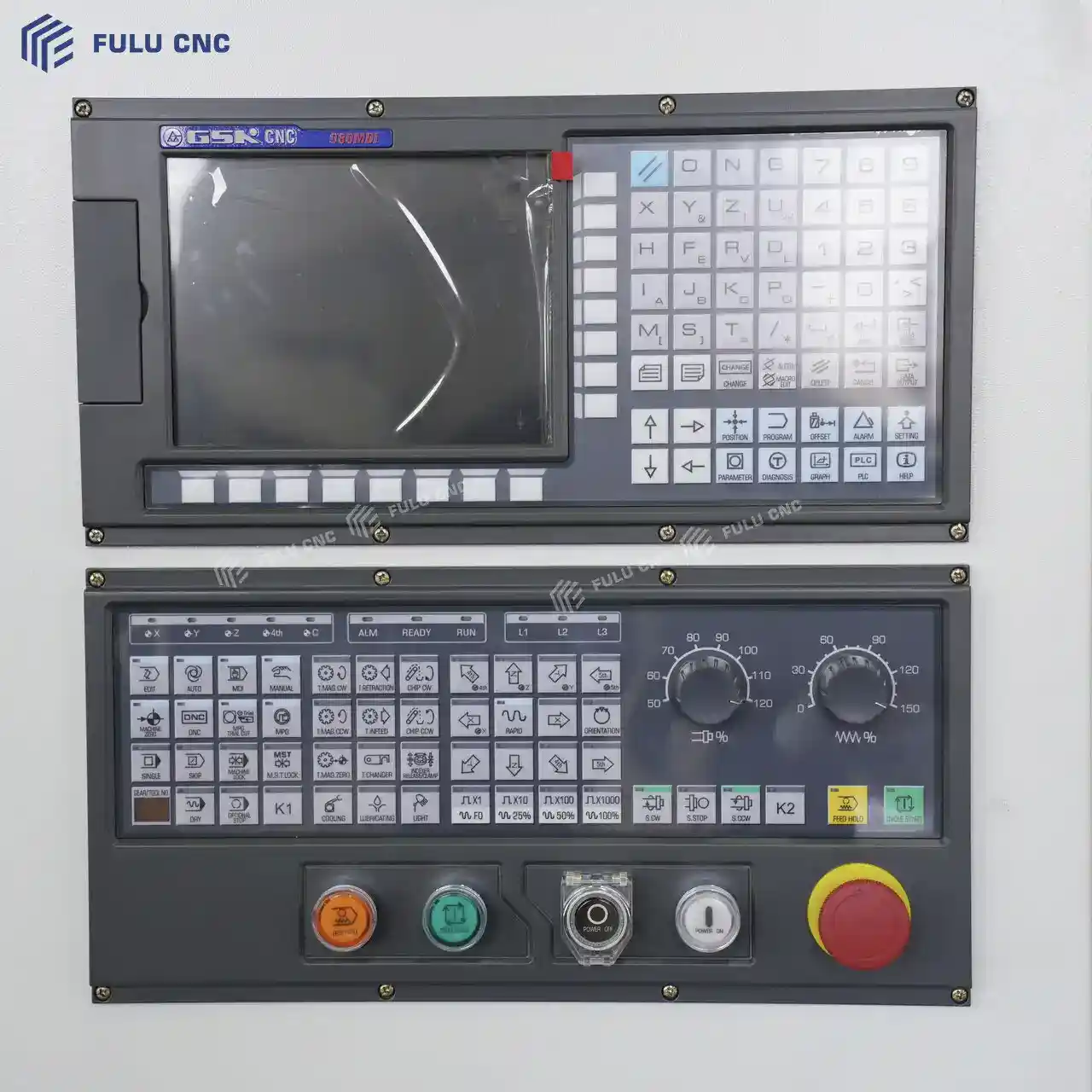

GSK Control System

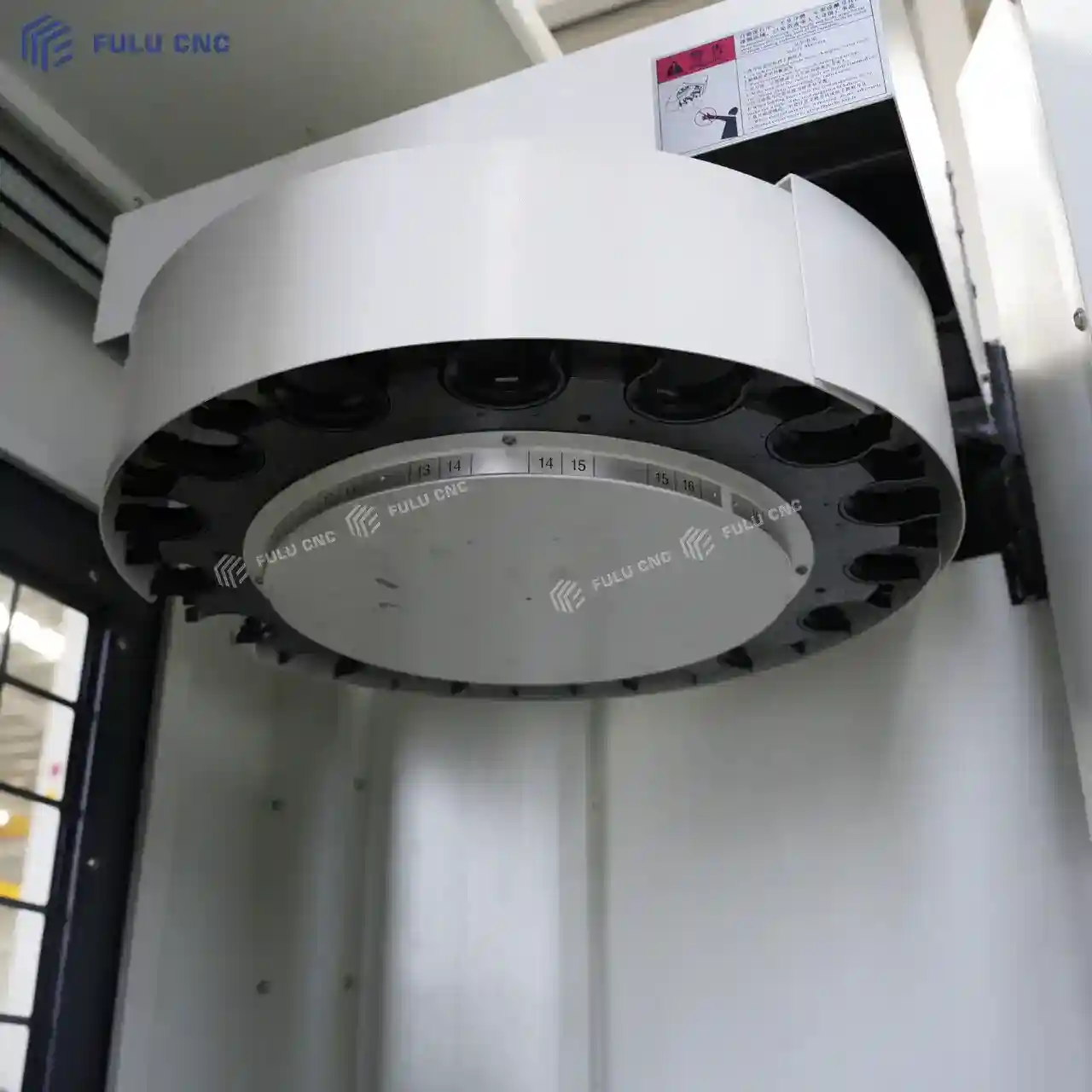

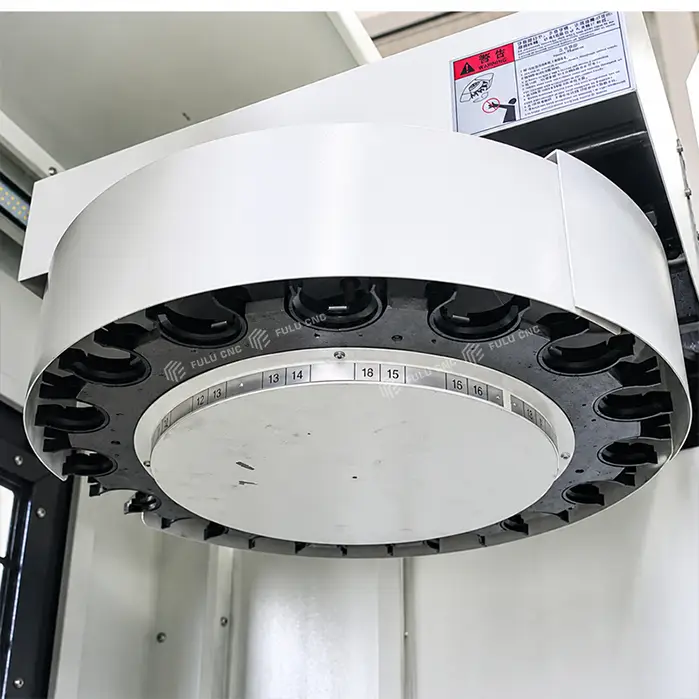

16-Tool Umbrella Type Tool Magazine

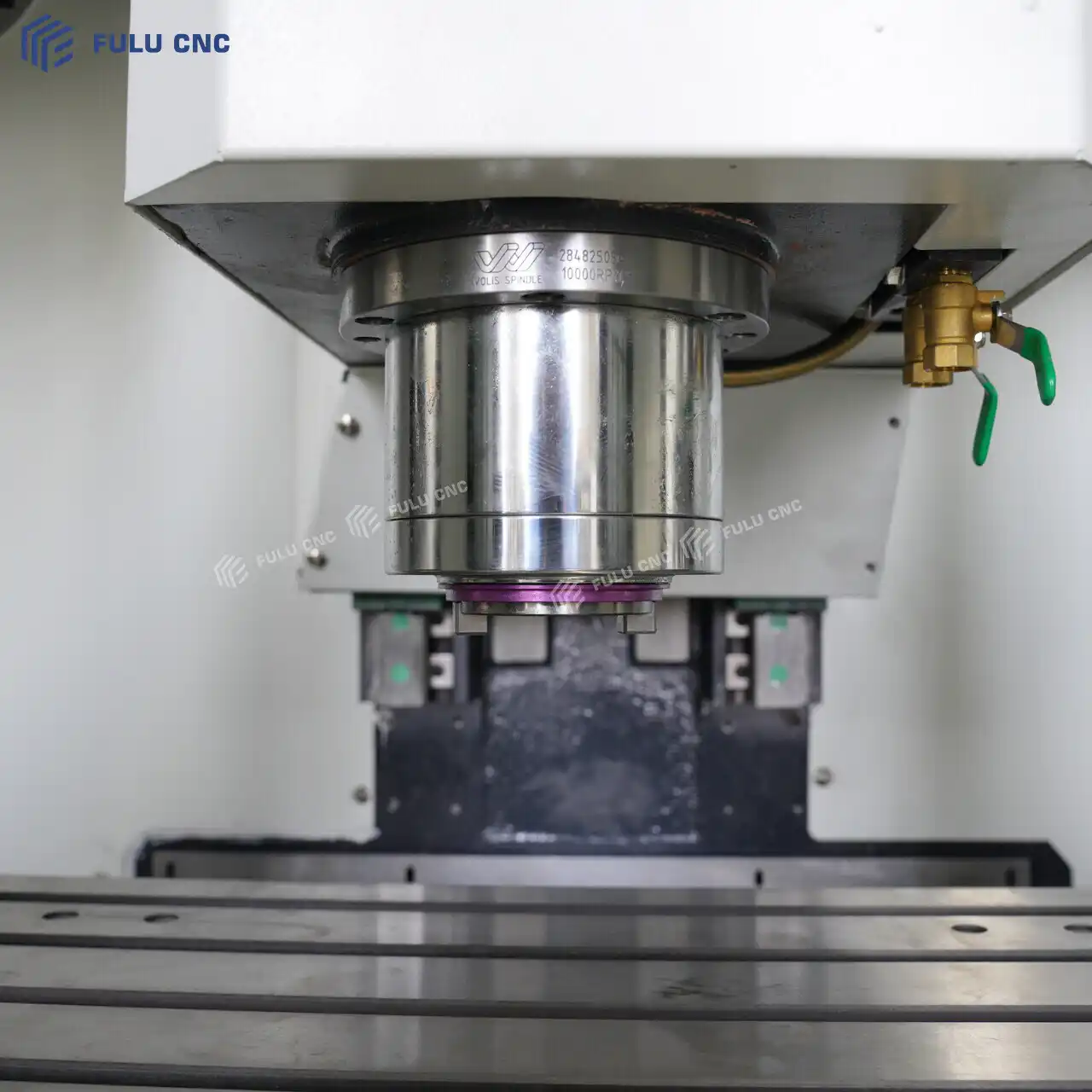

Spindle
Cooling System
You can choose the control system you need according to your production requirements.
You can choose the cooling method you need based on your production requirements.
You can choose the configuration you need based on your production requirements.
Parts
Machinable Parts
Vertical machining centers are ideal for machining injection molds, die-casting molds, mold cavities, and other precision mold components. High spindle speed and stable cutting performance help achieve accurate contours, smooth surfaces, and consistent machining quality.
Suitable for machining mounting plates, base plates, connecting plates, and other flat components. A CNC machining center can efficiently perform milling, drilling, tapping, boring, and other operations in a single setup, improving productivity and accuracy.
Machining centers are widely used for gearboxes, housings, machine casings, and other box-type components. Multiple surfaces, holes, grooves, and mounting features can be precisely machined, making them suitable for complex industrial components.
Mechanical brackets, mounting brackets, and structural components can be efficiently processed on a vertical machining center. Flexible CNC machining allows accurate milling of planes, holes, slots, steps, and complex profiles.
Suitable for machining curved molds, blades, complex contours, and other 3D surface components. When equipped with a 4th axis, 5th axis, or 5-axis CNC system, the machine can handle more complex angles and multi-sided machining requirements.
Vertical machining centers provide reliable solutions for fixtures, connectors, equipment components, and other high-precision mechanical parts. High positioning accuracy and repeatability help ensure consistent dimensions and stable quality in both prototype and batch production.
FULU CNC operates a modern manufacturing facility equipped with advanced production equipment, professional assembly lines, and strict quality control systems. Each CNC machine undergoes precision machining, careful assembly, accuracy checks, and comprehensive performance testing before delivery. Our commitment to quality, reliability, and continuous innovation enables us to provide high-performance CNC machine solutions to meet the diverse needs of customers worldwide.
Factory Strength
Machining Center Workshop
Professional manufacturing and strict quality control ensure high precision, stable performance, and reliable machine quality.
Machining Center Optical Machine
The high rigidity of the machine structure provides a stable foundation for precision milling and reliable processing performance.

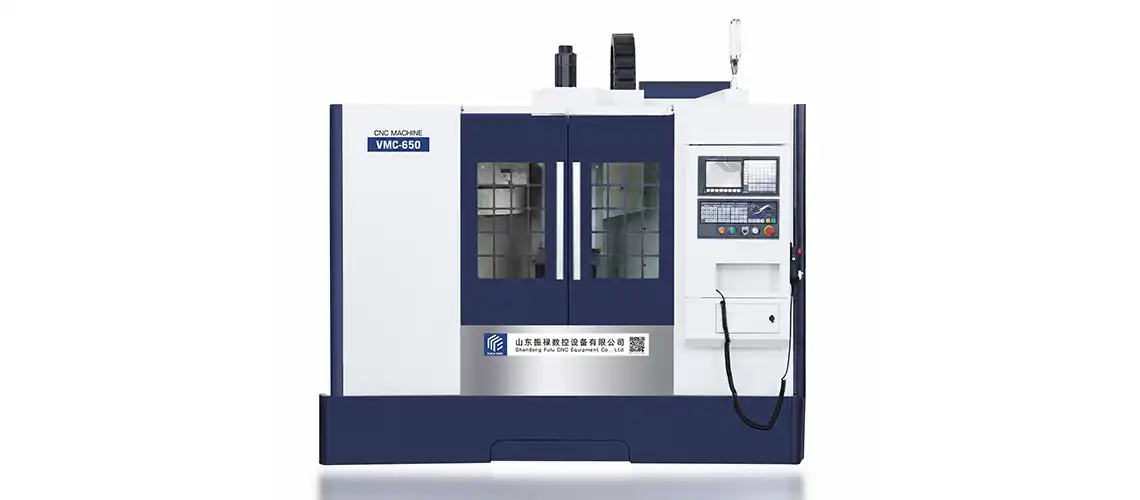

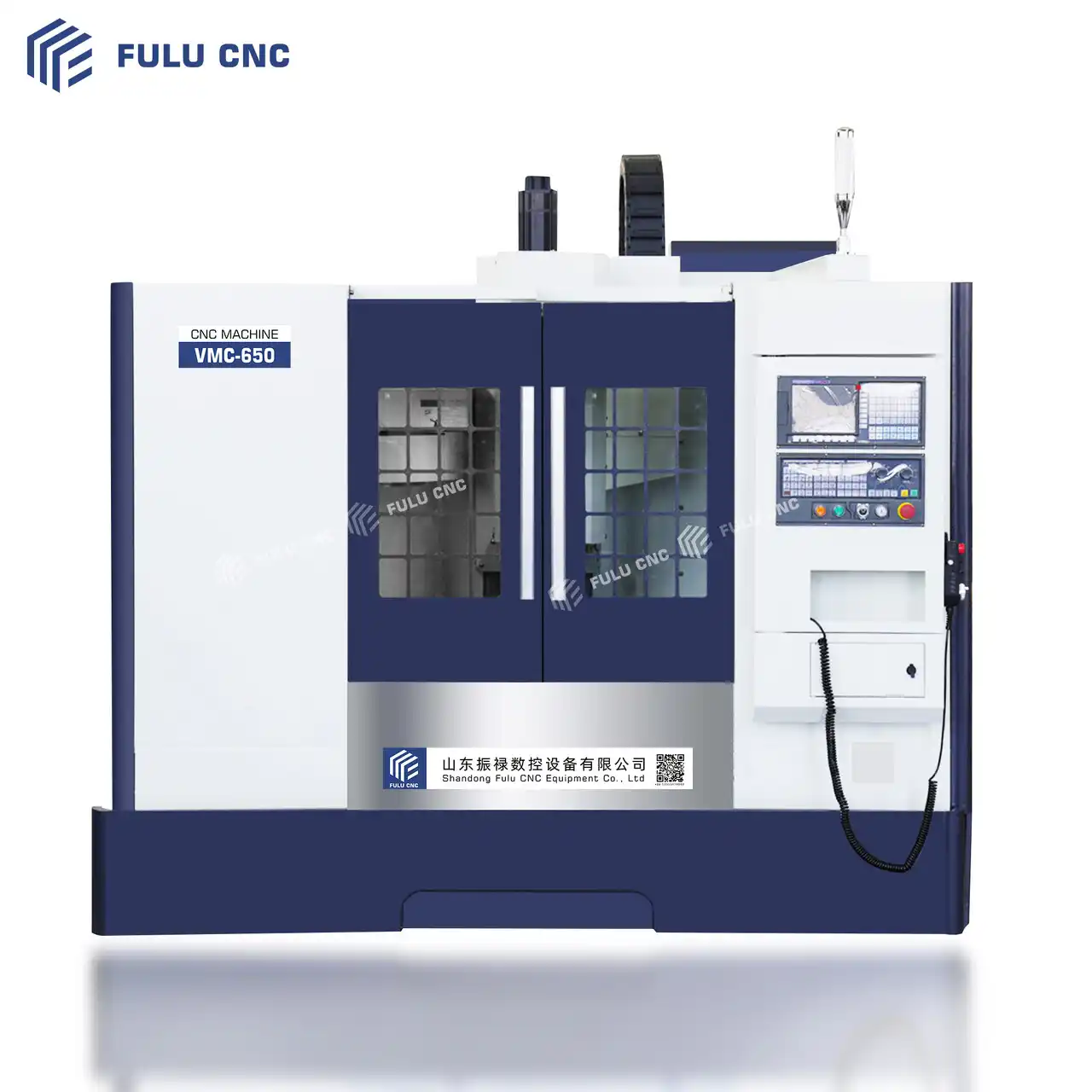

Vertical Machining Center
Advanced CNC technology, robust machine structure, and reliable performance ensure efficient, accurate, and stable processing in demanding industrial applications.
Argentina customer visit
Our clients from Argentina visited the FULU CNC factory to inspect machine quality, understand our manufacturing process, and discuss future cooperation.
Brazilian customer visit
Our Brazilian clients visited our factory, experienced machine demonstrations, and discussed customized CNC solutions to support future collaboration and business growth.
Mexican customer visit
Our clients from Mexico visited our factory to inspect machine production, evaluate product quality, and discuss customized CNC solutions for future cooperation.
